AMX 30 with ACRA gun launched missiles

uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,570
Reaction score
2,460
I have found an article about the French ACRA system which shows a tank destroyer based on the AMX 10 chassis but also refers to a turret for the AMX 30 tank with a gun (142mm) launched version. Have had no luck finding a drawing or picture of this. It would be a French equivalent of the M60 A2 Starship and probably about as practical, but fun nonetheless.

UK 75


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
966
Reaction score
545
No photo, but the full designation: Missile Anti-Char RApide
Launched in the 60s, and cancelled in the early 70s because the price/perf comparison with the KE AT ammo ("obus flèche" in France) was just getting too unfavorable.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,434
Reaction score
303
I wonder if observing the US Army's experiences with Shillelagh on the M60A2 and M551 also contributed to the program's cancellation?


Przezdzieblo

ACCESS: Restricted
Joined
Jul 4, 2007
Messages
28
Reaction score
2
Hello

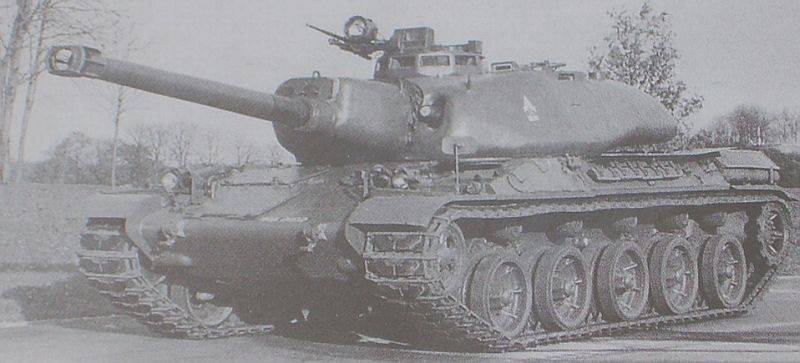

The only photo of ACRA-ed AMX-30 I know:

http://img68.imageshack.us/img68/2143/amx30acraex7.jpg

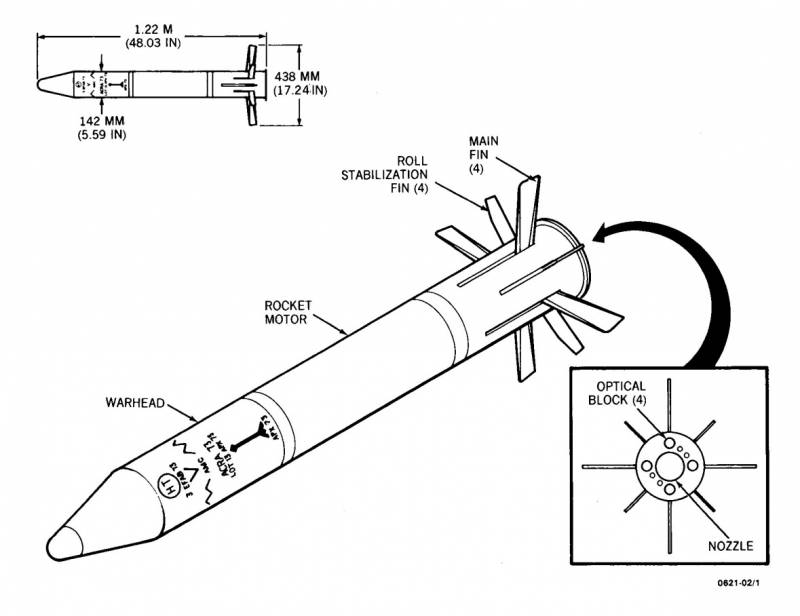

Plus missile (guided; there was also unguided) itself:

http://img428.imageshack.us/img428/8774/g0621u011nu6.jpg

http://img428.imageshack.us/img428/228/g0621u021uj7.jpg

http://img428.imageshack.us/img428/3157/g0621up0011gb2.jpg
Nothing more I got.

with regards
P.


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,570
Reaction score
2,460
Many thanks for the picture and drawing, just what I was after!

UK 75


Kiltonge

Greetings Earthling
Joined
Jan 24, 2013
Messages
202
Reaction score
22

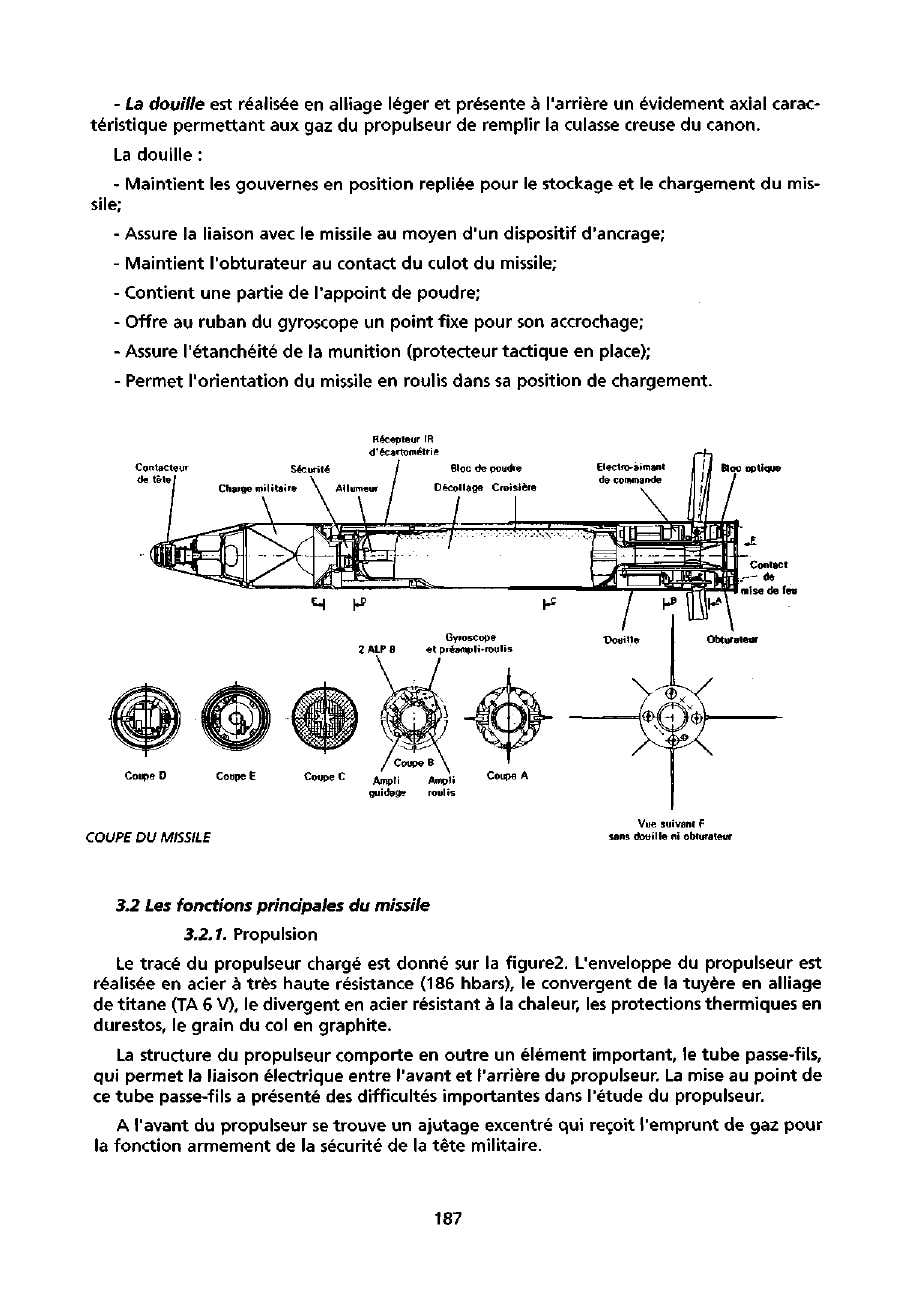

Interior drawing of AMX-30 ACRA turret here:

http://www.scribd.com/doc/38606186/COMHART-T10-Armements-antichars-missiles-guides-et-non-guides-France-2008#page=186

I only scan-read that chapter ( was researching HOT / Entac ) but it did note that the decision to focus ACRA deployment on the AMX-10 ( instead of -30 ) utterly disrupted the project, plus the sheer cost of the seeker at FR 1 million a shot meant that it would only rally be used for very high value targets.

At the same time, advances in gun laying and aiming ( thanks to computers ) were reducing the need for direct-fire guided projectiles of that type.

ACRA also suffered in that it could not be deployed from helicopters, which was felt to be the anti-armour platform of the future.

C

CostasTT

Guest

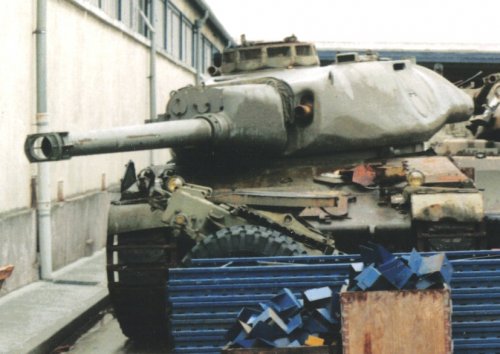

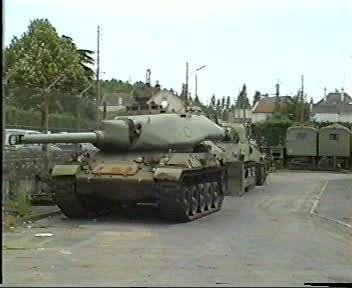

A couple more pictures from the prototype residing at Saumur.
Unfortunately, I can't remember where they came from.


Attachments

  • AMX-30 ACRA_01.jpg
    AMX-30 ACRA_01.jpg
    13.7 KB · Views: 123
  • AMX-30 ACRA_03.JPG
    AMX-30 ACRA_03.JPG
    329.3 KB · Views: 98

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,452
Reaction score
1,540
Website
beyondthesprues.com

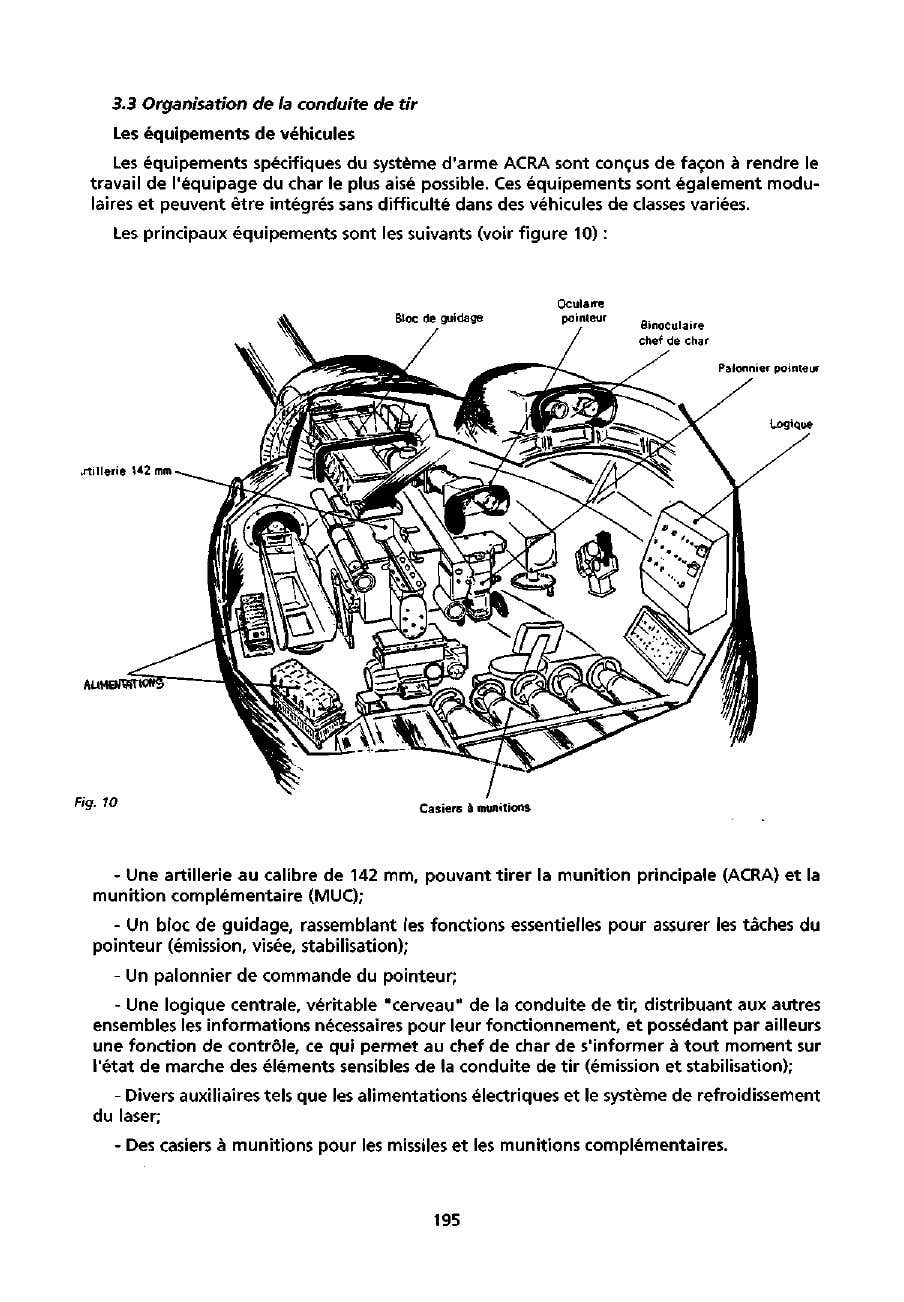

Interior drawing of AMX-30 ACRA turret here:

http://www.scribd.com/doc/38606186/...les-guides-et-non-guides-France-2008#page=186

I only scan-read that chapter ( was researching HOT / Entac ) but it did note that the decision to focus ACRA deployment on the AMX-10 ( instead of -30 ) utterly disrupted the project, plus the sheer cost of the seeker at FR 1 million a shot meant that it would only rally be used for very high value targets.

At the same time, advances in gun laying and aiming ( thanks to computers ) were reducing the need for direct-fire guided projectiles of that type.

ACRA also suffered in that it could not be deployed from helicopters, which was felt to be the anti-armour platform of the future.
Reposting image since original link non-functional:
