Hi all,

a drawing from the Alexejew/Alekseev I.216. Source: FliegerRevue

Servus Maveric


Attachments

  • i-216.jpg
    119.2 KB · Views: 1,821

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,891
Reaction score
821
:eek: ... never heard of this !!

Any dates or timeframe given for this project !??

Thanks for posting.

Deino


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109
hello deno
from "aviation magazine" a long time ago :
The Alexeiev "I216" was a projet of 1946/47 derived from the "I 215"
whith 2 Derwent engines and 2 57m/m canons NS 37 OR
113P57 with 35 shells each
This projet was studies to counter the new American bomber Convair B36
but during trials the exessive recoil of this arms stopped the project.
Bye


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,983
Reaction score
106
I personally prefer the models with rear gunners. Given that pre-Korean had lower power/weight ratios, low g-limits, a tendency to high speed stalls and near-transonic but still limited speed ranges, it becomes clear that for a limited time between 1945-1955 a small surface area fighter with a rear gunner could have been very feasible. It is perhaps the only period in the history of air combat where a gunner equipped fighter might have worked.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
622
Reaction score
315
It was the Alekseyev's I-212 that had a twin-gun rear turret. Here is its drawing:

Regards
Piotr


Attachments

  • I212_2.jpg
    59.6 KB · Views: 1,450

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,257
From the AirInternational series "Fighter from A to Z", back in the

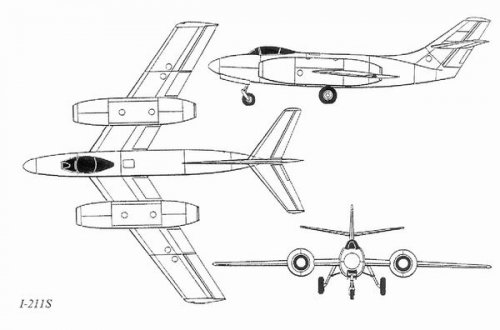

'70s, I think, the Alekseyev I-211S and I-215.


Attachments

  • Alekseyev I-211S.jpg
    Alekseyev I-211S.jpg
    28.7 KB · Views: 1,315

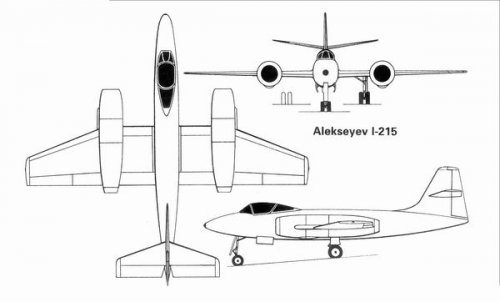

  • Alekseyev I-215.jpg
    Alekseyev I-215.jpg
    21.6 KB · Views: 1,283

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386
some technical data: Crew 1 / span 12,25m / length 11,54 / area 25,0m² / mTO 7500kg / Vm 930km/h / range 1000Km
2 RR "Derwent V" 15,6kN

Servus Maveric


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140
2 57m/m canons NS
Two variants of the arms were planned.
First: between floor pressurized cockpit and leading gear - 3 x N-37 (30 projectiles), or 6 x 23 mm.
Second: two guns 57мм or even two 75мм (NS-76) by OKB-16

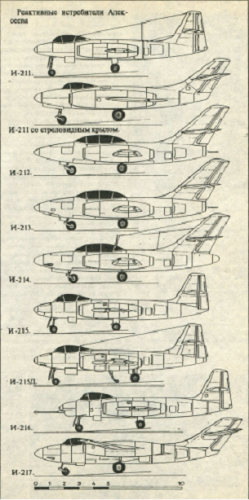

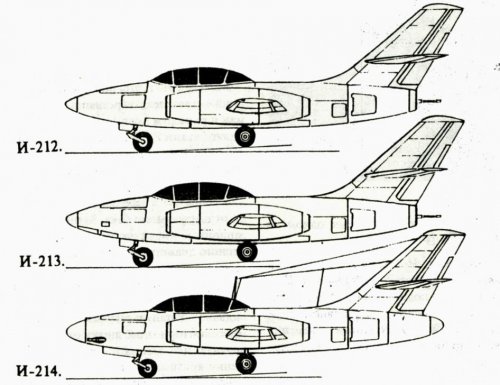

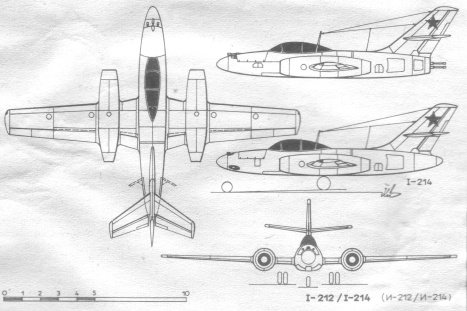

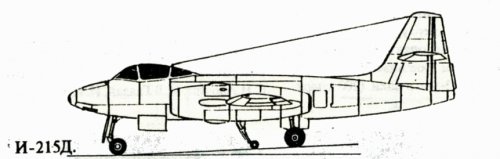

Other projects by Alekseev :


Attachments

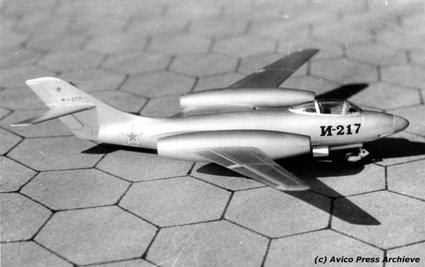

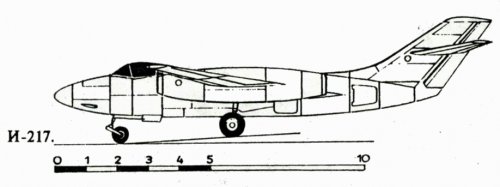

  • I-217.jpg
    84.7 KB · Views: 196
  • I-215 D (bicycle gear).jpg
    I-215 D (bicycle gear).jpg
    80.2 KB · Views: 196

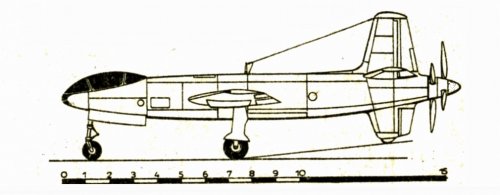

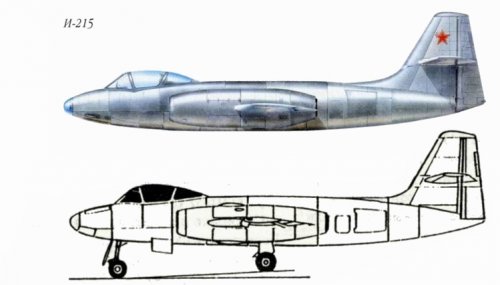

  • I-215.jpg
    81.8 KB · Views: 208
  • I-212, I-213, I-214.jpg
    I-212, I-213, I-214.jpg
    83.9 KB · Views: 312

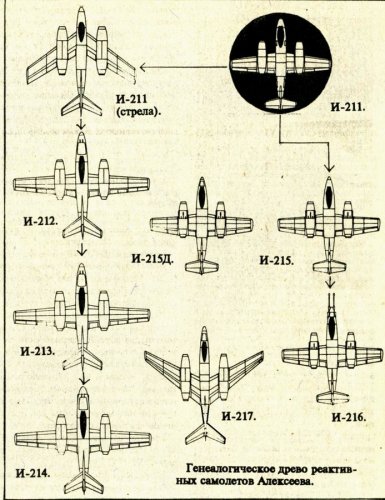

  • fighters by Alekseyev.jpg
    fighters by Alekseyev.jpg
    121.1 KB · Views: 1,303

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140

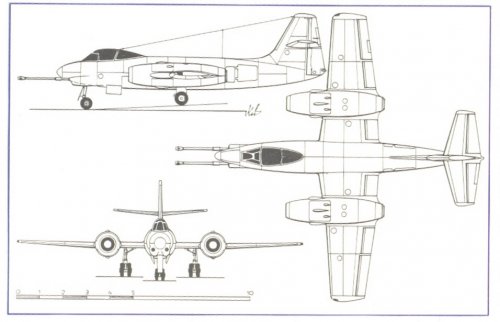

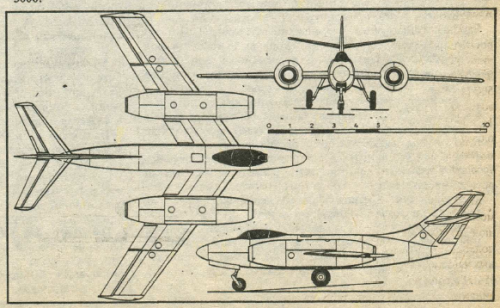

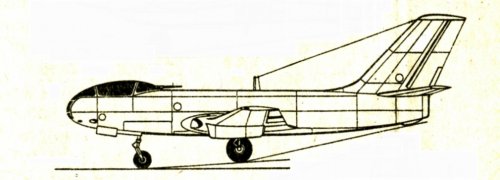

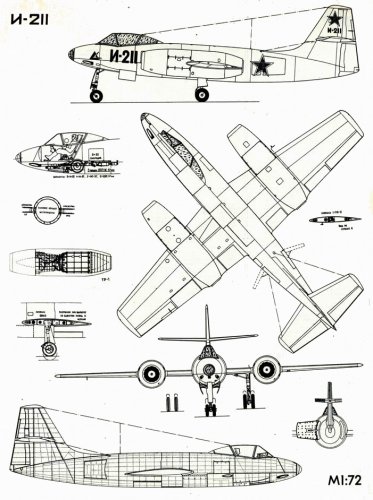

1) I-211 three views

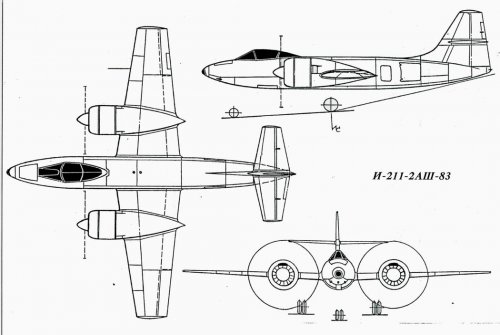

2) I-211(2xASh-83) fighter escort for Tu-4

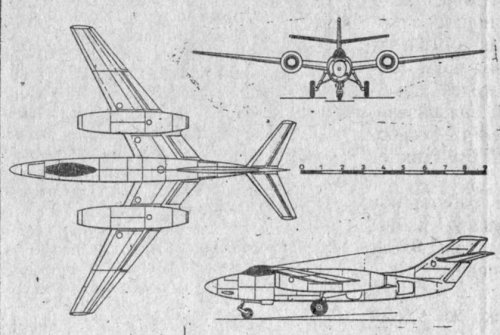

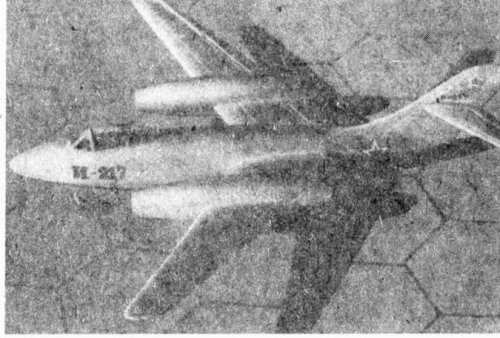

3)-4) I-217 forward swept wing


Attachments

  • I-217  FSW.jpg
    I-217 FSW.jpg
    89.3 KB · Views: 237
  • I-217 3v.jpg
    I-217 3v.jpg
    78.7 KB · Views: 278
  • I-211 (2xASh-83) .jpg
    I-211 (2xASh-83) .jpg
    70.4 KB · Views: 299
  • I-211 3v.jpg
    I-211 3v.jpg
    286.9 KB · Views: 260

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140
Shturmovik Sh-218 aka (I-218), izdelie ”218”; /rival Il-20 /
1) Sh-218 model

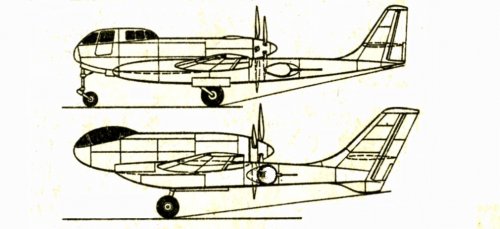

2) Sh-218-1 , Sh-218-1B ( “219”)
4) Sh-218-II ( “220”)
3) Sh-218-III ( “221” )
Sources: “Kryl’a rodiny” 1993 ##10, 11
“Aviatsia & Cosmonautic’
Edit: In parentheses are designations are sometimes used in the west press(concerning/about Russia))) and are not correct!


Attachments

  • Sh[I]-218 model.jpg
    Sh[I]-218 model.jpg
    83.6 KB · Views: 218
  • Sh-218-1,  Sh-218-1B.jpg
    Sh-218-1, Sh-218-1B.jpg
    219 KB · Views: 257
  • Sh-218-III.jpg
    177.1 KB · Views: 243
  • Sh--218-II.jpg
    185.2 KB · Views: 238

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
554
Reaction score
165
Website
www.avicopress.ru

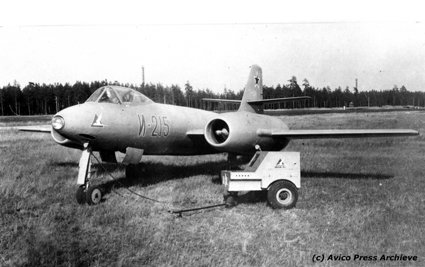

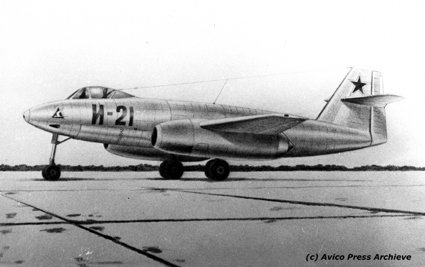

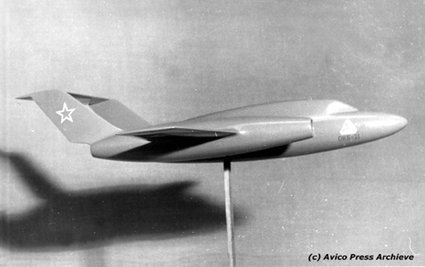

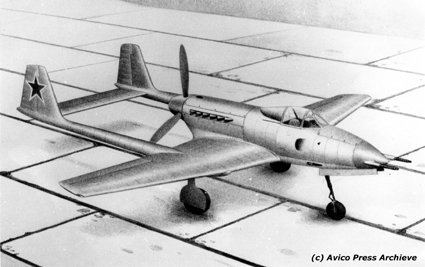

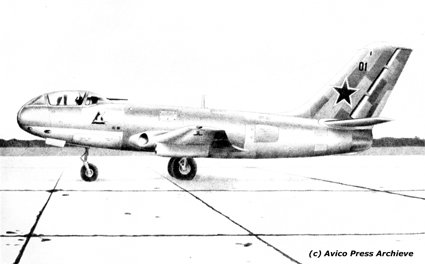

Hi, Guys!
Let me also add something about Alexeev aircraft


Attachments

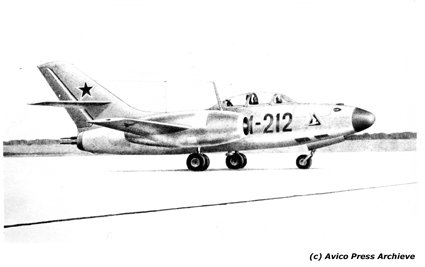

  • I-212.jpg
    45.5 KB · Views: 230
  • I-211-P.jpg
    64.6 KB · Views: 260

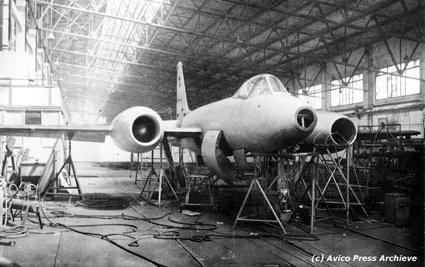

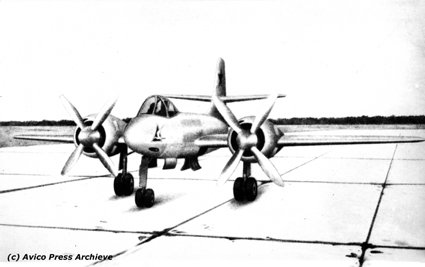

  • I-211.jpg
    99.2 KB · Views: 226
  • I-21.jpg
    71 KB · Views: 209

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
554
Reaction score
165
Website
www.avicopress.ru
Next


Attachments

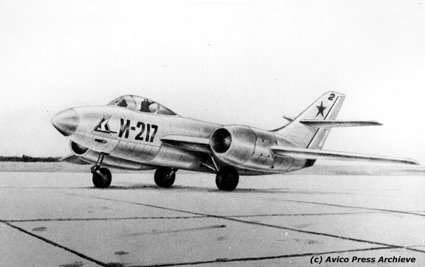

  • I-217-1.jpg
    79.2 KB · Views: 200

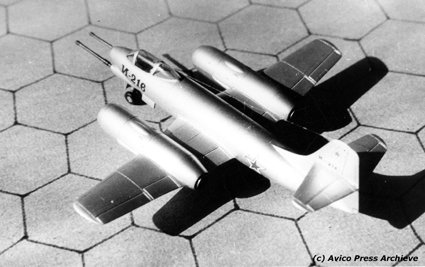

  • I-216.jpg
    86.2 KB · Views: 202
  • I-215.jpg
    81.2 KB · Views: 180

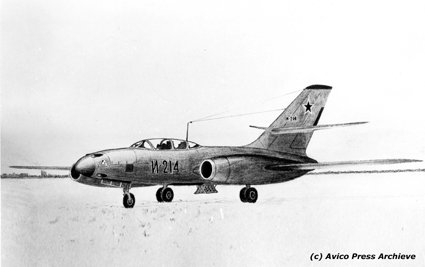

  • I-214.jpg
    59.3 KB · Views: 166

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
554
Reaction score
165
Website
www.avicopress.ru
More


Attachments

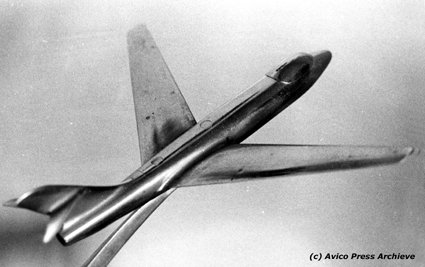

  • I-217-2.jpg
    69 KB · Views: 187

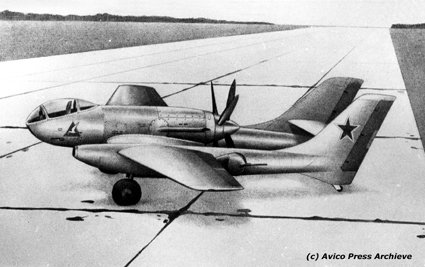

  • I-218.jpg
    87 KB · Views: 243
  • I-218-1.jpg
    88.1 KB · Views: 223
  • I-218-2.jpg
    58.3 KB · Views: 218

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
554
Reaction score
165
Website
www.avicopress.ru

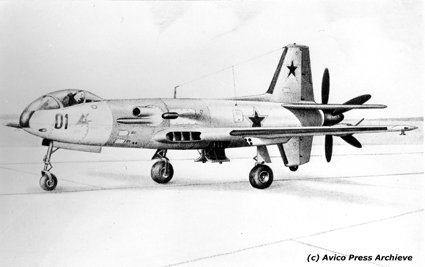

More and last.
Best regards to all and to Borovic also)))
Ucon


Attachments

  • Alexeev-project.jpg
    70.5 KB · Views: 213
  • Single-seater bomber project.jpg
    Single-seater bomber project.jpg
    80.6 KB · Views: 232
  • I-M-250.jpg
    62.1 KB · Views: 281

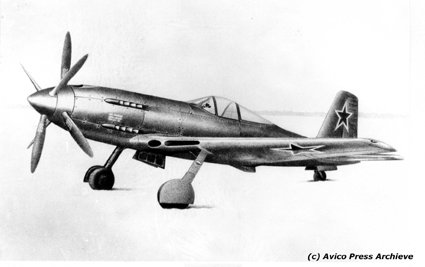

  • I-M-108.jpg
    82.9 KB · Views: 317
  • I-218-3.jpg
    66.1 KB · Views: 320

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
131
Hi guys,

I do not often "get out" of my german WW2 preferance but I must say this stuff is pretty impressive. RThanks for sharing.

The first aircraft mentioned, the I-216 fields 2x76mm Nudelman-Suranov automatic cannons. It is depicted also at Yefim Gordon`s "Secret Soviet Projects - Fighters" published by Midland.

I, as Varvarin, am particularly interested in I-M-250 and I-M-108. Does the first boast a Dobrynin M 250? If so, neat cowling. Sure the second fields a Klimov Vk-108.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140
ucon said:
... and last.
Ucon
:D
On cause four last projects I must repeat the phrase Deyno at the beginning initially this threads:

":eek:... never heard of this !!

Any dates or timeframe given for this project !??

Thanks for posting."
Thanks again, for these 4 wonderful discoveries you made. ;)
Anatoliy.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
622
Reaction score
315
Very interesting!

BTW, do you have any idea what engine/engines the I-218-2 (i.e. the jet-powered variant) had? I would like to know its dimensions and other data, including its planned armament. Does anybody know anything on that?

Best regards,
Piotr


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Hi dear Borovik,

your pictures here are I-219 to I-221.


Attachments

  • I-221.jpg
    58.3 KB · Views: 637
  • I-220.jpg
    177.1 KB · Views: 667
  • I-219.jpg
    88.1 KB · Views: 780

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
104
One word Borovik.
Overwhelming...!

Thanks.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140
hesham said:
Hi dear Borovik,

you pictures here are I-219 to I-221.
That numeration given by Hesham, to the best of my knowledge, was used by B. Gunston in his "The osprey encyclopeddia of russian aircraft 1875 - 1995" book.


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
554
Reaction score
165
Website
www.avicopress.ru
Dear Borovik!
I have blueprints of those projects. With my great respect to dearest Hesham I can say - 219-221 numerations are invention))))))))))))
Very best regards


Vietcong

Avation Enthusiast from VN
Joined
Jan 11, 2010
Messages
76
Reaction score
4
Website
aviationprojects.blogspot.com
Hello everyones
I have found this aircraft in the book Soviet X-plane
This aircraft was the twin boom pushpull ground attacker or conventional jet attacker.There is also the conventional pushpull version that have similar layout to XB-42 mixmaster.I heve read that one prototype was built but it was not flown.It competitor is IL-20 also abandoned.THe I-219 also one of the I 218 variant but It wasn't built.
Enjoy! ;D


Attachments

  • i218-th.jpg
    8.9 KB · Views: 2,054
  • i219-th.jpg
    4.8 KB · Views: 2,039

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140
Petrus said:
Very interesting!

BTW, do you have any idea what engine/engines the I-218-2 (i.e. the jet-powered variant) had? I would like to know its dimensions and other data, including its planned armament. Does anybody know anything on that?

Best regards,
Piotr
Sorry Piotr, its lack of attentiveness (noticed only now) :-[
"218" - Span -16,43m, length-13,88m, wing area-45,0m2, take-off weight of 9000kg, max. speed- 465km /h, range-1200km, engine-VD-251 (M-250) / Dobrynin, propeller AV-28 the diameter of 3,6 m.
"218-II" - Span -17,4m, length-16,5m, wing area-50,0m2, take-off weight 13000kg, max. speed-735km /h, range-1200km, engine -TR-3/Lyul 'ka or VK-1/Klimov
"218-III" - scale-18,4m, length-17,0m, wing area-55,0m2, take-off weight 12000kg, max. speed-504km / h, range-1300km, engine -M-250/Dobrynin

Armament underneath the fuselage could stoop down to 25-30 degrees.
Planned or 4xNR-23 (to 150 rounds per gun), or 2xN-37 (40), or 2xN-57 (30)
To defend the back-2x20mm gun with remote control ( "218" on the booms), ( "218-III" on the wing) (120)
In the fore part of the booms were placed on three rocket guns ORO-132, ( "218-II", "218-III" under the wing)
In the bomb bay could hang 6x100kg bombs or smaller in the appropriate quantities.
Under the fuselage provided accommodation bomb or torpedo weight to 1500kg. (in overload)


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
I read in Herbert Leonard's Docavia book "Les Chtourmoviks" that the I-218 was a project of 1947. Does anyone know the design date of the I-M-108?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
From Kryl'ya Rodine 10/1993,


here is unknown variant to I-215 (for me) and a good comparison between most
of Alexeyev aircraft.


Attachments

  • I-215.png
    424.6 KB · Views: 383
  • 1.png
    384.9 KB · Views: 428

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140
hesham said:
From Kryl'ya Rodine 10/1993,
here is unknown variant to I-215 (for me)
Typo. Instead of I-215 should be read I-211S

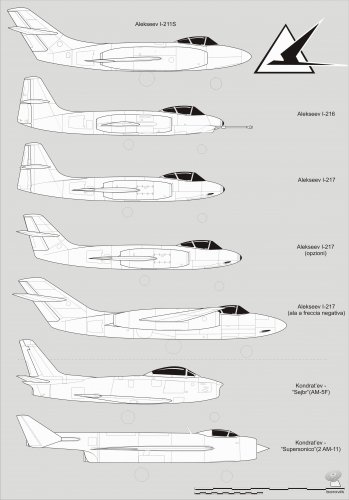

(from book - Alberto Trevisan "Storia ed Evoluzione dei Caccia Sovietici a Reazione,1945-1955"


Attachments

  • Resize of Al-1 a.jpg
    Resize of Al-1 a.jpg
    314.3 KB · Views: 291
  • Resize of Al-2 + Kondr...jpg
    Resize of Al-2 + Kondr...jpg
    377.4 KB · Views: 360

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Amazing drawings my dear Borovik,many thanks.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
By the way,


the Alexeyev I-210 was powered by two BMW 003 turbojet engines.


visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
110
Reaction score
26
A little more:

Storia ed Evoluzione dei Caccia Sovietici a Reazione, 1945-1955
Text: Alberto Trevisan
Drawings: Anatoly Borovik
Language: Italian
214 p. - IBN Editore - 2013


Attachments

  • Copertina.jpg
    206.6 KB · Views: 962

visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
110
Reaction score
26
hesham said:
By the way,


the Alexeyev I-210 was powered by two BMW 003 turbojet engines.

I confirm. Translated from the dedicated chapter of abovementioned book:

"A first configuration of the aircraft or, more likely, a contemporary proposal to the actually built version, appeared again with the engine nacelles arranged under the wing. It is likely to think, with respect to this proposal, that it was an emergency solution, which contemplated even the use of german turbojets in case of failure of the national programs. This version is cited unofficially as the I-210. However, not having reasonable grounds to believe that Lyul'ka would not have developed at least one of the two prototypes being tested at the bench, this hypothesis was discarded and began the construction of two copies of the variant known as I-211."


visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
110
Reaction score
26
I'm sorry for the multiple short replies, but my brain turns on intermittently :-\ :-\ :-\

About the name of ground attack projects, I think that "220" and "221" are to be considered definitely wrong. My opinion is that Alekseyev always put the number 21 ahead of his projects (OKB-21), so they could be read as I-21/1, I-21/2, I-21/5 and so on. He was lucky enough not to go over the 219... Or they would become 2110, 2111... ;)


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

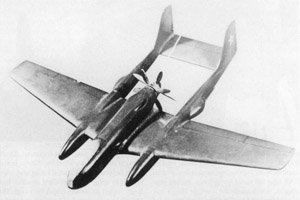

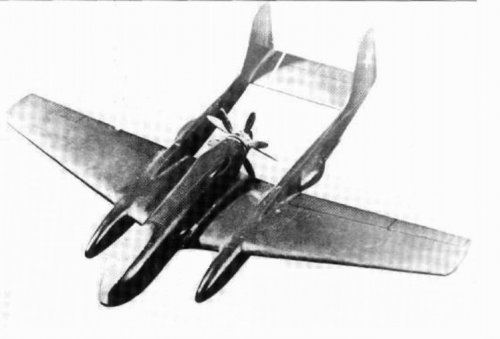

Model of Alekseyev W-218 M-251 project (twin-boom fighter with pusher engine).

Source:
http://aviahistory.ucoz.ru/index/0-542


Attachments

  • 0_fe441_40e760ad_orig.jpg
    27.1 KB · Views: 697

ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
265
Reaction score
161
Most interesting contribution, Triton! In many ways it reminds me a pusher XP-58.

Do you happen to have any additional information/drawings/specifications for this beast? I'd love to see it and am sure others would, too.

With gratitude,

AlanG


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,983
Reaction score
106
That is the I-218 Shturmovik...


See:
http://www.secretprojects.co.uk/forum/index.php/topic,5360.0.html


Borovik was kind enough to post some performance figures on page 2...


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com
Avimimus said:
That is the I-218 Shturmovik...


See:
http://www.secretprojects.co.uk/forum/index.php/topic,5360.0.html


Borovik was kind enough to post some performance figures on page 2...

Wasn't this a World War II era aircraft? :'(


igor-mich

ACCESS: Secret
Joined
May 10, 2010
Messages
216
Reaction score
64
Designer 218 project Semyon Mikhailovich Alekseev .a topic name Igor G. Alekseev are two different people do not have nothing in common with each other.


Similar threads

Top
