Hi guys,

I`ve just found this reference to a projected twin engined twin seat amphibian developed by this famous academy. You could see it here.

http://en.wikipedia.org/wiki/Akaflieg

It`s from 1944, one year after the remarkable B 9. Does anyone could add more on this? Thanks.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
59
A RARA AVIS !!!

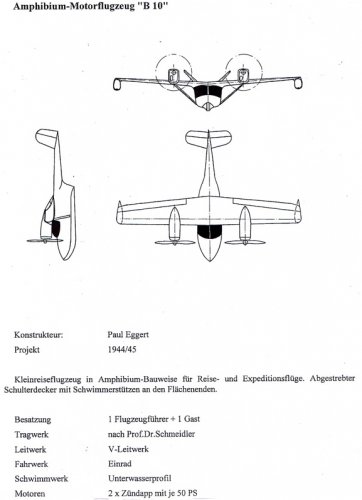

From a publcation of the Akaflieg Berlin

Designer was Paul EGGERT .
The purpose was travel after the war ,for instance following the storks from Germany to Africa : beautiful dream when we remember the Berlin of 1944 !


Attachments

  • B 10.jpg
    B 10.jpg
    104.9 KB · Views: 513

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
993
Reaction score
142
Hello Richard,

many thanks. What a beautiful bird this would be.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
59
I think they were fixed.

Some elements of the fuselage were built !
Work ended in february 1945 !


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
993
Reaction score
142
Hi Richard :),

does your source remarks more engined projects `till 1945?


hole in the ground

ACCESS: Secret
Joined
Aug 6, 2008
Messages
238
Reaction score
12
Fixed! Hmm, ok so either there is a lot of inherant stability that I cant perceive, or the aircraft rests with one wing down and the other pointed at the sky... That'd make taxiing interesting.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
59
The FF or AB 4 is a well known very light hight wing single seater (D-2229) flown in 1932. and the B 9 prone pilot bimotor .


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,305
richard said:
The FF or AB 4 is a well known very light hight wing single seater (D-2229) flown in 1932. and the B 9 prone pilot bimotor .

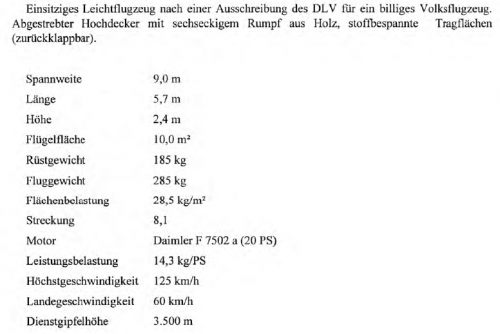

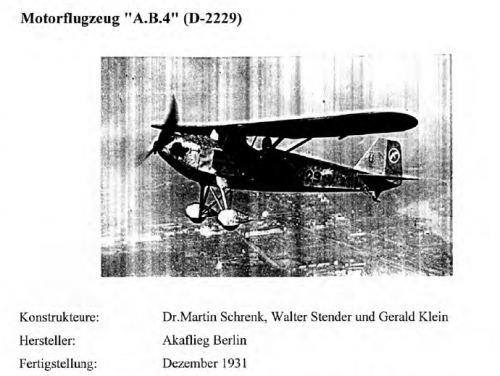

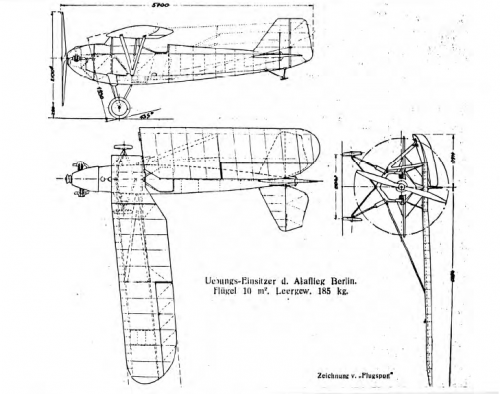

Here is the AB.4.


Attachments

  • 4.png
    245.9 KB · Views: 192
  • 4-1.png
    138.9 KB · Views: 153
  • 4-2.png
    202.9 KB · Views: 155

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,305
Re: Akaflieg Berlin Prototypes and Projects

Hi,

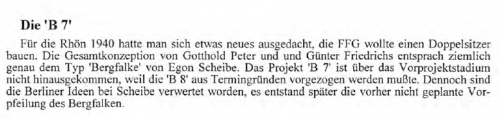

also nothing about B.7 Project.


Attachments

  • B.7.png
    91.3 KB · Views: 169

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
388
Reaction score
717
The Akaflieg Berlin B.7 was a two seat performance glider which was planned to be used in the Olympic competition in 1940. However the B.7 was cancelled with efforts being directed to the B.8 single seat glider.


richard B

ACCESS: Secret
Joined
Aug 17, 2006
Messages
275
Reaction score
328
The Akaflieg Berlin B.7 was a two seat performance glider which was planned to be used in the Olympic competition in 1940. However the B.7 was cancelled with efforts being directed to the B.8 single seat glider.

Do you know a picture of the B.7 ?


VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
388
Reaction score
717
The Akaflieg Berlin B.7 was a two seat performance glider which was planned to be used in the Olympic competition in 1940. However the B.7 was cancelled with efforts being directed to the B.8 single seat glider.

Do you know a picture of the B.7 ?
Not as far as my research has found to this time.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,720
Reaction score
1,180
Fixed! Hmm, ok so either there is a lot of inherant stability that I cant perceive, or the aircraft rests with one wing down and the other pointed at the sky... That'd make taxiing interesting.

That tip float configuration eases docking.
Look at some of the Grumman Geese that were modified after WW2. They were retrofitted with retractable tip floats (ala. Consolidated PBY Catalina flying boat). When approaching floating docks, they retract both tip floats and "lean" on the outboard float. This lifts the inboard float well above the dock, preventing float damage or knocking dock handlers into the water. The raised (inboard) wingtip also allows them to dock with mere inches between their passenger hatch and the dock.
Floating docks are popular at fishing and logging camps along the West Coast of Canada.
