Hi Everyone!

One aircraft (unbuilt as far as I know) is the Gulfstream American (AJI) Hustler 500.
It's mixed power propulsion (a single turboprop forward and a single turbofan aft), and in my own opinion, quite an interesting aircraft.
Here's a colour illustration (as always, I hope it's sized correctly!)


Chuck


Attachments

  • aji1.JPG
    69.4 KB · Views: 524

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
58
Website
theavgeeks.com
Actually the AJI Hustler did fly, but it didn't have tip tanks and it had a T-tail. If anyone has David Mondey's 1980 or so book "Encyclopedia of the World's Civil Aircraft" the AJI 500 has an entry in there complete with picture of the prototype.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
844
Reaction score
145

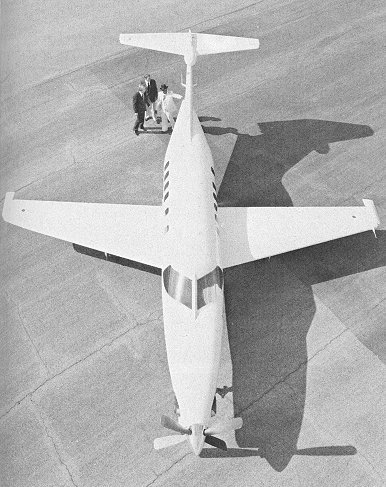

In only know pictures of the Hustler 400, but a Hustler 500 started for the maiden flight in February 1981. The Hustler 400 (with one PT6A-41 and one Williams WR19-3-1) had its first flight on 11 Jan 1978.

Air Progress December 1976:
The turbojet will be used with the turboprop for takeoff and then put on standby for the rest of the flight, to be used in the event of failure of the turboprop engine.

AJI changed into Gulfstream American. Instead of the Williams engine a JT15D-1 was used for the next step. It was necessary to lengthen/extend the forward fuselage by a 81 cm segment. So the door was new positioned in front of the wing. Wingtip tanks were added [!], and the position of the air intake for the jet engine was also changed. In April 1979 using of another turboprop engine was planned. Now the Garrett TPE331-501 powered the aircraft. This was a reason to call it Hustler 500 from now.

SOURCE: Flugzeuge von A bis Z volume 2

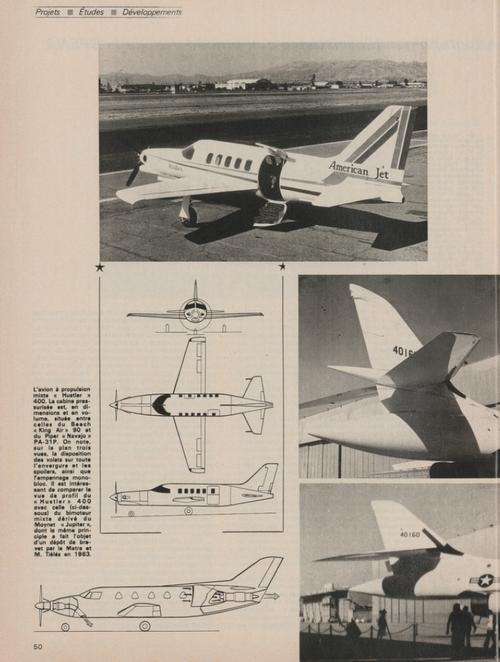

pic 1 -> Air Progress December 1976 (Credits: Tim Stone(?) )
pic 2 & 3 -> Flugzeuge '78 - Katalog Flugrevue
pic 4 -> Flugzeuge von A bis Z volume 2 (Credits: Gulfstream Aerospace)


Attachments

  • American Jet Industries Hustler 400 (pic 1).JPG
    American Jet Industries Hustler 400 (pic 1).JPG
    133.4 KB · Views: 430
  • American Jet Industries Hustler 400 (pic # 2).jpg
    American Jet Industries Hustler 400 (pic # 2).jpg
    81 KB · Views: 446
  • American Jet Industries Hustler 400 (pic # 3).jpg
    American Jet Industries Hustler 400 (pic # 3).jpg
    52.9 KB · Views: 380
  • American Jet Industries Hustler 400 (pic 4).JPG
    American Jet Industries Hustler 400 (pic 4).JPG
    136.7 KB · Views: 387

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
844
Reaction score
145

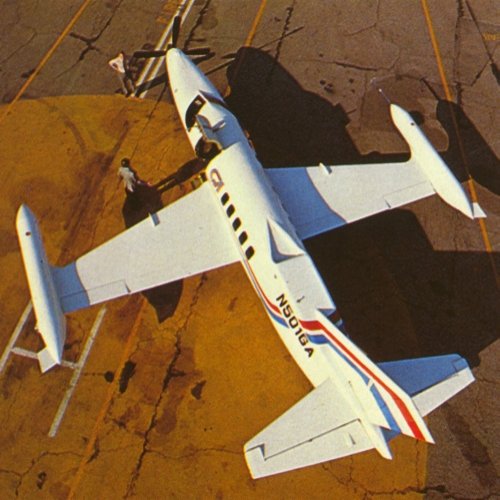

FLUG REVUE 4/1981 says that first flight of Hustler 500 was on 26 Jan 1981. Same magazine published a picture of the aircraft (photographed by Howard Levy).

Chuck, if you need dimensions etc of both variants, please send a PM to me.


Attachments

  • American Jet Industries Hustler 500 (pic 1).JPG
    American Jet Industries Hustler 500 (pic 1).JPG
    239 KB · Views: 159

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
58
Website
theavgeeks.com

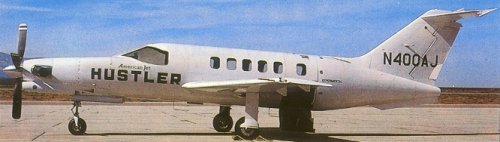

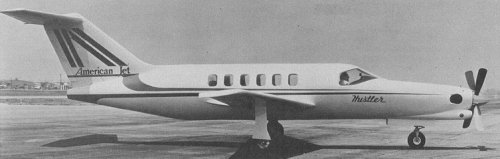

That picture of N400AJ is the one in David Mondey's book from 1980. I didn't know there were two variants flying! Very cool. On another thread somewhere I had mentioned to Evan that Allen Paulson was the head of AJI when it bought Grumman's Gulfstream division and he stayed on as head of Gulfstream for a number of years.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,351
Reaction score
120
If I remember correctly, the Hustler 500 with the turboprop removed served as the starting point for their Peregrine trainer.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

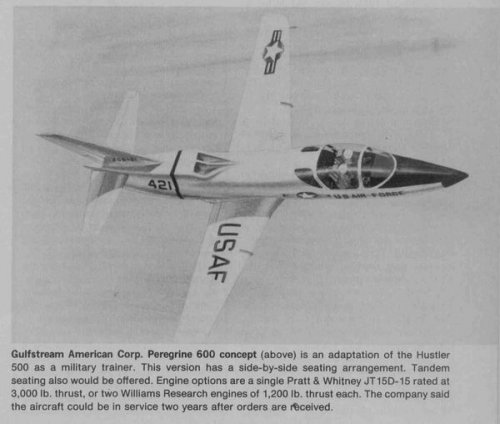

You're right, here's an artist's impressio, shown in Aviation Week 1979 1-9 :


Attachments

  • Gulfstream_Peregrine600.JPG
    37.9 KB · Views: 168

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,741
Reaction score
3,503
My dears,

the Hustler 400 was jet aircraft as six seat business aircraft
led to develope Peregrine 600,and it had not a propellers.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

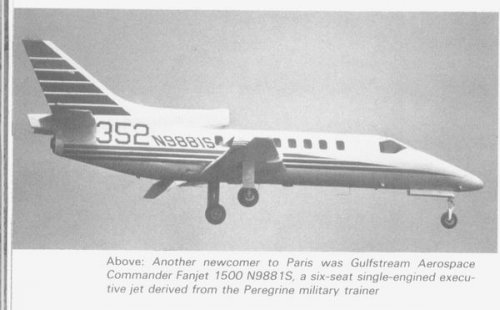

Following AIR Pictorial .8.83, there was an all-jet derivative of the
Peregrine, but that was designated Commander Fanjet 1500 ...


Attachments

  • Gulf-Fanjet-01.jpg
    28 KB · Views: 131

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,741
Reaction score
3,503
Yes dear Jemiba,

the picture shows the Hustler 400 after the AJI company acquire
by Gulfstream,so the aircraft redesign as Fanjet 500.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
844
Reaction score
145
... and FLUG REVUE 4/1985 gives us this artwork/montage as Peregrine. See the different air intake.


Attachments

  • Peregrine.JPG
    129 KB · Views: 127

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
253

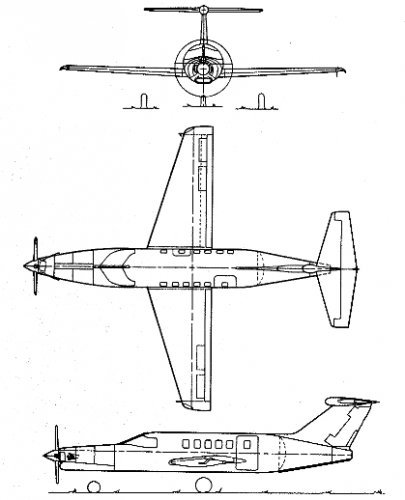

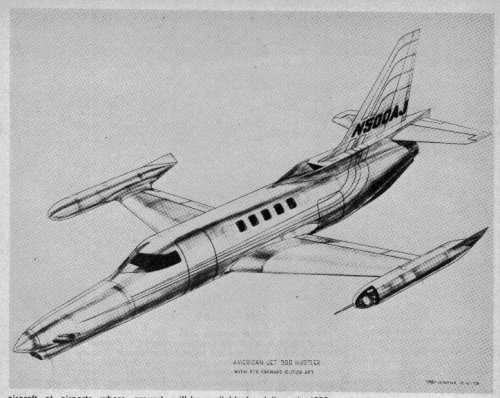

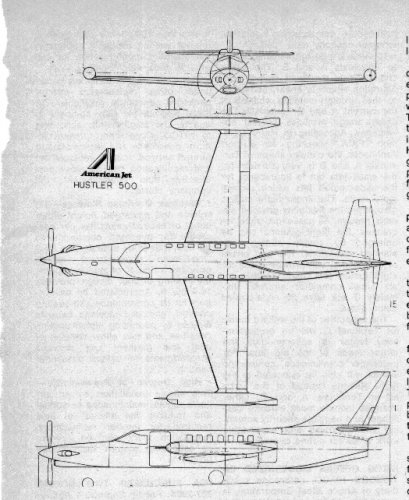

I found this drawing and 3-view of the Hustler 500 while looking through my folders. These came from an issue of Airline Quarterly - date unknown.

Mike


Attachments

  • American Jet Hustler 500 Drawing.jpg
    American Jet Hustler 500 Drawing.jpg
    202.8 KB · Views: 81
  • American Jet Hustler 500 3-view.jpg
    American Jet Hustler 500 3-view.jpg
    192 KB · Views: 104

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
688

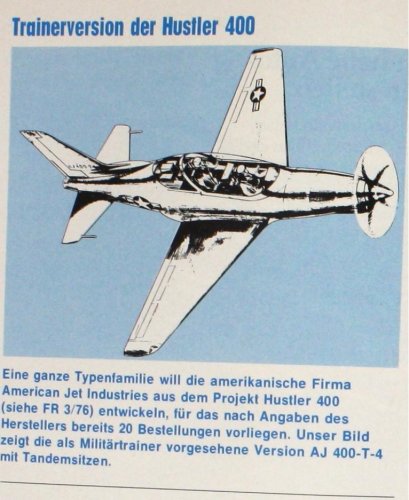

A trainer based on the Hustler 400.
From Flug-Revue 03/1976, page 10


Attachments

  • AJI_Hustler_400_T_4_trainer_FR0376_page10.jpg
    199 KB · Views: 108

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
100
Think the brief history of the Hustler is:
Hustler 400: PoC/technology demonstrator. First flown 11 January 1978 and registered N400AJ. It seems it only had the P&W PT6A-41 nose engine and NEVER flew with a jet engine in the rear. N400AJ had a T-tail.
The Model 400A was the planned production model with PT6A-41 (nose) and Williams WR-19-3 in the tail
Hustler 500: The second aircraft (N501GA) with larger overall dimensions, low set tail plane and intended as the production version. TPE331-10-501 in nose and JT15D-1 in the tail. First flight 26 January 1981.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877
http://machdiamonds.com/hustlerbrochure.pdf


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,741
Reaction score
3,503
fightingirish said:
A trainer based on the Hustler 400.
From Flug-Revue 03/1976, page 10

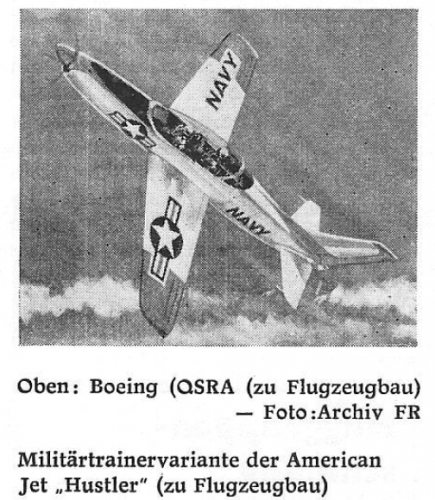

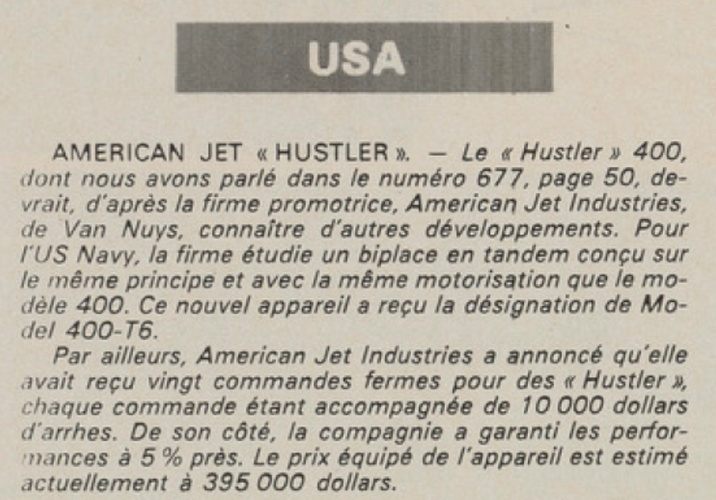

And from Flieger Revue 6/1976.


Attachments

  • 1.png
    303 KB · Views: 162
