Hi,

The Airspeed AS.9 was a single seat fighter project,powered by one
650 hp Napier Dagger II engine,but I have no drawing to it,do you
know for which specification it was designed ?.

J

joncarrfarrelly

Guest

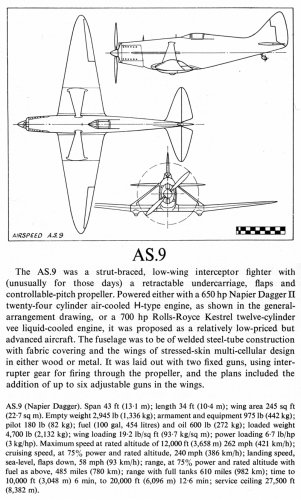

According to 'Airspeed Aircraft Since 1931' it was a private initiative on the part of Airspeed and their first attempt to break into the military aircraft business.


Cheers, Jon


Attachments

  • AS09_01.jpg
    528.9 KB · Views: 734

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,412
Reaction score
217
It would be interesting to see if it had evolved along the lines of other Dagger-powered designs (the early MB designs come to mind).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,549
Thank you my friends,

Can I ask you (joncarrfarrelly) about anther early fighter project to this company,
I heard that it was between AS.12 to AS.28,but I don't know it was existed or not.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
91
Next Airspeed fighter project after the AS.9 was the AS.31
twinboom project with the cockpit in the tailplane I think.

17-18-19-21-22 were Fokker designs.

Sources :Airspeed Aircraft since 1931-Putnam
Aeroplane Monthly : December 1981-January 1982


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,549
My dear lark,

Thank you for your help.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,549
Maybe this beast was submitted to Spec. 40/34 ?.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,490
Reaction score
587
Doubtful as that was for a two-seat Hawker Demon replacement. I would guess that the AS.9 is in the same category as the Martin Baker MB2, a private venture design based loosely on F.5/34
