Hi,

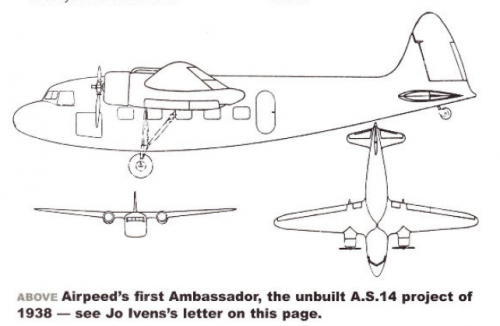

Here is all Info about Airspeed AS.14 & AS.24 transport Projects,even a drawing from
Aeroplane Monthly 12/2003


Attachments

  • 1.png
    157.1 KB · Views: 327
  • 2.png
    76.3 KB · Views: 320
  • 3.png
    83.8 KB · Views: 319
  • 4.png
    88.5 KB · Views: 321

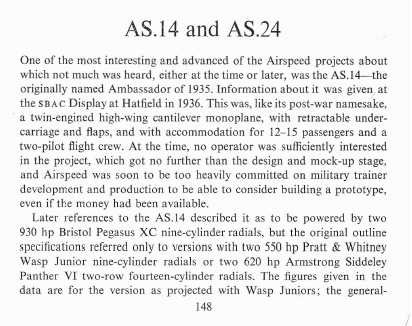

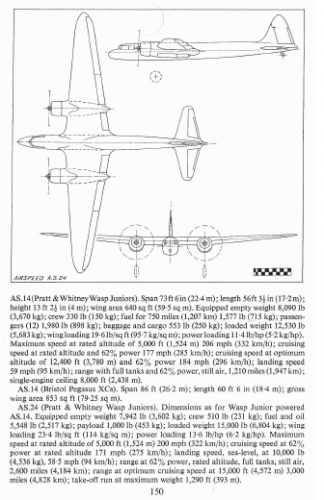

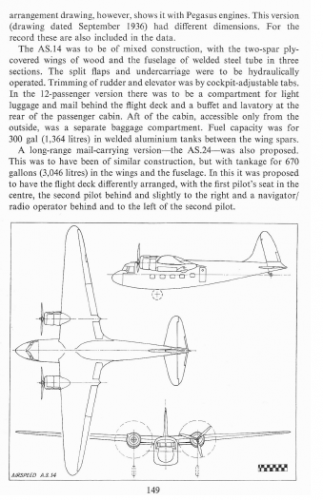

Source for images 2,3 and 4 is Airspeed Aircraft since 1931, by H.A.Taylor

Schneiderman said:
Source for images 2,3 and 4 is Airspeed Aircraft since 1931, by H.A.Taylor

Thanks for mentioning the Putnam book. I thought it seemed obvious enough where it was from when I saw hesham's post, but of course not everyone knows these marvelous volumes!! :)

Yes, it is important to acknowledge the source, as specified here ....

http://www.secretprojects.co.uk/forum/index.php/topic,1385.0.html

...... ;)

There's also the excellent two-part article (8 p.) by Don H.Middleton
about Airspeed projects in the :
Aeroplane Monthly for December 1981 and January 1982.

Yes my dear Lark,

such as this mystery of 1982 Aeroplane monthly.

Hi,

I think there is a re-allocated design,but I can remember it now,also not very sure.
