AFSC Secret Project 1168 Pye Wacket

Rosdivan

ACCESS: Confidential
Joined
Nov 2, 2007
Messages
89
Reaction score
12
[links dead - see below - Admin]

Last edited by a moderator:

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,120
Reaction score
703
Re: Pye Wacket

excellent find!, i've been intrigued this since i read about it in Jenkins' XB-70 book,

cheers,
Robin.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
9,286
Reaction score
4,105
Website
www.aerospaceprojectsreview.com
Re: Pye Wacket

Stargazer2006 said:
Documents listed in first post are no longer accessible.

I have found something interesting in the NACA archives and I wondered if this had anything to do with Pya Wacket at all.

Model 1665? No, that's a model of a manned re-entry vehicle. An early Apollo-type concept.


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,045
Reaction score
47
Re: Pye Wacket

The Pye Wacket is a fascinating missile development that I've had great interest in for awhile, mostly due to it's outstanding agility: Supposedly able to do 250g+ at Mach 3 at the very least in a proof of concept development.

The weirdest thing was a mention about reducing the agility of the weapon to some extent during development: I cannot fathom why one would do this

Last edited:

Basil

ACCESS: Secret
Joined
Aug 10, 2009
Messages
294
Reaction score
83
Re: Pye Wacket

Yes, it was a fascinating missile project. There is a good and detailed development story in the "Valkyrie" book by Jenkins & Lanids.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,906
Reaction score
3,986
Re: Pye Wacket

Not sure if this is related. Found on flickr

"Yes, the Navy DID spend a few hundred thousand dollars studying the feasibility of a disc-shaped missile system back in the 1970s.

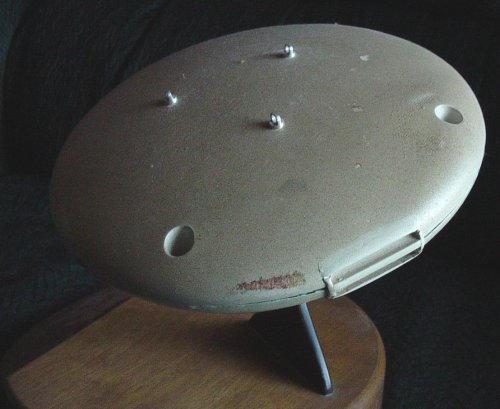

This view of the model shows the rear of the unit - the main engine exhaust is on the edge of the disc. Also visible are the vectoring ports for maneuvering the missile, as well as the standard delivery system lugs on the top.

An artist's rendering (probably by Larry Zabel) showed the proposed system to be about three to three & one-half feet in diameter. I believe it was intended to match the terminal and lethal performance of the Sidewinder missile, but with a lot more maneuverability"

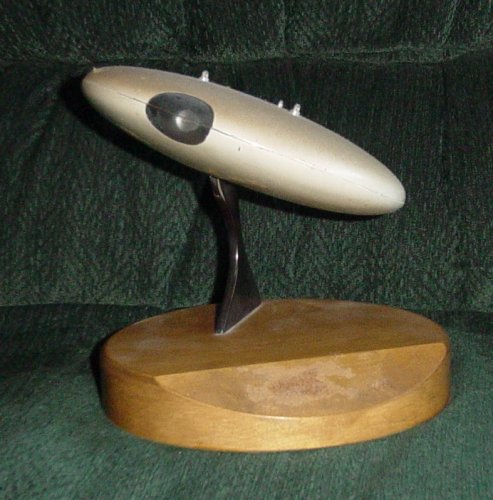

"Front view showing the guidance system window. I believe it was intended to use off-the-shelf components from the Sidewinder missile."


Attachments

  • 2802111738_e22ca1d305_o.jpg
    137.5 KB · Views: 347
  • 2802111954_5dc8d18cba_o.jpg
    241.7 KB · Views: 337

RP1

I see the truth in it.
Senior Member
Joined
Feb 22, 2006
Messages
480
Reaction score
389
Website
rp-one.net
Re: Pye Wacket

Concerning the lethality side - how was the warhead to be arranged in Pye Wacket, and was the weapon expected to get very reduced miss distances or hit-to-kill? I ask this because I have read (I am not sure where) that large wings in way of a warhead could interfere with the fragmentation patter produced and, well... Pye Wacket *is* a wing.


RP1


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,650
Reaction score
6,521
Re: Pye Wacket and Manned ASAT

Oh my God,fantastic,many thanks Astronautix,


and you are welcome.


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,589
Reaction score
3,046
Re: Pye Wacket and Manned ASAT

YES, YES, YES

Encyclopedia Astronautica is back from the dead.

Astronautix, welcome to this Forum


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,721
Reaction score
6,955
Re: Pye Wacket and Manned ASAT

Hello, I see you also posted on Nasaspaceflight.com. Are you Mark Wade himself ? your website remain a valuable resource use by many, so we are glad you come talking with us on space forums.


starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,332
Reaction score
521
Re: Pye Wacket and Manned ASAT

Great stuff, and great to have such a luminary on this board!


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,173
Reaction score
134
Re: Pye Wacket and Manned ASAT

Glad you're back! Now we just need Mark Lindroos to resurrect.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
892
Re: Pye Wacket and Manned ASAT

GREAT!! Not only is the Astronautix site alive and well, but it's back with an in-depth article that will no doubt serve as an absolute reference on a previously little-known topic... Thanks a lot and welcome aboard, astronautix!!


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,906
Reaction score
3,986
Re: Pye Wacket and Manned ASAT

XP67_Moonbat said:
Glad you're back! Now we just need Mark Lindroos to resurrect.

Is he the guy that had the site with the black background and drawings or pictures of a zillion different launch vehicles?


starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,332
Reaction score
521
Re: Pye Wacket and Manned ASAT

sferrin said:
XP67_Moonbat said:
Glad you're back! Now we just need Mark Lindroos to resurrect.

Is he the guy that had the site with the black background and drawings or pictures of a zillion different launch vehicles?


That is he.


astronautix

ACCESS: Restricted
Joined
Jul 27, 2008
Messages
3
Reaction score
1
Re: Pye Wacket and Manned ASAT

Yes, this is Mark Wade. Thanks to all for the kind words.
I hope to be cleaning up the site and adding new content, but it will take time after several years of neglect...


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,266
Reaction score
80
This one is new to me. Does anyone have any info/photos on Pye Wacket? -SP

(Topics merged)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,876
Reaction score
8,843
Merged with existing topic. Some reports:







Mark Wade's article is the best account published and has loads of references:



Attachments

  • Pye Wacket sm.pdf
    2.1 MB · Views: 6
Last edited:

steelpillow

So many projects, so little time...
Top Contributor
Senior Member
Joined
Jun 25, 2014
Messages
1,213
Reaction score
775
Website
www.steelpillow.com
Don't think this has been posted here yet?

Development of Airborne Armament 1910-1961, Volume II Bomber Defense, AFSC Historical Publications Series 61-52-(2), Air Force Systems Command, October 1961.
The discussion of the B-70 includes some mention of Pye Wacket. Note that it is referred to as the DAMS system.

In 1959 "The Lenticular [Defence] Missile, a highly unorthodox lens-shaped device that resembled nothing so much as a flying saucer, was an element of the Defensive-Anti-Missile-System (DAMS) then being developed under Wright Air Development Center auspices." A cylindrical missile propsal was preferred by North American for the B-70, as both lower cost and lower risk, and adequate to the threat of frontal attack from the forward hemisphere. "Should an enemy interceptor with better than Mach 3 speed appear, however, spherical coverage 'might become justified.' The lenticular missile, with an appealing growth potential, seemed deserving of further study, particularly on this score."
Other remarks show that the DAMS defence system [i.e. Pye Wacket], was envisaged as having a nuclear warhead and that, even though the B-70 was the main subject of the discussion and North American were asked to study the DAMS system, the work "would not be tied to the B-70".
The nuclear warhead was being considered for a novel kill mode called "dudding"; blasting the enemy warhead, also assumed to be nuclear, with a dense cloud of neutrons, sufficient to render it inoperative, i.e. a dud. Thus, even if it subsequently triggered, it would not detonate and the bomber crew would not be exposed to any harmful radiation. It was seen as "the only practical and effective [bomber] penetration aid presently known that can defeat a nuclear warhead without detonating it."


Firefinder

ACCESS: Secret
Joined
Oct 6, 2019
Messages
249
Reaction score
377
Other remarks show that the DAMS defence system [i.e. Pye Wacket], was envisaged as having a nuclear warhead and that, even though the B-70 was the main subject of the discussion and North American were asked to study the DAMS system, the work "would not be tied to the B-70".
The nuclear warhead was being considered for a novel kill mode called "dudding"; blasting the enemy warhead, also assumed to be nuclear, with a dense cloud of neutrons, sufficient to render it inoperative, i.e. a dud. Thus, even if it subsequently triggered, it would not detonate and the bomber crew would not be exposed to any harmful radiation. It was seen as "the only practical and effective [bomber] penetration aid presently known that can defeat a nuclear warhead without detonating it."
Remember reading similar that the Nuclear version of the AIM26 Falcon was also design to do similar to bomber nukes apperantly.

Which if true does is a nice little tidbit.
