Aeroprogress / ROKS-Aero / Khrunichev projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
Another two projects;

Khrunichen T-420 Strizh: twin boom passenger/freighter transport
aircraft,it had high wing configuration and
powered by two 420 hp Allison 250-B17C
turboprops mounted at the wing.
Khrunichev T-2402 Dinosaur:medium/long range cargo/passenger
STOL transport aircraft,it had a high mounted
tandem wing configuration in very strange shape
powered by two 3000 hp Klimov TV7-117 turboprops.

Last edited by a moderator:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
Hi,

Khrunichev T-411CX was multi-purpose aircraft,for transport,cargo
and patrol duties.


Attachments

  • T411QU(3%20bhd).jpg
    11.8 KB · Views: 983

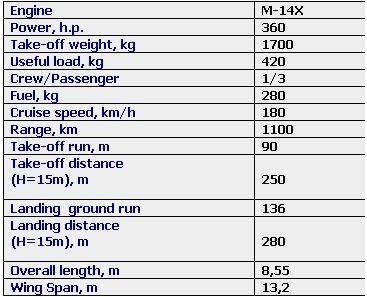

  • data.JPG
    30.1 KB · Views: 756

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
914
Website
deeptowild.blogspot.com
Aeroprogress/ROKS-Aero T-423 and T-455.

From Yahoo! Babel Fish translation from Russian to English.
Here 2 additional uncommon projects this T -423 and T-455. Both projects were developed approximately into 1989, 1990.
Both projects are executed according to diagram “triplane”, and project T -423 has light sweepforward.
By project T -423 we intended to be occupied “close” and in parallel to T -411. But unfortunately, on a number of the reasons independent of us, development project did not obtain.
In the manner that many our of designer participated in the design Su-26, then many solutions “transferred” to the project T -455. The construction of the airframe of aircraft T -455 resembles construction Su-26 and to 60% consists of the plastic elements.

Here [LTKH] of aircraft T -455

Max. takeoff weight [VS], kgf 1330
Max. weight empty [VS], kgf 810
Mass of that equipped, kgf 910
Max. the mass of fuel, kgf 180
Max. the weight of useful load, kgf 420
Distance with max to servicing, km 1150
Speed is maximum, the km/h 350
Cruising speed, the km/h 260
Crew, the man 1-2
Quantity of passengers, man 2-3
Stalling speed, km/h 90
Takeoff distance, m 190
Landing distance, m 150
Model of the engine M-14 P
Maximum power, hp 360
It is long aircraft, m 8,7
Span of wing, m 9,2
Area is wing, sq. m. 19,5
Width of cab, m 1,4
Height of cab, m 1,35

In the first photograph project T -423, to the second and by the third project T -455.

Source:http://www.reaa.ru/cgi-bin/yabb/YaBB.pl?num=1228308628/480


Attachments

  • T-423.jpg
    108.3 KB · Views: 882
  • T-455__1_.jpg
    81.2 KB · Views: 856
  • T-455__2_.jpg
    79.3 KB · Views: 797

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,211
Reaction score
1,518
http://www.secretprojects.co.uk/forum/index.php/topic,2921.msg23494.html#msg23494


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
914
Website
deeptowild.blogspot.com
flateric said:
http://www.secretprojects.co.uk/forum/index.php/topic,2921.msg23494.html#msg23494

Unfortunately, the Deutsche Suchoj Homepage has no source citations. So I am skeptical that the T-455 design was an early design of the Sukhoi S-84. Especially since the two designs are so dissimilar. Does anyone have an authoritative source that can verify this association between the two designs?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
Hi Triton,

also in the same site,there is many little known aircraft
and projects,such as;

T-402,T-404,T-430,T-431,T-434,T-435,T-440,T-440 Mercury,
T-511,T-507,T-517,T-471,T-451,T-419,T-415,T-425,T-481,
T-311,T-443,T-403,T-491,T-527,T-510,T-433 new concept,
T-450,T-472,T-571,T-1001,T-525,T-452,T-453 and T-521.

Also a military projects T-502,T-520 and T-712.

http://www.reaa.ru/cgi-bin/yabb/YaBB.pl?num=1228308628/540


Attachments

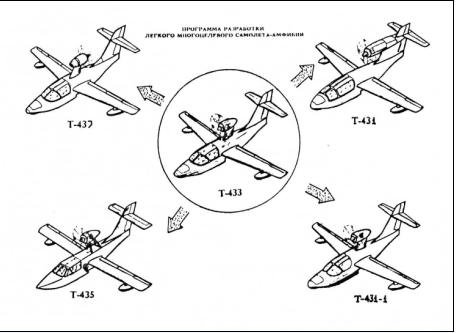

  • T-433 SERIES.jpg
    T-433 SERIES.jpg
    25.6 KB · Views: 89
  • T-425_7_.jpg
    63.3 KB · Views: 78
  • T-425_3_.jpg
    38.2 KB · Views: 103
  • T-425_2_.jpg
    89.7 KB · Views: 140
  • T-414.jpg
    27.7 KB · Views: 141
  • T-412.jpg
    16.2 KB · Views: 151

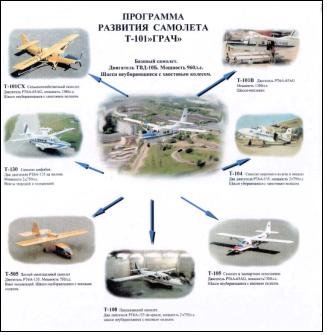

  • T-101.jpg
    20.6 KB · Views: 383
  • T-207.jpg
    22.5 KB · Views: 343

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
And;


Attachments

  • T-603.jpg
    23.5 KB · Views: 155
  • T-527.jpg
    19.1 KB · Views: 107
  • T-510.jpg
    26.9 KB · Views: 120

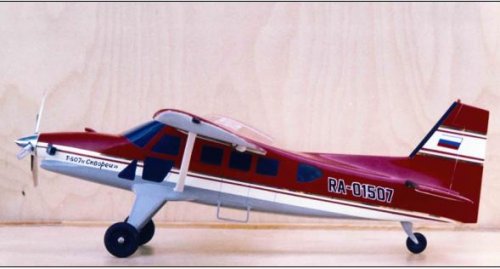

  • T-507.jpg
    24.2 KB · Views: 113
  • T-491.jpg
    19.8 KB · Views: 133
  • T-481.jpg
    22.2 KB · Views: 113
  • T-452.jpg
    107.9 KB · Views: 124
  • T-443.jpg
    34.8 KB · Views: 77

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
15,947
Reaction score
5,520

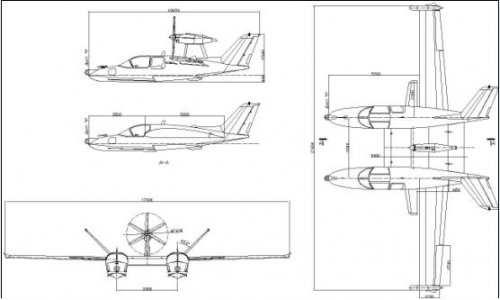

Was the twin hulled flying boat (design T-603) intended to be a one off?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
Hi,

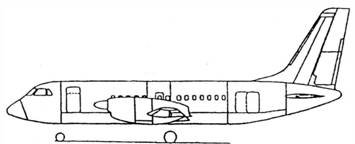

the T-214 was a low-wing medium transport aircraft project,powered by
two TV7-117 turboprop engines.


http://www.uhlib.ru/transport_i_aviacija/krylja_sverhderzhavy/p156.php


Attachments

  • T-214.jpg
    7.1 KB · Views: 54

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
599
Reaction score
303

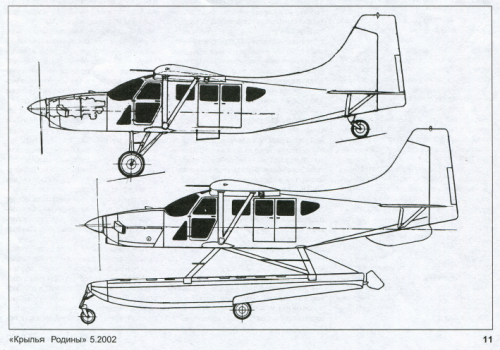

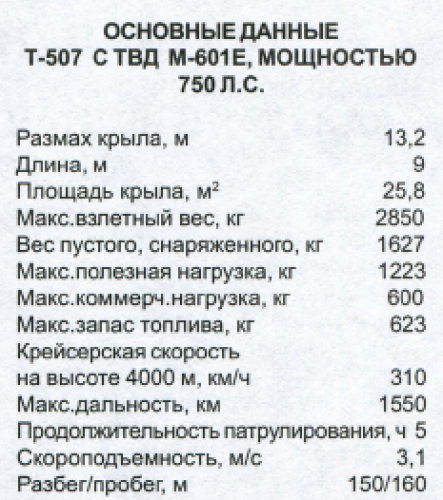

Krilya Rodiny 2002(05) has an article about the T-507 along with drawings of both land and floatplane variants.


Attachments

  • T-507_Details_KR200205.png
    164.9 KB · Views: 62
  • T-507_Land_Float_KR200205.png
    634.9 KB · Views: 76

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
Hi,

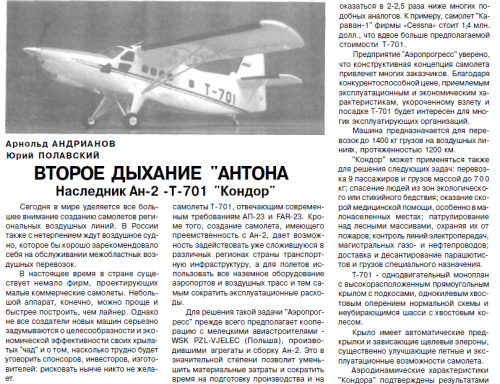

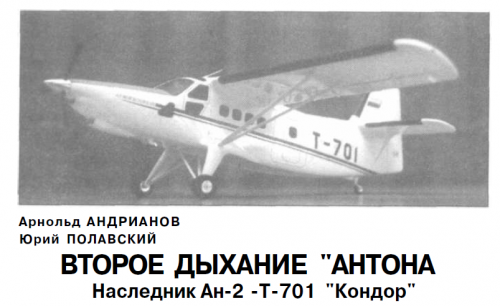

here is the T-701,a turboprop monoplane version of Antonov An-2.


Kryl'ya Rodine 1/2000


Attachments

  • T-701.png
    218.7 KB · Views: 58
  • a.png
    246.1 KB · Views: 53
  • b.png
    138.4 KB · Views: 61

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638

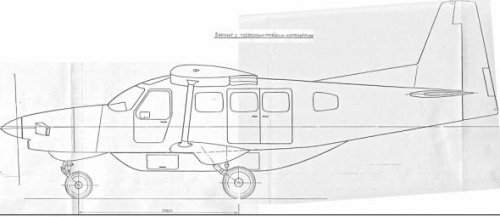

In my files a strange Info,

the Aeroprogress T-440 early design was different from the later one,and powered by
single engine,not two ?.
