1956 Republic fighter by Alexander Kartveli

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,674
Reaction score
4,299

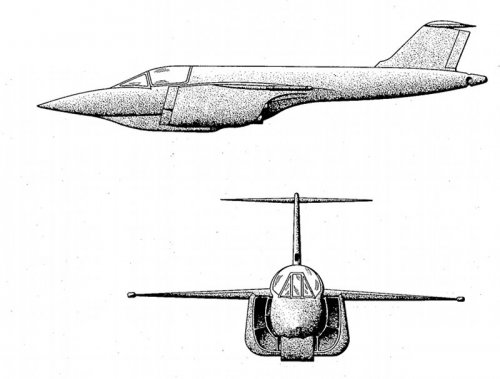

Nice looking, not sure of designation or purpose. Possibly STOL?

http://www.google.com/patents/about?id=82FzAAAAEBAJ


Attachments

  • Republic1956Fighter1.jpg
    62.4 KB · Views: 97
  • Republic1956Fighter2.jpg
    53.9 KB · Views: 99

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
549
Nice! But the tail unit seems ridiculously small to me... any experts on aeronautics around here who could tell us more on this?


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,678
Reaction score
1,730
Most of the mass is up front and it has a long tail boom. The tail doesn't need to be huge.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,303
Reaction score
205
overscan said:
Nice looking, not sure of designation or purpose. Possibly STOL?

http://www.google.com/patents/about?id=82FzAAAAEBAJ

The exhaust right on the CG is a good indication of that. It looks like the intakes are split into two separate parts. I wonder why...


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,123

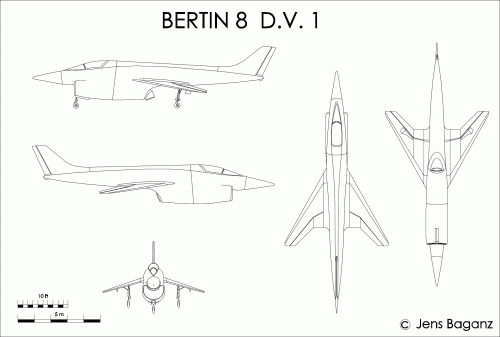

The profile of the fuselage looks similar to the Bertin 8 D.V.1 design
and at the extreme tail, puffer jets seem to be visible. Would they
be needed for STOL, or maybe its a VTOL/VSTOL design ?


Attachments

  • Bertin-8_DV-1.GIF
    97.8 KB · Views: 109

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,303
Reaction score
205
Call me crazy, but I think I see two nozzles stacked vertically per side on the patent side view. You can also see that the intake is split into two sections. At first i thought it was just a structural support, but now i think they might be there to separate the flow going to two different engines. I cannot provide an explanation... ???


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
549
Could it be something like the top nozzles remaining straight for horizontal flight, and the bottom nozzles rotating downwards for STOL capability?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,574
Reaction score
3,012
I love his work very much!
