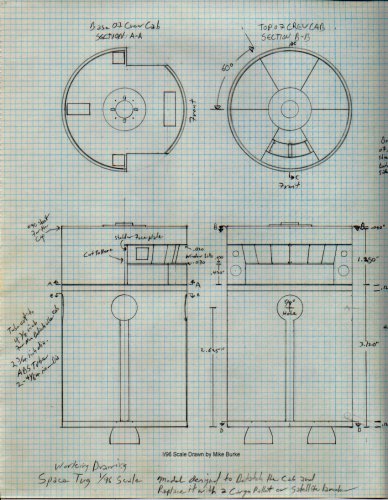

Okay. My first attempt to post these did not work so I'm going to try posting them one at a time. Six drawings.

Several years ago I started working on a model of the tin can space tug that had been featured in a lot of NASA's post-Apollo program concept art. Someday I may get around to finishing the model, but I've decided to share my plan drawings here with the hope that others will build it. Feel free to use these plans for model building and artwork. If you reproduce these anywhere (a big "if" as they are not as clean as they probably should be) please credit me as the source.

Thanks,
Mike Burke


Attachments

  • Space Tug Plan 1.jpg
    Space Tug Plan 1.jpg
    969.7 KB · Views: 55

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
291

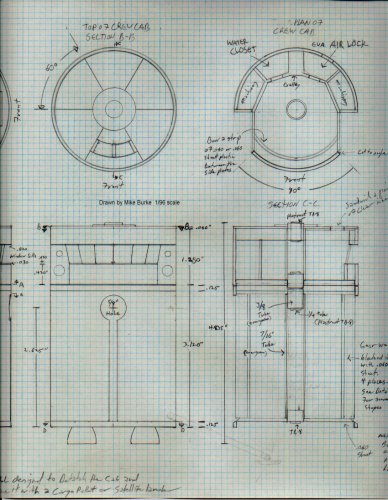

The second drawing.


Attachments

  • Space Tug Plan 2.jpg
    Space Tug Plan 2.jpg
    928.8 KB · Views: 42

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
291
Third drawing.


Attachments

  • Space Tug Plan 3.jpg
    Space Tug Plan 3.jpg
    952.3 KB · Views: 37

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
291

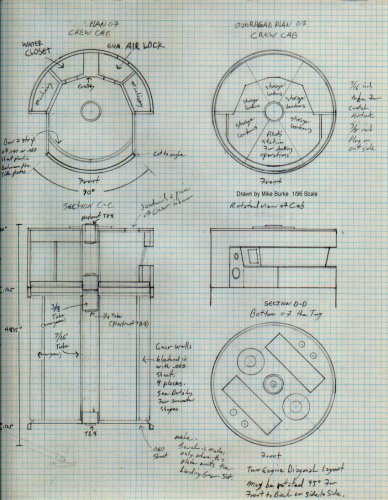

Number four.


Attachments

  • Space Tug Cab Interior.jpg
    Space Tug Cab Interior.jpg
    927.9 KB · Views: 28

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
291

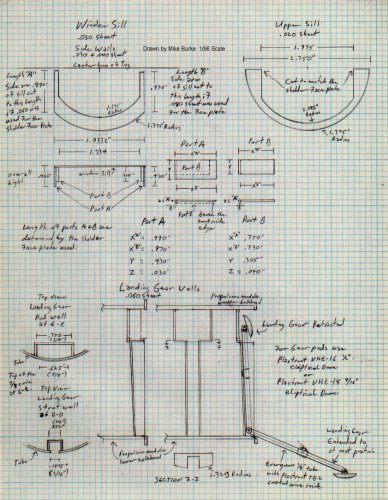

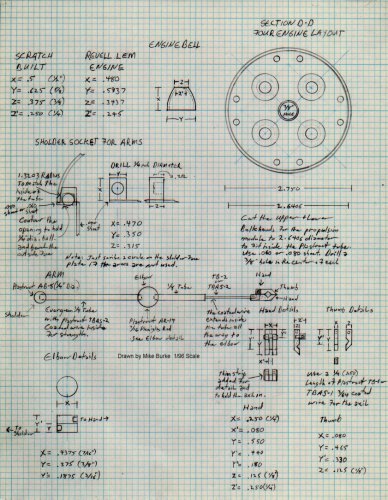

Fifth drawing.


Attachments

  • Space Tug misc details 196 scale.jpg
    Space Tug misc details 196 scale.jpg
    975.1 KB · Views: 28

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
291

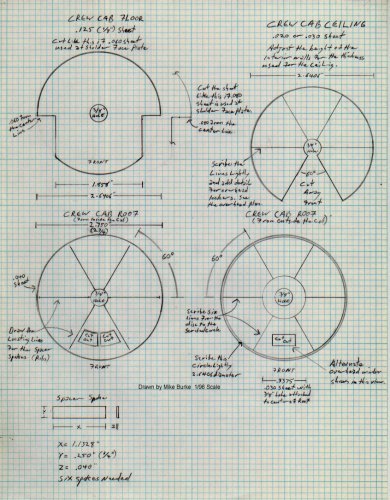

Sixth drawing.

The small tube sections at the top and bottom of the model are attach points. The bottom to put it on a stand and the top to show it docked to something like a space station.


Attachments

  • Space Tug misc details 2 196 scale.jpg
    Space Tug misc details 2 196 scale.jpg
    993.6 KB · Views: 15
