Good Day To All,

The proposed follow-on to Gemini, the Big Gemini Logistics spacecraft was to deliver supplies and personnel to the upcoming military and civilian space stations of the early 1970's.

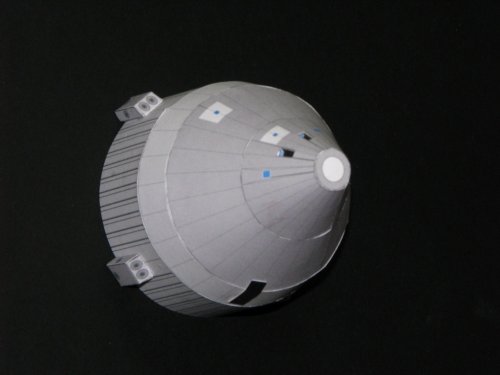

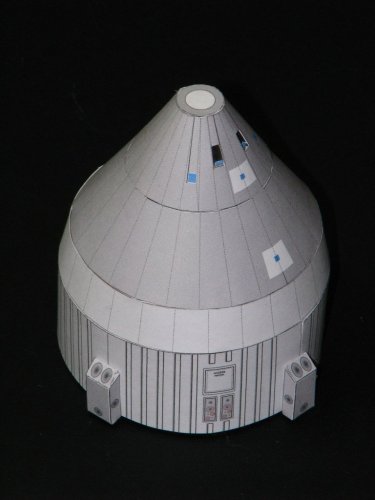

I wondered what a "Big Apollo" Logistics spacecraft might have looked like if North American had extended the profile of the Apollo CSM as a competitor to Big Gemini. Here's my completely conjectural card model of Big Apollo that would ride to orbit on top of an S-IVB. Designed in Metasequoia and the details worked in MSWord.

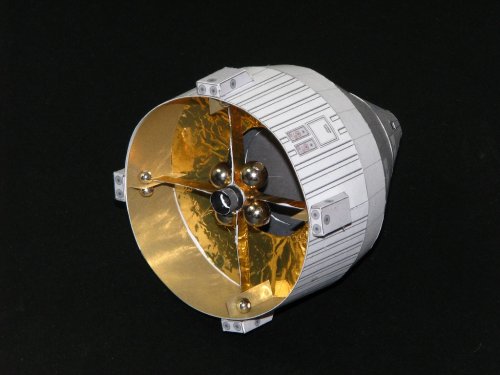

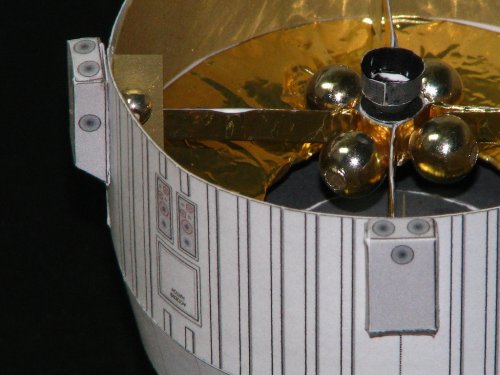

Please excuse the poor workmanship...this was the fit-test prototype build and I wanted to see how gold foil (candy wrappers) would look. At 1/96 scale, the photos show a lot of problems that the eye doesn't see from a distance (I hope).

Steve Austin


Attachments

Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,259
Reaction score
113
Website
www.aerospaceprojectsreview.com
SAustin16 said:
I wondered what a "Big Apollo" Logistics spacecraft might have looked like if North American had extended the profile of the Apollo CSM ...
There were several such designs. The Lockheed BALLOS springs to mind, as does a North American "space bomber" design.


SAustin16

Bravo to All Brave Test Pilots
Joined
Jan 13, 2008
Messages
128
Reaction score
0
Thank you for the kind words Gentlemen.

And for the lead on Ballos and the NAA Space Bomber. I'll check those out.


SAustin16

Bravo to All Brave Test Pilots
Joined
Jan 13, 2008
Messages
128
Reaction score
0

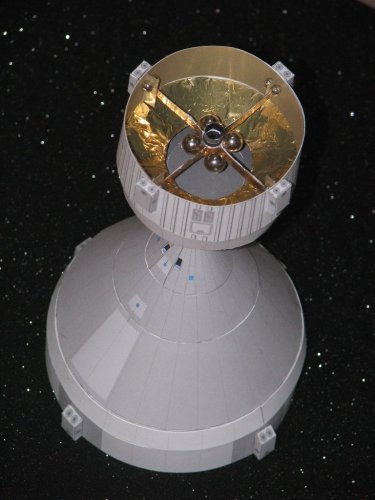

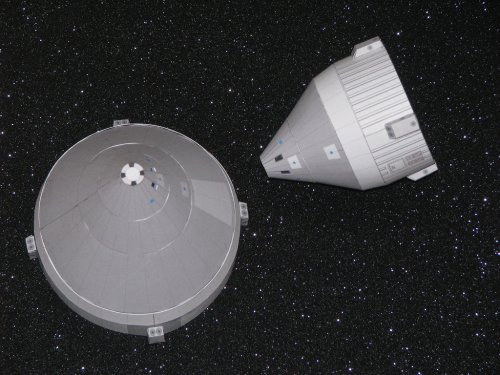

Still completely conjectural. Big Apollo launched on top of an S-IVB rendevousing with it's big brother launched on an S-II. Flying formation then docked nose to nose. Both 1/96 scale card models.


Attachments

OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
0
Website
www.io.com
Orionblamblam said:
SAustin16 said:
I wondered what a "Big Apollo" Logistics spacecraft might have looked like if North American had extended the profile of the Apollo CSM ...
There were several such designs. The Lockheed BALLOS springs to mind, as does a North American "space bomber" design.
...Got links for BALLOS, Scott?
