Yokosuka MXY8 « Akigusa » and MXY9 « Shūka »

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,758
Reaction score
3,385

Attachments

  • Tsu-11.jpg
    23.3 KB · Views: 299

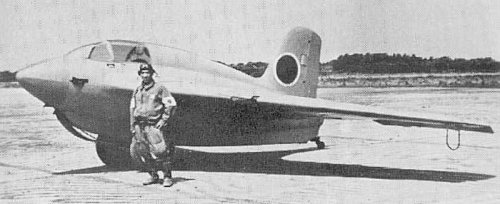

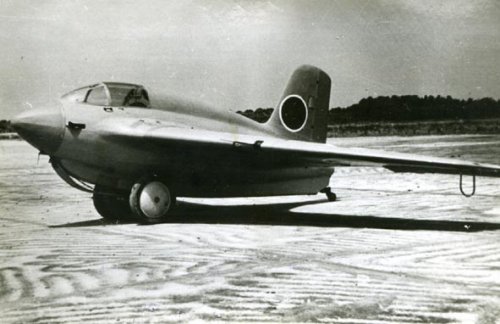

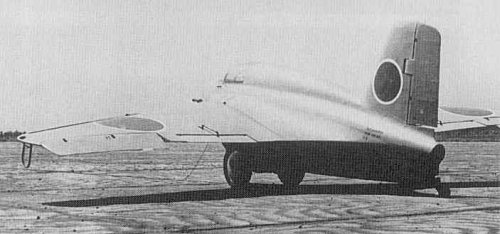

  • Yokousuka MXY8 Akigusa 1.jpg
    Yokousuka MXY8 Akigusa 1.jpg
    60.2 KB · Views: 308

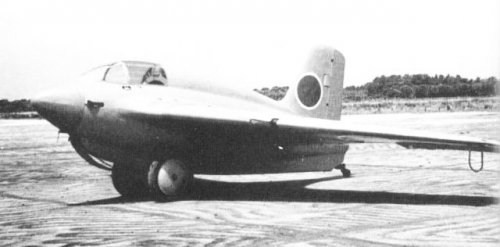

  • Yokousuka MXY8 Akigusa 3.jpg
    Yokousuka MXY8 Akigusa 3.jpg
    27.4 KB · Views: 277

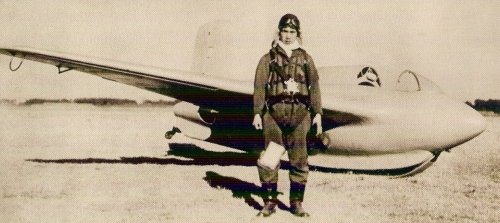

  • Yokousuka MXY8 Akigusa 2.jpg
    Yokousuka MXY8 Akigusa 2.jpg
    40.2 KB · Views: 267

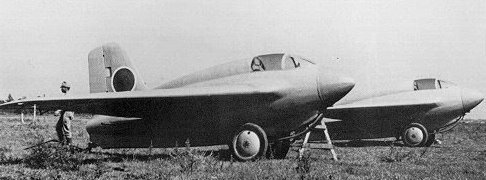

  • Yokousuka MXY8 Akigusa.jpg
    Yokousuka MXY8 Akigusa.jpg
    24.8 KB · Views: 263

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,762
Reaction score
3,416
Website
www.amazon.com
I am looking for information on the

Yokosuka-Maeda MXY-9 "Shuka"
Yokosuka MXY-8 "Akigusa" or
Yokoi Ku-13

trainers

Could anyone help me, please?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
661
To the best of my knowledge, the Yokoi Ku-13 Experimental Training Glider was the same as the MXY8.
Akigusa (秋草) means "Autumn Grass".

Here is an additional picture of the MXY8:


Attachments

  • mxy8.training.glider.jpg
    44 KB · Views: 195

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
661
I haven't yet been able to find pics of the MXY9 Shūka (秋火) ("Autumn Fire")...


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,758
Reaction score
3,385
Hi! MXY8 Akikusa model.

http://blogs.yahoo.co.jp/stabatmater_9/54920011.html/

MXY9 Shuka was a Shusui trainer with Tsu11 motor jet engine. Shuka was not completed.
Tsu11 was a Ohka type 22's engine,too. Thrust : 220kg
Tsu11 engine had the same concept of Caproni Campini N.1's motor jet engine and attached Sakae I.P.R(inner propeller rocket) engine.
Tsu11's one stage compressor drive engine was Gasuden(Hitachi) Hatsukaze(初風,the first wind) 4 cylinder air cooling inline engine.(Ha47 or Ha11,110hp take off,displacement 3.98L)


Attachments

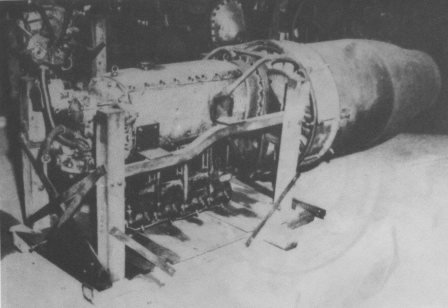

  • Sakae I.P.R engine 2.jpg
    Sakae I.P.R engine 2.jpg
    184.5 KB · Views: 135
  • Sakae I.P.R engine 1.jpg
    Sakae I.P.R engine 1.jpg
    109.8 KB · Views: 138

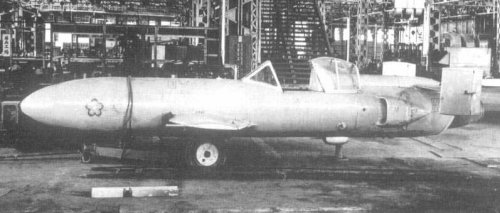

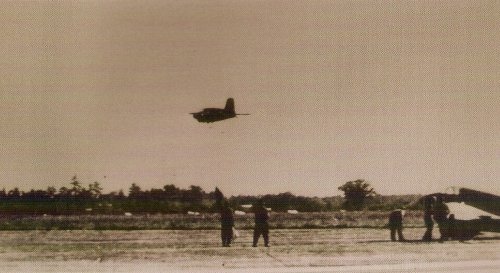

  • Akikusa towed by Saiun.jpg
    Akikusa towed by Saiun.jpg
    157 KB · Views: 92
  • MXY7_Ohka_Cherry_Blossom_Baka_Ohka-14.jpg
    34.8 KB · Views: 87
  • Tsu-11.jpg
    23.3 KB · Views: 88

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
371
Reaction score
130
Blackkite,

I'm familiar with the Tsu-11. I had not heard of the Sakae I.P.R before. What aircraft were they planning on using it for?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,758
Reaction score
3,385
windswords said:
Blackkite,

I'm familiar with the Tsu-11. I had not heard of the Sakae I.P.R before. What aircraft were they planning on using it for?


Good question!
But I can't find any aircraft which planned to use Sakae I.P.R engine in Japanese books or internet site.

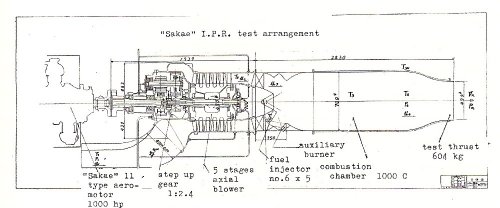

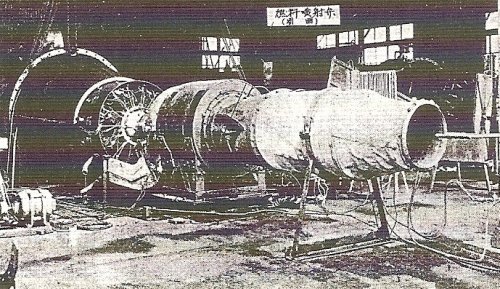

Sakae I.P.R engine
Sakae11 engine which drive compressor : 920hp(2200rpm. (Zero fighter's engine)
5 stages compressor:5280rpm, compression ratio : 1.29, airflow rate : 20kg/s.
Static thrust : 740kg(while exit gas temperature: 1000 degree centigrade, exhaust gas nozzle pass speed 350m/s, fuel : 74 octane)


Attachments

  • Akikusa 1.jpg
    Akikusa 1.jpg
    290.1 KB · Views: 106
  • Akikusa 2.jpg
    Akikusa 2.jpg
    337.1 KB · Views: 126

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
371
Reaction score
130
Well the Sake compressor engine would be too big for an Ohka or Shusui. It would be great to know what they intended for it. Or it could have been only an engineering test bed since that type of engine was plentiful.


treeape

ACCESS: Restricted
Joined
Jul 27, 2019
Messages
2
Reaction score
2

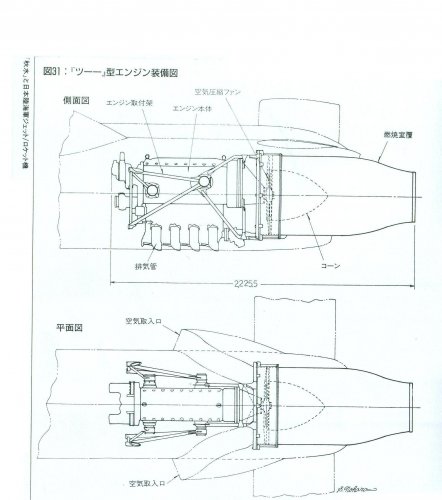

well i been looking at the tsu-11 motor jet. but the problem is where is the compressor at. there is no drawings giving detail on the engine


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,758
Reaction score
3,385
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,758
Reaction score
3,385
So Shuka had fuselage side airintake.


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
371
Reaction score
130

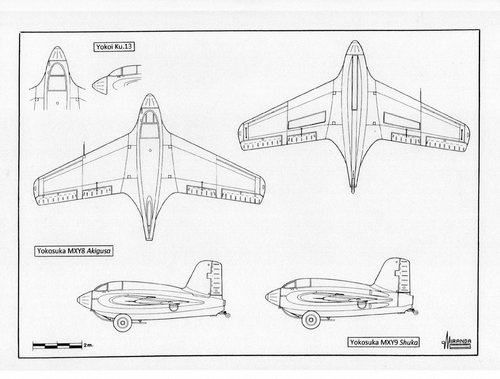

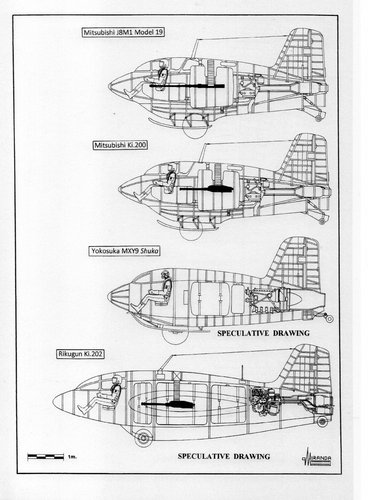

Justo, your pilot position appears to be too far forward. All other drawings of the J8M1 show the pilots head just forward of the radio mast as in this image below. There is also equipment in the nose of the aircraft that can not be there if the pilot is the position you have drawn.


Attachments

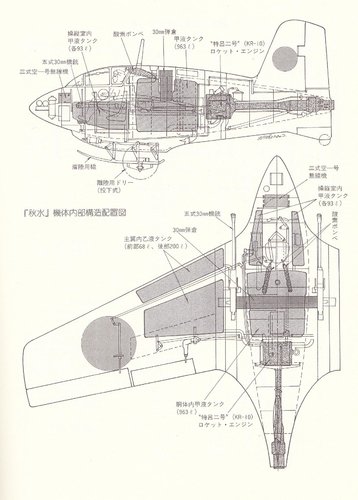

  • J8M1 internal layout 2 view.jpg
    J8M1 internal layout 2 view.jpg
    301 KB · Views: 82
