I have a question about the Kugisho D5Y1 Myojo Kai. Was the original D3Y1 canopy retained but faired over like D4Y4 or was a new single seat canopy fitted?

Cheers


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,478
Reaction score
2,758
I can't find any information about D5Y1 in Japanese sources.
The Experimental 99 shiki type 23 Training Bomber Myojo-kai (D3Y2-K) was a modified version of 99 shiki Taining Bomber type 22 Myojo (D3Y1-K).
D3Y2-K had retractable undercarriage and Kinsei type 62 engine, only planned.
D3Y1-K had a Kinsei type 54 enigne.
Source : ENCYCLOPEDIA OF JAPANESE AIRCRAFT VOL.2 AICHI KUGISHO CONTENTS

http://en.wikipedia.org/wiki/Mitsubishi_Kinsei


Attachments

  • Myojo front view.jpg
    Myojo front view.jpg
    69.5 KB · Views: 51
  • Myujo side view.jpg
    Myujo side view.jpg
    88.7 KB · Views: 50
  • D3_Y1_MYOJO_10.jpg
    202.1 KB · Views: 194
  • D3Y1-K-2.jpg
    32.7 KB · Views: 265
  • D3Y1-K-1.jpg
    60.3 KB · Views: 277
  • 0174426.jpg
    132.5 KB · Views: 302

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
357
Reaction score
108
Just to clarify so that we are all on the "same page":

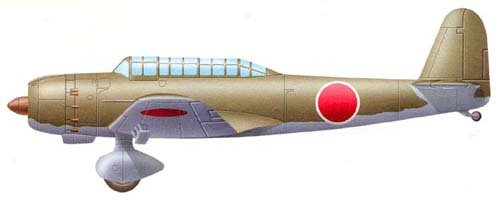

The D3Y1-K Myojo was a 2 seat wooden dive-bomber trainer. The idea was to use wood to save on aluminum. It had a 1,300 hp (970 kW) Mitsubishi Kinsei 54 engine. There were 2 prototypes and 3 production aircraft built.

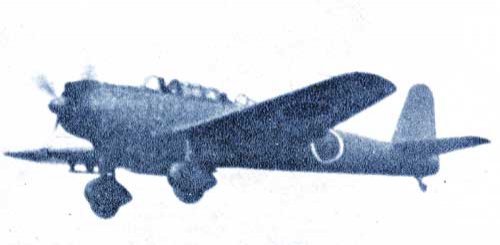

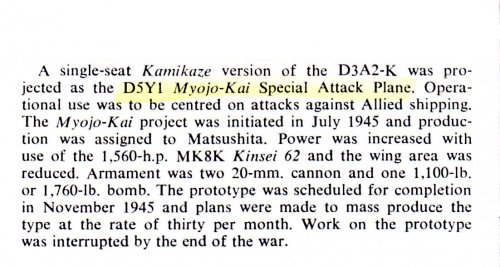

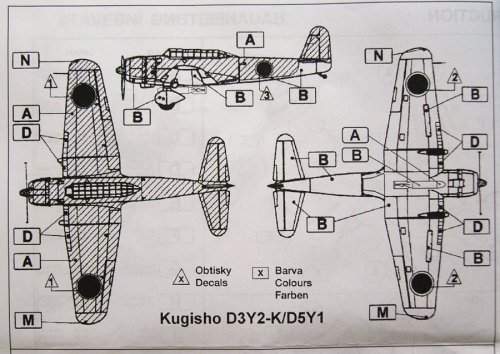

The D3Y2-K Myojo was a single-seat special attack version of the D3Y1-K, powered by a 1,560 hp (1,160 kW) Kinsei 62. It could carry 1 800 kg bomb. The undercarriage would be jettisoned on take off. The prototype had begun construction but was incomplete by the time the war ended.

The D5Y1 Myojo Kai would have been the production designation of the D3Y2-K (Navy Special Attacker Myojo Kai).

Hope that helps.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,398
Reaction score
2,297
Website
www.amazon.com

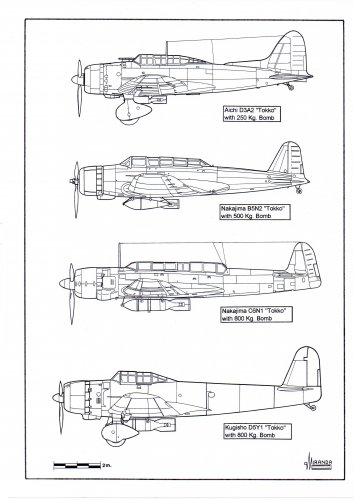

Shorzoe Abe drawing
Richard M. Bueschel text


Attachments

  • USN690.jpg
    207.7 KB · Views: 118
  • USN689.jpg
    219.1 KB · Views: 86

gerhard

ACCESS: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
1
This makes sense as the Japanese were trying to conserve raw materials and having such a large 2 seat canopy even if faired over does make sense. Thanks for clarifying this. Thank you guys.
Gerhard


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,478
Reaction score
2,758
Hi!
http://www.geocities.co.jp/Bookend-Ohgai/3853/jnrs/jnrsC231e.htm

Konosuke Matsushita
http://en.wikipedia.org/wiki/Konosuke_Matsushita

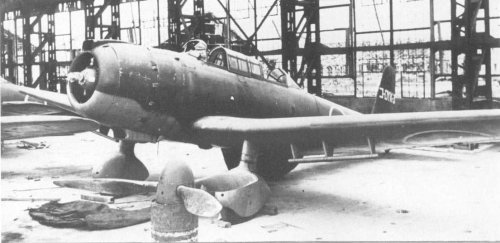

Attachments

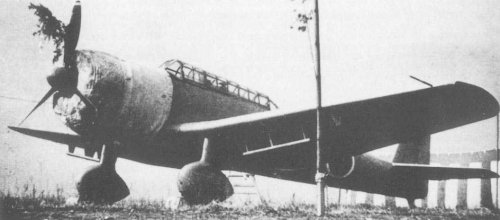

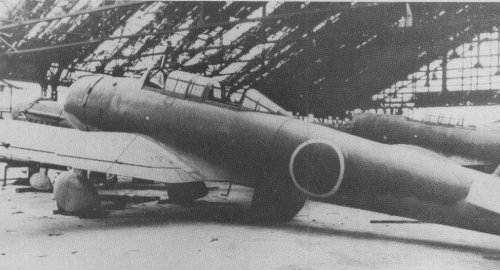

  • D3Y1-K.jpg
    49.4 KB · Views: 68

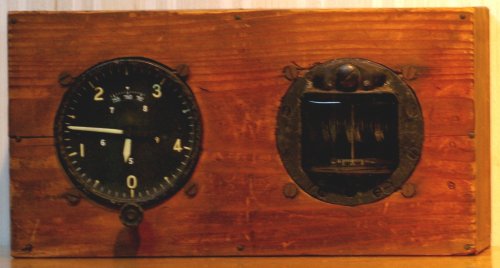

  • Myojo speed meter and altimeter.JPG
    Myojo speed meter and altimeter.JPG
    427 KB · Views: 33
  • Konosuke Matsushita (right end) at Myojo first flight.jpg
    Konosuke Matsushita (right end) at Myojo first flight.jpg
    26.6 KB · Views: 34
  • Myojo.jpg
    11.6 KB · Views: 39

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
357
Reaction score
108

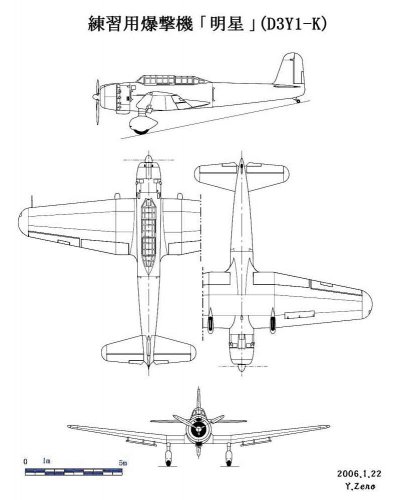

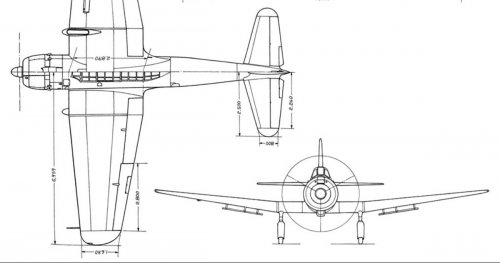

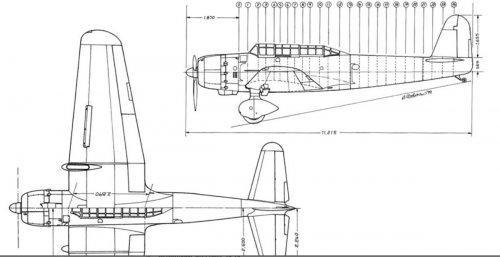

A few more images:


Attachments

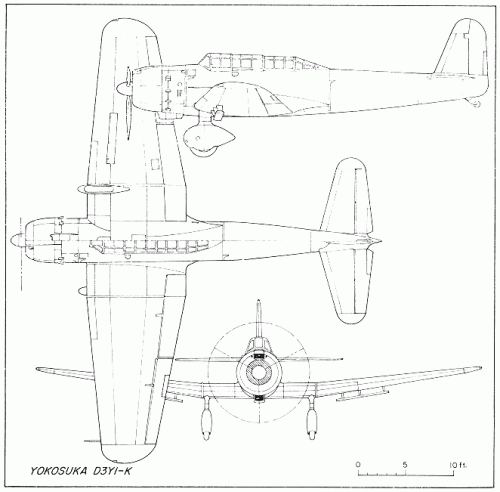

  • D3Y1-K 3 view.gif
    D3Y1-K 3 view.gif
    46.8 KB · Views: 61
  • p1.jpg
    61 KB · Views: 52
  • d3yk_c1.jpg
    19.6 KB · Views: 40

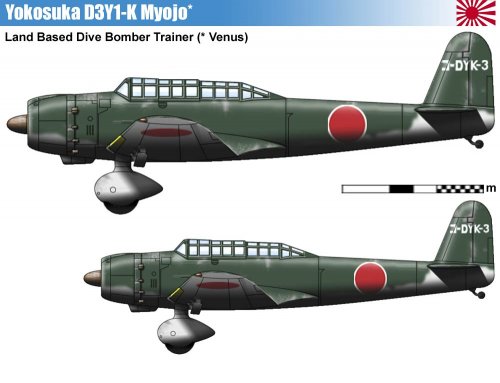

  • D3Y1-K color 2 view.jpg
    D3Y1-K color 2 view.jpg
    98 KB · Views: 40

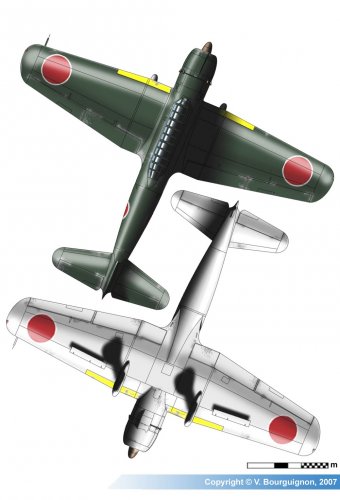

  • D3Y1 color 2 view.jpg
    D3Y1 color 2 view.jpg
    301.6 KB · Views: 40

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,478
Reaction score
2,758

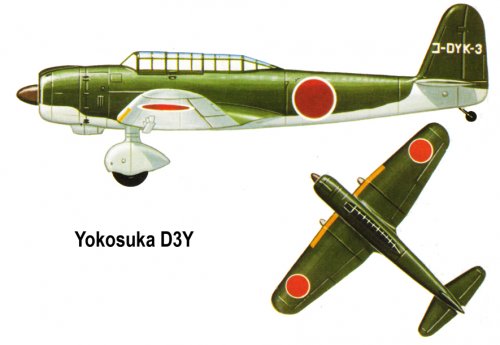

99-shiki training bomber "Myojo" (D3Y1-K)
Myojo was planned as wooden version of 99-shiki carrier bomber.
Production as a carrier bomber wasn't achieved consequently and it was used as a training bomber. The tentative name 99-shiki training bomber type 22 (D3Y1-K) was given to Myojo. Myojo was manufactured by Matsushita airplane, and 7 planes have been completed by the end of the war.
Myojo increased 700kg compared with 99-shiki carrier bomber type 11 of the prototype.
It wasn't inferior to a prototype in a speed , but the ascent performance decreased drastically.

Myojo-kai which reduced the weight, reduced the wing area and replaced a engine to Kinsei type62, had retractable undercarriage was planned as performance improvement type(D3Y2-K), but it has ended only by a plan.

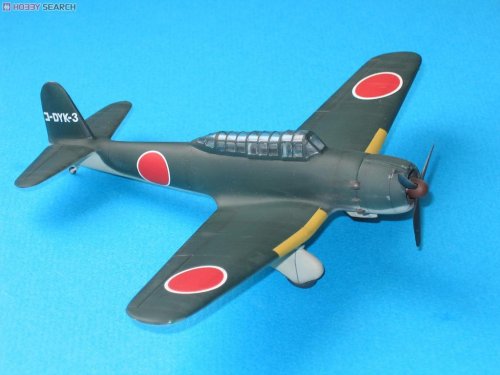

Attachments

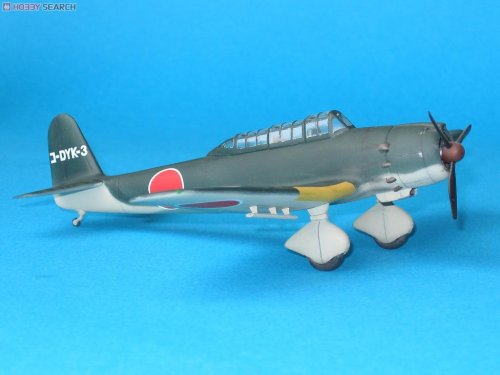

  • Myojo model pic1.jpg
    Myojo model pic1.jpg
    57.8 KB · Views: 24
  • Myojo model pic2.jpg
    Myojo model pic2.jpg
    74.2 KB · Views: 25
  • 10269503p.jpg
    89.6 KB · Views: 22
  • Mjojo.jpg
    185.1 KB · Views: 23
