XFLR5....just powerfull and free....

G

gery

Guest
Hi all,

i send you he site of an incredible "airfoil analyse program".......jus impressive
and free...based on XFOIL calculator....

http://xflr5.sourceforge.net/xflr5.htm


some video

http://www.youtube.com/watch?v=6GP8sFcUuKk
http://www.youtube.com/watch?v=uOiIPm8uy6M
http://www.youtube.com/watch?v=pI7hzKUcCrg
http://www.youtube.com/watch?v=63kv2ejobB0
http://www.youtube.com/watch?v=n6PSVP95c-U
http://www.youtube.com/watch?v=mQVP-Xwun7U


soon

gery

G

gery

Guest

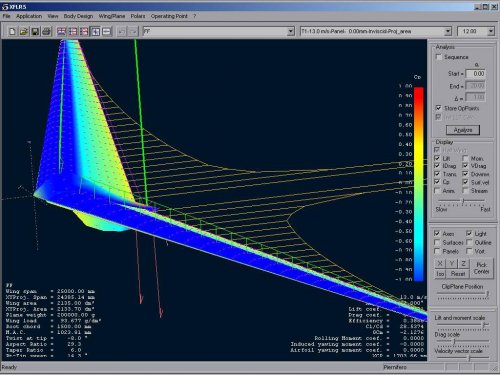

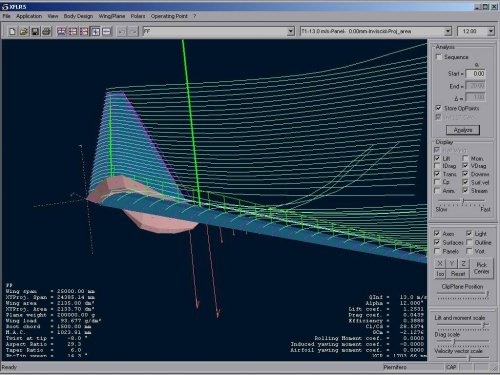

yes it can....i tested the Ho VI ....with the "real scale" dim....


Attachments

  • Ho 6a.JPG
    Ho 6a.JPG
    149.2 KB · Views: 24
  • Ho 6b.JPG
    Ho 6b.JPG
    130.7 KB · Views: 20
G

gery

Guest

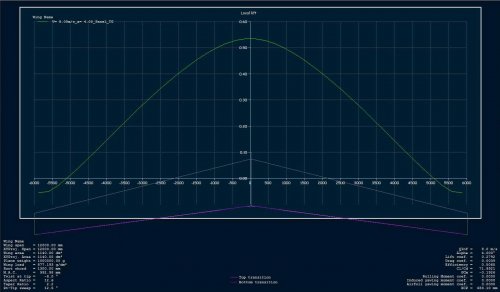

Parabolic lift curv...


Attachments

  • PARABOLIFT.jpg
    108.3 KB · Views: 19
  • PARABOLIFT2.jpg
    115.6 KB · Views: 23
G

gery

Guest
I think..

http://cadcam.e-monsite.com/rubrique,choose-or-adapt-the-airfoil,1122460.html

try it....

G

gery

Guest
Just a standard PC XP equiped....

What program do you use as usual..????

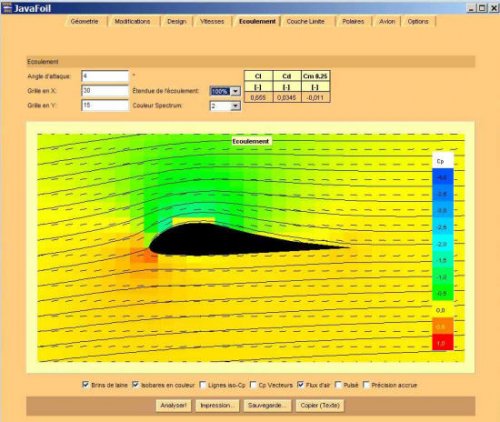

Javafoil is too a good program for 2d airfoil analyse....all languages...

http://www.mh-aerotools.de/airfoils/javafoil.htm

regards

gery


Attachments

  • javafoil_487.jpg
    67.5 KB · Views: 23

mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
11
I've used XFLR5 extensively.
It's a nice tool, though the results must be taken with a grain of salt.
Basically you work in two phases:
-You first do 2D polars for the wing profiles (different AoA and Reynolds),
-Then you design a wing with those profiles and test it with various speeds, angles of attacks, center of gravity, control deflection etc

It's full of all kinds of menu options so I advise a newcomer to do a tutorial first - it's a bit hard to learn by just doing.

There is also possibility to do airfoil design.
The QFLR5 version also works on Linux.


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,039
Reaction score
32
Can it simulate reynolds numbers high enough to simulate say a corporate-jet or a fighter-jet?

BTW: At the penalty of sounding retarded... can you simulate an airframe with this?

G

gery

Guest
i don't think....real scale is possible, but a little bug on "area weigth"....
just made for gliders analyses....
have you got tested it for jets concepts...????

soon

gery


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
11
KJ_Lesnick said:
Can it simulate reynolds numbers high enough to simulate say a corporate-jet or a fighter-jet?

BTW: At the penalty of sounding retarded... can you simulate an airframe with this?

Well, you can use any Reynolds number in the polars, it's just a frontend for Xfoil. And even mach and air density too. I don't know precisely the methods. I'm pretty certain you have to remain well below transonic.

In the 3d analysis you can build a primitive body too, I don't know how well that is taken into account in the calculations, it's probably more of a coarse notional thing.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,297
Reaction score
192
if the 2D calculations are run by XFOIL, then you must definitely remain subsonic. I believe there is a version of XFOIL, MSES, that does transonic flow. How accurately, i do not know.
