Welch OW-12M Twin Fuselage Light Bomber Project

[hesham]

Hi,

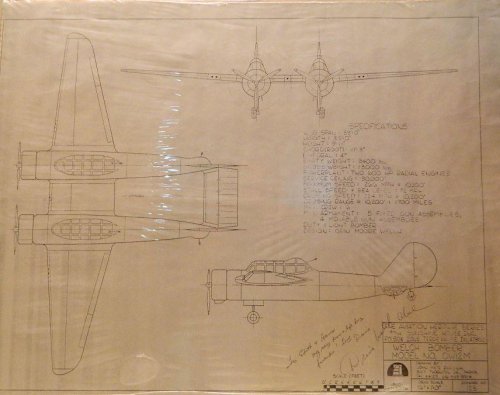

here is the drawing to Welch OW-12M,a twin fuselage mid-wing twin engined light
bomber project of WWII.


http://www.earlyaeronautica.com/welch-bomber-model-ow12m-blueprint



[Stargazer]

That's a great discovery. Welch designations OW-10 to -15 were all assigned to unbuilt experimental aircraft projects, but this is the first time I've seen one of these. Thanks.



[hesham]

Thank you my dear Skyblazer,


and later,I will mention some small info about those projects.



[Richard N]

You might find this book useful: The Welch Airplane Story: Airplanes designed and manufactured by Orin Moore Welch


http://www.amazon.com/dp/B0006EFQPY/ref=wl_it_dp_o_pC_nS_ttl?_encoding=UTF8&colid=1TXTP76513J6E&coliid=I3E5VFRC7PZIGO


If you live in Kalamazoo, Michigan, you can find it where I saw it on the way home from Oshkosh last year at the library of the Kalamazoo Air Zoo: http://www.airzoo.org/



[lark]

And in the waiting for the book , there's this: www.javalina.com/welch/welch.html



[hesham]

Thank you my dear Lark,


and that's the Info which I have about them.



[hesham]

Hi,


did this aircraft mention in the Tony Buttler's book; The American Secret Projects :
Fighters and Bombers of WW2.


t



[hesham]

You might find this book useful: The Welch Airplane Story: Airplanes designed and manufactured by Orin Moore Welch


http://www.amazon.com/dp/B0006EFQPY/ref=wl_it_dp_o_pC_nS_ttl?_encoding=UTF8&colid=1TXTP76513J6E&coliid=I3E5VFRC7PZIGO


If you live in Kalamazoo, Michigan, you can find it where I saw it on the way home from Oshkosh last year at the library of the Kalamazoo Air Zoo: http://www.airzoo.org/

Via my dear Lark,and many thanks to him,

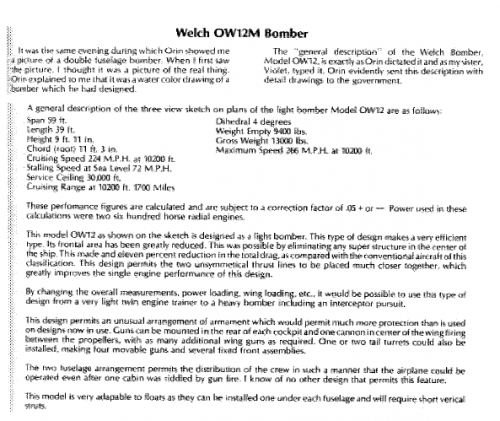

and from the book as mentioned,The Welch Airplane Story,here is the OW-12M Info and Drawing.



[cluttonfred]

Neat, and the argument that two separate cockpits in two separate fuselages provides redundancy is interesting, though I don't quite understand what kind of dwarves were intended to operate those tail turrets.



[hesham]

Was there any drawings to OW-10 & OW-11 Radio Controlled aircraft ?.
