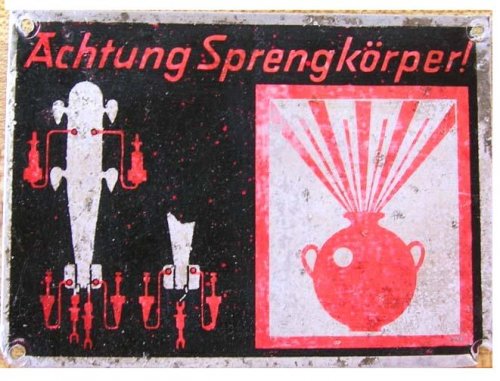

Warning label from ETC 500/IX d bombrack installed on Junkers Ju 88A

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,335
Reaction score
284
My guess: a warning label for maintenance crews that there is something pressurized underneath whatever hatch this plate was attached to. Of course we can get a better idea as soon as a german speaking forum member translates the text :)


RP1

I see the truth in it.
Senior Member
Joined
Feb 22, 2006
Messages
476
Reaction score
323
Website
rp-one.net
Sprengkorper seems to mean explosive, rather than pressurised, device. The diagram appears to be giving locations of something in a larger assembly?


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
855
Reaction score
190
AeroFranz said:
My guess: a warning label for maintenance crews that there is something pressurized underneath whatever hatch this plate was attached to. Of course we can get a better idea as soon as a german speaking forum member translates the text :)

Yes, it's a warning label, but I'm not able to identify the white "thing" on the left side.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322
It look like a warning, where explosive charges are situated,
maybe in a tunnel or a bridge ? After the war bridges here in germany
were prepared for self-destruction with "Sprengkammern" (explosive charge
chambers ?).


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,086
Reaction score
1,614
German Sprengkörper = Explosive device

from look the Red things are pyrotechnic bolt aka Pyrotechnic fastener

this diagram is from East German NVA or West German Luftwaffe ?

the shape looks like a helicopter
if a Luftwaffe mabye Piasecki H-21 or Sikorsky S-55 (Westland Whirlwind)?
wen NVA then Mil Mi-14 ?


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
855
Reaction score
190
Michel Van said:
German Sprengkörper = Explosive device

from look the Red things are pyrotechnic bolt aka Pyrotechnic fastener

this diagram is from East German NVA or West German Luftwaffe ?

the shape looks like a helicopter
if a Luftwaffe mabye Piasecki H-21 or Sikorsky S-55 (Westland Whirlwind)?
wen NVA then Mil Mi-14 ?

I don't believe of a NVA label, because the 'A' in 'Achtung' seems to be pre-1945.


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,086
Reaction score
1,614
boxkite said:
I don't believe of a NVA label, because the 'A' in 'Achtung' seems to be pre-1945.

dam, your right that kind of 'A' was used by Third Reich Luftwaffe until 1945

by the way Justo Miranda
were have you find this warning label ?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322
"doesn't sprengkörper refer to a container body with explosive/dynamite or a
hollowed out shape charge?"

"Sprengkörper" was (and is !) just an official german term for an explosive charge,
I think, no matter if HE, hollow charge or something else.
But boxkites clue seems to be very good, as it really could give us a rough time scale.
Then, probably no helicopter is shown. But maybe a weaposn/bomb pylon ? Michel
could be quite right then with pyrotechnical fasteners.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,818
Reaction score
3,599
Website
www.amazon.com
Michel Van said:
boxkite said:
I don't believe of a NVA label, because the 'A' in 'Achtung' seems to be pre-1945.

dam, your right that kind of 'A' was used by Third Reich Luftwaffe until 1945

by the way Justo Miranda
were have you find this warning label ?


Sent by one of my clients ...


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,086
Reaction score
1,614
the only Third Reich Luftwaffe Aircraft, i know that use explosive charge

is the Bachem Ba.349 Natter a rocket interceptor

after the mission the Natter pilot activate explosive charge
the plane disintegrates in several piece who land on ground
recollect and reassembly the Natter.


RP1

I see the truth in it.
Senior Member
Joined
Feb 22, 2006
Messages
476
Reaction score
323
Website
rp-one.net
Jemibas comment does make me think it might be a bomb-rack. It seems flat, so wasn't mounted on something like a bomb - so a fixed installation or something with flat sides...

RP1


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322

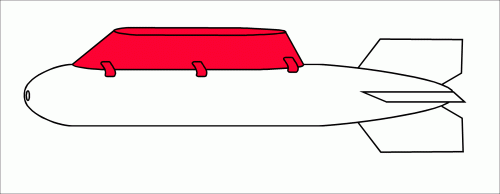

I thought of something like that :


Attachments

  • rack.GIF
    16.5 KB · Views: 14

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,818
Reaction score
3,599
Website
www.amazon.com

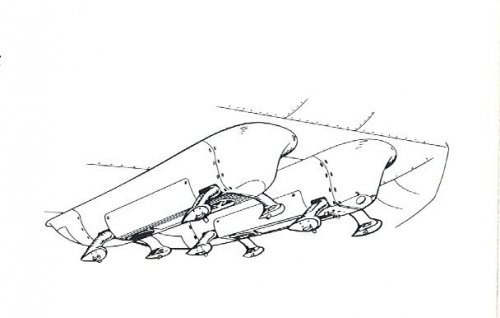

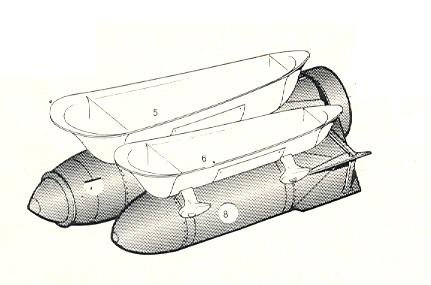

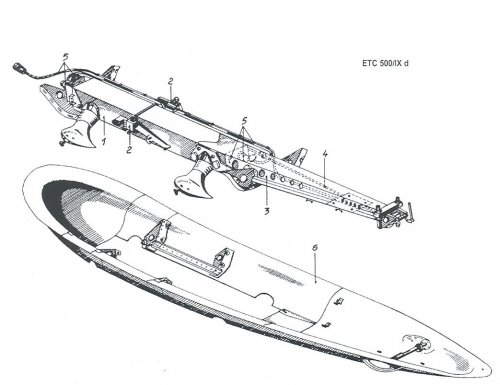

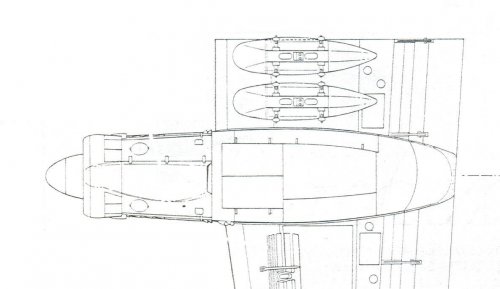

It may be an emergency explosive system to launch bombs from an ETC 500 rack beloging to a Ju 88 or Ju 188 .


Attachments

  • Escanear0001.jpg
    84.4 KB · Views: 17
  • Escanear0002.jpg
    18.5 KB · Views: 14
  • Escanear0003.jpg
    62.9 KB · Views: 13
  • Escanear0004.jpg
    21.2 KB · Views: 13

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,818
Reaction score
3,599
Website
www.amazon.com
Hi guys!
The forum think tank has scored o new point.
Thanks to its valuable help I have been able to identify the unknown device.

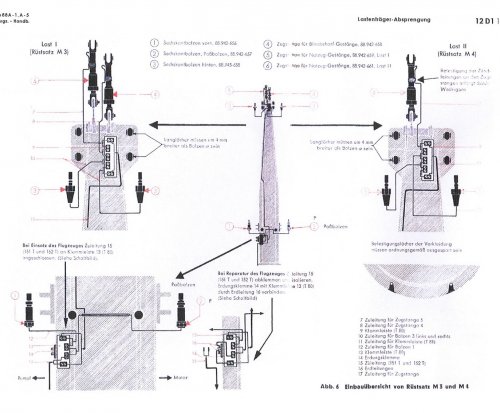

It is a warning label from an ETC 500/IX d bombrack installed on a Ju 88A.

From Ju 88 A-1,A-5 Handbook (Teil 12 D) , june 1941.
Many thank to everyone!


Attachments

  • Escanear0001.jpg
    205.2 KB · Views: 19
  • Escanear0002.jpg
    106.9 KB · Views: 9
