Some 1950s VATOL (vertical attitude takeoff and landing) projects.

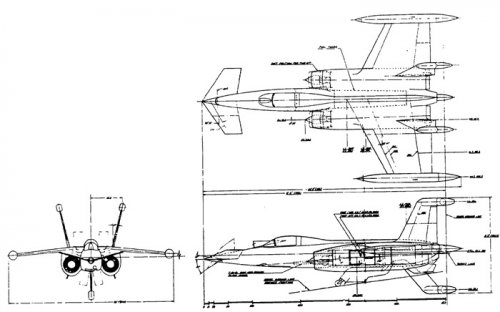

North American Tailsitter (designation unknown)

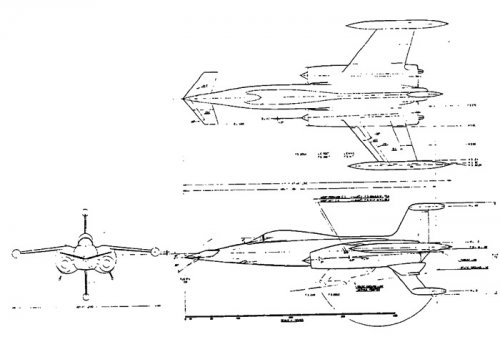

Temco Model 39

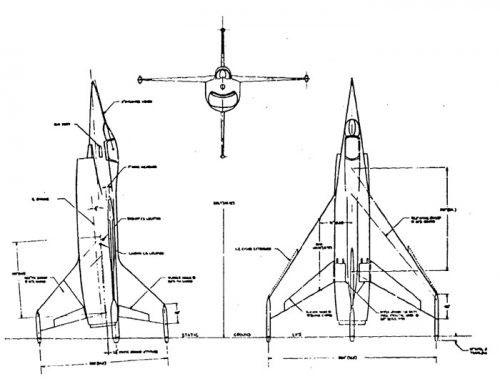

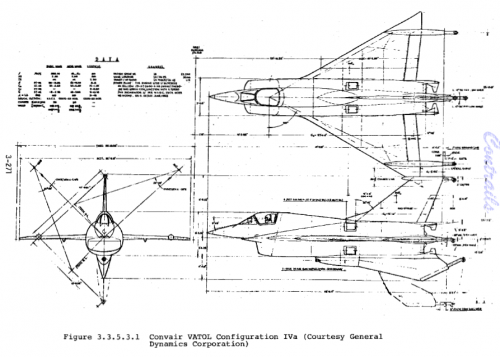

Convair VLWF Configuration IVa


Attachments

  • North-American-Tailsitter-1.jpg
    50.4 KB · Views: 1,024
  • North-American-Tailsitter-2.jpg
    43.8 KB · Views: 951
  • Temco-Model-39.jpg
    60.1 KB · Views: 997
  • Convair-VLWF-Conf-IVa.jpg
    77.5 KB · Views: 1,034

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,262
Reaction score
3,149

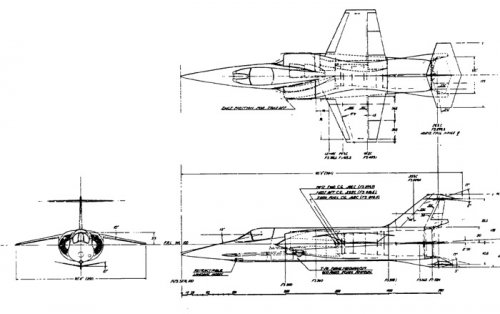

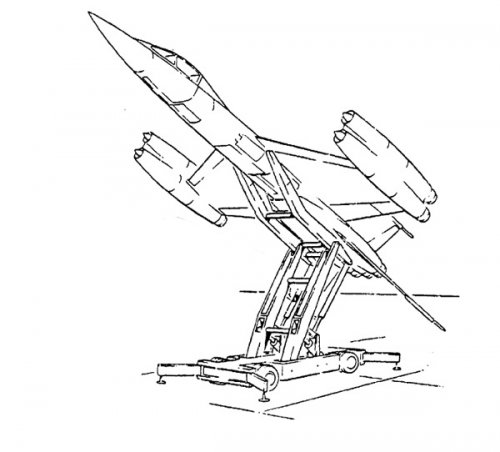

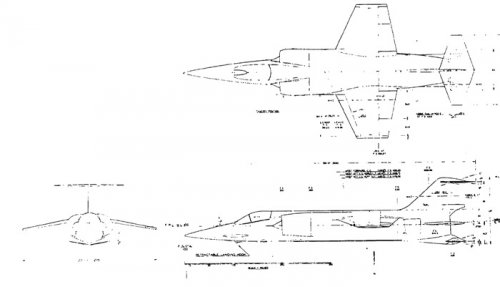

Lockheed CL-295 VATOL project, 1950s

Source: V/STOL Concepts and Developed Aircraft. Volume 1. A Historical Report (1940-1986)

http://oai.dtic.mil/oai/oai?verb=getRecord&metadataPrefix=html&identifier=ADA175379


Attachments

  • CL-295-4.jpg
    56.6 KB · Views: 496
  • CL-295-3.jpg
    60.9 KB · Views: 495
  • CL-295-2.jpg
    63.8 KB · Views: 1,030
  • CL-295-1.jpg
    40.3 KB · Views: 978

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,262
Reaction score
3,149
Helps to read the report... Here's the timeframes of the VTOL Lightweight Day Fighter studies.

1953
Convair VTOL Day Fighter USAF study contract AF33(616)-2313
Temco 39, Day Fighter USAF study contract AF33(616)-2314

1954
Ryan Aeronautical 84, Day Fighter USAF study contract AF18(600)-1157
Lockheed CL-295-1, Day Fighter USAF study contract AF18(500)-1232
Lockheed CL-295-4, Day Fighter USAF study contract AF18(600)-1232

1955
North American Aviation VATOL studies (company funded)

1956
Ryan Aeronautical 112, Visual Fighter (Company funded)

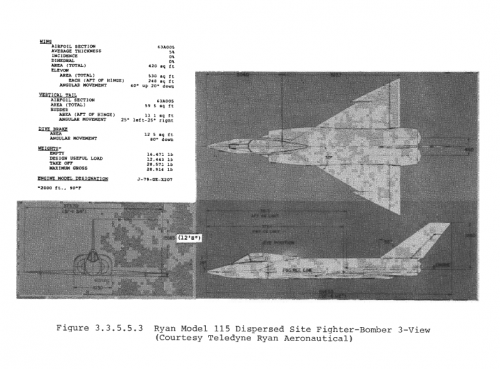

Ryan Aeronautical 115, Fighter-Bomber (USAF) AF18(600)-1641

1957
Ryan Aeronautical 115C, Fighter-Bomber (Company funded)

Ryan designs in this topic: http://www.secretprojects.co.uk/forum/index.php/topic,11601.0.html

Source: V/STOL Concepts and Developed Aircraft. Volume 1. A Historical Report (1940-1986)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,262
Reaction score
3,149

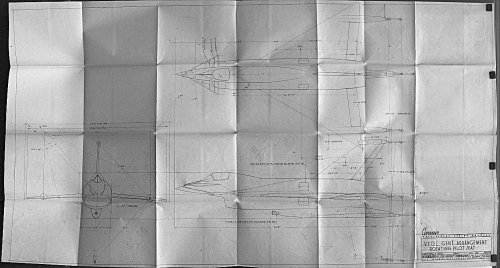

Scott posted a photo of a large format drawing of a slightly different configuration of the Convair VLWF on his blog here

http://up-ship.com/blog/?p=8115

Edited version included below.


Attachments

  • Convair VLWF.jpg
    Convair VLWF.jpg
    175.4 KB · Views: 191

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
My dear Paul,

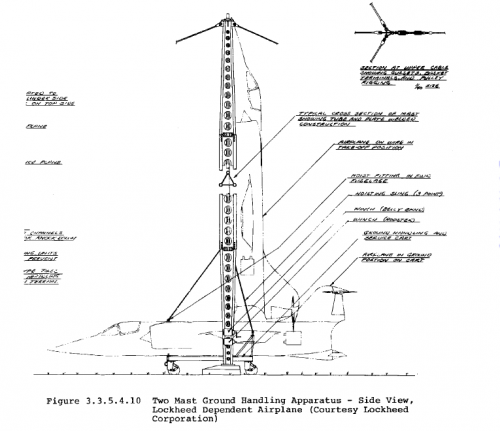

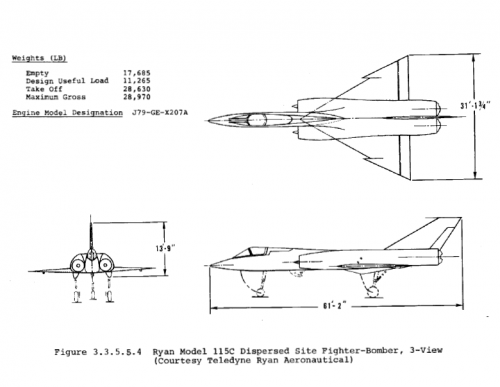

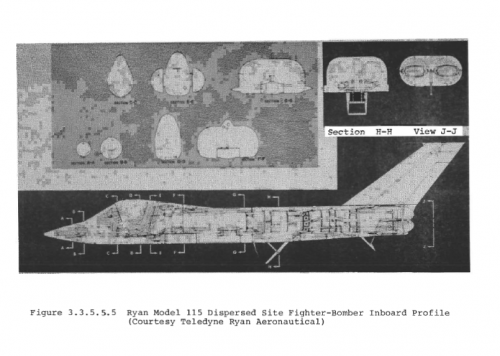

I repeat sending some drawings from a clearer PDF file.


Attachments

  • 1.png
    161.8 KB · Views: 105
  • 2.png
    51.5 KB · Views: 110
  • 3.png
    299.9 KB · Views: 109
  • 4.png
    71.9 KB · Views: 128
  • 5.png
    306.8 KB · Views: 148

Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
557
Reaction score
282
I guess this is a good of a place as any to continue the exploration of these type designs.

The Temco Model 39 as illustrated above in post number 1 was powered by a single Allison J-71 engine.

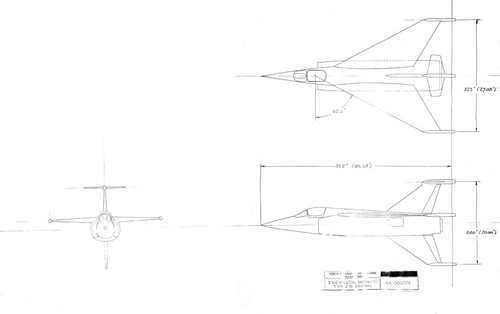

The Temco Model 44 illustrated here was powered by two GE J-79 engines.
I would imagine that the 77 mile range of the Model 39 was probably similar for the
Model 44 (not knowing the SPC difference for the two different type engines)..


Attachments

  • x44-900001-General-Arrangement-Model-44-VTOL-Day-Fighter-Two-J-79-Engines..jpg
    24.5 KB · Views: 77
