Vought (LTV) V/STOL Tandem Fan Fighters - TF100 to TF300

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,372
Reaction score
3,418

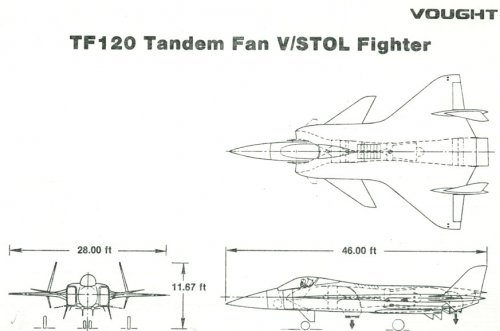

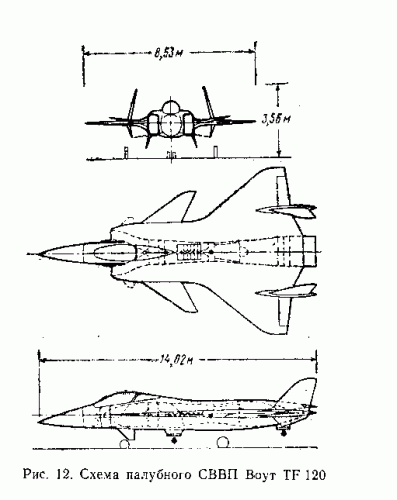

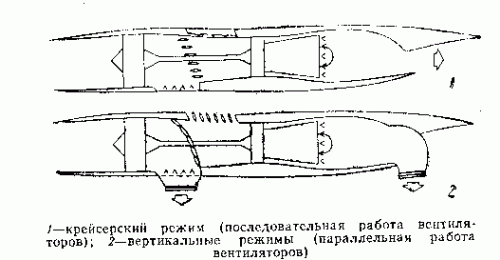

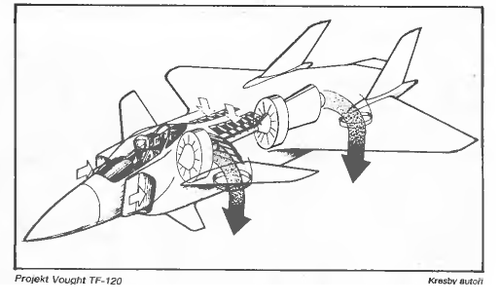

Vought TF120


Attachments

  • VoughtTF120.jpg
    25.6 KB · Views: 2,578
  • Vought-TF-120.gif
    6.8 KB · Views: 2,555
  • Vought-TF-120-Power.gif
    4.1 KB · Views: 2,357

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874

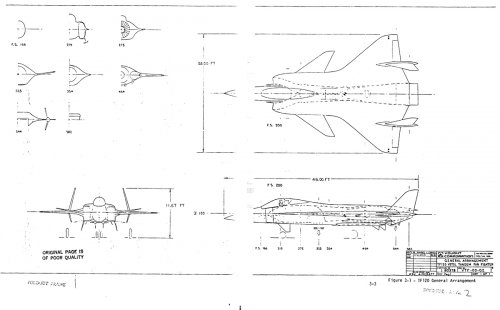

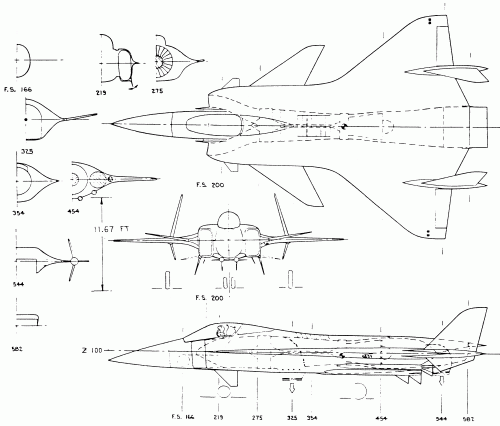

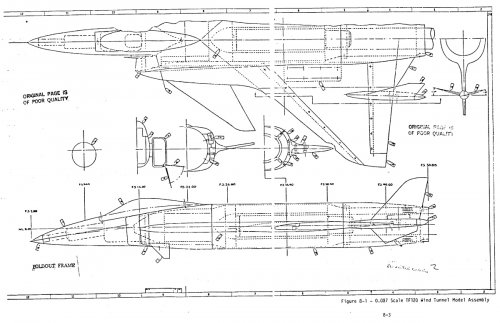

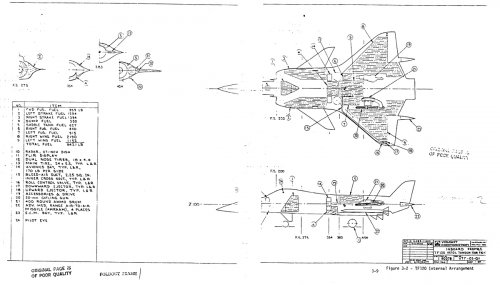

Vought TF120 stuff found at NTRS

NASA CONTRACTOR REPORT 166271
Study of Aerodynamic Technology for Single Cruise-Engine V/STOL Fighter/Attack Aircraft
Final Report
H. H. Driggers
S. A. Powers
R. T. Roush
Vought Corporation
Dallas, Texas
Prepared for Ames Research Center Under Contract NAS2-11003


Attachments

  • TF-120-1s.jpg
    152.4 KB · Views: 2,161
  • TF-120-2-.jpg
    168.5 KB · Views: 950
  • TF-120-3-.jpg
    210.6 KB · Views: 530
  • TF-120-4-.jpg
    300.7 KB · Views: 586

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
A slightly different bit of artwork for the TF-120 similar to what Paul posted way back in the beginning.

Enjoy the Day! Mark


Attachments

  • xVought SF-120  artwork.jpg
    xVought SF-120 artwork.jpg
    163.4 KB · Views: 401

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
561
Reaction score
317
Some additional TF general arrangements including TF-100/120/200 and an artist rendering of TF-120


All from Vought Heritage Archives.


bill


Attachments

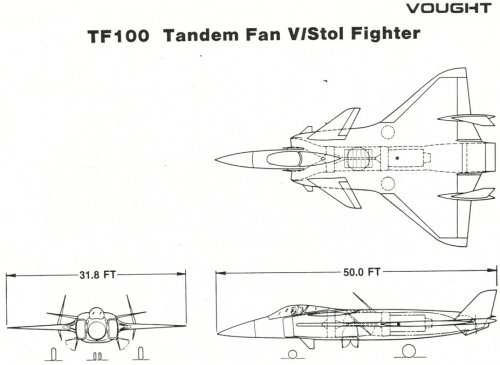

  • TF-100-General-Arrangement.jpg
    66.8 KB · Views: 234

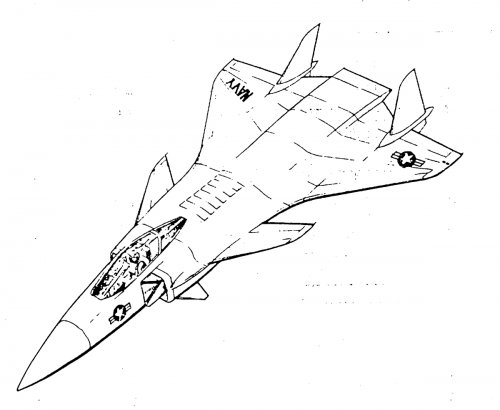

  • TF-120-Artist-View.jpg
    30.9 KB · Views: 203
  • TF-120-General-Arrangement.jpg
    53.4 KB · Views: 227

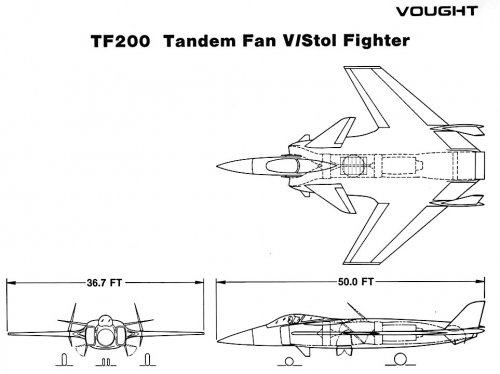

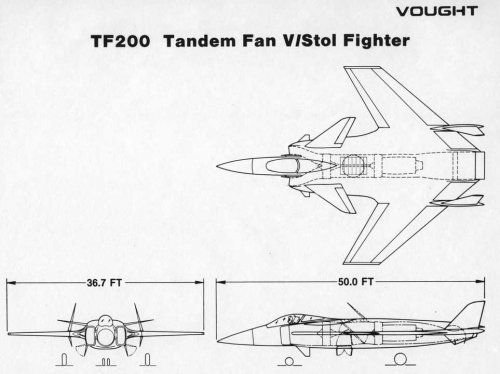

  • TF-200-General-Arrangement.jpg
    48.7 KB · Views: 270

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,372
Reaction score
3,418
Edited scans...


Attachments

  • TF-200-General-Arrangement-a.jpg
    75.4 KB · Views: 212
  • TF-120-General-Arrangement-a.jpg
    69.4 KB · Views: 162
  • TF-120-Artist-View-a.jpg
    51 KB · Views: 169
  • TF-100-General-Arrangement-a.jpg
    83 KB · Views: 205

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
561
Reaction score
317
A couple of new additions to this topic.


First the TF150, sorry only a two view was found.

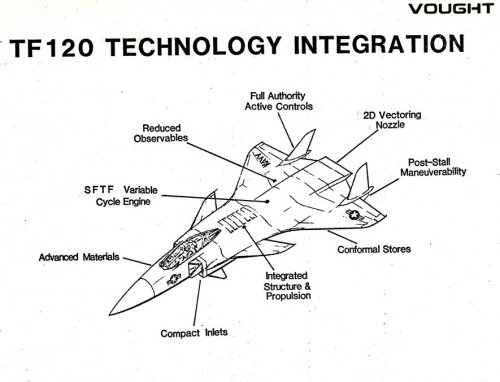

And a TF120 showing technology integration to the design
Info from Vought


bill


Attachments

  • TF150-Two-View.jpg
    50.4 KB · Views: 233

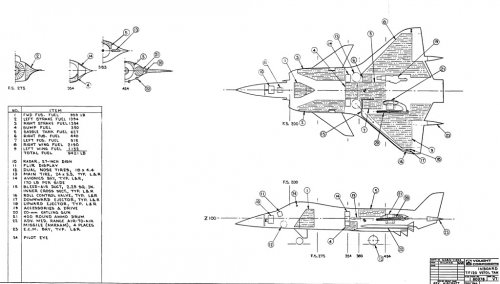

  • TF120-Tech-Integration.jpg
    75.3 KB · Views: 255

NUSNA_Moebius

I really should change my personal text
Joined
May 26, 2012
Messages
171
Reaction score
32
Wow, a FSW version? That is pretty forward thinking, but overly ambitious. The wing probably would've been very thin (like the X-29's), which would make the addition of decently sized integral fuel tanks and ordinance capacity an issue. Yes, such a mission profile is beyond what was intended, but on a practical level, a proper fighter, VSTOL or not should have decent air-to-air capacity: 2x AIM-9s, 4x AIM-4s (or AMRAAMs for modern times). The other thing I wonder about is the aircraft CG. I don't think the plane could've gotten away with the lift fan so far back.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
Greetings All -

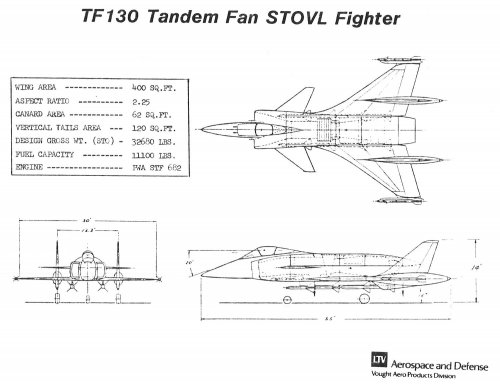

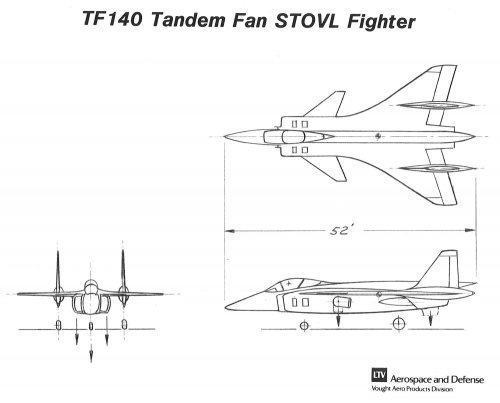

Another bundle of good stuff from the Vought Archives. Had not seen the TF130 and TF140 designs before.

Enjoy the Day! Mark


Attachments

  • xLTV TF140 3V.jpg
    xLTV TF140 3V.jpg
    96.6 KB · Views: 201

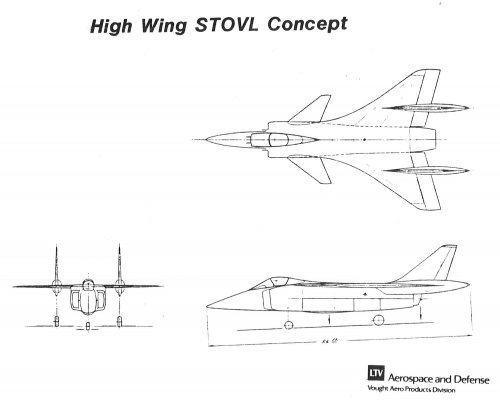

  • xHigh Wing STOVL Concept 3V.jpg
    xHigh Wing STOVL Concept 3V.jpg
    93.5 KB · Views: 179

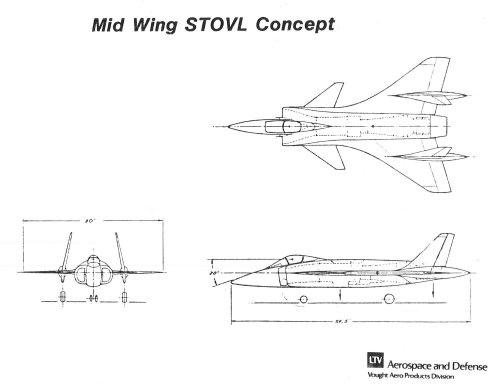

  • xMid Wing STOVL Concept.jpg
    xMid Wing STOVL Concept.jpg
    95.4 KB · Views: 213

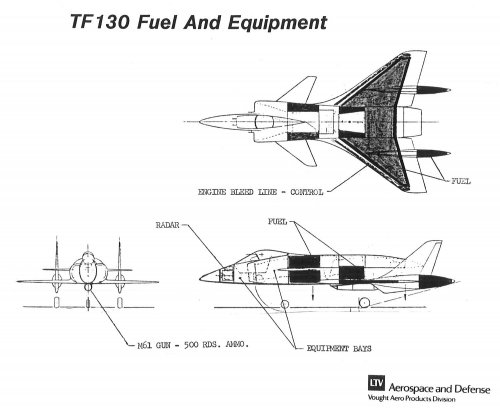

  • xLTV TF130 3V Fuel and Equipment.jpg
    xLTV TF130 3V Fuel and Equipment.jpg
    129.1 KB · Views: 215
  • xLTV TF130 3V.jpg
    xLTV TF130 3V.jpg
    136.9 KB · Views: 277
  • xSTOVL-103 3V.jpg
    xSTOVL-103 3V.jpg
    215.1 KB · Views: 240

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
561
Reaction score
317

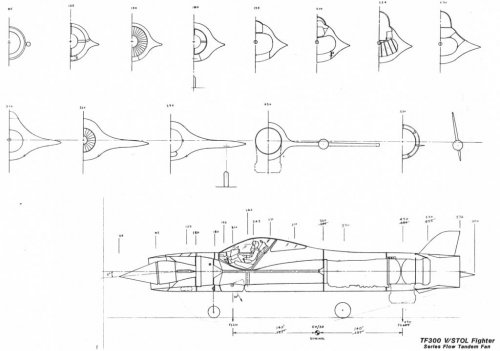

TF-300 sections
From the Vought Heritage Archives.


(with all the shuffling I hope it still belongs in this topic)




bill


Attachments

  • TF-300-Sections.jpg
    44.8 KB · Views: 208

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
561
Reaction score
317

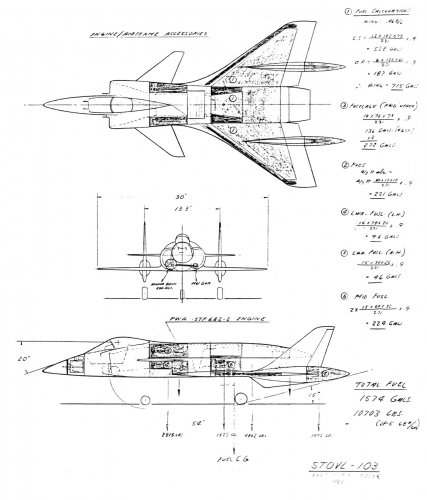

Mark previously post STOVL-103

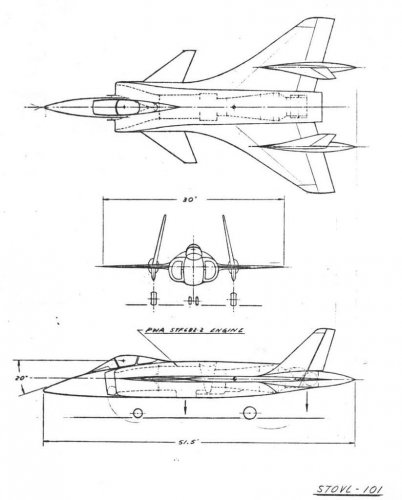

Here are STOVL-101

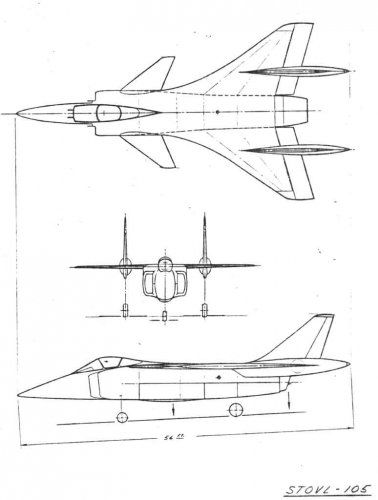

and STOVL-105


These drawings add numbers to the slides Mark presented
that were titled "Mid Wing STOVL" and "High Wing STOVL"


Vought Heritage Archives


bill


Attachments

  • STOVL-101-General-Arrangement.jpg
    63 KB · Views: 148
  • STOVL-105-General-Arrangement.jpg
    30.3 KB · Views: 162

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,379
Reaction score
687
This fighter concept from 1984 reminds me of Vought (LTV) V/STOL Tandem Fan Fighters. B)
SDASM Archives on Flickr said:
[...]design concept presentation by vought design studios artist paul pk nagata date 1984----Image from the SDASM Curatorial Collection[...]
If I am wrong, please let me know or move this post to the suitable topic. :)
Source: https://flic.kr/p/28bLLKd


Attachments

  • 20180906_Vought_Concept_1984_Paul_PK_Nagata_SFASM_Curatorial_Collection.jpg
    88.3 KB · Views: 179

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,710
Reaction score
3,490
fightingirish said:
This fighter concept from 1984 reminds me of Vought (LTV) V/STOL Tandem Fan Fighters. B)
SDASM Archives on Flickr said:
[...]design concept presentation by vought design studios artist paul pk nagata date 1984----Image from the SDASM Curatorial Collection[...]
If I am wrong, please let me know or move this post to the suitable topic. :)
Source: https://flic.kr/p/28bLLKd

Wow,brilliant my dear Rolf.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,710
Reaction score
3,490
From L+K 3/1984.


Attachments

  • 3   3-1984.png
    3 3-1984.png
    35.6 KB · Views: 109
