Very early Teledyne Ryan UAVs

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,335
Reaction score
284
I am reading Volume 15 of International Air Power Review. There is a two part article on the history of HALE/MALE. They mention in passing a Model 136 developped under the name 'Red Wagon', which competed with a Boeing 'Blue Scooter' shortly after Powers was shot down, so in 1960.
Red wagon did not proceed and was superseded by 'Lucy Lee' (or L2). Both had long, straight wings, inward canted H-Tails and dorsal engines. Compass Arrow shared those characteristics, but i think it was a later (1966) different program (plus it had swept wings). Does anyone have pictures of Red Wagon, Blue Scooter, or Lucy lee?
Thanks!


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,998
Reaction score
438
From 'Lightning Bugs and other reconnaissance drones', William Wagner, AFJ/Aero publications.

sorry, but there's no image of 'Blue Scooter'

This is THE book to have, if you want to know about Teledyne Ryan UAVs, up to the mid 1970s.

cheers,
Robin.


Attachments

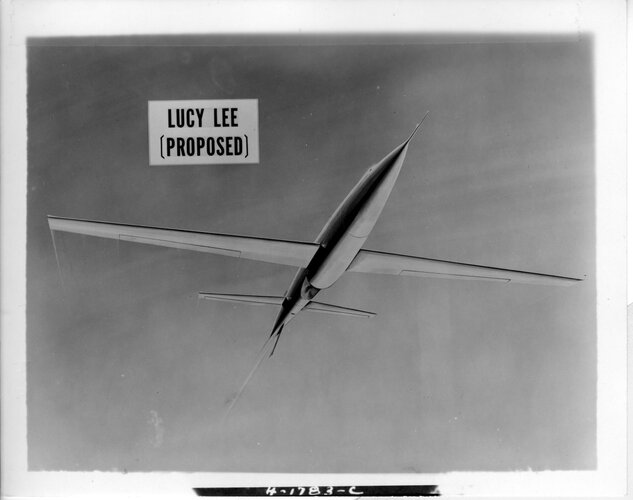

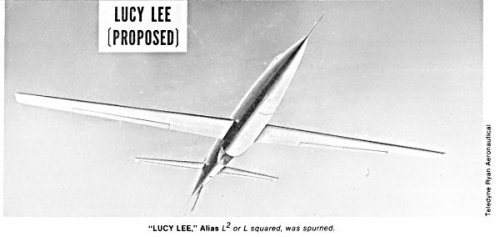

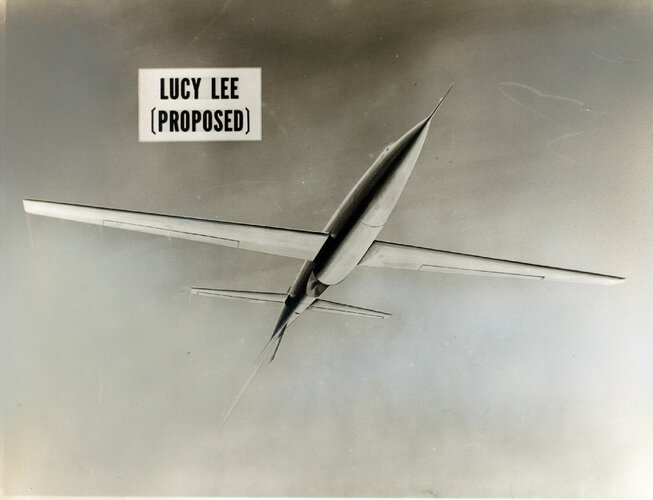

  • 'Lucy Lee'.jpg
    'Lucy Lee'.jpg
    24 KB · Views: 414

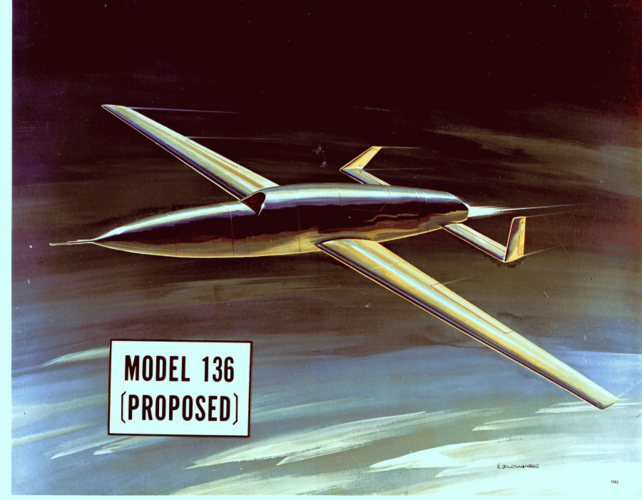

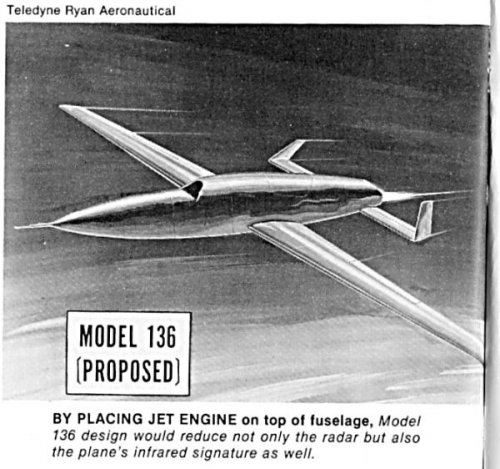

  • model 136 'Red Wagon'.jpg
    model 136 'Red Wagon'.jpg
    75.3 KB · Views: 395
  • 'Lightning Bugs 'Cover.jpg
    'Lightning Bugs 'Cover.jpg
    84 KB · Views: 410

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,335
Reaction score
284
Thanks for the reference. I think someone at work has a copy I can steal :)


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,998
Reaction score
438
Thanks for the reference. I think someone at work has a copy I can steal

if you do, then keep it! it took eighteen months to get mine!, i think it's quite rare, now, ;)

cheers,
Robin.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,072
Reaction score
177
Excellent book. Quite amazing what they achieved with those early drones. I'd heartily recommend it.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,335
Reaction score
284
rickshaw said:
Excellent book. Quite amazing what they achieved with those early drones.

there is a picture of a Firebee flying under power lines in Vietnam!


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,072
Reaction score
177
AeroFranz said:
rickshaw said:
Excellent book. Quite amazing what they achieved with those early drones.

there is a picture of a Firebee flying under power lines in Vietnam!

I thought the story of the Firebee over the ridge in North Vietnam was particularly impressive. IIRC just cleared the top of the ridge, capturing the upturned faces of North Vietnamese as they watch this aerobatic manoeuvre overhead.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,335
Reaction score
284
IIRC, in one mission the waypoint altitude was entered incorrectly, resulting in MUCH lower altitude than planned. Maybe that's the one you are referring to.
Watching the drone tearing through the sky at extremely low altitude like a bat out of hell must have been an amazing sight.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,072
Reaction score
177
That may be it. Its been about 10 years since I read my copy. I've often wondered why the US apparently abandoned this very successful technology after Vietnam.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,335
Reaction score
284
from the article I was reading (Bill Sweetman, International air power review vol.15):

In 1975, the USAF was experimenting with UAVs armed with precision weapons, penetrating jammers and other advanced systems. But the Firebee-based systems were expensive to operate, non-combat losses were high, and Compass Arrow had cost a daunting $1B to little effect. IN 1976, too, the UAVs were transferred from SAC to TAC - putting them in competition for money and resources with fighters.
furthermore Sweetman says the emergence of KH-11 satellites, which could downlink images in real time, and the uncertainty on WHERE the RPVs were taking pictures (INS navigation was not very precise) weighed against them. In the ELINT role, The U-2 was competing for the funds, and it arguably could carry more and generate more power for the sensors.
It wasn't until GPS navigation and satellite links that UAVs' fortunes started taking off.


Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
8
For those w/an interest in Ryan Teledyne UAVs, there is also a follow-on volume published in 1992 -- no further discussion of Red Wagon, etc., but some good add'l info on Compass Arrow and later recce drones.


Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
8
hmmm. Perhaps my .jpg image is too large?


Attachments

  • img014.jpg
    309.1 KB · Views: 397

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,335
Reaction score
284
Thanks for the reference, Clioman!
The cover page makes it sound like it's an all new book, not a simple update/enlarged version of the previous book. Is that the case?


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,998
Reaction score
438
It is an all new book, it recaps what's in 'Lightning Bugs', then takes the story onwards through the 70's and 80's, finishing up in the early 90's with the BQM-145 project. Consider it a volume 2 to 'Lightning Bugs' volume 1.

cheers,
Robin.


Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
152
San Diego Air and Space Museum just posted a ton of high quality photos at Flickr.

http://www.flickr.com/photos/sdasmarchives/

Included among them are a few de-classified AQM-91A Compass Arrow photos. The photos apparently depict some kind of crash (or perhaps parachute landing in an unintended location?) of one of the aircraft, with it resting upon a road.

Unfortunately, I am having some difficulty embedding the photos, but in case that doesn't work, I have also posted the links. Again, much larger versions of these photos are available at the links provided.

http://www.flickr.com/photos/sdasmarchives/5684588859/in/photostream/


http://www.flickr.com/photos/sdasmarchives/5684588925/in/photostream/
https://c2.staticflickr.com/6/5230/5684588925_f7d0830951_n.jpg[img]

http://www.flickr.com/photos/sdasmarchives/5685158756/in/photostream/
[img]https://c2.staticflickr.com/6/5069/5685158756_6f95e8a72f_n.jpg


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,998
Reaction score
438
According to 'Fireflies', pp.53-4,(See above) the 4th production Model 154 Firefly suffered
a malfunction during a test flight, necessitating an emergency abort and recovery.
It landed at Los Alamos, of all places! The building in the picture is apparently part of the
plutonium production plant.
Eventually the thing was recovered and returned to Holloman AFB by the following day,
but not before local news crews had got plenty of pictures...


cheers,
Robin.


Firebee

ACCESS: Confidential
Joined
Apr 1, 2011
Messages
100
Reaction score
2
I highly recommend both books. Lots of unusual variants discussed. And of course the story of "TomCat", a Firebee that completed 68(!) successful missions before being lost in action.

I'm not sure how to add a picture, but there is a picture of TomCat most of the way down this page:

http://www.acig.org/artman/publish/article_344.shtml


Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
152
More great stuff from the San Diego Air & Space Museum archives on YouTube. Various drone footage, predominantly Firebees, but at the 11 minute 50 second mark, footage of the Ryan AQM-91A Compass Arrow on the wing of the DC-130 and being launched/dropped from the DC-130. The sequence runs for about 4 minutes in slow motion.

In addition, others here would be better identify the other drones being tested, but they do appear to be armed and recon versions of the line of Ryan "target" drones.

Also of interest is some footage that begins at the 11 minute 5 second mark. It is interesting because, to my eyes, it shows test footage of a firebee, but unlike all the other footage, this has some faint and distorted (slowed down?) verbal commentary playing over it. The best I could make out was audio describing the drone as an "AQM-147G" (Lightning Bug, presumably). There may be those here who have the ability to process the audio into some sort of decipherable form.

http://www.youtube.com/user/sdasmarchives#p/u/8/X3amdRhNjK0


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
713

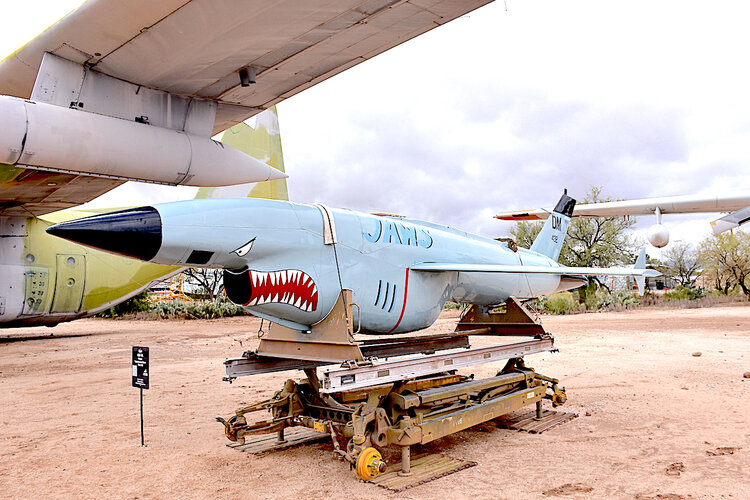

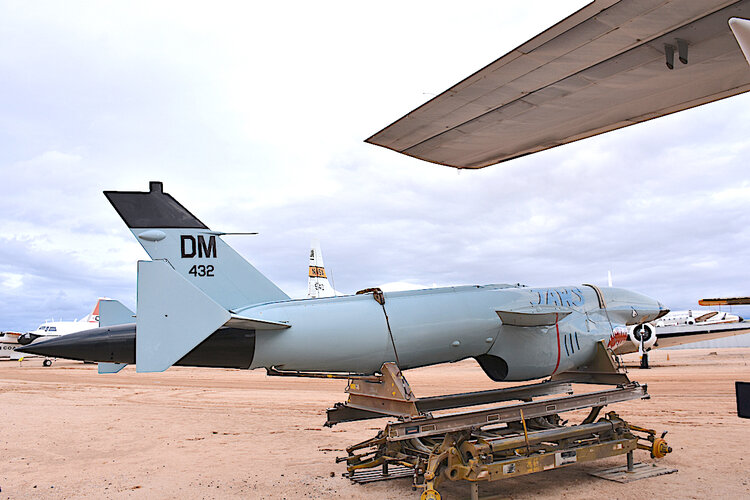

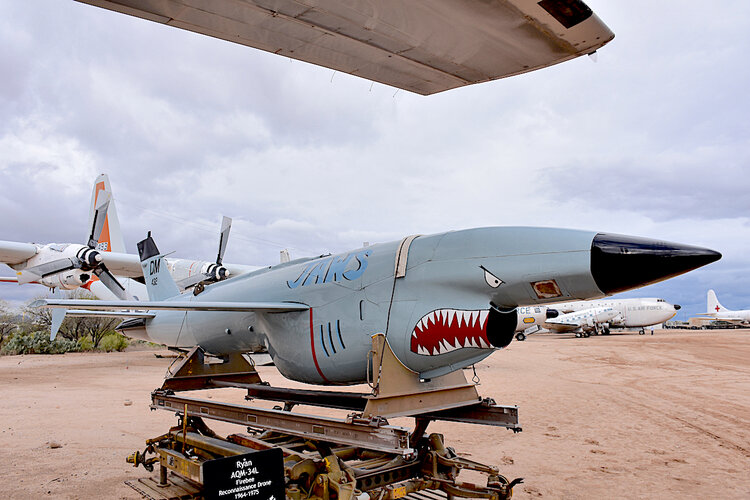

The Ryan Model 147 series comprised many RPV types. The 147G variant was an update of the 147B Lightning Bug with stretched fuselage, a no-contrail system and a new, larger engine. Like several other 147 sub-types, it never carried an AQM-34 designation, while others did.


Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
152
Among the latest San Diego Air & Space Museum (SDASM) postings on YouTube is this one which, for the first 40 seconds, shows black and white footage of a long-winged Ryan 147 variant making simulated aerial refueling approaches on a (simulated?) trailing hose and drogue. The film is then spliced with additional color footage of a BAe 125 ( Hawker Siddeley HS.125) making what appears to be similar aerial refueling approaches - albeit without a hose and drogue trailing from the camera aircraft. Presumably, this is related to efforts by Ryan to extend the range of their recce UAVs.
YouTube - SDASM "F 2809 Ryan Aeronautical Aerial Refueling"
http://www.youtube.com/watch?v=HySHCrY96KQ
