the Gasuden Model-3 was a project for advanced trainer
aircraft as a high-wing monoplane,has anyone a drawing
to it ?.

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,151
Reaction score
2,204

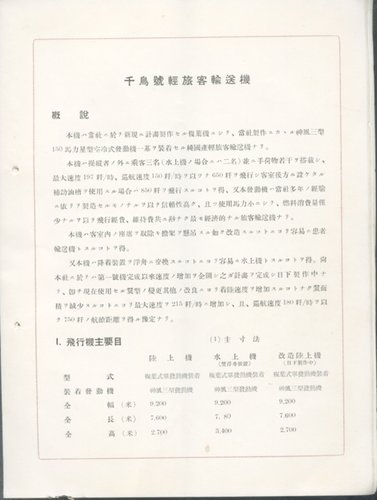

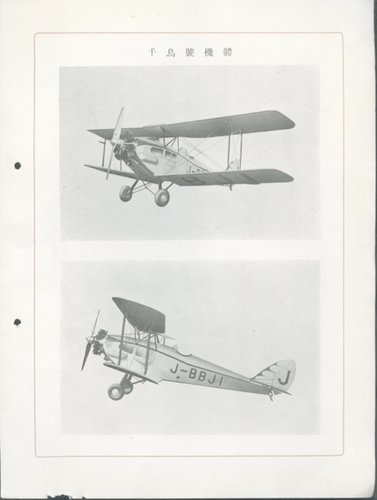

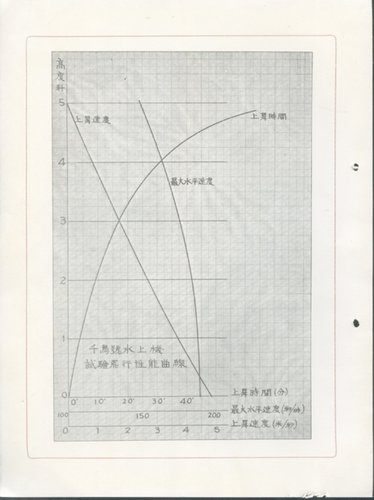

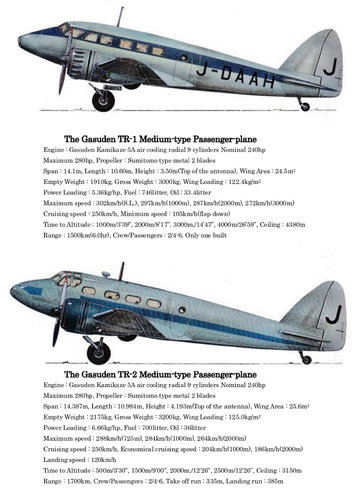

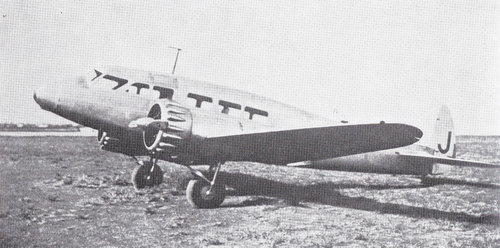

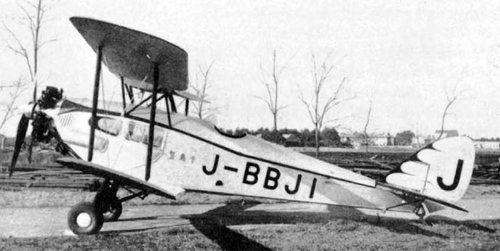

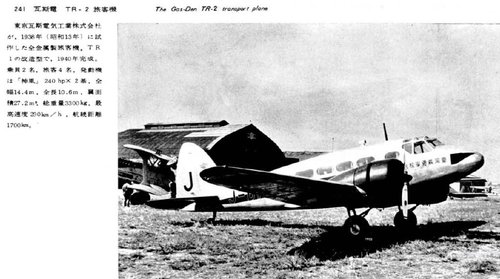

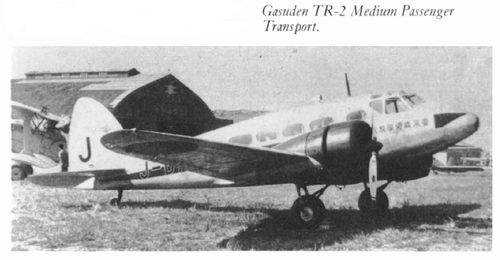

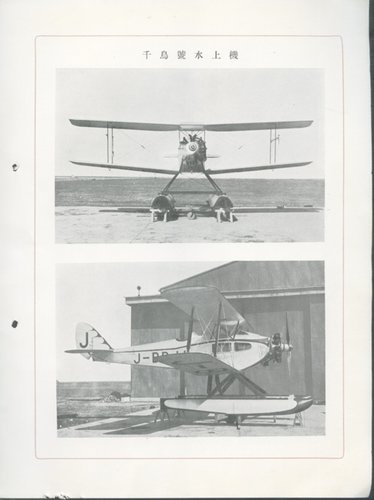

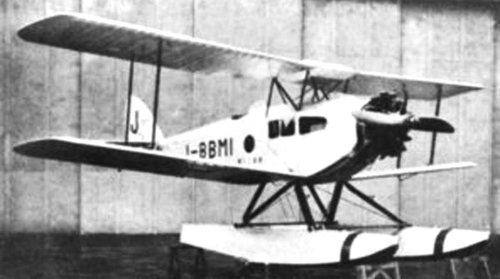

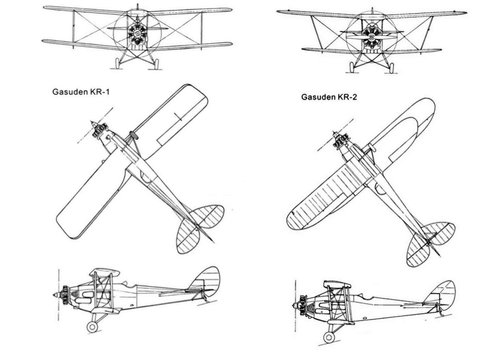

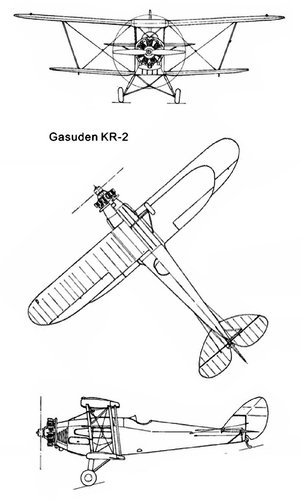

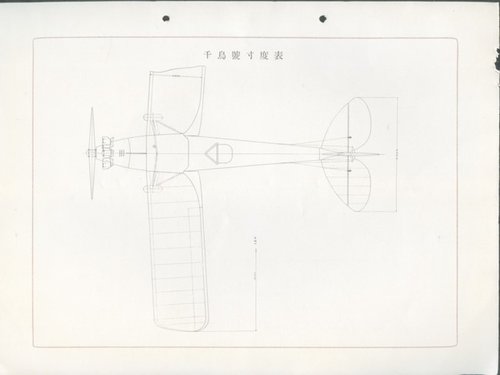

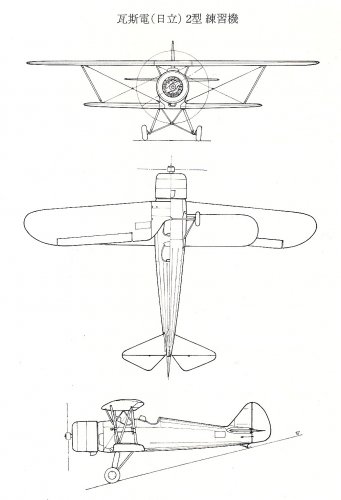

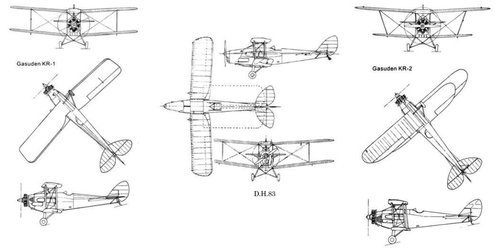

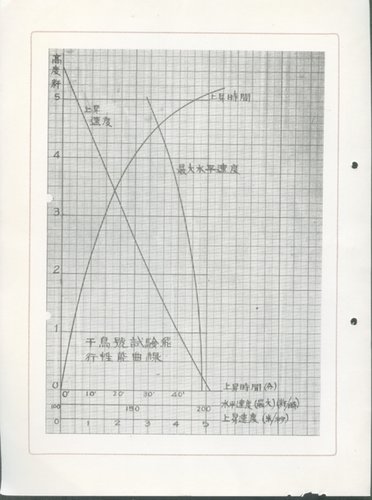

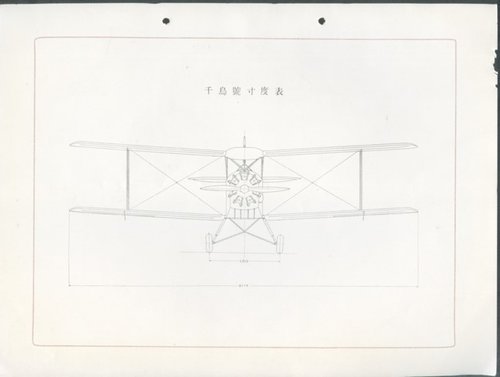

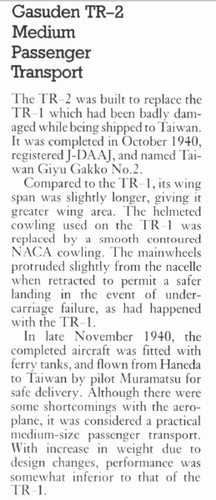

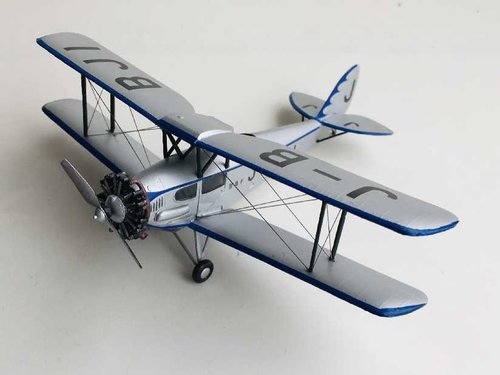

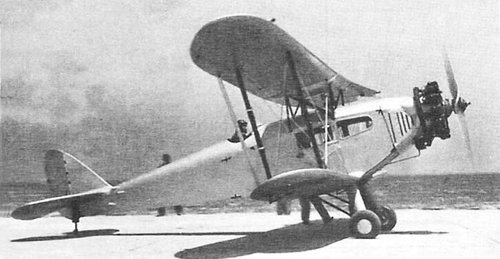

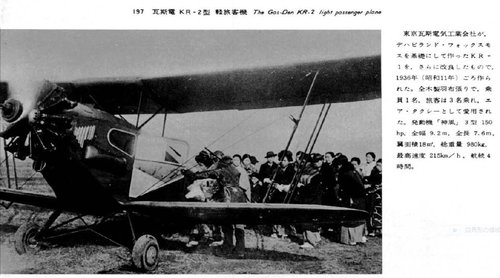

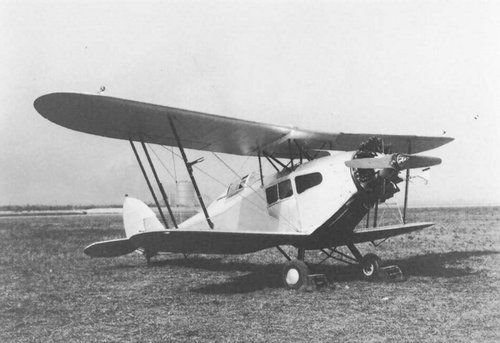

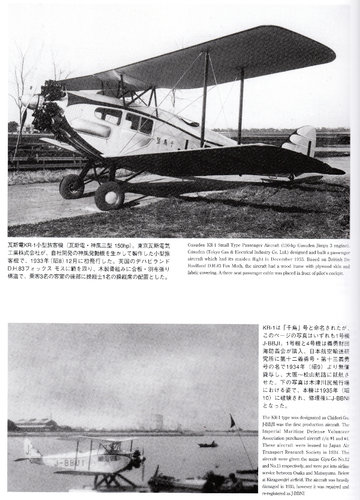

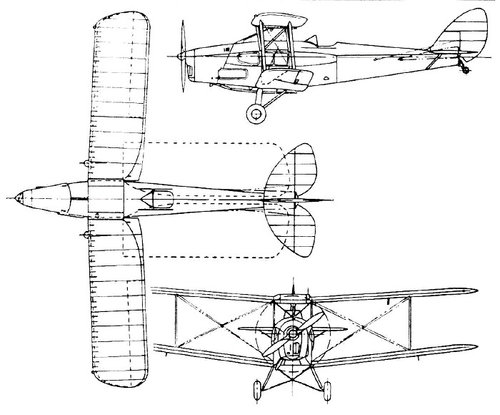

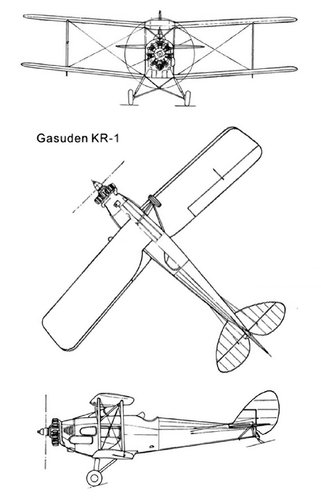

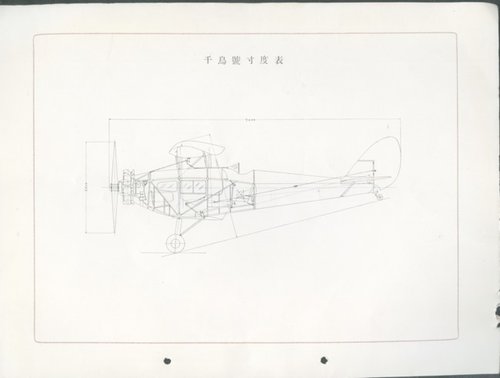

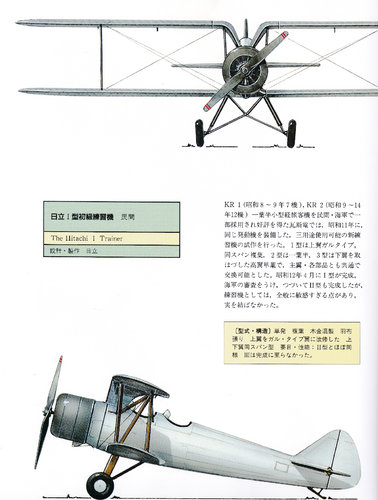

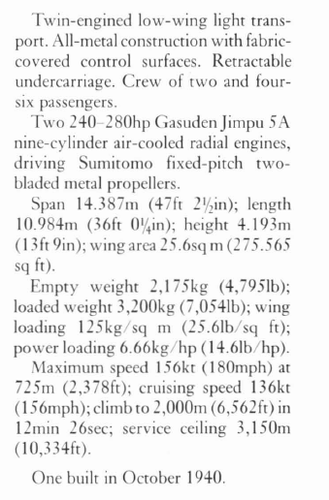

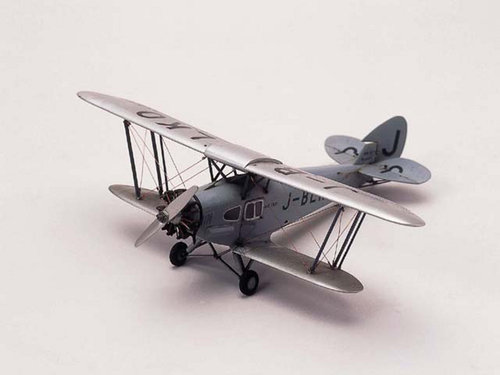

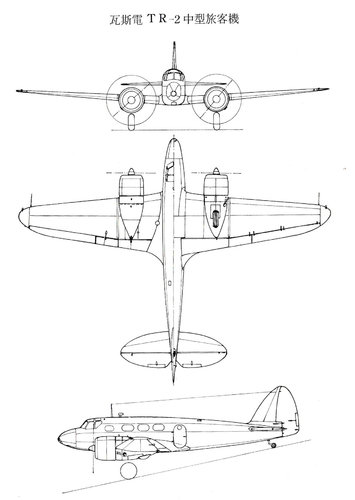

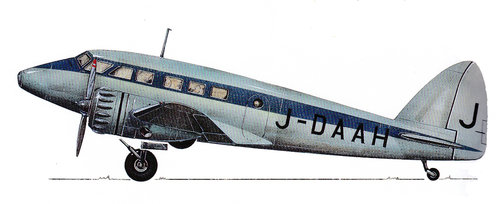

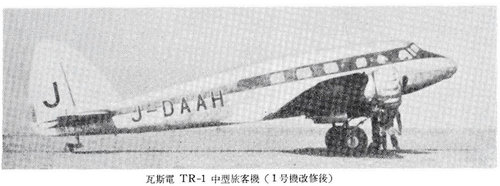

Hi! The Gasuden(瓦斯電)model-2 drawing.

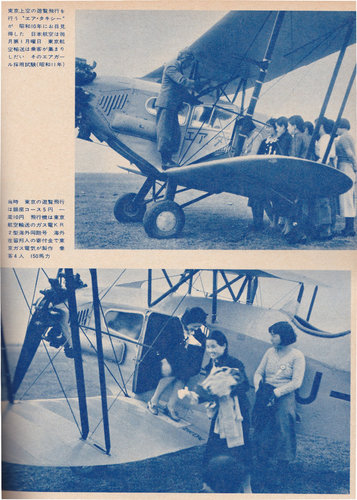

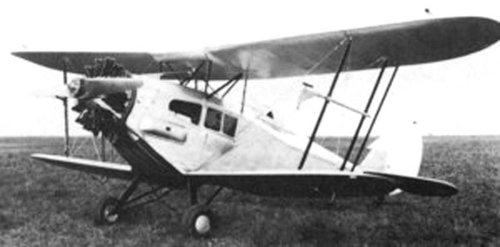

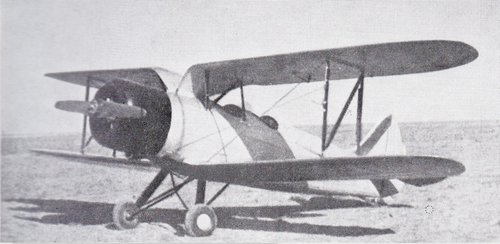

The Gasuden model-1 was a biplane. The Gasuden model-3 was a monoplane, not realized.
Through model-1 to model-3, engine, fuselage, undercarriage and tail stabilizers were common.

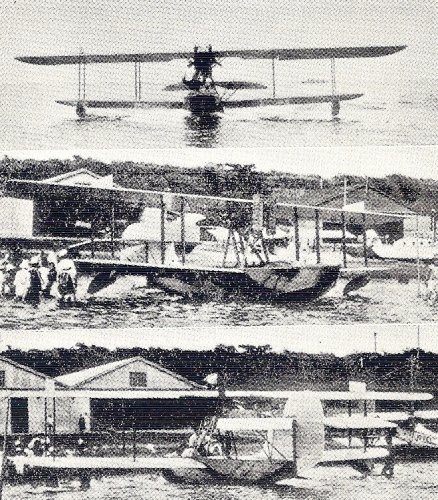

And the pictures of ITo 28-31 flying boat.
Source:My No.2 bible.


Attachments

riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
821
Reaction score
336
Those Japanese designers were definitely influenced by recent developments in Germany and USA.
For example: Gasuden Model 1 biplane's forward-swept landing gear was influenced by Bucker Jungmann, but it has a lower-drag NACA engine cowling.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,921
Reaction score
283
Great stuff blackkite-san,
do you have any technical data?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,151
Reaction score
2,204

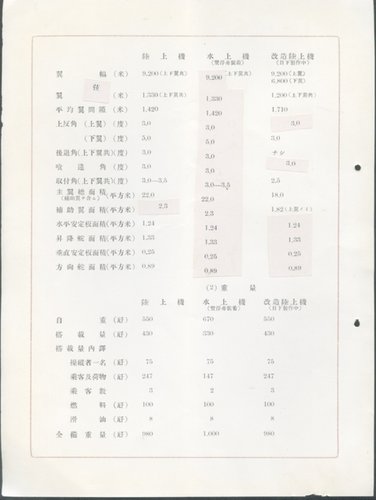

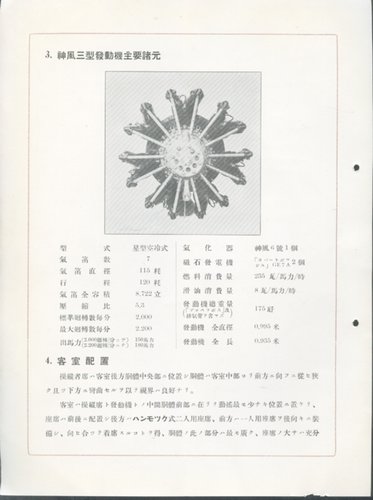

Hi!

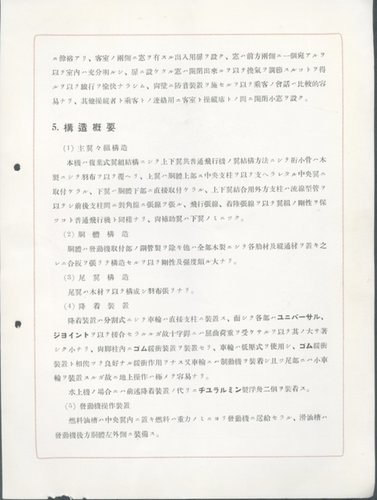

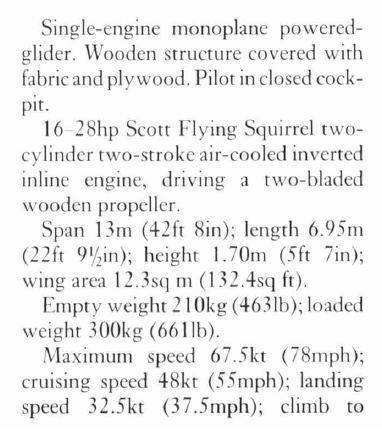

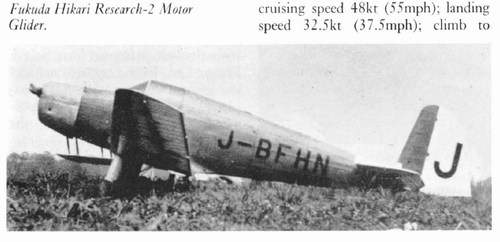

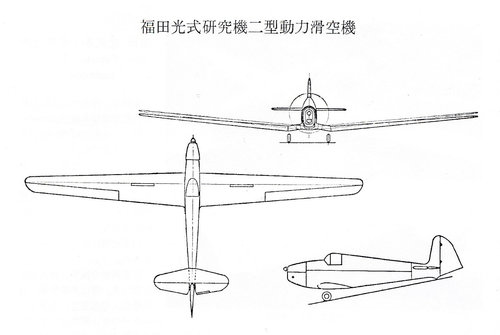

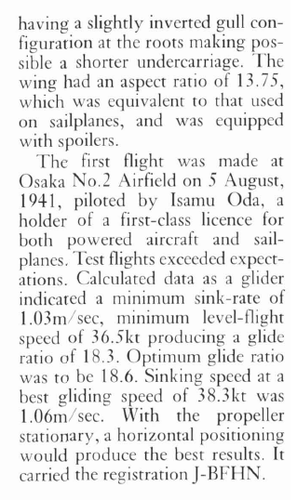

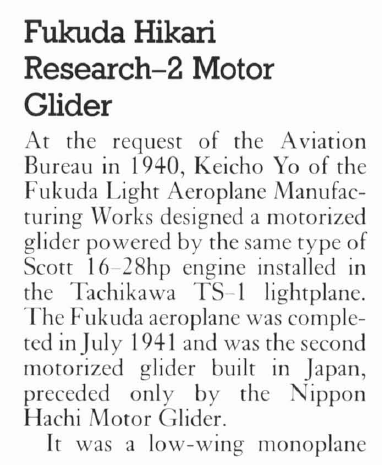

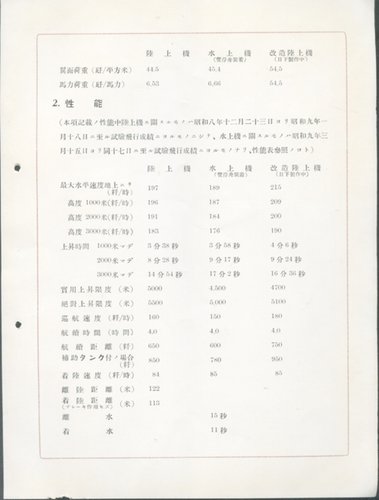

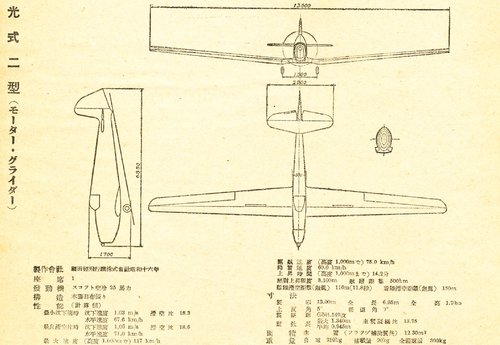

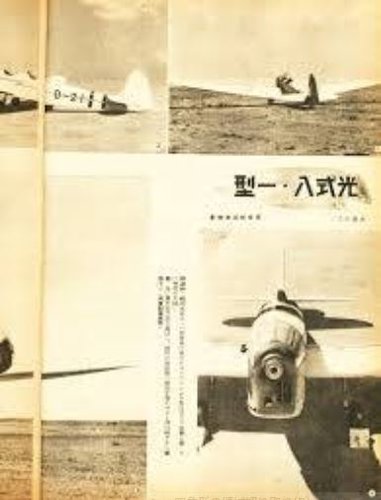

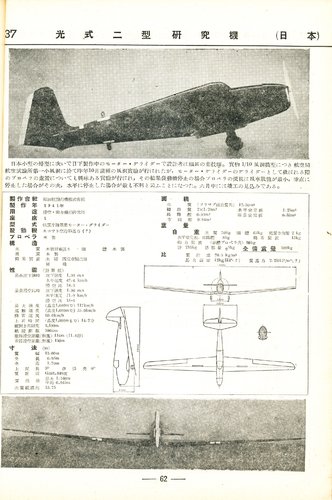

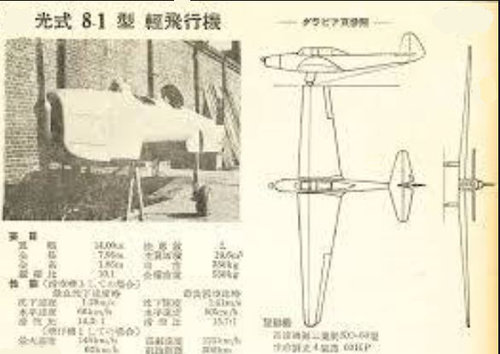

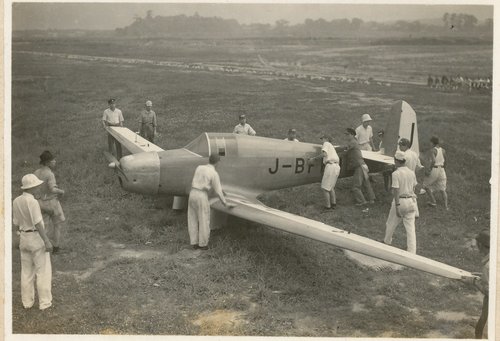

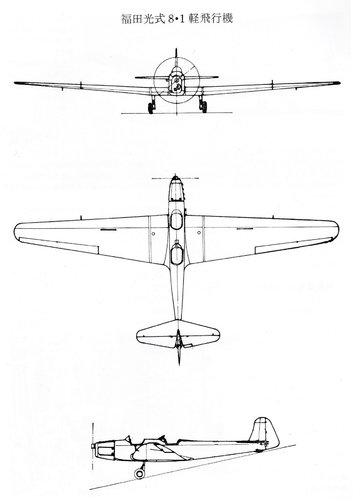

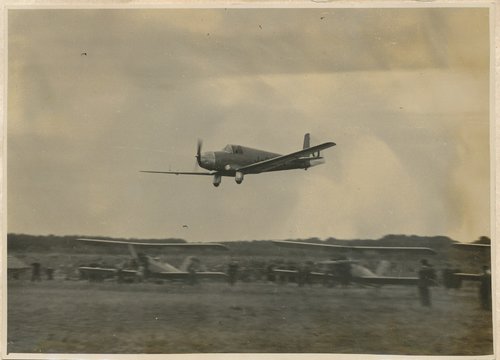

The Fukuda Hikari Research-2 Motor-glider
Span : 13.00m, Length : 6.95m, Wing Area : 12.3m2, Empty Weight : 210kg,

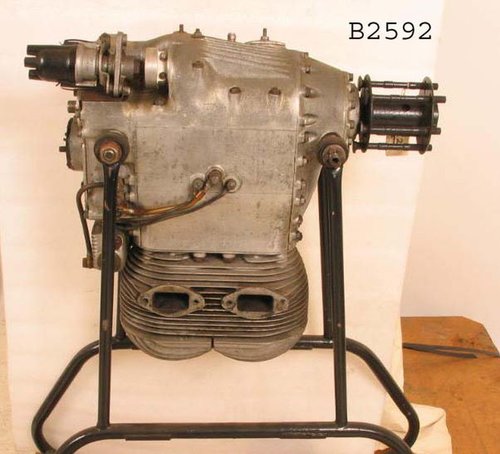

Gross Weight : 300kg, Engine : Scott Flying Squirrel inverse air cooling 2 cycle 2 cylinder engine (Maximum power : 28hp, Nominal power : 16hp), Propeller : Fixed pitch 2 blades 1.54m diameter
Design Performance as a motor glider
Maximum Speed : 117km/h (Altitude 1,000m), Cruising Speed : 75km/h (Altitude 1000m), Landing Speed : 60km/h, Time to Altitude : 1,000m/14’12”, Ceiling : 3,100m,
Range : 500km, Take off run : 116m, Landing run : 150m,
Design Performance as a glider
Minimum sink rate : 1.03m/s, Maximum speed : 67.6km/h, Glide ratio : 18.3,
Actual Performance as a motor-glider
Maximum Speed : 125km/h, Cruising Speed : 80~90km/h, Time to Altitude : 1,000m/10’30”, Engine did not work well above altitude 1,250m
Source : as usual
