USN ANTITORPEDO TESTED

TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,913
Reaction score
846
Not based on Mk46. As the slide notes, CAT is a 6.75-inch (171mm) diameter weapon. That's much smaller than the Mk46, although they are similar in length.

Penn State ARL has been working on this for a while now. Nice to see they're making progress.

http://www.arl.psu.edu/uwo.php

  • Like
Reactions: zen

TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,913
Reaction score
846
No worries. There apparently was an earlier attempt at a torpedo defense system based on Mk46, but very little information has emerged on it.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,117
Reaction score
1,179
TomS said:
No worries. There apparently was an earlier attempt at a torpedo defense system based on Mk46, but very little information has emerged on it.
I'd always wondered if that's what the Mk32 tubes that US surface ships were really for as they seemed pretty outgunned if meant to deal with submarines that all pack longer ranged 21" torpedoes.


RLBH

CLEARANCE: Secret
Joined
May 5, 2007
Messages
271
Reaction score
95
sferrin said:
TomS said:
No worries. There apparently was an earlier attempt at a torpedo defense system based on Mk46, but very little information has emerged on it.
I'd always wondered if that's what the Mk32 tubes that US surface ships were really for as they seemed pretty outgunned if meant to deal with submarines that all pack longer ranged 21" torpedoes.
I've seen the lightweight torpedoes described as 'the world's best depth charge'.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,913
Reaction score
846
sferrin said:
I'd always wondered if that's what the Mk32 tubes that US surface ships were really for as they seemed pretty outgunned if meant to deal with submarines that all pack longer ranged 21" torpedoes.
No connection -- the SSTD version of Mk 46 dates to sometime in the 1990s. Polmar says 172 conversion kits were procured, but it does not seem to have been a success. Mk 32 tubes showed up briefly on one or two US carriers, possibly in connection with SSTD, but they disappeared very quickly.

The logic for over-the-side tubes in escorts is that they don't cost much or have much impact, they use the same torpedoes already carried for helicopters, and they might be useful as a last ditch weapon or in conditions where detection ranges might be low enough that the lightweights can reach. Plus, high-speed screws in the water might spook a sub driver even if they aren't actually in range.

It's worth noting that a submarine might well prefer to shoot from much less than the nominal maximum range of its torpedoes. Given enough time, a fast warship might outrun a long-range heavyweight torpedo in a stern chase.


CliffyB

CLEARANCE: Confidential
Joined
May 24, 2011
Messages
56
Reaction score
0
My father was involved in those tests in the 1990s when he was XO of a FFG-7 in California. They were designed so that CVs and big deck amphibs could carry a pair of standard Mk-32s and as a result have an active self defense capability other than just a passive NIXIE. From what he said they worked extremely well and they fired a large amount of them up in a range near or off of the western coast of Canada. They looked like a normal Mk-46 but they were longer so they wound up sticking out of the tubes a few feet. He never knew why it was canceled. Glad to see them revisiting the concept. Hopefully this time it will take.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,395
Reaction score
1,618
Recent events should help concentrate minds at the Pentagon a bit (well, one can always hope anyway!): https://blog.usni.org/2016/09/07/asw-abundans-cautela-non-nocet

As, rightfully, much of our ASW discussions should only take place behind the cipher door, it’s helpful to find something in open source as a reference point. In The Economist last month, there is a great article on modern ASW challenges, Seek, but shall ye find?

Some nice points to ponder a couple decades post-drift;


DURING war games played off the coast of Florida last year, a nuclear-powered French attack submarine, Saphir, eluded America’s sub-hunting aircraft and vessels with enough stealth to sink (fictitiously) a newly overhauled American aircraft-carrier, Theodore Roosevelt, and most of her escort. An account of the drill on a French defence-ministry website was promptly deleted, but too late for it to go unnoticed.

Nor was this French victory a fluke. In 2006, in what was very far from being a war game, a Chinese diesel-electric submarine surfaced near Okinawa within torpedo range of another American carrier, Kitty Hawk, without having been detected by that carrier’s escort of more than a dozen vessels and anti-submarine aircraft. And, from the point of view of carrier-deploying navies, things are threatening to get worse. Saphir, launched in 1981, hardly represents the state of the art in underwater undetectability; in the decade since the Okinawa incident diesel-electrics have become even quieter. For an inkling of the silence of the new generation of such subs when they are running on battery power alone, without their engines turning, Jerry Hendrix, a former anti-submarine operations officer on the Theodore Roosevelt, asks: “How loud is your flashlight?”
"


The always quotable Jerry!


…submarines are spreading. Since the cold war ended, the number of countries deploying them has risen from a dozen or so to about 40.


While we have rested some, tinkered with “new” ASW search methods a bit, the world continues to build.


Worse, for those trying to defend ships from submarine attack, Western powers have routinely cut anti-submarine spending since the end of the cold war. American carriers retired the S-3 Viking submarine-hunting warplane in 2009, leaving shorter-range helicopters to compensate. Since the Soviet Union’s demise the average surface escort of an American carrier has shrunk from six vessels to four. … Many carry anti-ship guided missiles as well as torpedoes. One such, the CM-708 UNB, was shown off by China in April. It packs a 155kg warhead and, after popping out of the water, flies at near the speed of sound for about 290km. An export version is available but, if you prefer, Russia’s submarine-launched Kalibr-PL missile offers a bigger warhead and a terminal sprint at Mach three.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,117
Reaction score
1,179
Grey Havoc said:
Recent events should help concentrate minds at the Pentagon a bit (well, one can always hope anyway!)
I'm not holding my breath either. Every time I think I couldn't be anymore disappointed they manage to lower the bar. :'(


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
2,453
Reaction score
131
Grey Havoc said:
Recent events should help concentrate minds at the Pentagon a bit (well, one can always hope anyway!
Penn State's Anti-Torpedo Torpedo efforts began years before even the earliest event listed in that blog post.
More to the point, they've been fielding Prototype versions on the CVNs for years now and the program is
entering Milestone B this year with LRIP scheduled for FY 2019.

I

Ian33

Guest
Even had some early British input

http://www.public.navy.mil/subfor/underseawarfaremagazine/Issues/Archives/issue_32/antitorpedo_2.html


fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
2,029
Reaction score
540
I didn't realize they are already deploying this system.

http://www.scout.com/military/warrior/story/1711759-us-carriers-deploy-new-torpedo-defense-system

US Carriers Deploy New Torpedo Defense System
KRIS OSBORN
The Anti-Torpedo Defense System, currently installed on five aircraft carriers and deployed on one carrier at the moment, is slated to be fully operational by 2022.

The Navy is arming aircraft carriers with a prototype high-tech torpedo defense technology able to detect, classify, track and destroy incoming enemy torpedoes, service officials said. The Anti-Torpedo Defense System, currently installed on five aircraft carriers and deployed on one carrier at the moment, is slated to be fully operational by 2022.

The overall SSTD system, which consists of a sensor, processor and small interceptor missile, is a first-of-its-kind "hard kill" countermeasure for ships and carriers designed to defeat torpedoes, Navy officials said.
The emerging Surface Ship Torpedo Defense technology includes the Anti-Torpedo Defense System, or ATTDS and an SLQ-25 Acoustic Device Countermeasure; the ATTDS consists of a Countermeasure Anti-Torpedo program and Torpedo Warning System.

“The ATTDS is designed to detect, classify, track and localize incoming torpedoes utilizing the Torpedo Warning System leading to a torpedo hard-kill by employing the Countermeasure Anti-Torpedo,” Collen O’Rourke, spokeswoman for Naval Sea Systems Command, told Scout Warrior. Thus far, the ATTDS has completed three carrier deployments."


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
2,453
Reaction score
131
http://seapowermagazine.org/stories/20161011-torpedo.html
Posted: October 11, 2016 3:15 PM
USS Nimitz Fifth Carrier Armed with Anti-Torpedo Weapon

By RICHARD R. BURGESS, Managing Editor

ARLINGTON, Va. — When the nuclear-powered aircraft carrier USS Nimitz emerged from an extended period in a shipyard last week, it featured a new installation of an anti-torpedo system.

Nimitz is the Navy’s fifth carrier to have the Anti-Torpedo-Defense System installed. The system includes the Torpedo Warning System, an acoustic sensor that detects an incoming torpedo; a tactical control station; and the Countermeasure Anti-Torpedo (CAT). The CAT, a small torpedo designed to intercept an incoming torpedo, was developed by Pennsylvania State University’s Applied Research Lab.

Compared with air- or ship-launched cruise missiles, anti-ship torpedoes are much more difficult for a ship to defend against because the medium of water is more opaque and distorted to sensors.

The anti-torpedo defense system was one of several improvements added to the ship, including two Mk38 25mm guns and the Consolidated Afloat Network Enterprise Services system, according to an Oct. 5 Navy release announcing the Nimitz’s commencement of sea trials following a 20-month Extended Planned Incremental Availability at Puget Sound Naval Shipyard, Bremerton, Wash.

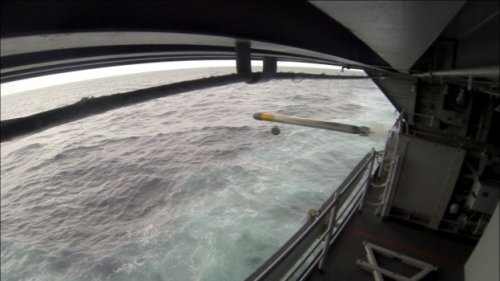

An engineering and development model (EDM) of the anti-torpedo system was tested in May 2013 from USS George H.W. Bush and deployed in 2014. A roll-on/roll-off model was deployed on USS Theodore Roosevelt and USS Dwight D. Eisenhower. A second EDM was installed on USS Harry S. Truman. The Navy plans to equip all aircraft carriers and other high-value ships with the system by 2035.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,117
Reaction score
1,179
"The Navy plans to equip all aircraft carriers and other high-value ships with the system by 2035. "

Only 20 years? What's the rush?


jsport

I really should change my personal text
Joined
Jul 27, 2011
Messages
1,838
Reaction score
156
"The Navy plans to equip all aircraft carriers and other high-value ships with the system by 2035. "

Only 20 years? What's the rush?
what he said


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,117
Reaction score
1,179
Sadly the system has already been cancelled and is being removed. Awesome. :mad:


DanielStarseer

CLEARANCE: Confidential
Joined
Jan 18, 2010
Messages
51
Reaction score
9
Years ago, there was a project in development we (at the time) affectionately nicknamed the "Penn State mini torp", as that's where it was being developed: main campus has had a naval development center for decades, including a torpedo test center.... pretty odd being so far from applicable bodies of water for untethered testing, but more than adequate for all the controlled-environment testing one could ever desire.

No profiling intended, but the obvious predominance of Chinese students attending the main campus, including access to the Innovation Park facilities, does give one cause for concern with regards to industrial espionage and potential holes in matters of projects of national secrecy...

Nevertheless, the "flyweight" mini torp had a lot of "quart in a pint sized container" hard kill capability.


Firefinder

CLEARANCE: Restricted
Joined
Oct 6, 2019
Messages
22
Reaction score
12
I do wonder if the USN is looking at that Nammo 30mm(?) Swimmer shell with a Lidar system.

They already do have a Lidar in proper service as a Mine hunter, with a detect depth of almost 50 feet appereantly according to some sources. The AN/AES-1 laser mine detection system. Apparently civilian versions can go down to 200 feet in mapping of the sea floor.

With that swimmer shell able to go down to 30 feet accurately, I imagine that an ANTITORP gun will be a thing in the future for someone...


Dilandu

I'm dissatisfied, which means, I exist.
Joined
May 30, 2013
Messages
621
Reaction score
290
Website
fonzeppelin.livejournal.com

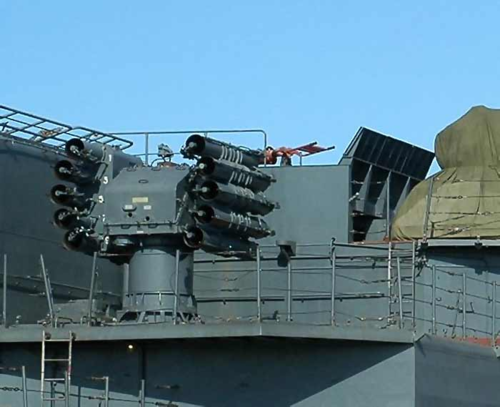

...They never though about doing it the simple way - installing back the rocket depth charge throwers? Seriously, Soviet Navy have hard-kill anti-torpedo capabilities for decades, using RBU salvo launchers with proximity charges set on "simultaneous detonation" (i.e. when one charge set off, the rest detonated simultaneously, creating the lethal zone of intersecting pressure waves). Our modern RBU-12000 system is specifically equipped with both soft-kill (decoy) and hard-kill (explosive) charges in its ten barrels. The probability of destroying the torpedo is 0,9 for coming straight on the ship, to 0,76 for maneuvering.


Sometimes the best solution is a simplest solution.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,913
Reaction score
846
I do wonder if the USN is looking at that Nammo 30mm(?) Swimmer shell with a Lidar system.

They already do have a Lidar in proper service as a Mine hunter, with a detect depth of almost 50 feet appereantly according to some sources. The AN/AES-1 laser mine detection system. Apparently civilian versions can go down to 200 feet in mapping of the sea floor.

With that swimmer shell able to go down to 30 feet accurately, I imagine that an ANTITORP gun will be a thing in the future for someone...
That Nammo round was originally developed for the USN's RAMICS mine clearance system, where it was coupled with a laser line scanner. That was cancelled some years ago for reasons that were never entirely clear. The round remains in service on the Mk46 mounts, because it stays on a straight path after penetrating the water surface and might hit target surface vessels below the waterline if a burst falls just short.

Nammo have demoed it against a torpedo-like target, but the challenge of creating a whole anti-torpedo gun system is (at least) two-fold. One, LIDAR is not great at trying to look through the air-water interface at low grazing angles (especially through turbulence like ship wakes), so its ability to detect torpedoes from a surface ship at useful range is limited. Two, Swimmer's underwater trajectory may not be enough to get down to under-keel torpedoes when the round is travelling at a shallow angle (if you hit the water at 10 degrees, a 30-foot straight line path only gets you about 5 feet under the surface).


norseman

CLEARANCE: Restricted
Joined
Jul 22, 2009
Messages
31
Reaction score
17

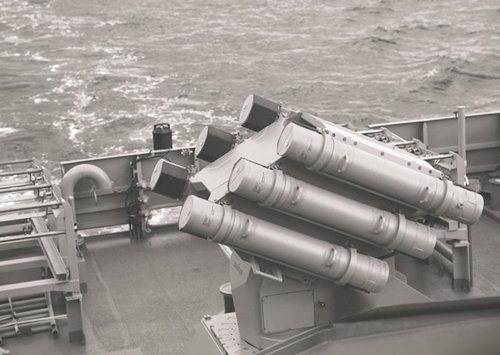

I liked the look of the German Sea Scorpion, wonder if it's still going. Heard that instead of a separate hard kill MU-90 they looked at merging the function into the stanard round but not sure if the project continued. Also the Turkish Tork? was doing the rounds but not sure of it's status.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,913
Reaction score
846
I liked the look of the German Sea Scorpion, wonder if it's still going. Heard that instead of a separate hard kill MU-90 they looked at merging the function into the stanard round but not sure if the project continued. Also the Turkish Tork? was doing the rounds but not sure of it's status.
You mean SeaSpider? SeaScorpion seems to be a fictional version from Reddit.


Combat-Master

CLEARANCE: Restricted
Joined
Jul 15, 2020
Messages
24
Reaction score
20
...They never though about doing it the simple way - installing back the rocket depth charge throwers? Seriously, Soviet Navy have hard-kill anti-torpedo capabilities for decades, using RBU salvo launchers with proximity charges set on "simultaneous detonation" (i.e. when one charge set off, the rest detonated simultaneously, creating the lethal zone of intersecting pressure waves). Our modern RBU-12000 system is specifically equipped with both soft-kill (decoy) and hard-kill (explosive) charges in its ten barrels. The probability of destroying the torpedo is 0,9 for coming straight on the ship, to 0,76 for maneuvering.

View attachment 638657

Sometimes the best solution is a simplest solution.
Turkey is developing an Anti-Torpedo Torpedo, but also have similar ASW rocket depth charges - I don't think Turkey would be developing ATT if a simple solution existed. Although, I'm sure such a system could be included in Torpedo Countermeasure system for surface vessels, less so for underwater applications.

Tuzla-Class ASW patrol boat equipped with Roketsan ASW warfare rocket.

I liked the look of the German Sea Scorpion, wonder if it's still going. Heard that instead of a separate hard kill MU-90 they looked at merging the function into the stanard round but not sure if the project continued. Also the Turkish Tork? was doing the rounds but not sure of it's status.
Tork is progressing well, latest news is that it's currently in the integration phase with HIZIR a Turkish Torpedo Countermeasure System and will be set to enter service along with Turkish LHD and U214TN submarines.


norseman

CLEARANCE: Restricted
Joined
Jul 22, 2009
Messages
31
Reaction score
17
I liked the look of the German Sea Scorpion, wonder if it's still going. Heard that instead of a separate hard kill MU-90 they looked at merging the function into the stanard round but not sure if the project continued. Also the Turkish Tork? was doing the rounds but not sure of it's status.
You mean SeaSpider? SeaScorpion seems to be a fictional version from Reddit.

Old age and brain fade to blame -)


Josh_TN

CLEARANCE: Secret
Joined
Sep 4, 2019
Messages
270
Reaction score
113
The CAT project was canned and the launchers that were installed are to be removed as the ships go through refit. However there is a new program for a mini torpedo. This one seems focus on SSNs as the launch platform, using the external countermeasures launchers. The goal is to have an anti torpedo capability, but also I could see this as being very useful for hunting UUVs that don't warrant a full sized torpedo and are so quiet they aren't detected until they are close aboard. Changes are a direct hit would still cripple an SSK as well - the warhead weight isn't given, but the all up weight is 220lbs so presumably 20-40 of that is warhead. It also looks like a HEAT arrangement, so at a minimum it should be able to breach a compartment from most impact angles. Hopefully this attempt works out; there would be a lot of other platforms that could benefit.


Top
