Unknown Pe-8 Derived Projects

RyanCrierie

Crazy Researcher
Top Contributor
Senior Member
Joined
Dec 19, 2006
Messages
850
Reaction score
152
Website
www.alternatewars.com

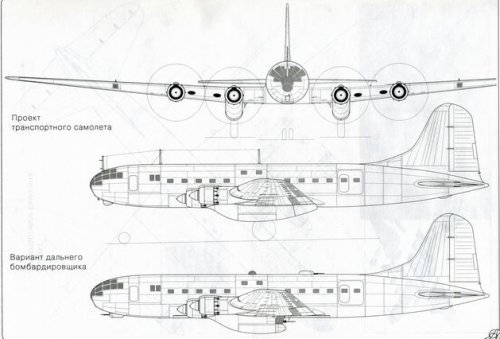

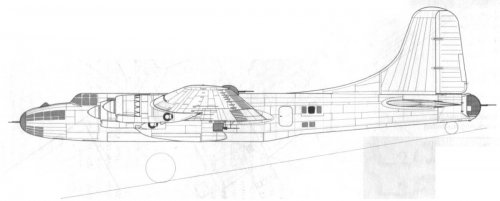

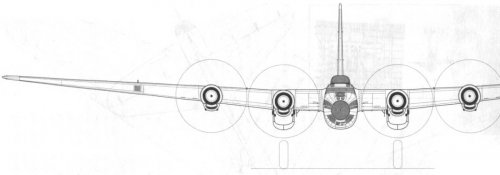

Found these in a collection of drawings related to the Pe-8:



and



Anyone have any idea of what these are and specs?


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,195
Reaction score
898
Website
beyondthesprues.com
I must admit that the top two look more like Tu-4 derivatives (although with different engines). The bottom one is a Pe-8 variant - maybe a variant of the Pe-8/ASh-82FN?

Whilst on the topic of Pe-8 variants, here is an interesting one I came across - a Pe-8 engine testbed:



Regards,

Greg


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
"I must admit that the top two look more like Tu-4 derivatives "

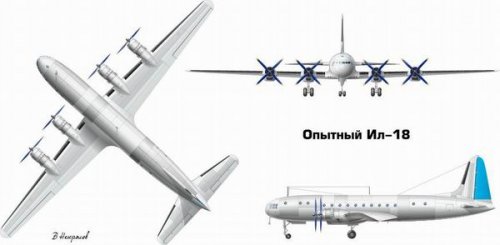

And I was reminded to the first Il-18 ...


Attachments

  • Il-18-1.jpg
    19.7 KB · Views: 646

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,476
Reaction score
978
GTX said:
...
Whilst on the topic of Pe-8 variants, here is an interesting one I came across - a Pe-8 engine testbed:



Regards,

Greg

The picture seams to me at first look, if it was PS-ed.


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
17
The turret under the nose of the lower one makes me think of the Tupolev Project 66 transport. The tail looks similar to the DC-4, IMHO.


Pepe Rezende

ACCESS: Confidential
Joined
May 3, 2006
Messages
96
Reaction score
3
These planes are never built Tupolev Pe-8 derivatives. The first one is a passenger plane, with a B-29 cockpit and a tail inspired at B-29 one. Second is a military transport and the third was a bomber projected as a Tu-4 backup. Petlyakov was Tupolev close friend.

Cheers

Pepe


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,195
Reaction score
898
Website
beyondthesprues.com
The picture seams to me at first look, if it was PS-ed.

The picture is from Bill Gunston's "The Osprey Encyclopedia of Russian Aircraft: 1875 - 1995". The only information is that there was a "...testbed for aircooled engines, esp ASh-2 and VD-4K".

Regards,

Greg


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
17
Looks like it'd require more than just a B-29 cockpit. Certainly an entirely new fuselage. This could also be why the transport version is reminiscent of the Project 66 B-29ish transport.


Pepe Rezende said:
These planes are never built Tupolev Pe-8 derivatives. The first one is a passenger plane, with a B-29 cockpit and a tail inspired at B-29 one. Second is a military transport and the third was a bomber projected as a Tu-4 backup. Petlyakov was Tupolev close friend.

Cheers

Pepe


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
137

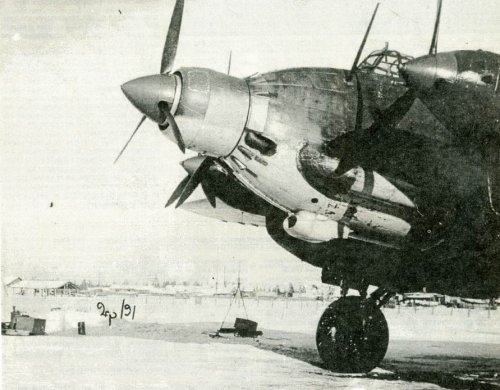

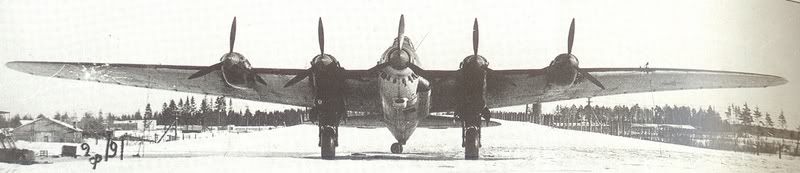

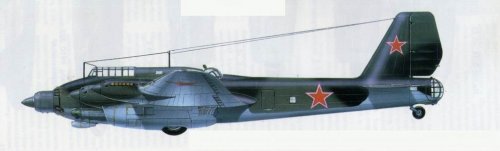

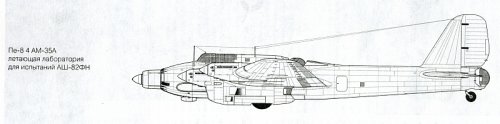

Whilst on the topic of Pe-8 variants, here is an interesting one I came across - a Pe-8 engine testbed:


Attachments

  • Pe-8 (engine testbed).jpg
    Pe-8 (engine testbed).jpg
    117.1 KB · Views: 338
  • Pe-8  (ASh-82 FN) in color.jpg
    Pe-8 (ASh-82 FN) in color.jpg
    32.3 KB · Views: 258
  • C767.jpg
    118.4 KB · Views: 170

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,195
Reaction score
898
Website
beyondthesprues.com
Borovik,

Thanks for the profile - it looks to be the same testbed that I posted a photo of above.

Regards,

Greg


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
108
Website
theavgeeks.com
In Soviet Secret Projects: Bombers Since 1945 the first chapter discusses how Andrei Tupolev indicated support for further development of the Pe-8 with the Nyezval and Myasischev OKBs merged into his own OKB and to modify the bomber with alternative powerplants to increase its peformance and to determine the best powerplants for Tupolev's own "Aircraft 64".

AM-43 engines with TK-300 superchargers are mentioned as being Tupolev's choice as these Mikulin engines were under consideration for "Aircraft 64".


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
137
In termination of the subject.

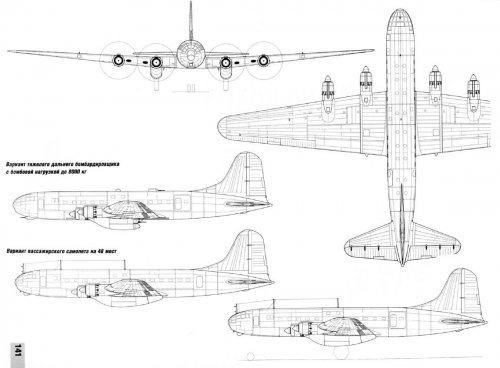

In 1944 OKB I.NEZVAL has prepared the draft 48 local planes on the base Pe-8.
For base was will take pre-war project Petlyakov's ANT-53 (fundamentally changed fuselage with leave of the wing Pe-8 and motor group with introducing the scheme three-wheeled carriage with nose wheel)
Existed project of the variant of the bomber with load 6000 kg.

Since July 1945 after enabling OKB Nezval in тupolev's structure and begin work on B-4 (Tu-4) of the work on subject of the passenger plane were discontinued.


Attachments

  • ANT-53 II  u.jpg
    ANT-53 II u.jpg
    110.9 KB · Views: 253
  • ANT-53 II (transp. & bomber).jpg
    ANT-53 II (transp. & bomber).jpg
    39.3 KB · Views: 293

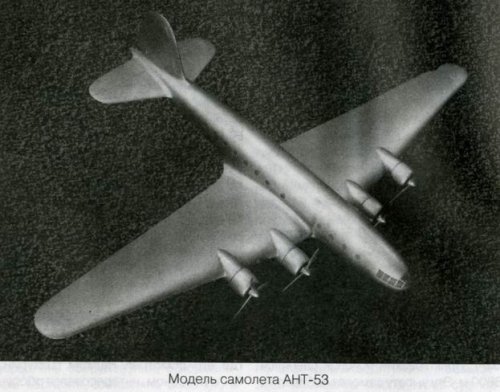

  • Model of the plane ANT-53.jpg
    Model of the plane ANT-53.jpg
    54.6 KB · Views: 163

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
137
Unknown Pe-8 Derived Projects

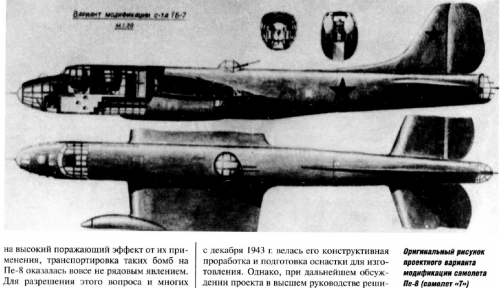

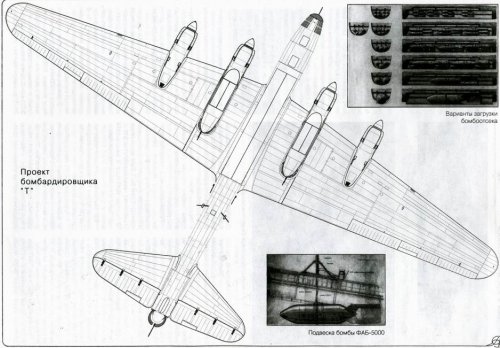

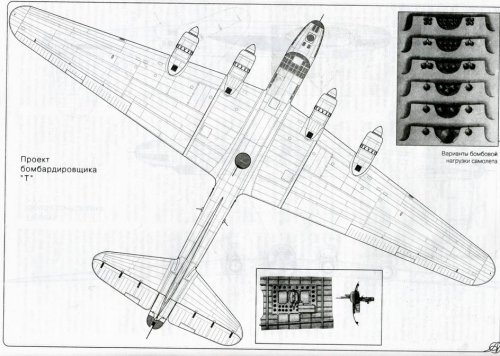

In second half 1943 in initiative order in OKB is begun work on deep modernization Pe-8 , by improvements his(its) аerodynamics introducing the high-altitude engines of the reinforcement of the bombing arms.
Modified Pe-8 was uncared-for in production at the factory 22 already at the end 1943. He has assigned the factory indication a plane "T". At March 1944 plants has stopped production Pe-8 and his(its) modification plane T. Background of experience Nezvalya was realized in OKB Tupolev.

Neither these two projects , nor similar projects plane "DVB 202" and
"DVB 302" OKB Myasischev, nor bomber "64" Tupolev, were not viable after Stalin comes to a conclusion - copy B-29.

Source: V.Rigmant << TB-7 , ANT-42 , Pe-8 >> 2002

P.S. Before war existed the projects of the use TB-7(Pe-8) as plane of the carriers in system "Zveno" (Section). /Pe-8 + 2 I-16/ /Pe-8 + 2 MiG 3/


Attachments

  • T bomber.jpg
    T bomber.jpg
    72.6 KB · Views: 347
  • T bomber u.jpg
    T bomber u.jpg
    115.8 KB · Views: 292
  • Tbomber b.jpg
    Tbomber b.jpg
    115.7 KB · Views: 240

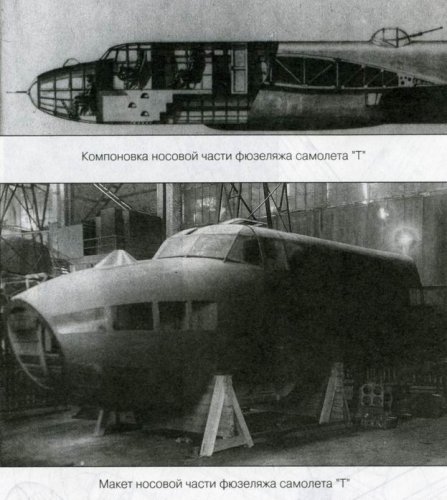

  • Arrangement and model of the nose part of plane T.jpg
    Arrangement and model of the nose part of plane T.jpg
    74.8 KB · Views: 243

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,415
Reaction score
230
Did this redesign retain the remote-controlled barbettes in the inboard wing engine nacelles?


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
137
Insofar I know no. (emanant from abovementioned monograph) In connection with small increase the nacelles (full retraction carriage) were an improved conditions and in booth including new vitrescence but on composition and accomodation defensive cannon arms corresponded to Pe-8 4M-82.
That is to say there stood all same underwing shooting installation with gun UBT.
(Evan I apologize for its english)


kampfflieger

ACCESS: Restricted
Joined
Apr 29, 2007
Messages
47
Reaction score
5
RyanCrierie said:
Found these in a collection of drawings related to the Pe-8:

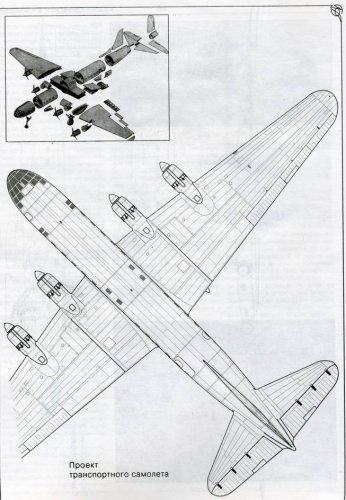

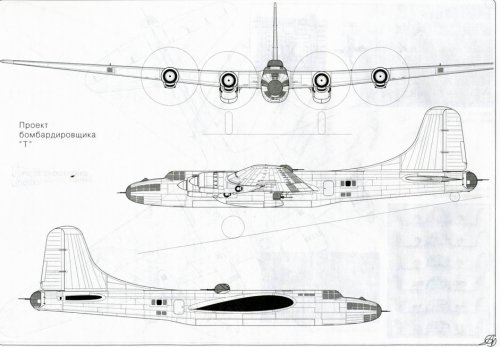

From top to bottom: project of transport aircraft and project of long-range bomber.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,415
Reaction score
230
borovik said:
Insofar I know no. (emanant from abovementioned monograph) In connection with small increase the nacelles (full retraction carriage) were an improved conditions and in booth including new vitrescence but on composition and accomodation defensive cannon arms corresponded to Pe-8 4M-82.
That is to say there stood all same underwing shooting installation with gun UBT.
(Evan I apologize for its english)

'Twas clear enough, thanks. My error, anyway, 'twas another four-engined heavy-bomber that had the remote-control barbettes in the wing, some time after I posted I remembered that the Pe-8 had the wing gun positions. If I'm understanding that quote and the drawing correctly, the proposed developed vesions still had those, just in much cleaner installations. Is my understanding correct?


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
137
To be honest, I have no data about using of such barbettes ever on Pe-8 or its redesigns, I mean these located in the wing. There are were ones with gunners in the engines' nacelles (rather behind them). Though they planned to put one remotely-controlled barbette below the fuselage right at the head of "T" bomber furhter modifications. It's accordingly to Rigmant's book which is very detailed.

Anyway, I will dig into my own archives more carefully and then post, if any "news". :)


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,415
Reaction score
230
Don't worry about it, I was really off (tired). The four-engined heavy I was thinking of wasn't even Russian, it's just that I'd first read about it and the Pe-8 in the same book.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,


here is anther drawing to Petlyakov Pe-8 as a transport aircraft projecty,with
anther project called Aircraft "T".


"Летающие крепости" Сталина. Бомбардировщик Пе-8


Attachments

  • T.png
    593.2 KB · Views: 278
  • Pe.8.JPG
    98.4 KB · Views: 272

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,

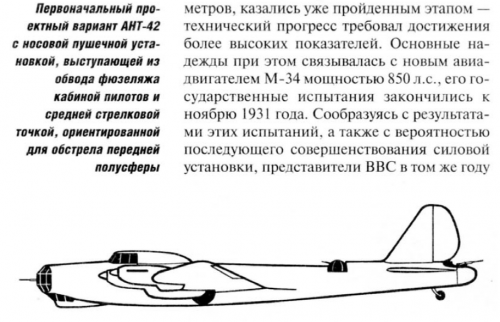

almost here is an early drawing to ANT-42.


same source


Attachments

  • ANT-42.png
    286 KB · Views: 229

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,747
Reaction score
3,340
Re: Odd Soviet bomber

Hi!

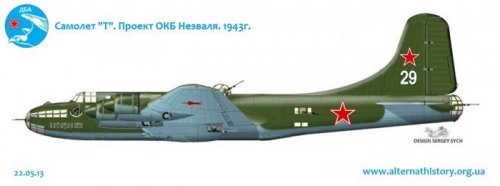

Nezval' Plane T? What is this? Modified Pe-8?

http://alternathistory.com/samolet-t-proekt-okb-nezvalya-1943g


Attachments

  • Cамолет%20Т-700x260.jpg
    19.1 KB · Views: 92
  • %20WW2_0-400x511.jpg
    24.3 KB · Views: 102

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,747
Reaction score
3,340
Re: Odd Soviet bomber

Little larger images.


Attachments

  • SIDE_VIEW.jpg
    41 KB · Views: 74
  • FRONT_VIEW.jpg
    32.5 KB · Views: 68

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
137
Re: Odd Soviet bomber

blackkite said:
Hi!
Nezval' Plane T? What is this? Modified Pe-8?

http://alternathistory.com/samolet-t-proekt-okb-nezvalya-1943g
almost ten years ago ... ;)
http://www.secretprojects.co.uk/forum/index.php/topic,1737.0/all.html


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,747
Reaction score
3,340
Thanks a lot borovic-san. :)

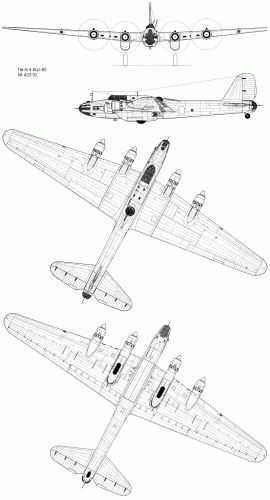

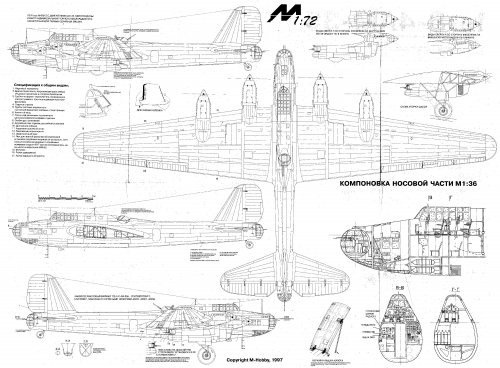

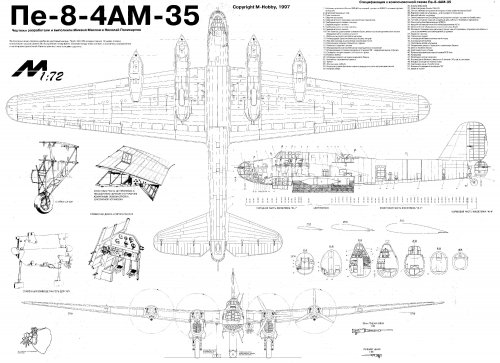

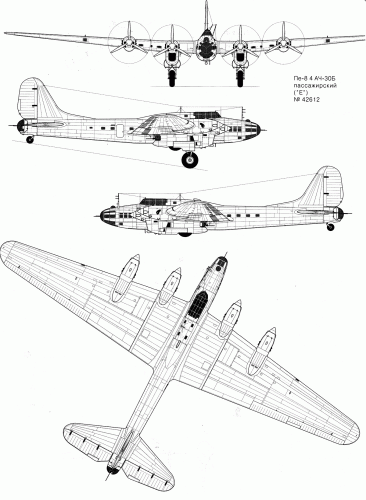

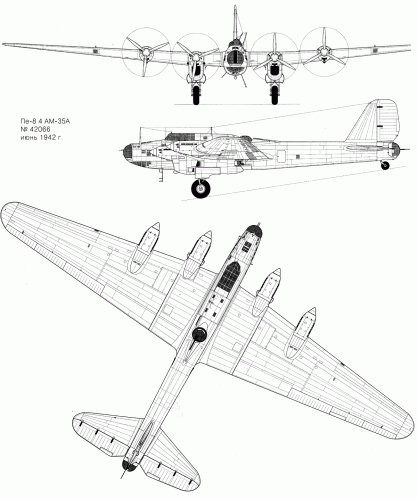

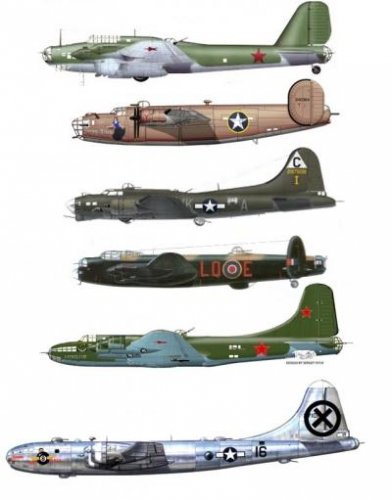

Please enjoy ANT-42 prototype pictures, Pe-8 drawings and movie. Sorry for off topic.
http://mig3.sovietwarplanes.com/pe-8/pe-8evolution/pe8prototypes.htm
http://www.airwar.ru/other/draw/ant42.html

https://www.youtube.com/watch?v=7Gj5D_qzjmU


Attachments

  • 2.jpg
    1.1 MB · Views: 75
  • 1.jpg
    956.9 KB · Views: 74
  • 39-2.jpg
    117.5 KB · Views: 64

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
137
by the way ... it is today (27 December 1936) -80 years ago, made its first flight ANT-42 / TB-7 / Pe-8.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,747
Reaction score
3,340
borovik said:
by the way ... it is today (27 December 1936) -80 years ago, made its first flight ANT-42 / TB-7 / Pe-8.
Oh!! :eek:

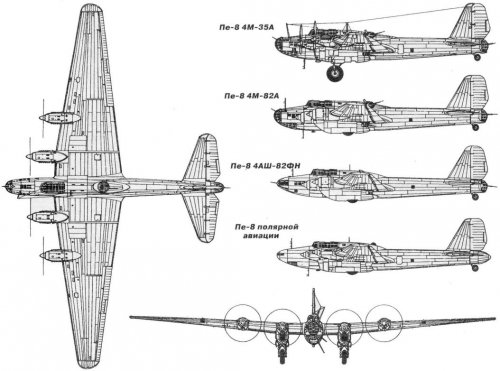

Wikipedia says that Pe-8 used follwing engines.
M105(1,200hp), AM-34(with M-100 engine for supercharger drive), AM-35A(1,350hp), M-30Bhttp://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=9116.0;attach=570033;image, Ash-82(1,700hp), M-82FN

http://www.airpages.ru/eng/ru/pe8photo.shtml


Attachments

  • AM-35A engine.gif
    AM-35A engine.gif
    103.3 KB · Views: 40
  • Ash-82 engine.gif
    Ash-82 engine.gif
    163.9 KB · Views: 41
  • ACh-30B engine.gif
    ACh-30B engine.gif
    124.7 KB · Views: 52
