Hi,

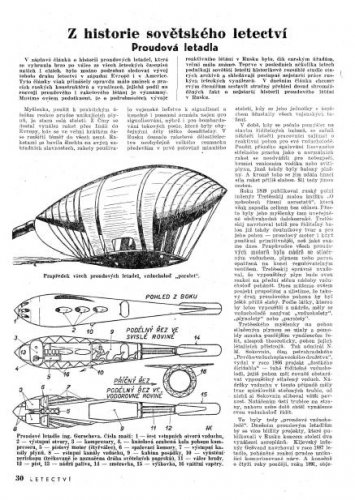

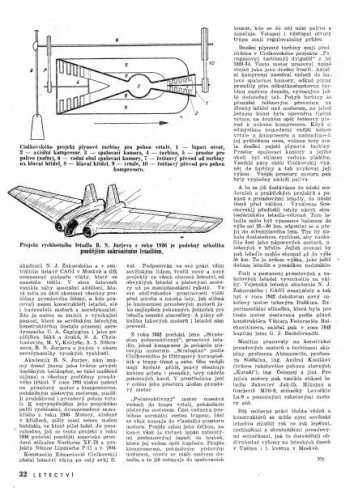

from Letectvi magazine,here is unknown Soviet jet aircraft projects,of course
not all of them are aircraft,but one of them is airship,and the other are two aircraft,
completely unknown to me and also for many members here,who heard about
them before ?,also I can't recognize the real Russian names if the designers,
because it was written by Czech language.


Attachments

  • 1-1.JPG
    56.1 KB · Views: 1,122
  • 3.JPG
    71.7 KB · Views: 142
  • 2.JPG
    68.8 KB · Views: 112
  • 1.JPG
    73.5 KB · Views: 98
  • 3-2.JPG
    63.2 KB · Views: 1,001
  • 3-1.JPG
    47.9 KB · Views: 1,043
  • 2-1.JPG
    64.6 KB · Views: 1,076
  • 1-2.JPG
    58.1 KB · Views: 1,093

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450

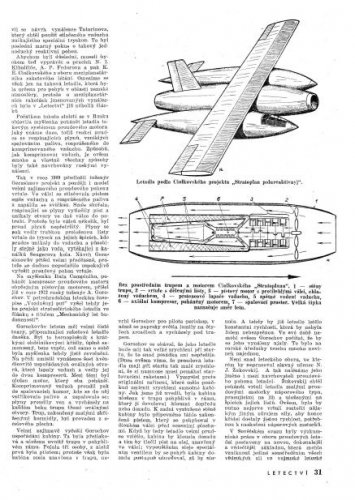

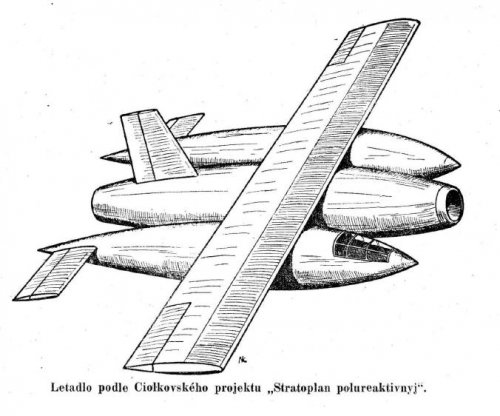

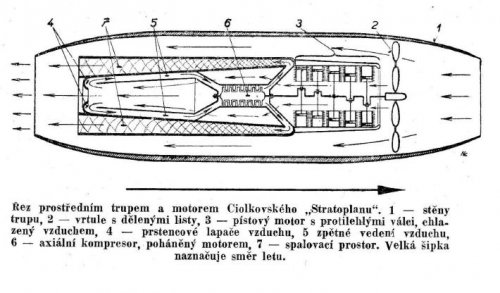

Captions for the first and third design say Tsiolkhovsky and B. N. Yuriev, respectively.

The latter one looks quite a bit like the XP-79 Flying Ram design...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457
Thank you Bigvlade,


and about the picture 1-1 or Straroplane,it was developed from 1932 up to 1943.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
48
hesham said:
and about the picture 1-1 or Straroplane,it was developed from 1932 up to 1943.


The "Semi-jet stratoplane" concept was developed by Konstantin E. Tsiolkovsky since 1929, and finally described in his book of the same name which was published in 1932. By the way, Tsiolkovsky died 78 years old in 1935 - so he couldn't develop the Stratoplane up to 1943 anyway.

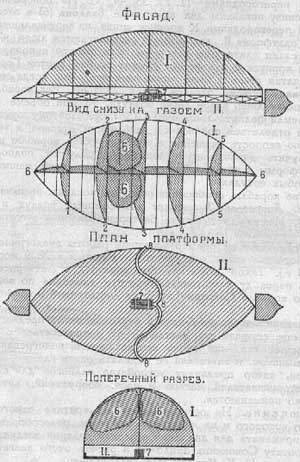

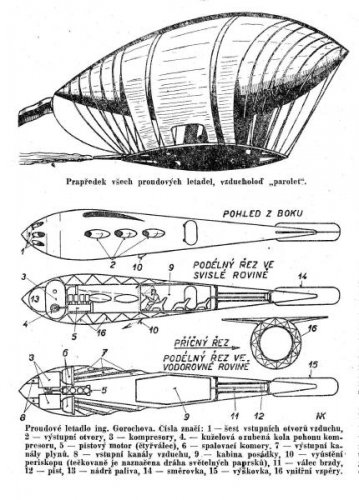

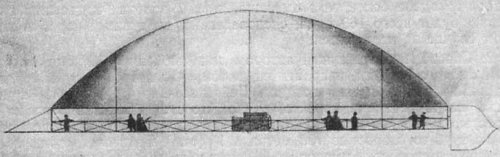

The picture 2-1 represents two different designs; and it's not very correct to call them "Soviet", because both were created in the times of Russian Empire. The "jet blimp" from the top is most probably the airship designed in 1866 by Vice Admiral Nikolai M. Sokovnin (by the way, Sokovnin referred to it as Vozdushnyi Korabl - literally "airship"), although the picture isn't much similar to Sokovnin's original drawings. Sokovnin planned to propel his airship by the power of compressed air stream which is expulsed from a pair of nozzles. The airship itself wasn't actually a blimp, but of rigid type; it would be made from steel tubes, bamboo, and special sort of cardboard. It was 50 meters long, its volume would be 2535 m3, weight 2623 kg, useful load about 1367 kg. Sokovnin planned to use ammonia as lifting gas, placing it in 12 gas cells. In the attachments there are some pictures of Sokovnin airship and a photo of the inventor himself.

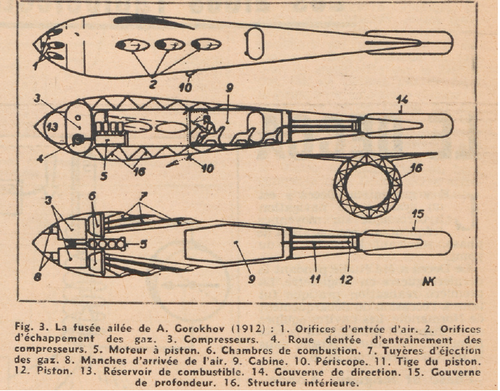

The drawings in the lower part of 2-1 picture aren't related to the airship. They represent the concept of motorjet-powered aircraft invented by Eng. Alexander Gorokhov (not Gorochev) in 1911 and described in his article Future Mechanical Flight.


Attachments

  • Sokovnin_N_M.JPG
    89.6 KB · Views: 42
  • Sokovnin 1866.jpeg
    Sokovnin 1866.jpeg
    85 KB · Views: 53
  • sokovnin.jpg
    29.2 KB · Views: 60

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457
Thank you my dear Redstar72,


and what about Yuriev jet aircraft ?.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
48
hesham said:
and what about Yuriev jet aircraft ?.

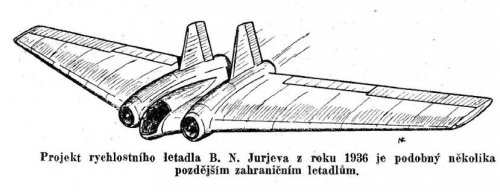

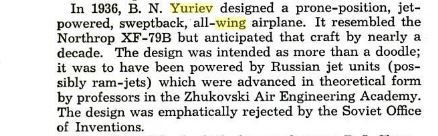

This one is totally new for me. I never heard before that Yuriev designed something other than helicopters and VTOLs. I'll try to find more info.

According to the article, this project is dated 1936.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457
Hi,

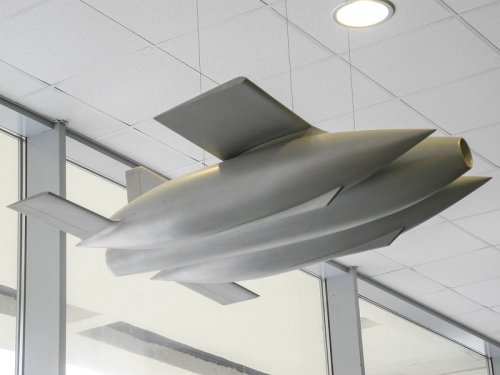

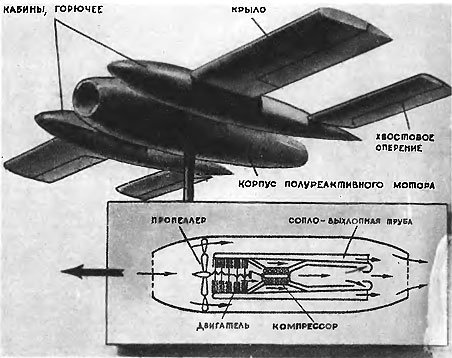

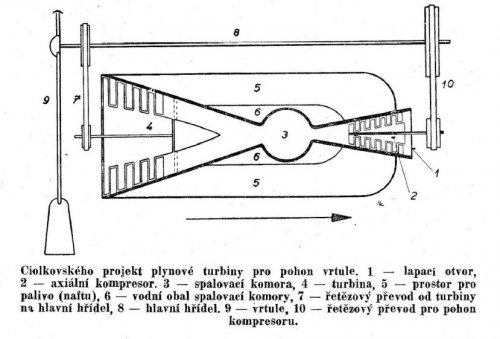

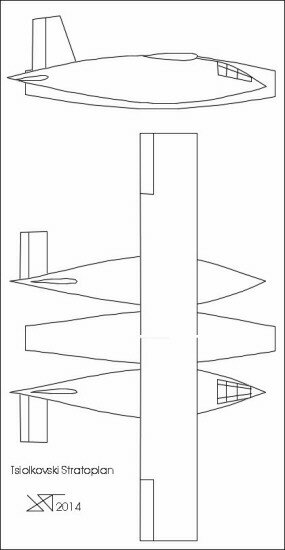

here is a more Info about Tsiolkovsky early Jet Project,and a Model for it.

http://epizodsspace.airbase.ru/bibl/tm/1946/8-9/chel-real.html

https://riverforum.net/showthread.php?t=2431


Attachments

  • 0_8c16d_83dbe10b_XL.jpg
    108.8 KB · Views: 84
  • 23.jpg
    42.4 KB · Views: 78

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457
Hi,

also Mr. Tsiolkovsky designed a numbers of rocket powered airplane Projects,has anyone a
drawings to them ?.


snark

But Dad, don't we EAT the antelopes?
Joined
Dec 2, 2007
Messages
73
Reaction score
37
Hi Hesham

I can't read Russian, but there is a model of a Tsiolkovsky rocket plane exhibited in this museum:

https://polymus.ru/ru/

Regards, Harry


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457
snark said:
Hi Hesham

I can't read Russian, but there is a model of a Tsiolkovsky rocket plane exhibited in this museum:

https://polymus.ru/ru/

Regards, Harry

Thank you Harry,

but please,where it exactly,direct link.


snark

But Dad, don't we EAT the antelopes?
Joined
Dec 2, 2007
Messages
73
Reaction score
37
Hi again

Profuse apologies -- I'm not sure I can do that (I am trying). I had stumbled over a Russian space history site which mentioned (in English) that there existed a model of Tsiolkovsky's rocket plane in a museum there and sent me to the site above. I cannot decipher this page (it appears to be a children's museum) and I haven't been able to locate the site which referenced it... Harry


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,639
Reaction score
643
i used Google Translate on some links and came to this

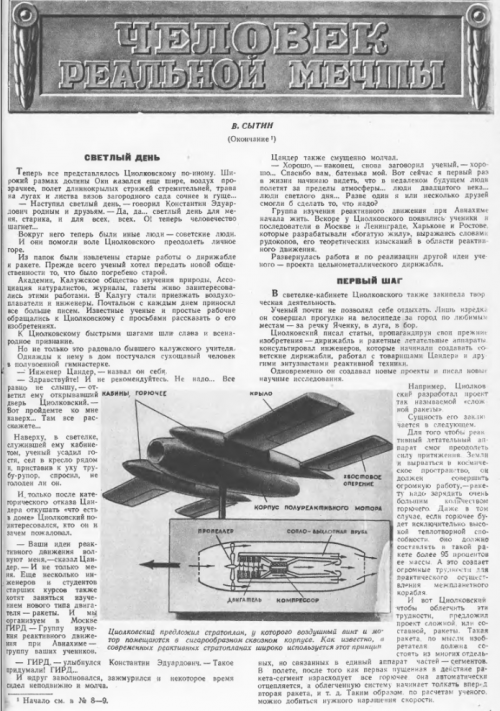

the Stratoplan by Konstantin E. Tsiolkovsky, the Rocket pioneer

In 1932, Tsiolkovsky published a paper on a "Stratoplan Semi-Reactive"

In this work, Tsiolkovsky advanced the idea of ​​using in the plane not only the pulling force of the propeller, but also the force of recoil (reaction)
of the exhaust gases generated by the operation of the aircraft engine.
Extremely interesting design solution stratoplan Tsiolkovsky.
The air screw and the motor he proposes to place in the fuselage - a cigar-shaped body, and for the crew to build separate hermetic gondolas.
This idea Tsiolkovsky was widely used by designers later.
Look at the scheme of the modern stratoplan with jet engines: it is very similar to the one proposed by the remarkable scientist.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457
OK Snark,and many thanks to you my dear Michel.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457

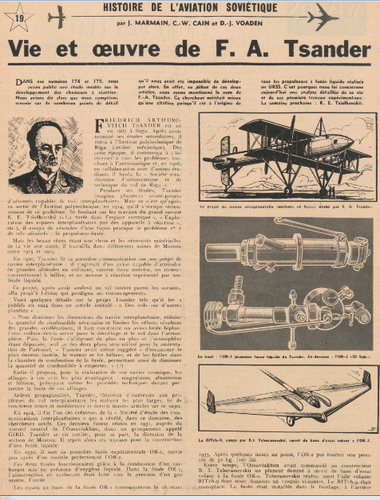

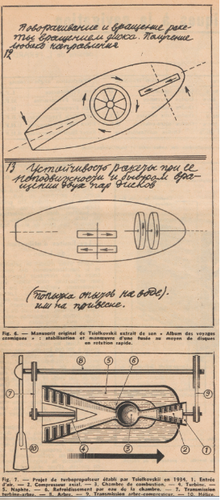

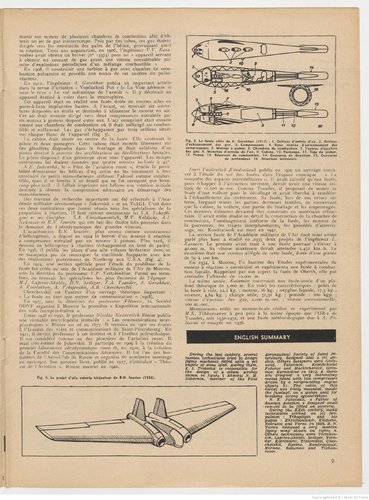

From Aviation magazine 1956.


Attachments

  • 1.png
    630 KB · Views: 34
  • 2.png
    351.9 KB · Views: 28
  • 3.png
    631.1 KB · Views: 26
  • 4.png
    232.4 KB · Views: 27
  • 1-56-229.png
    766.4 KB · Views: 29
  • 2-56-229.png
    694.2 KB · Views: 29

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
563
Reaction score
159

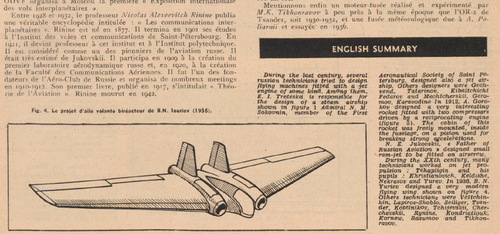

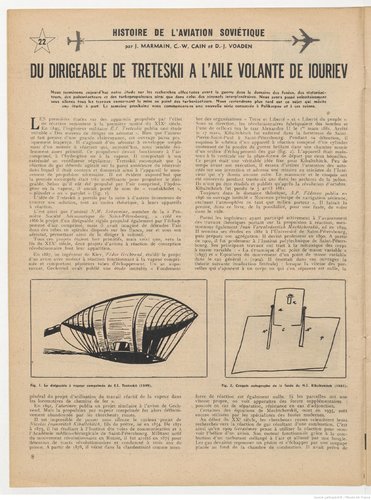

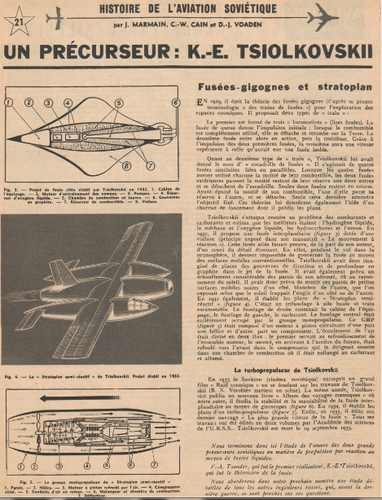

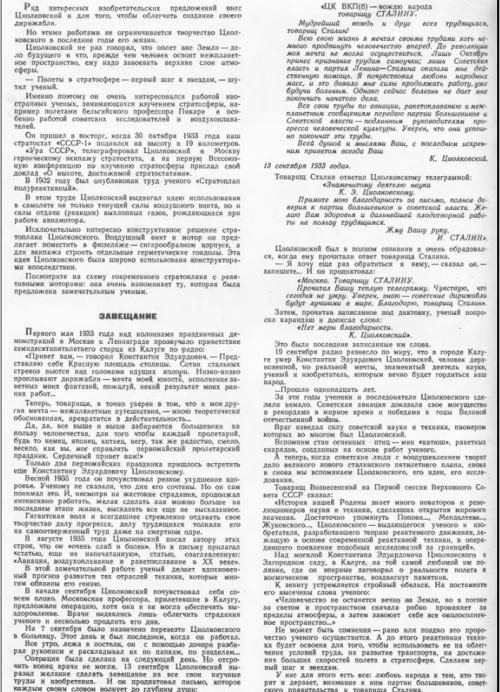

The last image (2-56-229.png ) shows "Le projet d'aile volante bireacteur de B.N.Iouriev (1936)" which is probably the B.N. Yuriev design for a flying wing with jet engines. Although best known for helicopter designs, in the 1930s, Boris Yuryev had taken part in setting up the Moscow Aviation Institute and worked at TsAGI Zhukovsky. An article from the August 1953 magazine flying is attached with more detail.


Attachments

  • Capture.JPG
    30.6 KB · Views: 33

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457
Thank you my dear Cy-27,

and here is the whole article to 5323229 issue.


Attachments

  • Aviation_magazine___président-directeur_général_[...]_bpt6k5323229c_8.jpeg
    1.6 MB · Views: 36
  • Aviation_magazine___président-directeur_général_[...]_bpt6k5323229c_9.jpeg
    1.7 MB · Views: 34
