United States Navy - Aircraft Carrier No. 2 (1922)

Graham1973

CLEARANCE: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,468
Reaction score
227

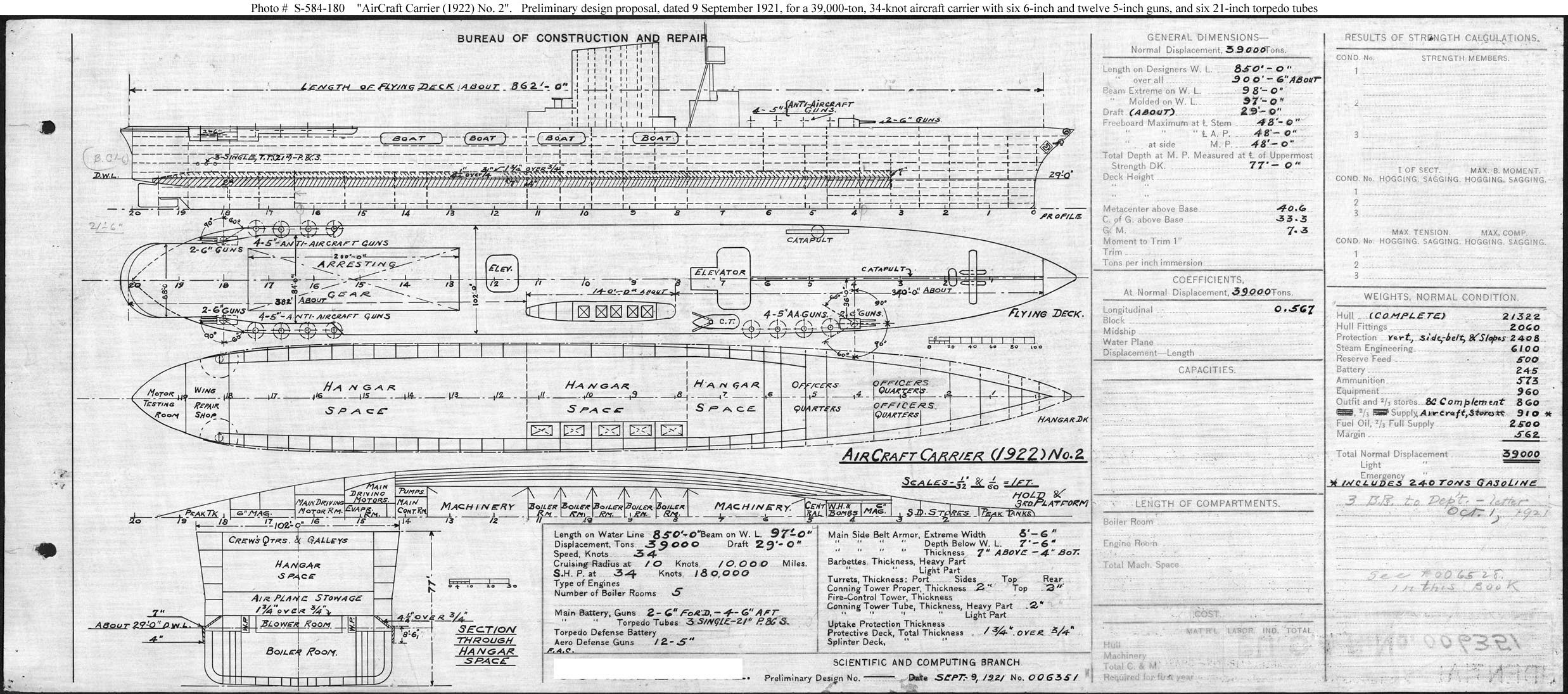

This is from Volume 1 of the United Navies 'Springstyles' plan books and is the design that might have been built had the Washington Naval Treaty not led to the conversion of Lexington and Saratoga.

As with a lot of early carrier designs there is a heavy surface armament, with a main battery of 6 x 6inch guns in three twin turrets, one forward of the bridge, the other two at the stern below the flight deck. The secondary battery is made up of 12 x 5 inch DP Guns and six 21inch TT thrown in for good measure. Design speed was 34 knots.



Last edited:

Dilandu

I'm dissatisfied, which means, I exist.
Joined
May 30, 2013
Messages
712
Reaction score
333
Website
fonzeppelin.livejournal.com
Interesting to note, that despite being pre-Washington design it's almost 40.000 ton big. A clear demonstration that Washington Treaty did not affect carrier development as much as it often perceived; the realization of the large carriers advantages was already in minds.


Graham1973

CLEARANCE: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,468
Reaction score
227
Interesting to note, that despite being pre-Washington design it's almost 40.000 ton big. A clear demonstration that Washington Treaty did not affect carrier development as much as it often perceived; the realization of the large carriers advantages was already in minds.
The same site has plans for 'Treaty Compliant' carriers ranging from 29,000 tons to 10,000 tons, the former has a 9 x 8inch main battery (Three triple turrets), torpedo tubes and a very oddly shaped flight deck, the latter looks rather like the USS Langley (CV-1).
