In an exclusive interview the President of SSB Prof. Dr. Ismail Demir spoke to defensehere.com about "Project Liberty (Özgür)".


Touching on the needs of the Turkish Air Force for aircrafts, Demir said the following:

"Liberty is a project carried out independently of the USA. So, if we were to be specific it is not exactly an agreement, but the outcome of Liberty has been successful so far and began to be integrated into our aircrafts. The systems are being integrated into the F-16s in blocks. Right now, we began the process of integrating a block into an F-16. In terms of the other blocks; there are slight differences in their development process, once finished, the process for their integration will also begin.

Project Liberty is as its name implies; it aims to liberate our F-16 aircrafts. Getting the F-16s to be independent means adapting them to domestic systems, implementing these systems into them and using them accordingly. In a sense we can say that this is a step towards turning the aircraft into your own property and your own system.

The modernization of the F-16s that we are talking about has already been a systematic modernization. Whether it is structural or avionics, there are things to be done at certain stages throughout the lifecycle of the aircraft. A part of that modernization is extending the life of the aircraft if needed. The other thing is that we are not expecting any problems in regard to Project Liberty. Liberty is a talent acquisition project and we believe that this talents acquisition can contribute a lot to the National Combat Aircraft.


8M7Odn.jpg j8GMvg.jpg

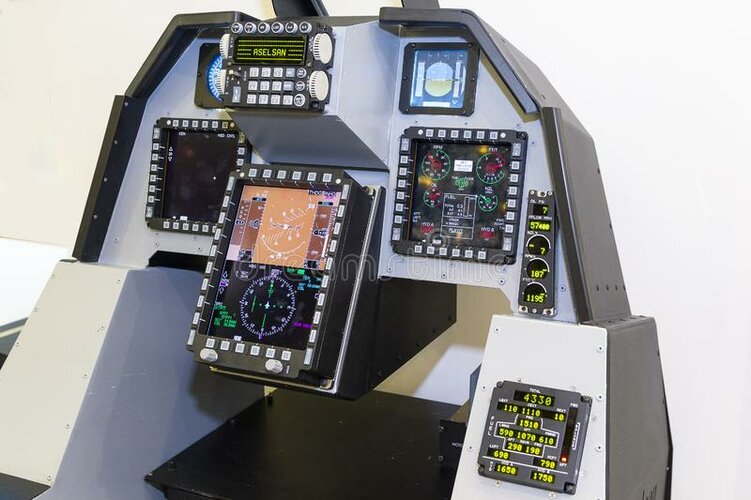

ENGINE INDICATOR DISPLAY:
Compact, platform-specific configurable and user-friendly design, EID unit; It meets user needs and platform requirements for displaying engine parameters, which are critical platform data. With its redundant and reliable design, it will make pilots feel safe even in difficult flight conditions.

FUEL HYDRAULIC DISPLAY:
Compact, platform-specific configurable and user-friendly design FHD unit; It meets user needs and platform requirements by providing an indication of the tank fuel amount, hydraulic pressure and fuel balance status, which are critical platform data, to the pilot. With its redundant and reliable design, it will make pilots feel safe even in difficult flight conditions.

INERTIAL NAVIGATION SYSTEM:

Inertial Navigation System - INS; These are the systems that can produce navigation information and navigation performance information on their own. These systems operate by expressing the response of the gyroscope and accelerometers to the movement with numerical values. Since there is no signal received from any ground station, it is closed to signal mixing sabotage. INS does not need continuous data retrieval after entering the required initial values.

SYSTEM INTERFACE UNIT:

The system interface unit reads many analog system parameters, converts them to numbers and makes them available to pilots. It produces analog driving signals in accordance with the commands of mission equipment. SIU meets all the tough environmental requirements of the combat aerial platform thanks to its reliable and robust design

• Internally Redundant
• Analog Interface with Aircraft Systems
• Digital Interface with Mission Systems

NATIONAL MISSION COMPUTER:


National Mission Computer (MCS) is a new generation mission computer that provides the management of integrated avionics systems from a single center and supports the pilot with improved processing and graphics capabilities during the mission. By using two MCS, double redundant tactical mission management architecture can be created.

Abilities:
• Avionic System Management
• Platform Interface Management
• Operator Interface Management
• Symbology Production and Multifunction Display Management
• Head Up Display Management
• Communication and Identification Management
• Navigation Management
• Tactical Reconnaissance Management
• Emergency Mode and Reset Management
• Task Planning, Task and Test Data Upload / Download Management
• Synthetic Image Creation (3D Terrain) and Digital Sliding Map Management

ADVANCED IFF SYSTEM
2f368584-1f0a-45cf-8612-62740382771d (1).jpg

The System will be able to transmit IFF information to radars as Long Range Interrogator. By bringing NATO STANAG compatible IFF Mod 5 / S Systems to its product family.

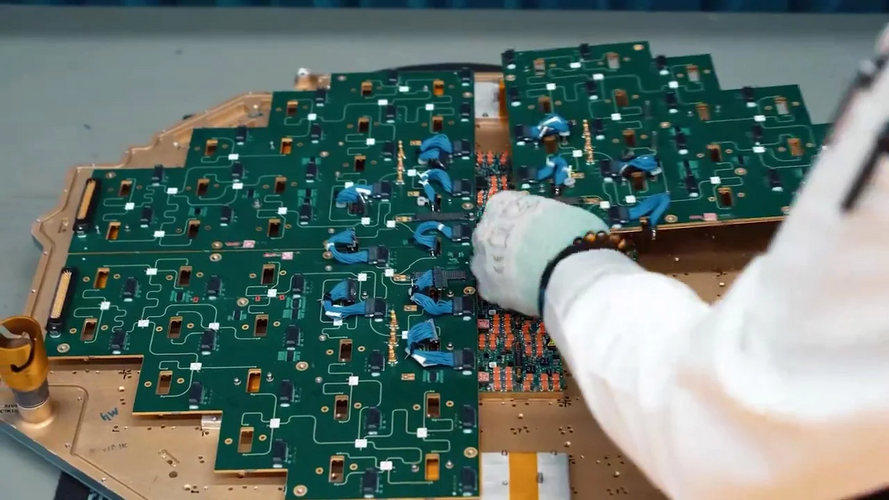

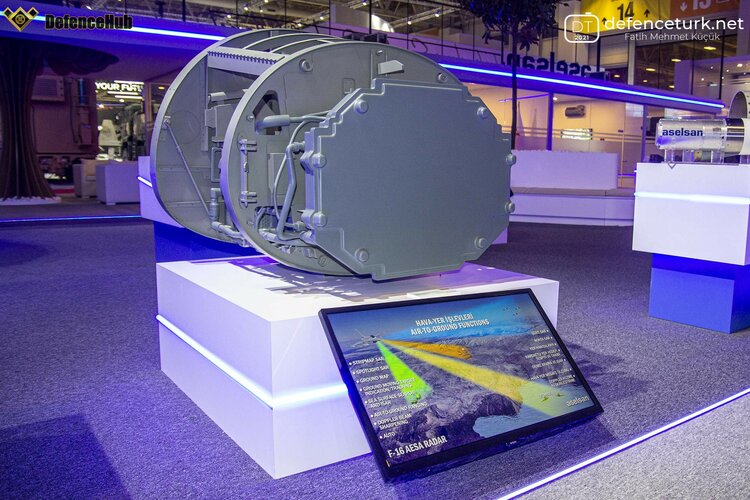

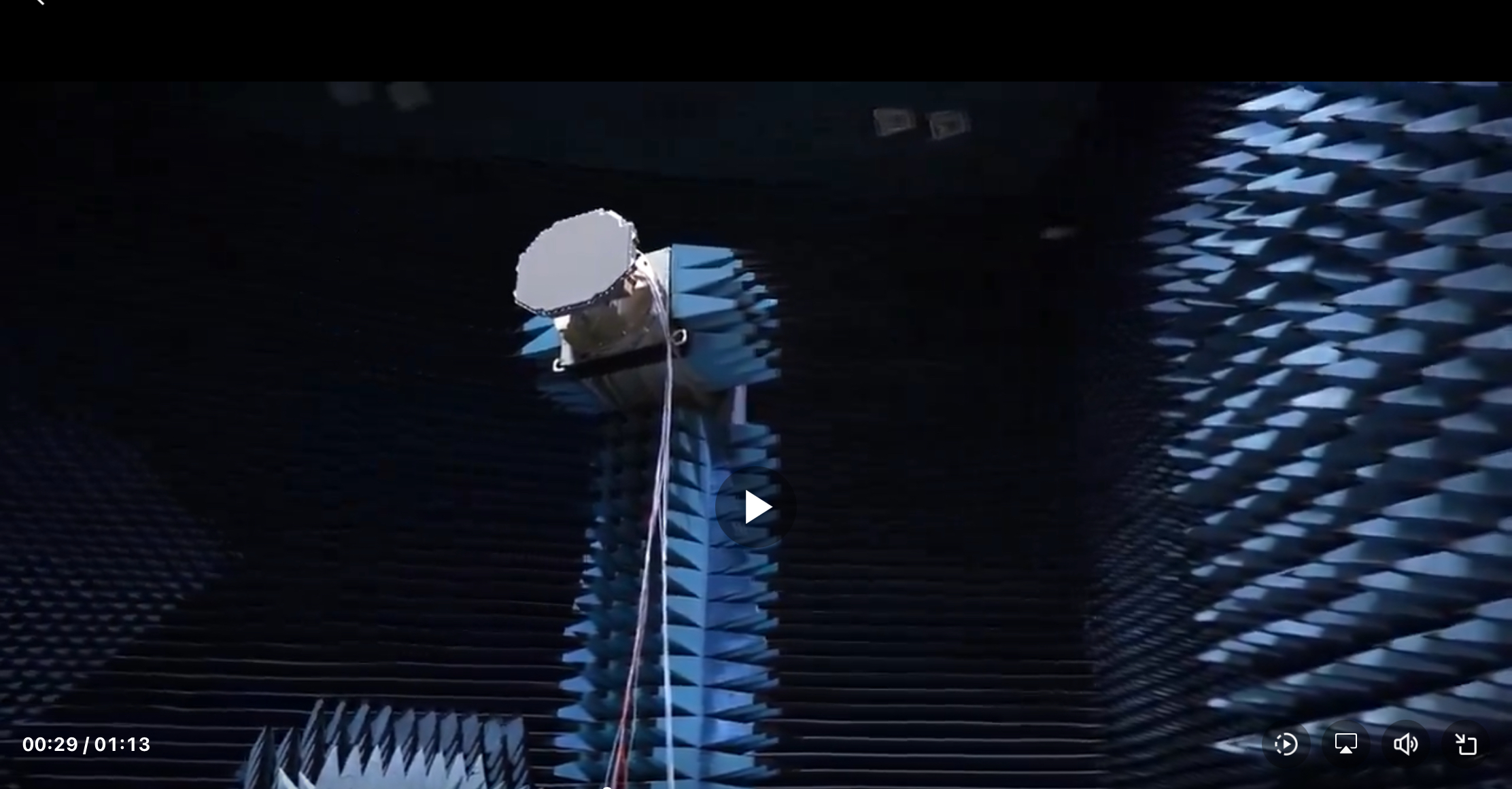

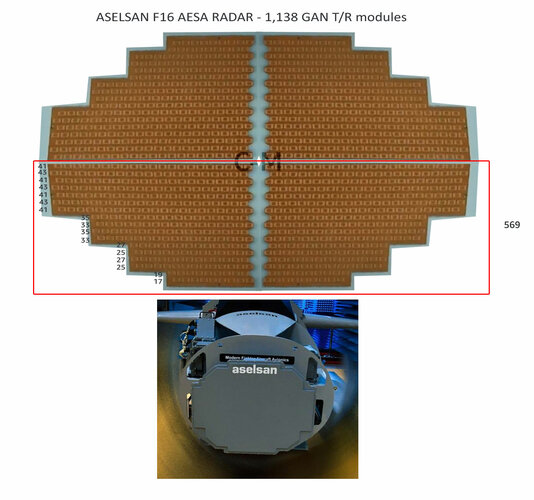

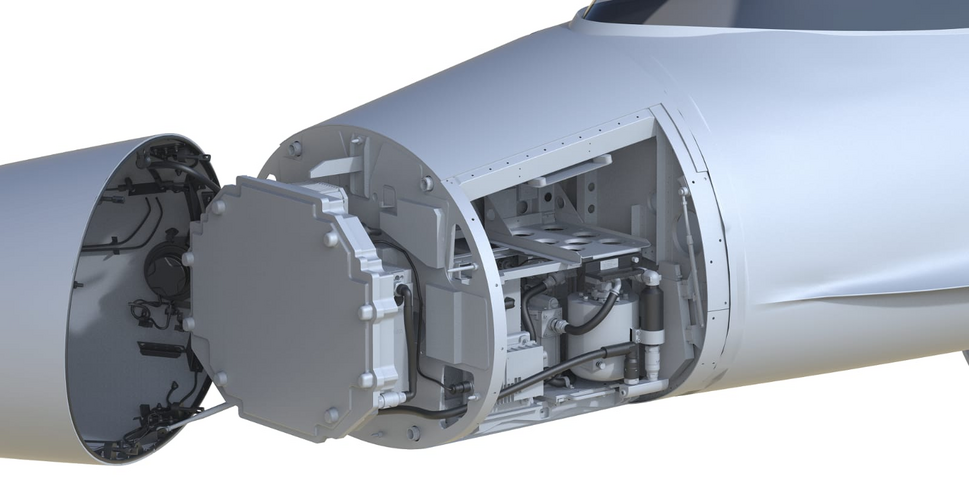

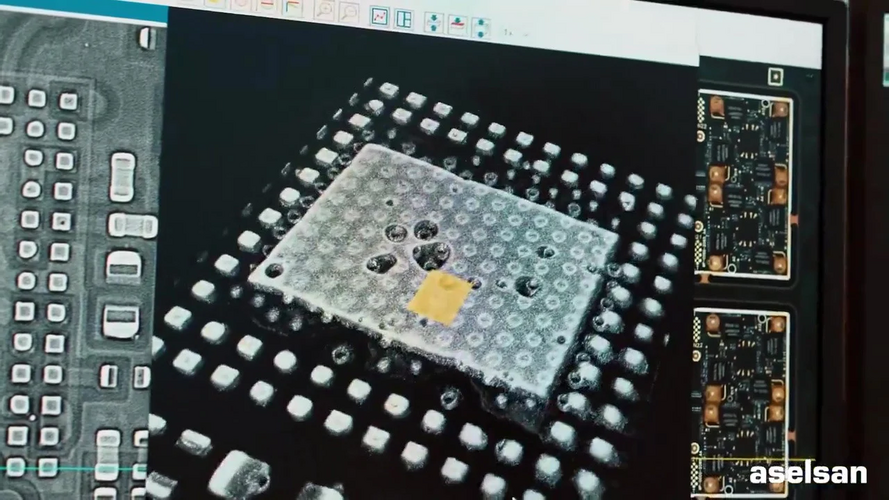

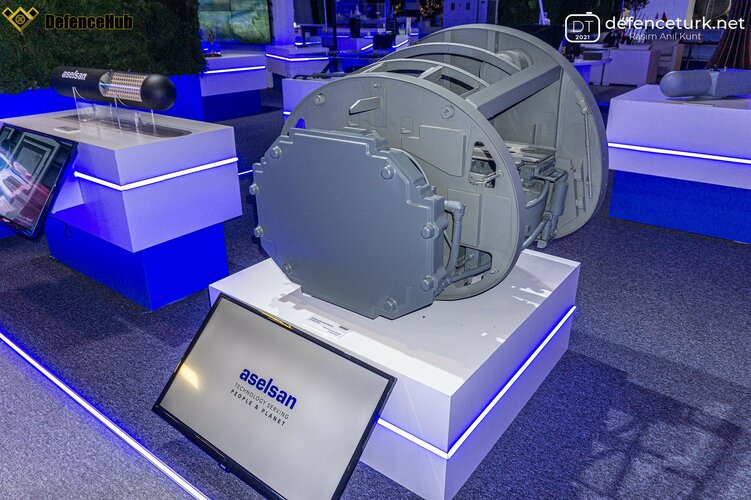

AESA RADAR
-GAN based
-1000+ T/R modules


Attachments

  • electronic-controls-aircraft-stand-industry-electronic-controls-aircraft-stand-146692410 (1).jpg
    electronic-controls-aircraft-stand-industry-electronic-controls-aircraft-stand-146692410 (1).jpg
    57.8 KB · Views: 40

Combat-Master

ACCESS: Top Secret
Joined
Jul 15, 2020
Messages
741
Reaction score
1,376

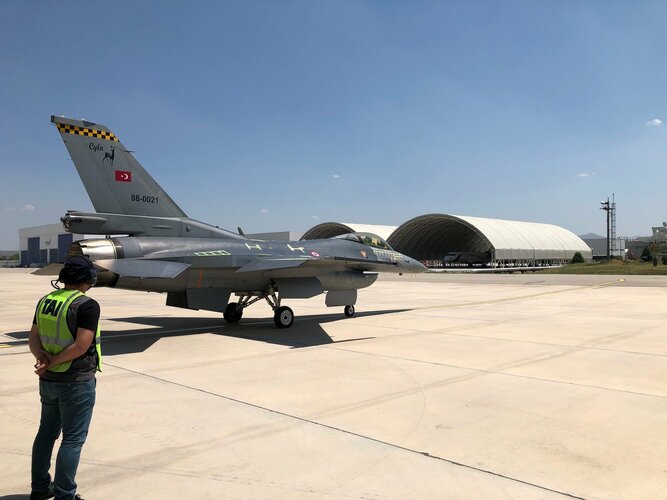

F-16 Block 30 which will receive 'Project Liberty' modernisation are having airframe life extensions, life extensions were done domestically without Lockheed Martin. Turkey has around 40 Block 30s.

“In the project, where engineering works are carried out for the renovation and revision of 1,200 to 1,500 structural parts per aircraft, repair, and replacement and fuselage reinforcement applications are carried out where necessary,” Demir explained. “We aim to increase the structural life of our F-16 aircraft, the main striking element of our air force, from 8,000 hours to 12,000 hours.”

View: https://twitter.com/IsmailDemirSSB/status/1355813223052750855?s=20




Combat-Master

ACCESS: Top Secret
Joined
Jul 15, 2020
Messages
741
Reaction score
1,376

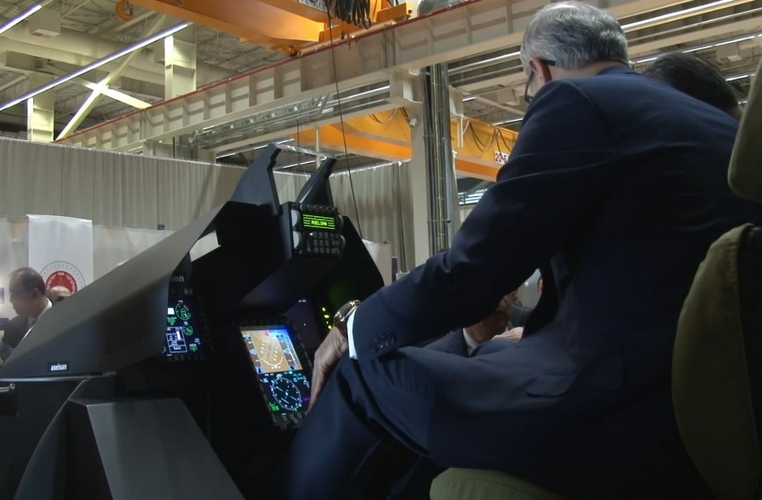

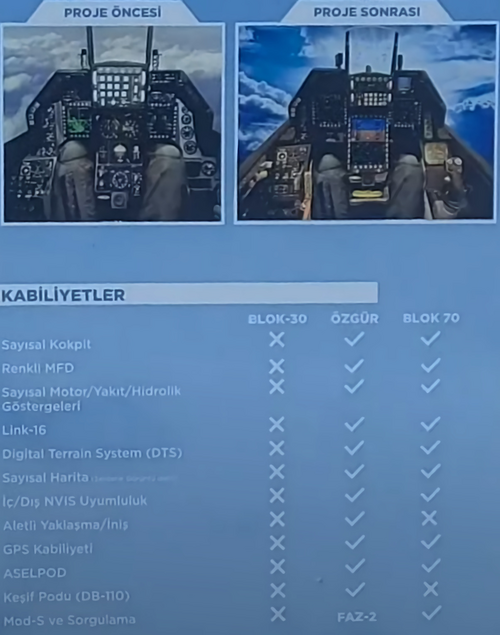

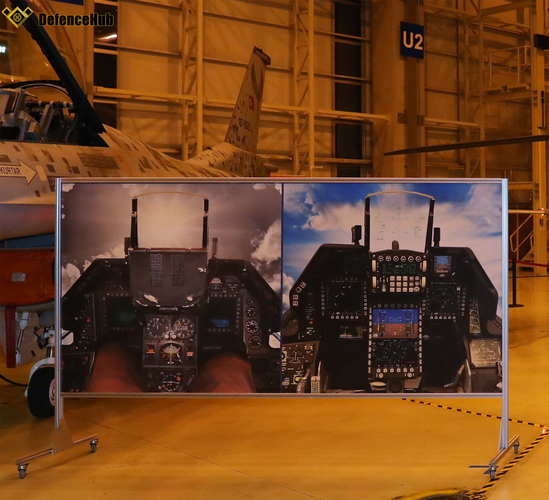

Left side is Block 30, right side is Ozgur Modernisation


in which case US gov may deny Block 70 upgrade, Turkish President has said Turkey will push forward with implementing Ozgur project on all blocks of Turkey's F-16s.

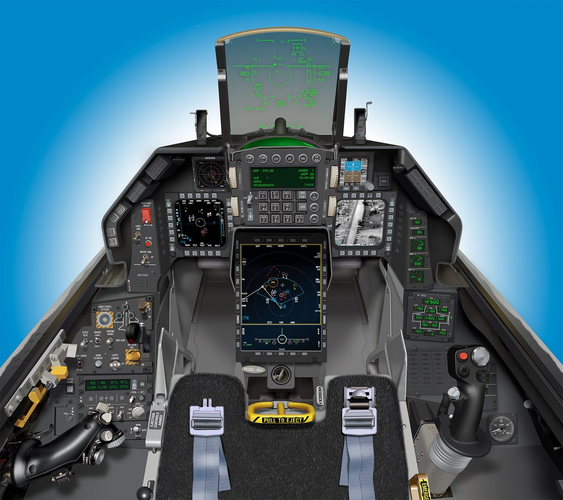

Block 70 cockpit for comparison

Last edited:

Combat-Master

ACCESS: Top Secret
Joined
Jul 15, 2020
Messages
741
Reaction score
1,376

TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
5,626
Reaction score
5,411
it might be quite heavy since a lot of internal volume and material are dedicated to structural bracing.


Combat-Master

ACCESS: Top Secret
Joined
Jul 15, 2020
Messages
741
Reaction score
1,376
it might be quite heavy since a lot of internal volume and material are dedicated to structural bracing.

A report on the project can be found here; no mention of the weight, but does mention materials utilised for weight consideration.

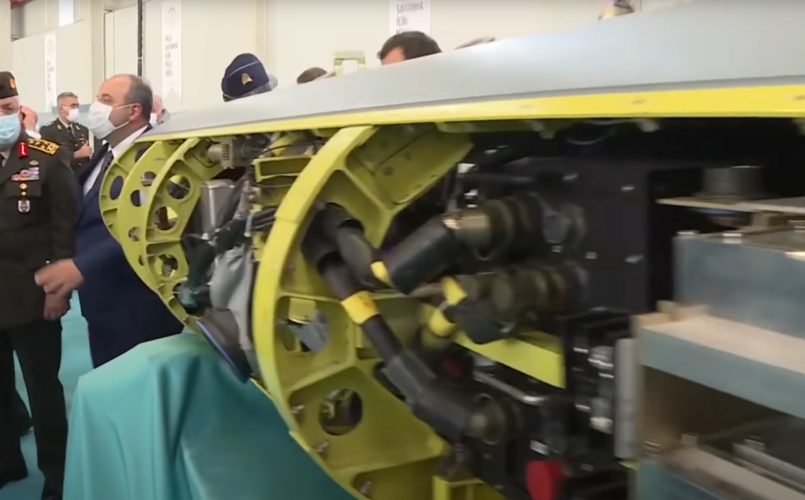

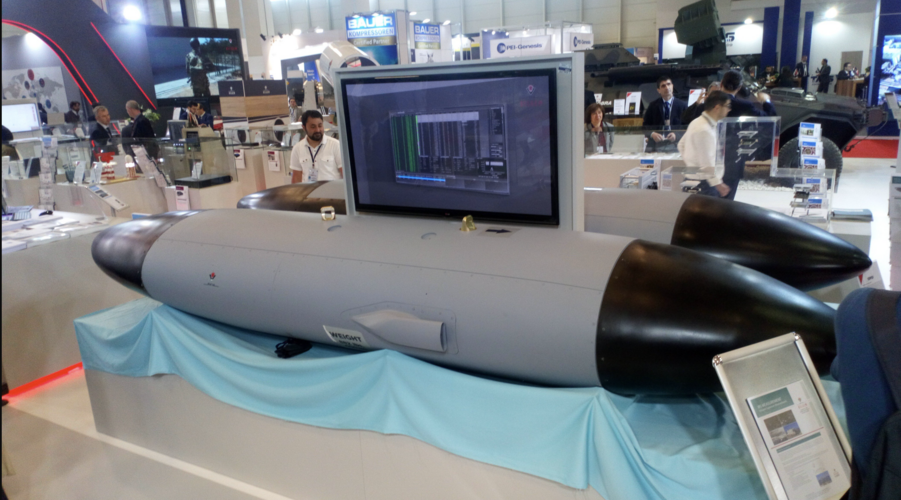

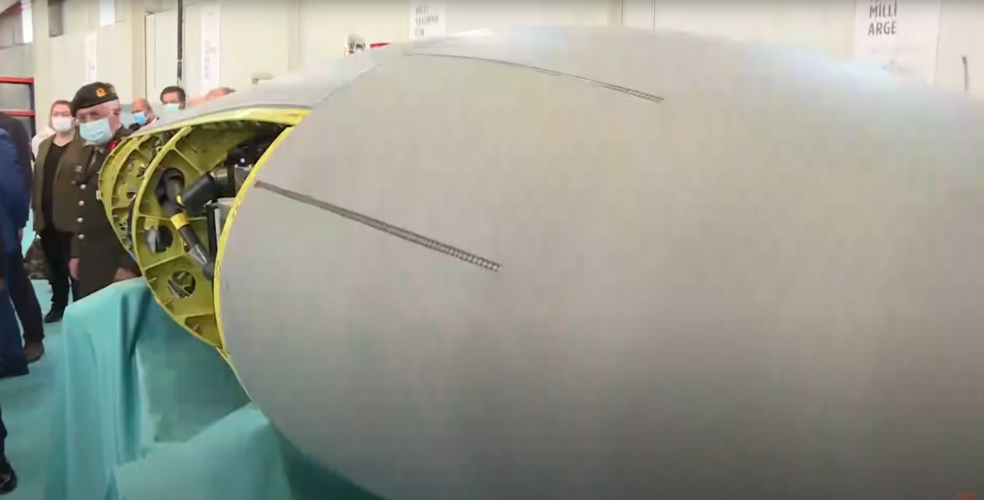

"The outer shell geometry of the 4-meter long EHPOD was designed as similar as possible to the external centerline fuel tank of 300 gallons (1.150 liters) of the F-16 Aircraft. Aluminum alloys and composite materials (for a light weight and resilient product) are utilized in the production of the pods. "
