Tupolev cryoplanes

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,462
Hi,

Here is Tupolev Tu-130 (as in Flightglobal) cryoplane projects,
in co-operation with DASA and based on Dornier Do-328 .

http://www.flightglobal.com/FlightPDFArchive/1996/1996%20-%201369.pdf


Attachments

  • Tupolev cryoplanes.JPG
    Tupolev cryoplanes.JPG
    39.5 KB · Views: 1,192

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
929
Interesting find, Hesham, didn't know, that the Do 328 was intended as the basis
for a cryoplane. But with the take-over of the production rights of the Do 328 by
Avcraft in 2003, I think, this project has died. :mad:


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,462
Hi,

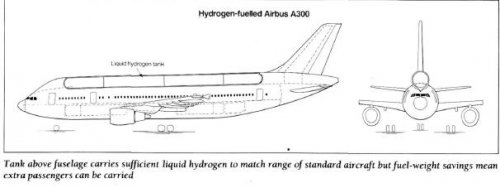

here is the Daimler-Benz Aerospace Airbus/Tupolev
cryoplane of 1990.

http://www.flightglobal.com/pdfarchive/view/1990/1990%20-%201536.html?search=airbus%20hydrogen


Attachments

  • 85926_962_1027697169872-a310_cryoplane3.jpg
    30.7 KB · Views: 1,072
  • A-300.JPG
    20.4 KB · Views: 1,057

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
hesham said:
here is the Daimler-Benz Aerospace Airbus/Tupolev
cryoplane of 1990.
http://www.flightglobal.com/pdfarchive/view/1990/1990%20-%201536.html?search=airbus%20hydrogen

What was Tupolev doing with Airbus in 1990? I thought at the time they were working on their own cryoplane project, the Tu-155... ???


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,375
Fairly obviously, there was no chance of selling the Tu-155 in the West. As noted in the article, it wasn't yet truly practical and required refinement.


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
563
Reaction score
159
The Tu-130/Tu-136 designations used by Tupolev ANTK can be a little confusing as they can represent:
· Tu-130 (1st use of designation) – Twin-engine conventional high-wing multirole aircraft from the 1990’s with two Klimov TV7-117 turboprops.

· Tu-136 (1st use of designation) –LNG fuel development of the Tu-130 (1st use of designation). Fuel carried above the rear fuselage and was also referred to as the Tu-130GAZ.

· C-PROP – Before the development of the Tu-130(2) and Tu-136(2), Tupolev developed the C-Prop a cryogenic cargo and passenger aircraft similar to the later designs but smaller and lighter (by about 50%). Power was from a pair of P&WC PT6A-67K turboprops.

· Tu-130 (2nd use of designation) – Twin boom cryogenic project. The aircraft had a distinctive tandem wing arrangement with the extended side pods holding the cryogenic fuel. Tupolev referred to this configuration as the ‘duo-plane’ arrangement. Was to be able to carry up to 5 tonnes of cargo or 53 passengers.

· Tu-136 (2nd use of designation) – In the late 1990’s Tupolev concentrated on ways to introduce LNG as a fuel. With a domestic feeder role envisaged, this Tu-136 could carry over 50 passengers with a range of about 2,000 km. Like the Tu-130(2) it featured the distinctive side pod arrangement. Engines would be two Klimov TV7-117SF turboprops. (see coloured view : http://www.secretprojects.co.uk/forum/index.php/topic,15697.msg153367.html#msg153367) .

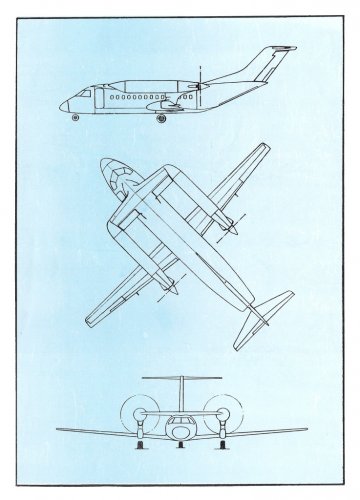

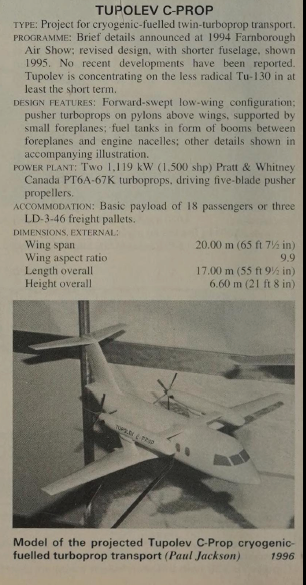

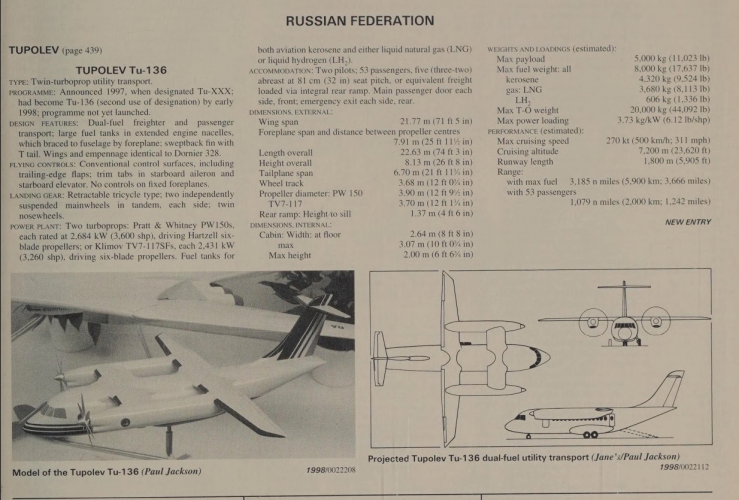

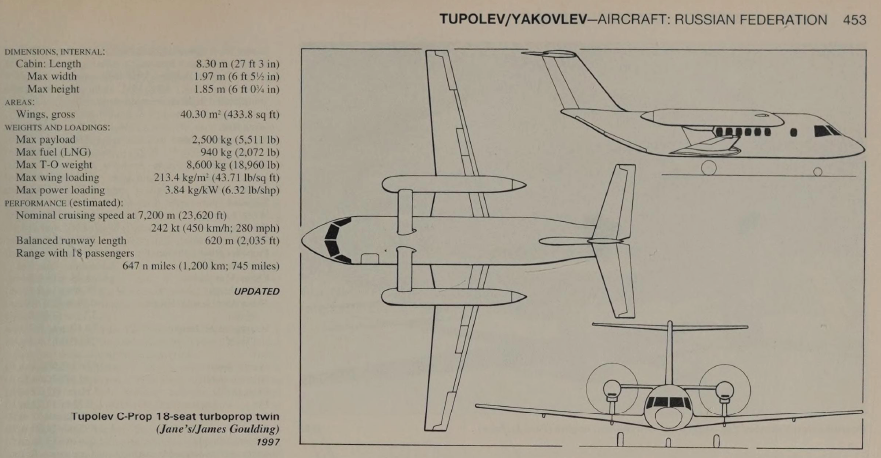

Please find below the Tupolev C-Prop Regional Cryo-Turboprop details and three-view along with a Tu-136(2) diagram from 1998.
Additional Sources: OKB Tupolev (Y Gordon / V Rigmant) Midland Publishing 2005 ISBN 1857802144


Attachments

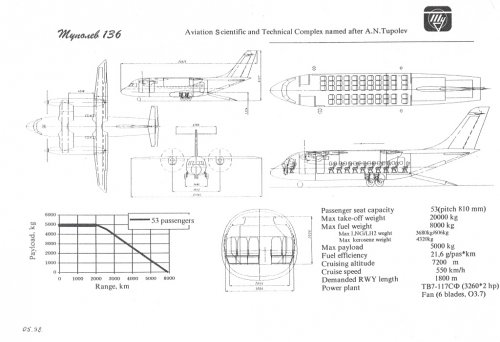

  • Tupolev_Tu-136_2_1998.jpg
    185.4 KB · Views: 120

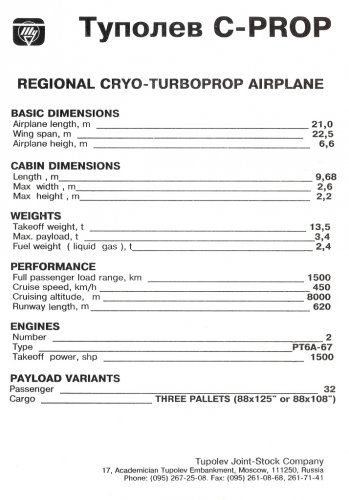

  • Tupolev_C-Prop_3v_2000.jpg
    271.9 KB · Views: 98
  • Tupolev_C-Prop_2000.jpg
    196.9 KB · Views: 45

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
More on the Tu-136 (previously called the Tu-130 in this topic) and other cryo-aircraft studies:

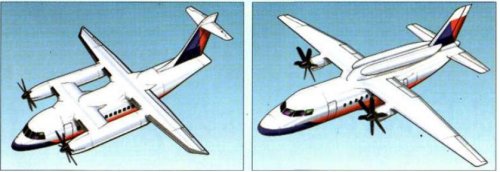

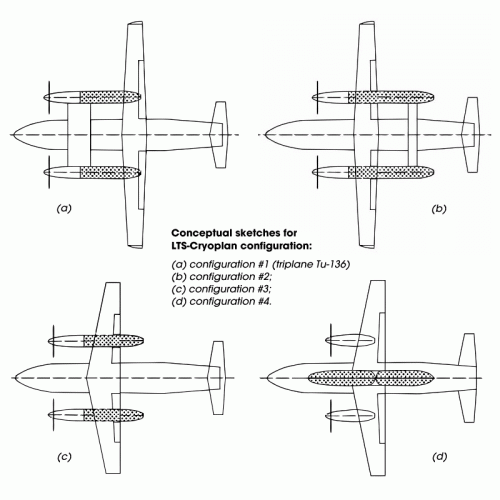

  • various layouts studied for Tu-136

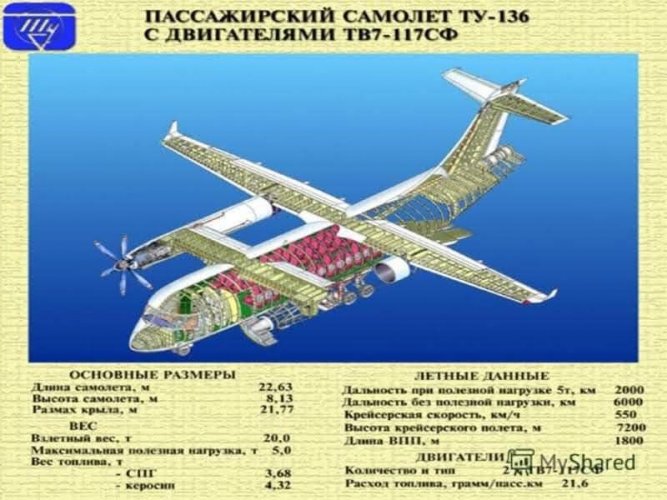

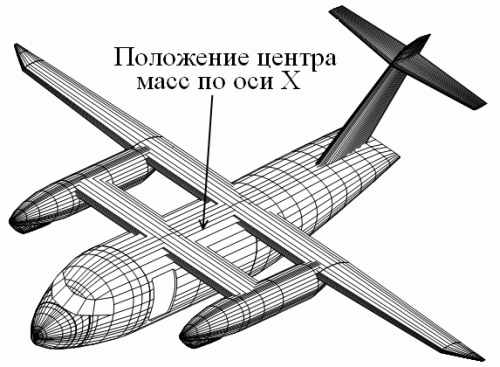

  • a "wire" CAD illustration of Tu-136

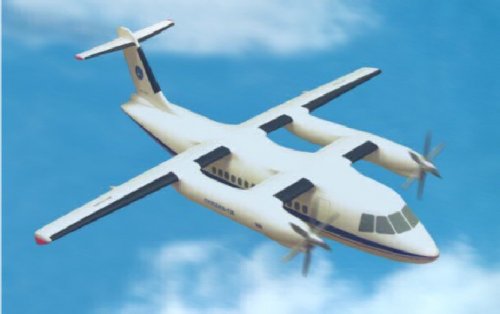

  • a photo of a desktop model of the Tu-136
  • DASA-Tupolev project based on Airbus A310
  • EADS-Tupolev project based on Dornier 328

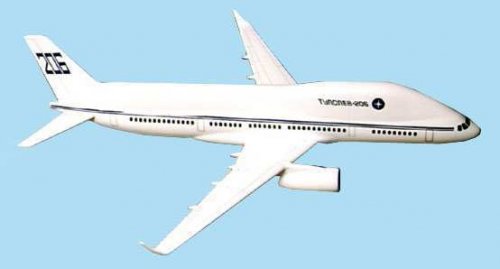

  • Tu-206 (formerly known as the Tu-204K)

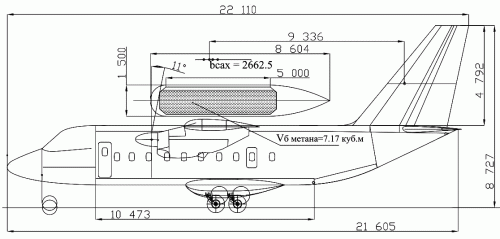

  • a study of possible location for cryogenic tank


Attachments

  • Dimensions and location of the SPG tank.gif
    Dimensions and location of the SPG tank.gif
    57.7 KB · Views: 39
  • Tu-206.jpg
    21.8 KB · Views: 46
  • EADS-Tupolev based on Do 328.jpg
    EADS-Tupolev based on Do 328.jpg
    15.8 KB · Views: 44
  • DASA-Tupolev based on A310.jpg
    DASA-Tupolev based on A310.jpg
    36.1 KB · Views: 45
  • Tu-136.jpg
    33.5 KB · Views: 48
  • Tu-136 wire.gif
    Tu-136 wire.gif
    59.6 KB · Views: 46
  • Tu-136 studied layouts.gif
    Tu-136 studied layouts.gif
    74.9 KB · Views: 43

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,462
From Kryl'ya Rodine 12/2005,


here is a Tupolev Tu-214K as a cryoplane.


Attachments

  • 214K.png
    223.2 KB · Views: 50

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
https://www.google.ru/search?q=cryoplane


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,462
Hi,

the C-Prop.


Attachments

  • C-Prop.png
    236.8 KB · Views: 52

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,370
Reaction score
2,534
Hi!

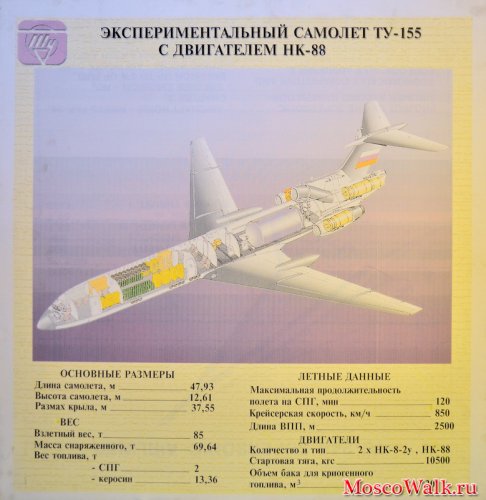

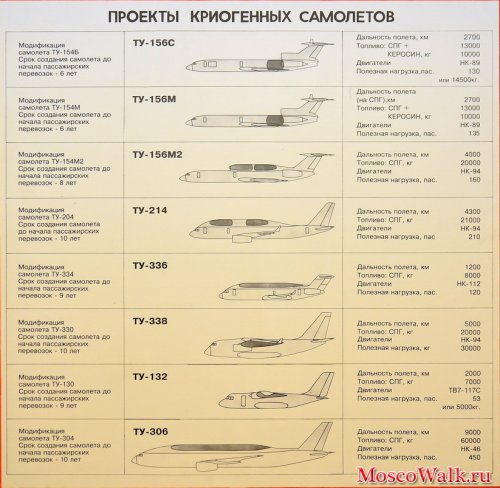

http://moscowalk.ru/cao/basmannyi/progulki/tupolev.html


Attachments

  • Tupolev41.jpg
    502.5 KB · Views: 46
  • Tupolev42.jpg
    421.2 KB · Views: 45
