Tupolev ANT-26/28 projects

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,280
Reaction score
1,199
Ah, this brings back memories ! Due to this type, I got to know a good friend of mine
quite a while ago !

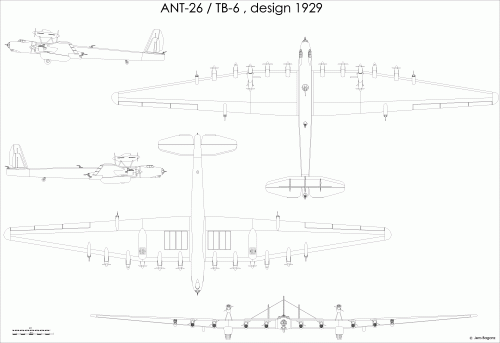

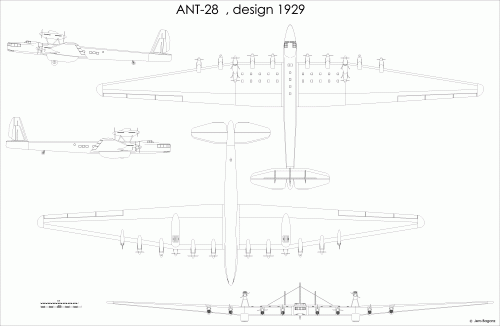

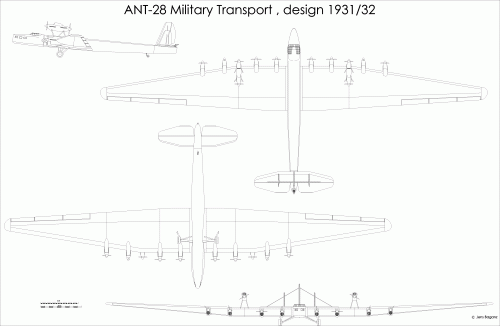

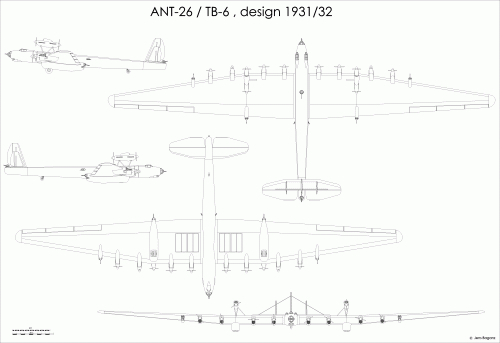

Sorry for running off topic, the drawings of the ANT-26, designs from 1929 and 1931/32
and the ANT-28 in its civil and military from were mainly based on Putnam "Tupolev Aircraft
since 1922" . There may well be better ones in the meantime .

I've changed the title a little bit to include both variants.


Attachments

  • ANT-26_1929.gif
    125.1 KB · Views: 1,125
  • ANT-26_1931.gif
    124.3 KB · Views: 843
  • ANT-28.gif
    114.3 KB · Views: 775
  • ANT-28_mil_transport.gif
    109.9 KB · Views: 759

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
129

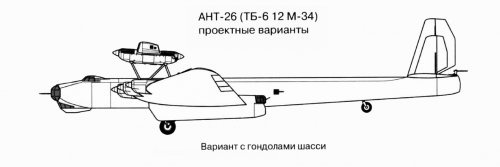

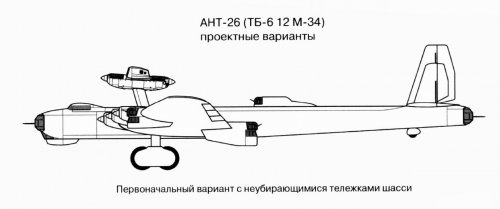

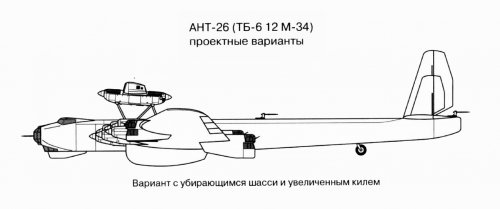

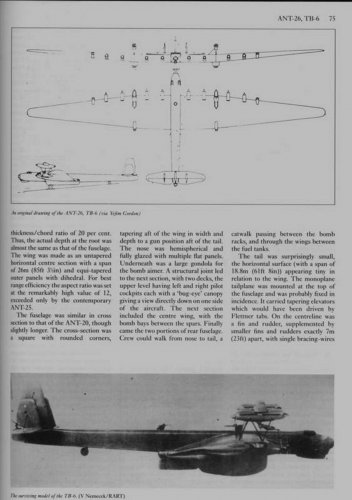

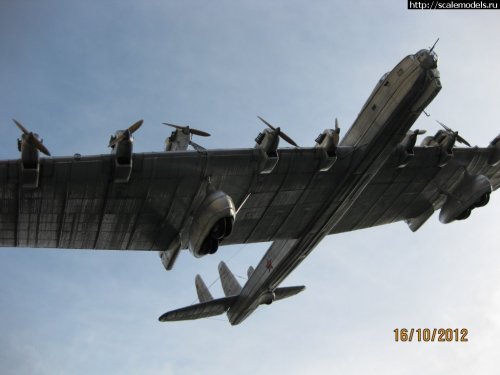

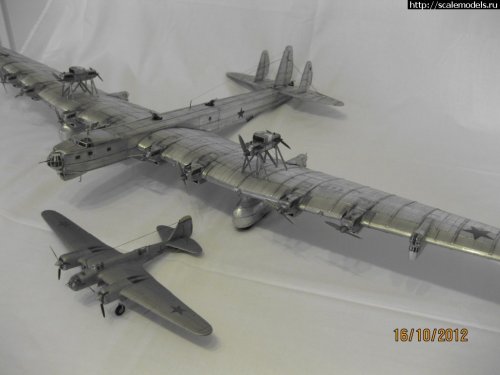

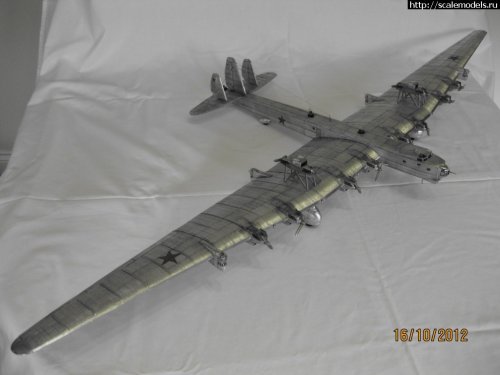

Just a few projections from Vladimir Kotelnikov "Super bombers Stalin's"

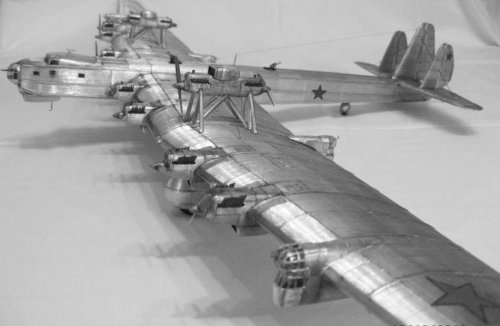

and supermodel in 1/72 (more: http://scalemodels.ru/modules/forum/viewtopic_t_34831_start_620.html )


Attachments

  • 1350408868_IMG_8635.jpg
    141.1 KB · Views: 292
  • 1350408847_IMG_8620.jpg
    141.7 KB · Views: 231
  • ANT - 26 (3).jpg
    ANT - 26 (3).jpg
    101 KB · Views: 195
  • ANT - 26 (2).jpg
    ANT - 26 (2).jpg
    89.3 KB · Views: 202
  • ANT - 26 (1).jpg
    ANT - 26 (1).jpg
    107.6 KB · Views: 196

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,612
Reaction score
4,575
Great drawings my dear Jemiba,and thank you my dear Borovik.


theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
15
Wow!!! What a monster! Thanks a lot for the drawings and the link to the model.


foiling

ACCESS: Secret
Joined
Aug 12, 2007
Messages
286
Reaction score
20
Well Jemiba, you have long known how much this pair of projects mean to me, and your drawings are worth their weight in gold (not the weight of the paper but of the aircraft). I am thrilled to see these monsters become a topic. Thanks for all the contributions here.


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
624
Reaction score
287

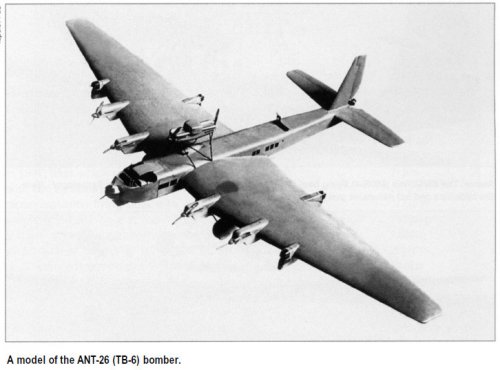

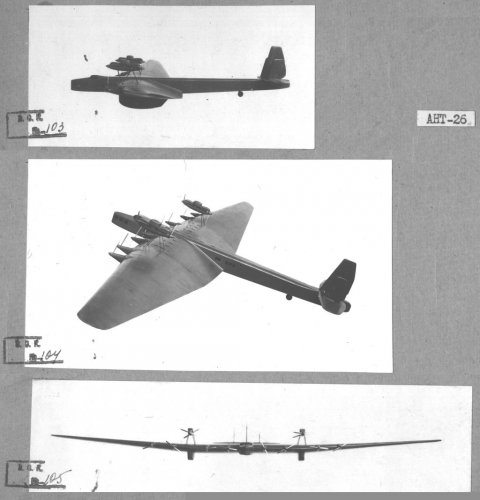

There is a photo of a model of the ANT-26 with six M-44 engines on page 56 of the book "OKB Tupolev: A History of the Design Bureau and its Aircraft." Is it possible that the Tupolev OKB saw a six-engined ANT-26 as more maneuvrable in combat against the Bf 109s and Fw 190s and faster than a 12-engined ANT-26?

Gordon, Yefim; Rigamant, Vladimir (2005). OKB Tupolev: A History of the Design Bureau and its Aircraft. Hinckley, England: Midland Publishing


royabulgaf

ACCESS: Top Secret
Joined
Dec 29, 2008
Messages
510
Reaction score
88
I went to the model site. It looks like this was scratchbuilt. So he spends about a gazillion hours building this (those wings are corrugated, by the way) and then he hands it to his seven year old daughter to hold.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,612
Reaction score
4,575
Hi,

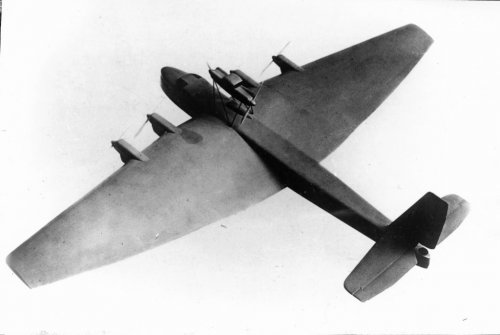

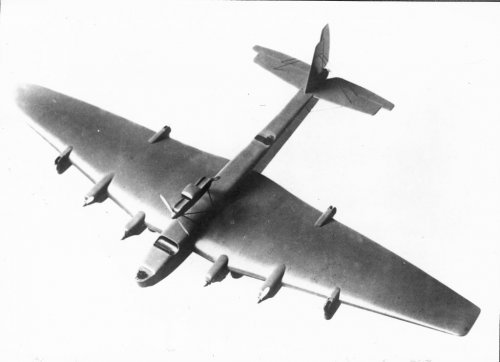

here is anther two views to ANT-28 Models.


Attachments

  • ANT-28.png
    260.1 KB · Views: 115

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,680
Reaction score
3,187
Hi!

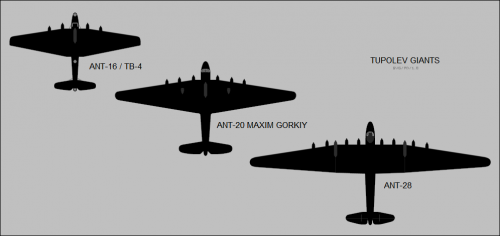

http://www.airvectors.net/avtgt.html

http://www.tupolev.ru/ant-26-tb-6
"Heavy bomber Ant-26 (TB-6) (draft)
At the end of the year 1929 STC UVVS offered KB give the conclusion about the possibility of construction of aircraft carrying capacity of 10 and 25 tons, capable of carrying guns, tanks, and to report them to the main PA entered. In KB were worked out under the specified load capacity options preliminary data on 2 machines. The first var option became the basis for designing aircraft Ant-16 (TB-4), the second-for work on the project "sverhbombardirovshhika" Ant-26 (the official designation of the TB-6). Preliminary estimates in the KB, gave the following source data on the machine:
-wingspan is 55-75 m;
-wing area-650-700 m2;
-Airborne weight-50000-60000 kg.
The estimated period of construction of such machines could determine in 3 CB-4 years. The AIR FORCE soon takes a decision of principle on the construction of Ant-26. Starting from the year 1931 in plans for the pilot the WWC Bureau and construction starts to appear Ant-26 aircraft (TB-6). Expressed interest in the new development and civil aviation. The plan included two versions of the aircraft: commercial passenger and cargo load of 15 tons and with dal'nost 3D flight 1500 kilometers. Civic projects were going in under the instruction(indication) of designated CB Ant-28.
In March 1932 year KB is launching projects. A.n. Tupolev immediately raises the question of the construction of a plant for serial built Ant-26 and the plant to repair them, dimensions to some were supposed to meet the dimensions of these giants. About ektnye work has been carried out "Aviaproektom" and became the basis for the construction of two aviation companies in the country: the factory No. 124 in Kazan and no. 84 in Moscow. The layout and design of the SA moleta Ant-26 was a further development of the Ant-16 (TB-4) in the direction of increasing dimensions, weight and power of the SI's heating installation. The project involved the use of the summer 12 engines m-34, 8 of which were mounted in the wing and 4 in two Tandem rigs over the wing. In da l'nejshem, in connection with the additional requirements of the RA military sshireniju the whole defensive weapon, being under proce project 12 m-34frn engines, in addition, a draft under 6 m-44, took in 2 times more power.
To study issues related to aerodynamics, OLETA himself year 1935 was built double towing fashion l-glider in scale 1/4 natural Ant-26. Its test flight Tania with removing characteristics held test pilot Boris Kudrin. Putting all the work on civilian modification KB General focused on the military option. In the lengthy production started construction of the aircraft. The plane continues to Figo to register in the pilot AIR FORCE plans to build in 1933-1934 (the machine referred to as TB-6-6M44) with the end of construction by December 1935 and then to August 1, 1936 Goda.
In July 1934 year ceased all work on the project with a total airframe technical readiness at 75% and total aircraft-16%.
Project Ant-26 ended the era of pre-war desig Aniyah KB giant slow-moving "bombovozov". The future was for high-speed high-altitude machines able to perform combat tasks under conditions of increased power.
Main estimates Ant-26 with 12 m-34frn engines:
-aircraft length, m 39.0 m;
-wingspan-95.0 m;
-height-10.0 m;
-wing area-754 m2;
normal airborne weight-71000 kg;
-maximum bomb load-24600 kg;
-maximum speed at an altitude of 3500 m-275 km/h;
-maximum speed for TB-6 m-44 at an altitude of 5000 m-250 km/h; *
-ceiling-5500 m;
-ceiling for TB-6 m-44-7000 m;
-flight range-1000 km;
-flight range for TB-6 m-44,
normal with 15000 kg bomb load
-3300 km; *
-with overload on fuel when 15000 kg bomb load-4800 km; *
armament-3 x Oerlikon "
1 x 37 mm cannon machine gun armament-1 x YES
4 x ShKAS
3 x SHVAK
Aircraft armament was to consist of:
-three 20-millimeter cannons "Oerlikon";
-one 37 mm automatic gun;
-one machine-gun YES;
-four ShKAS machine guns (7.62 mm);
-three guns SHVAK (12.7 mm).
*-According to the plans of the AIR FORCE of the RED ARMY in the year 1934"

Mikulin m-34 engine.
https://en.wikipedia.org/wiki/Mikulin_AM-34
TB-6.
https://en.wikipedia.org/wiki/Tupolev_TB-6

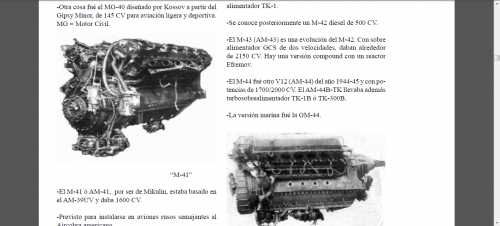

Mikulin m-44 engine.
http://www.aeroteca.com/motoraz/motor%20a-z%202012v8.8.pdf

No.3 picture shows this type.http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=18182.0;attach=181077;image
(Without outboard wing turrets.)

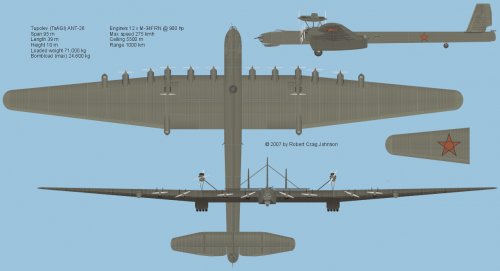

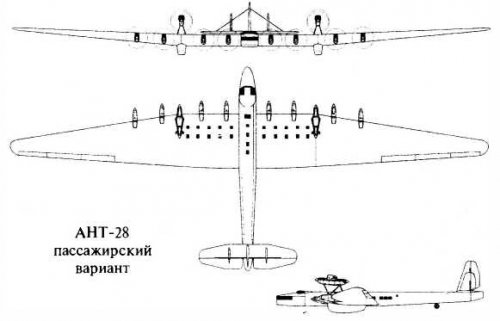

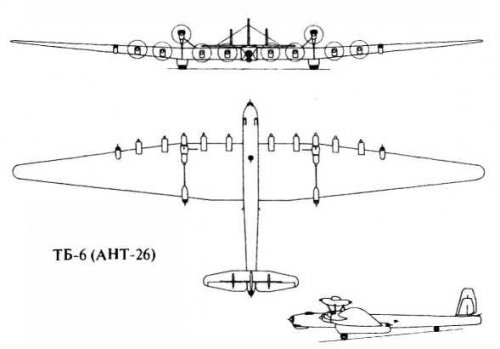

3-side view.
http://coollib.net/b/292301/read
ANT-28 had no outboard wing turrets. I can see two type cockpits for ANT-26. One is split cockpit type and another one is single cockpit type. Which is correct?
Another drawing.
http://www.airwar.ru/enc/bww2/tb6.html


Attachments

  • i_087.jpg
    16 KB · Views: 76
  • i_085.jpg
    15.5 KB · Views: 92
  • 1350408915_IMG_8647.jpg
    146.1 KB · Views: 93
  • tb6-2.jpg
    56 KB · Views: 88
  • M-44.png
    328.1 KB · Views: 63
  • 6 ENGINE ANT-26.jpg
    6 ENGINE ANT-26.jpg
    44.1 KB · Views: 51
  • 6 M44 engine ANT-26.jpg
    6 M44 engine ANT-26.jpg
    51.2 KB · Views: 53
  • img3.jpg
    161.2 KB · Views: 87
  • ant26 shrunk.jpg
    ant26 shrunk.jpg
    162.5 KB · Views: 102
  • avtgt_08.png
    16.8 KB · Views: 97

iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
410
Reaction score
244

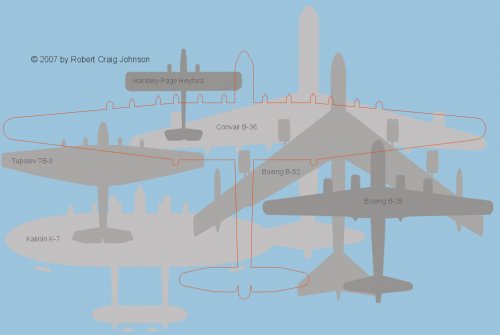

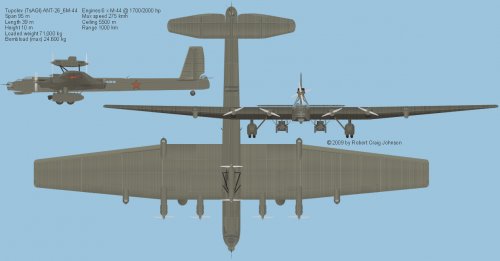

Here are some drawings that I did of the ANT-26 M-34 and ANT-26 M-44, the latter shown carrying a pair of early BT tanks. I've also included a graphic that roughly compares the size of the ANT-26 to some other large aircraft.


Attachments

  • ant26tb6-1.jpg
    331.5 KB · Views: 346
  • ant26tb6-2.jpg
    202.8 KB · Views: 329
  • ant26tb6m44.jpg
    320 KB · Views: 323

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,974
Reaction score
94
I agree.

You might want to put the ANT-26 label where the Convair B-36 label is - I was confused for a moment!


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
56
Nice pictures iverson! But why does the ANT-26 look as long as the B-52 on the comparison? The B-52A to F are 47.73 meters long, the B-52H is 49.05 m, while the ANT-26 is only 39 m.


iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
410
Reaction score
244
redstar72 said:
Nice pictures iverson! But why does the ANT-26 look as long as the B-52 on the comparison? The B-52A to F are 47.73 meters long, the B-52H is 49.05 m, while the ANT-26 is only 39 m.

I had fairly limited sources when I did the drawings. So I probably had at most partial figures for the dimensions and scaled by eye using photos of the various models of the aircraft. The main point is that the ANT-26 was meant to be really big.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
684
Reaction score
340

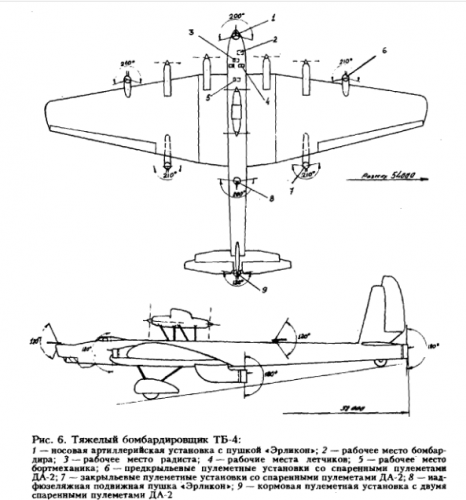

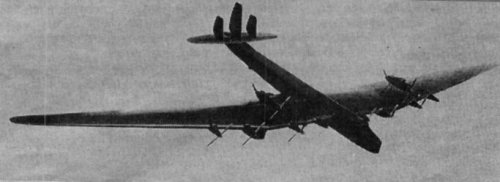

TB-4 from a Tsagi book


Attachments

  • tb4 tsagi.png
    tb4 tsagi.png
    114.2 KB · Views: 130
