Hi,

those two aircraft didn't exist in the Osprey encyclopedia of russian aircraft:
Tupolev ANT-33: high wing passengers transport,project only.
,, ANT-39 (SB-1):twin engined all metal cantilever low-wing
medium bomber fitted with M-25 engines.



[AM]

Hi all,

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
1	ANT-1	-	light sportplane	1923	1	-
2	ANT-2	-	light passanger a/c	1924	2	-
3	ANT-3	R-3	two-seat recon. a/c	1925	103	also PS-3
4	ANT-4	TB-1	heavy bomber	1925	216	also G-1
5	ANT-5	I-4	single-seat fighter	1927	369	-
6	ANT-6	TB-3	heavy bomber	1930	819	also G-2
7	ANT-7	R-6	multirole aircraft	1929	407	also MP-6, PS-7
8	ANT-8	MDR-2	long-range recon. flying boat	1931	1	-
9	ANT-9	ANT-9 & PS-9	three- & two-engined passenger a/c	1929	75	-
10	ANT-10	R-7	two-seat recon. a/c	1930	1	-



[Maveric]

My Tupolev list (sorry only in german) :'(



[Maveric]

...and part 3...



[Maveric]

...part 4,5 and 6.

Corrections are very welcome.

Thanks Maveric



[AM]

hi

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
11	ANT-11	MTBT	heavy torpedobomber flying boat	-	project	-
12	ANT-12	I-5	single-seat fighter	1930	?	-
13	ANT-13	I-8	single-seat interceptor	1930	1	-
14	ANT-14 "Pravda"	-	36-seat passenger a/c	1931	1	-
15	ANT-15	DI-3	two-seat fighter	(1930)	project	-
16	ANT-16	TB-4	six-engined heavy bomber	1933	1	-
17	ANT-17	TSh-1 or TSh-B	heavy attack a/c	(1930)	project	based on ANT-7
18	ANT-18	TSh-1 or TSh-B	heavy attack a/c	(1930)	project	-
19	ANT-19	-	passenger a/c	-	project	-
20	ANT-20 & -20bis	PS-124 (2nd a/c)	64-seat passenger a/c	1934 & 39	2	-



[Stargazer2006]

Thanks to you all for this very interesting thread which enables me to complete my list with some missing information.

Maveric, I'm doing an English-language translation of your list right now, but I need to know a few things:

1°) Why the separate additional list in two parts? I can find non-sequential designations here, but also duplicate designations.

2°) What does the concept of "arbeitsflugzeug" correspond to? "Working plane" doesn't mean much. Is it a commuter type, or a research type?

3°) Does the "U-Boat Pursuit" category signify an aircraft that was fitted to a U-boat as an escort?



[AM]

hi

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
21	ANT-21	DI-3	twin-engined multirolw fighter	1933	2	-
22	ANT-22	MK-1	heavy bomber flying boat	1934	1	-
23	ANT-23	I-12	twin-engined fighter with cannons armament	1931	2	-
24	ANT-24	TB-4	heavy bomber	-	project	-
25	ANT-25	RD	record breaking a/c	1933	2	-
26	ANT-26	TB-6	heavy bomber	(1936)	project	-
27	ANT-27 & -27bis	MDR-4 & MTB-1	long-range recon. & heavy bomber flying boat	1934	1 & 15	-
28	ANT-28	-	cargo version of ANT-26	-	project	-
29 (1st)	ANT-29	DIP	two-seat fighter with cannon armament	1935	1	-
29 (2nd)	ANT-29	-	passenger version of ANT-27	-	project	-
30	ANT-30	SK-1	military multirole a/c	(1933)	project	-



[Stargazer2006]

Very interesting. Keep'em coming!

Some differences between your respective lists:

A.N.T. 11 = multi-purpose, or heavy torpedo bomber ?
A.N.T. 13 = one prototype, or none built ?
A.N.T. 21 = DI. 3 or MI. 3 ?
A.N.T. 26 = 1933 project or 1936 project ?
A.N.T. 28 = passenger or cargo ?
A.N.T. 29 = DIP. 1 or just DIP ?
A.N.T. 30 = multirole or reconnaissance ?



[borovik]

A.N.T. 11 = multi-purpose, or heavy torpedo bomber ?
A.N.T. 13 = one prototype, or none built ?
A.N.T. 21 = DI. 3 or MI. 3 ?
A.N.T. 26 = 1932-33 project or 1936 project ?
A.N.T. 28 = passenger and cargo ?
A.N.T. 29 = DIP-1 or just DIP ?
A.N.T. 30 = multirole or reconnaissance ?



[borovik]

Hi AM.
Thanks for the great begun.
If you will allow a small correction dates:
ANT-11 (1929)
ANT-19 (1929)
ANT-26 (1932) / All work on the project was completed in July 1934.
Date you specified (1936) is a possible date of the final construction (in the Air Force plans to build on the experimental)
And at the ANT-17-18 (in our country's press), there was some confusion.
I think that the ultimate authority in this matter shall be the authority of Vladimir Rigmant (chief archivist Tupolev’s)

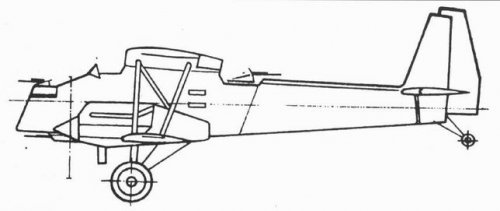

According to him ANT-17 is a biplane, and ANT-18 on the basis of the ANT-7.
In addition, I want your advice - given the specificity of our forum, perhaps it makes sense to pay more attention to projects like this you have done
with ANT-29 (2nd).

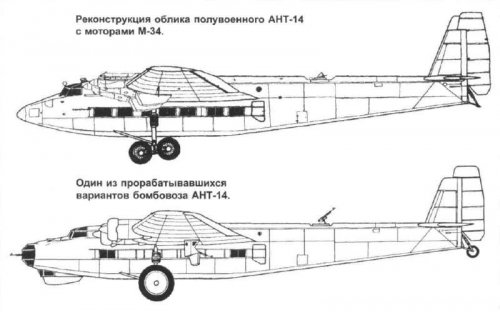

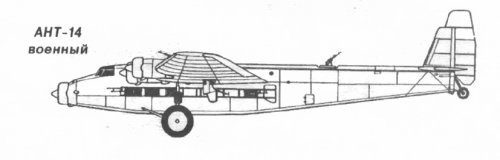

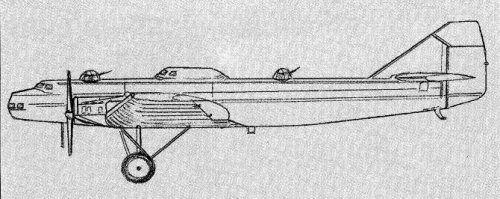

For example, in addition to passenger ANT-14 "Pravda" there were two versions of the bomber with four engines and five ..., but this is only my opinion to the same in the future it threatens too heavier task? ???
In general, at your discretion
Best regards, Anatoly.



[Stargazer2006]

Great additions and corrections. I appreciate and I'm sure I'm not the only one... Of course having the alternative projects is great too!

Regarding A.N.T. 17: the fact it was a biplane project is compatible with it being a heavy attack aircraft, isn't it?
Regarding A.N.T. 18: the fact it was based on A.N.T. 7 is compatible with it being a Heavy attack aircraft, isn't it?
Regarding A.N.T. 29: isn't it logical that the unbuilt passenger version A.N.T. 27 should be #1 and the built DIP. 1 be #2?

What exact year was the A.N.T. 24 project conceived?



[Maveric]

Hi Stargazer2006,

for your questions: 1) Two seperate list, one for sequential designations and one for non-sequential and duplicate designations. Its my own system.
2) Multirole aircraft for the agrucultural action.
3) U-Boot-Jagdflugzeug means search and destroy U-boat...


Servus Maveric



[AM]

hi

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
31	ANT-31	I-14	single-seat fighter	1933	18	-
32	ANT-32	I-13	single-seat fighter	(1934)	project	-
33	ANT-33	-	passener a/c	-	project	-
34	ANT-34	MI-4	multi-seat fighter	-	project	-
35	ANT-35	PS-35	passenger a/c	1936	11	-
36	ANT-36	DB-1	single-engined long-range bomber	1935	18	-
37	ANT-37	DB-2	long-range bomber	1935	2	-
38	ANT-38	VSB-1	high-altitude high-speed bomber	-	project	-
39	???
40	ANT-40	SB	high-speed bomber	1934	6831	also PS-40 & PS-41



[AM]

ups, sorry...



[AM]

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
41	ANT-41	T-1	torpedo bomber	1936	1	-
42	ANT-42	TB-7 (Pe-8)	four engined heavy bomber	1936	93	-
43	ANT-43	-	passenger a/c	-	1	complete but not fly
44	ANT-44 or TzAGI-44	MTB-2	amphibian heavy bomber flying boat	1937	2	-
45	ANT-45	DIP	two-seat fighter with cannons armament	(1936)	project	-
46	ANT-46	DI-8	two-seat long-range fighter	1935	-	-
47	ANT-47	I-20	fighter	-	project	-
48	ANT-48	SS	sport a/c	(1935)	project	-
49	ANT-49	-	recon. a/c	-	project	based on ANT-40
50	ANT-50	-	passenger a/c	(1937)	project	-



[redstar72]

Hi all!
Some corrections from me. The ANT-12 (I-5) fighter was projected from late 1927 to 1929, not in 1930. It was a counterpart of Polikarpov I-6 prototype. By the order, September 1929 was appointed as its rollout date, but the project wasn't completed. The works were abandoned, and the task was transferred to TsKB-39 NKVD special design bureau (where Polikarpov and Grigorovich created their well-known I-5, first flown at April 29, 1930). But it wasn't the end for ANT-12 project: engineer V. Rodionov suggested to continue project at free time, as a community work. Almost all TsAGI engineers undertook a commitment to work 70 hours free on this project, and it became known at TsAGI as Obschestvennyi Samolet - "community plane" or "volunteer plane". It wasn't scheduled into official plan of prototype aircraft production, but at December, 1929 the UVVS issued a specification for it. Since then, the aircraft was classified as interceptor fighter and obtained a new official index - I-8 (ANT-13)! So, ANT-12 and -13 are actually two stages of the same project!

The volunteer work resulted in real prototype which was first flown at December 12, 1930 by Mikhail Gromov. The I-8 was tested until April 1932, but wasn't delivered to the official state tests because its performance was worse than required by the specification. Another reason was that I-8 was powered by foreign engine (Curtiss Conqueror).

Now about the ANT-24: it was projected as a bigger version of TB-4 (ANT-16) with four (unrealized) powerful M-44 engines, 2000 hp each, instead of six 830-hp M-34. It was a precursor of giant ANT-26 (TB-6). The TB-4 specification was issued at March 1930, and the first flight was at July 3, 1933. And in March 1932 the production of ANT-26 prototype beginned - it means that design works were already completed. The ANT-24 was only a preliminary design, and I think it could be from early 1931.

ANT-30 (SK-1) was 4-seat "flying cruiser", further development of R-6 (ANT-7) and ANT-21 (MI-3); also a bomber version was projected. ANT-46 (DI-8) was also twin-engined heavy fighter / cruiser, derived from SB (ANT-40), and it was 3-seat; only one prototype was built. See more about both these aircraft at http://www.secretprojects.co.uk/forum/index.php/topic,7951.0/all.html.



[redstar72]

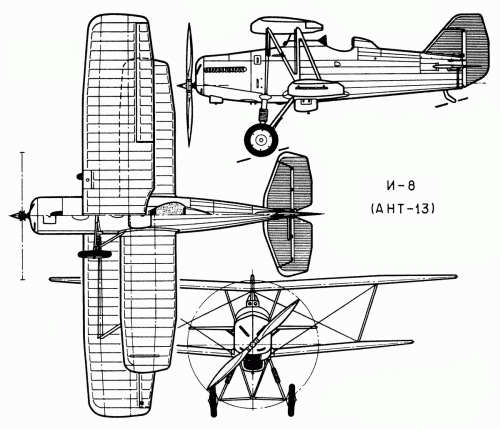

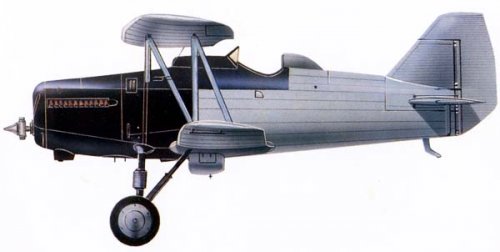

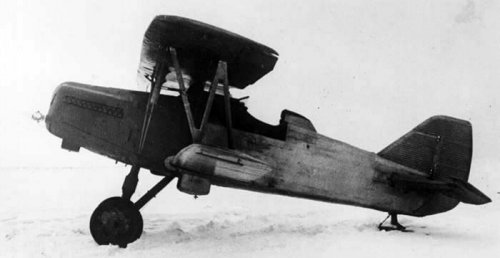

Some I-8 (ANT-13) pictures here.



[Stargazer2006]

Great thred! Thanks a lot redstar72 for those clarifications.

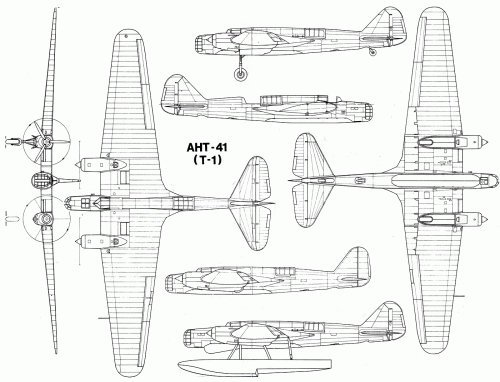

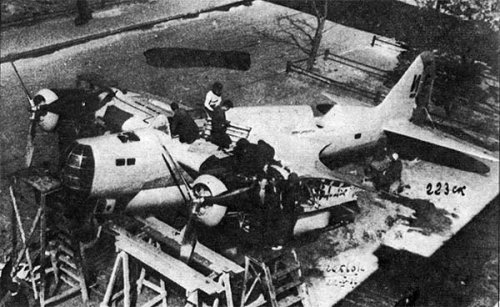

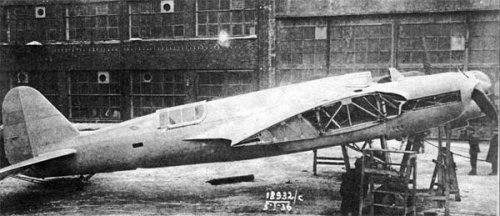

Do you confirm there actually was an A.N.T. 41 (T. 1 / LK. 1) prototype in 1936?



[AM]

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
51	ANT-51	Su-2	short-range bomber and recon. a/c	1937	877	-
52	?
53	ANT-53	-	four-engined passenger a/c	(1936)	project	-
54	?
55	?
56	ANT-56	SRB	high-speed recon. a/c and bomber	?	project	-
57	ANT-57	PB	heavy dive bomber	(1939)	project	-
58	ANT-58	103	medium dive bomber	1941	1	prototype of Tu-2
59	ANT-59	103U	medium dive bomber	1941	1	prototype of Tu-2
60	ANT-60	Tu-2 2M-82	medium dive bomber	1941	80	-



[AM]

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
61	ANT-61	Tu-2s 2M-82FN	medium bomber	1943	2527	-
62	ANT-62	Tu-2D	long-range bomber	1944	2	-
63	63 & 63P	SDB & Tu-1	high-speed day bomber and long-range all-weather fighter	1944	2	-
64	64	Tu-10 4AM-43TK & Tu-10 4AM46TK	long-range heavy bomber	(1943)	project	-
65	65	Tu-2DB	high-altitude resse-bomber	1946	?	-
66	66	-	passenger a/c	(1944)	project	based on "64"
67	67	Tu-2D	long-range bomber	1946	?	version of "62" with diesel engines
68	68	Tu-10 2AM-39FNV-2	high-speed bomber	1945	10	Tu-2 version
69	69	Tu-8 2ASh-82FN	long-range bomber	1947	1 mod.	based on "62"
-	-	Tu-4	long-range heavy bomber	1947	1000	B-29 Superfortress version
70	Tu-70	Tu-12 4ASh-73TK	passenger aircraft	1946	1	based on Tu-4



[redstar72]

Great thred! Thanks a lot redstar72 for those clarifications.

Do you confirm there actually was an A.N.T. 41 (T. 1 / LK. 1) prototype in 1936?

Yes, ANT-41 prototype actually existed in 1936; it was first flown at June 2 by A. Chernavsky, but one month ago - at July 3 it crashed because of wing flutter (the crew rescued with parachutes). It looked much similar to ANT-40 (SB) but was notably bigger, with powerful Mikulin M-34FRN engines (1275 hp each) and with large bomb / torpedo bay (6.5 meters length - 40 % of whole fuselage length) suitable for 920-kg TANF torpedo. Its army designation at final stage was T-1 only. Yes, when ANT-41 design began at early 1935, it was proposed as multirole aircraft: not only torpedo bomber, but also "normal" bomber and combat aircraft / flying cruiser, and the last purpose was the main one. In April 1935, the appropriate specification was confirmed by the head of UVVS, Yakov Alxnis, and ANT-41 obtained army index in "LK" category (some sources specify it as LK-1, some others as LK-4 - I can't say which is right). In every case, at 2nd half of 1935 the specification was revised and torpedo bomber become the main role for ANT-41. In accordance with this, the army designation was changed into T-1 (Torpedonosets 1).



[Stargazer2006]

Thanks! I've been cross-comparing my files with all that has been shared in this thread, and SURPRISE! I have found a reference for A.N.T. 39...

According to Aviation Magazine #172, the A.N.T. 39 was a 1934 twin-engined fast bomber based on the ANT-29. Possible designations appear as SB. 1 and MI. 13, though TSB. 1 and even AR have also been quoted! The same source gives A.N.T. 40 as SB. 2 ONLY.

Some guy at Aviation Magazine in the 1950s used to be pretty close to someone at Tupolev from what I've heard, so it may be worth considering... What do you say about this, redstar72?



[AM]

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
71	71	Tu-14 2M-93 / Tu-14 2M-82M / Tu-14 2M-45	short-range bomber	(1946)	project	version of Tu-2
72 (1st)	72	Tu-24 2Ash-2TK	high-altitude bomber	(1946)	project	version of Tu-2
72 (2nd)	72	Tu-18 2Nene-1	short-range bomber	(1947)	project	version of Tu-2
73 (1st)	73	Tu-20 2Nene-1	short-range bomber	(1947)	project	-
73 (2nd)	73	Tu-14 2Nene-1 + Derwent-5 & Tu-16 2Nene-1 + Derwent-5	medium bomber & recon. a/c	1947	1 & 1	-
74	74	Tu-22 2M-93 & Tu-22 2ASh-84TK + RD-45	high-altitude recon. a/c	(1947)	project	version of Tu-2
75 (1st)	75	Tu-26 2M-3	short-range bomber	(1947)	project	-
75 (2nd)	Tu-75	Tu-16 4ASh-73TKNV	military cargo version of Tu-4	1950	?	-
76 (1st)	76	Tu-24 2ASh-73TK + RD-45	torpedobomber	(1947)	project	version of Tu-2
76 (2nd)	76	Tu-28 2M-3	bomber	(1947)	project	-
76 (3th)	76	Tu-4D	military cargo a/c	?	[300]	re-built from Tu-4
77 (1st)	77	Tu-12 2Nene-1	experimental jet bomber	1947	5
77 (2nd)	77	Tu-30 4Nene-1	bomber	(1947)	project	-
78	78	Tu-16 2Nene-1 + Derwent-5	recon.a/c	1948	?	version of "73" (Tu-14)
79 (1st)	79	-	version of Tu-4 with M-49TK engines	?	project	-
79 (2nd)	79	Tu-20 2VK-1 - RD-500	recon. a/c	(1949)	project	based on "73" (Tu-16)
80	Tu-80	-	long-range bomber	1949	1	based on Tu-4



[redstar72]

Thanks Stargazer, it's an interesting info. But there are some questions. First of all, it's undoubtly fixed now that army index for ANT-40 was simply SB, without any digits. The popullar names "SB-2" for early production version and "SB-3" for the late one, widely used in literature during many years, both are incorrect. I guess that "SB-2" false index "derived" from the full "long" designation of the aircraft - SB 2M-100, where "2" is only the number of engines - such as, for example, "4" in TB-3 4M-17F. By the same principle, the ANT-57 project (PB 4M-105) is sometimes wrongly mentioned as "PB-4".

The index "MI-13" also looks strange, if ANT-39 was a bomber project: "MI" means Mnogomestnyi Istrebitel - multiplace fighter. Of cource, it could be designation for heavy fighter / cruiser version designed in parallel. But why such a big number? As far as I know, any aircraft designated MI-5 to MI-12 never existed.

And another strange thing: what's the difference between probable ANT-39 and the ANT-40, if the second was also an evolution of ANT-29 concept? (Though ANT-40 was first flown before ANT-29 - such a paradox ).

If the Aviation Magazine info had real basis, than it's possible that ANT-39 was a preliminary designation for some early ANT-40 concepts. Also it could be an alternative design from Sukhoi brigade, who worked on ANT-29 (ANT-40 was created by Arkhangelsky brigade). But it also could be a mistake: the authors might define the first SB prototype, with Wright Cyclone radials, as "ANT-39" - while it was also ANT-40.

It is interesting that V. Rigmant wrote in his cycle of articles in "Aviatsia i Kosmonavtika" magazine, that any info about ANT-39 project isn't known.



[Stargazer2006]

I'm sure the truth will be hidden for many years to come, possibly forever now...

Just one more piece of information from Aviation Magazine: they give the ANT-40 (which they call SB-2) as a derivative of the ANT-39, itself a derivative of the ANT-29.

The fact that they mention turrets as the main characteristic on ANT-40 may signify that ANT-39 could have been used for early prototype work in the form of an airframe WITHOUT turrets. Well, just a theory.



[redstar72]

Some more corrections to AM's table.

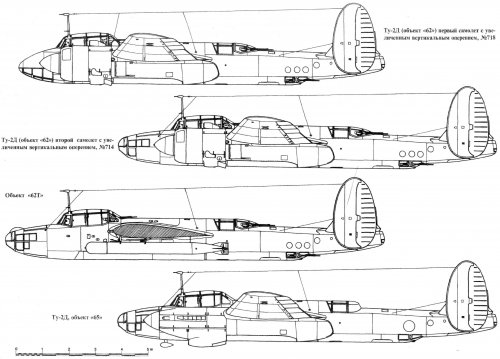

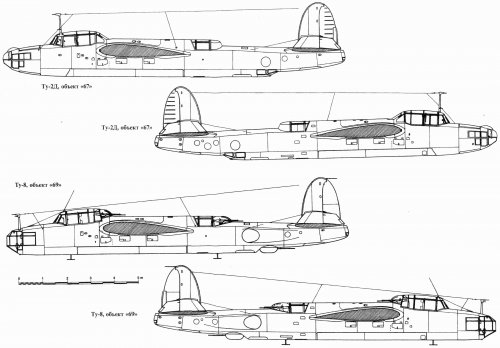

There were two prototypes of "62" long-range bomber (Tu-2D). But, despite the identical designation, they had some notable differences. The first, converted from production Tu-2 #718, retained standard Tu-2 nose and 4-member crew (the differences from Tu-2 were: enlarged outer wings and vertical tail fins, larger fuel capacity, new propellers and modified pilot's canopy). Its factory tests took place from July 3 to September 23, 1944 (first flight at July 12), official state tests from November 20, 1944 to April 23, 1945. Later it was used for different experiments until 1947, and then was scrapped.

Unlike it, the second "62" (#714) had new longer nose with navigator in prone position and a crew of 5 (the co-pilot was added, his place was behind the commander). It underwent factory tests from October 20, 1944 to March 1, 1945; official tests from July 18 to October 31, 1945. Later, in July 1946, it was converted into a torpedo bomber version called "62T" (factory tests August 2 - September 28, 1946; official tests January-March 1947), and then into "69" (Tu-8) prototype. The "65" and "67" prototypes also were derived from second "62".

The main difference of "65" machine were liquid-cooled Mikulin AM-44 engines (1650 / 1950 hp each) with AM-TK-1B (TK-300B) turbo superchargers. The single prototype was converted from production Tu-2 #201 in May 1946. Its factory tests proceeded from May 21, 1946 until May 6, 1947, but only a few flights were done (the first only at July 1, 1946) - the cause was very unreliable work of turbo superchargers.

The "67" with diesel Charomsky ACh-30BF engines (1500 / 1900 hp each) was also a single prototype (# 402). It was built at November 1945; factory tests from January 15, 1946 to January 2, 1947; maiden flight at February 12, 1946. Neither the "65" nor "67" weren't transmitted to the official tests.



[redstar72]

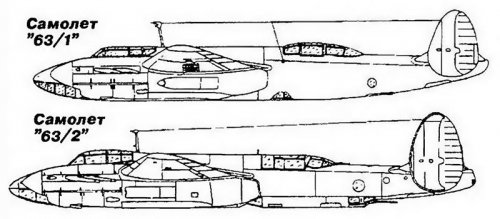

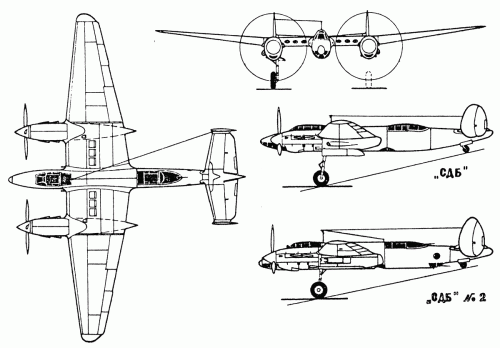

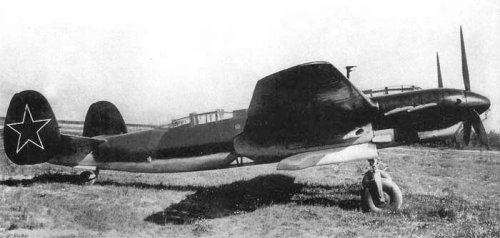

The SDB ("63") also existed as two different prototypes. The first was converted from the first "103" (ANT-58) prototype and had only 2-men crew. Its maiden flight was at May 21, 1944. The second, tested from November 1944 to April 1945, was of special built; it was 3-seat and looked closer to production Tu-2. During 1946, this second prototype was converted into Tu-1 ("63P") heavy interceptor.

About Tu-4 (B-29 copy): according to V. Rigmant, 847 were built, not 1000.



[AM]

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
81 (1st)	81	Tu-18 2VK-1	medium bomber	(1949)	project	version of Tu-14 ("73")
81 (2nd)	81	Tu-14 2VK-1	torpedobomber	1949	87 (?126)	-
82	82	Tu-22 2VK-1	experimental bomber	1949	1	-
83	83	Tu-22 2VK-1	bomber	(1949)	project	version of "82"

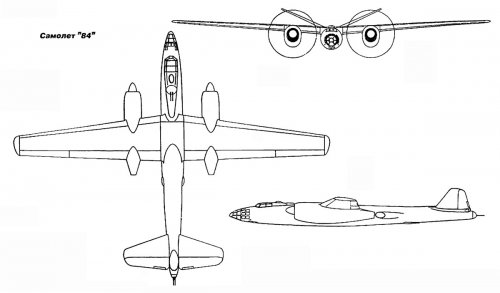

84	84	-	recon. a/c	(1948)	project	based on Tu-14 ("73")
85	Tu-85	-	long-range heavy bomber	1951	2	-
86	86	-	long-range bomber	(1949-51)	project	-
87	87	-	long-range bomber	(1951)	project	version of "86" with other engines
88	88 ("N")	Tu-16	medium-range bomber	1952	1511	-
89	89	Tu-16 2VK-1	recon. a/c	1951	?	version of Tu-14 ("81")
90	90	-	medium-range bomber	(1954)	project	version of Tu-16 ("88") with turboprop engines



[AM]

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
91	Tu-91	-	multirole strike a/c	1954		-
92	92	Tu-16R	long-range recon. a/c	1955	70	-
93	93	-	torpedobomber	(1952)	project	based on Tu-14T ("81")
94	94	-	long-range bomber	(1950-51)	project	version of Tu-4 with turboprope engines
95	Tu-95 ("V")	Tu-95	intercontinental bomber	1952
96	Tu-96	-	high-altitude intercontinental bomber	1956	1	version of Tu-95
97	97	-	long-range bomber	?	project	based on Tu-16
98	Tu-98	Tu-24	supersonic bomber	1956	2	-
99	99	-	intercontinental bomber	?	project	version of Tu-96 with jet engined
100	100	-	bomber	(1953-58)	project	parasite bomber for Tu-108



[redstar72]

The first official designation of the "68" aircraft was Tu-4, changed into Tu-10 when Tu-4 index was fixed on B-29 copy (which itself was previously designated as B-4 or Aircraft "R" - without any "ANT" number).

The official designation of "70" was initially Tu-12, changed in 1948 into Tu-70 (Tupolev factory designation was confirmed as official).

The versions of "71" project with radial engines (ASh-82M, M-93) obtained official designation Tu-14; but the version with M-45 liquid-cooled engines was designated Tu-16 (Tu-16 2M-45).

Beside the "72" project with twin-fin empennage (Tu-24 2ASh-2TK), a version with V-tail (!) was projected. This version was designated as Tu-26 2ASh-2TK.

The high-altitude recon version of Tu-2, built in little series in 1947, was officially designated as Tu-6. These aircrafts had elongated outer wings like Tu-2D versions (22.06 m wingspan, instead of 18.86 m on standard Tu-2). It seems that this Tu-6 had no special "ANT" number.



[redstar72]

Before the jet Tu-78 (Tu-16 2Nene-1 + Derwent-5) mentioned here, another "78" project existed - it was a photo recon version of Tu-8 ("69"). Its official designation was Tu-28 2ASh-82FN. It was only a preliminary design projected during 1947. (Source: V. Rigmant, AiK 9-1998).



[redstar72]

The "84" photo recon project wasn't based on the "73": initially it was designed as "74" (Tu-22) derivative, with VK-2 turboprop engines instead of ASh-84TK radials, and with RD-45 jet engine replaced by more powerful VK-1. But, during the evolution, it turned into completely new aircraft. The jet engine was removed, and "84" became pure turboprop. Here is a 3-view; note the V-tail.

Technical data for Tupolev "84" (projected):
Wing span - 34.0 m
Length - 25.5 m
Wing area - 108 m2
Powerplant - 2x Klimov VK-2 turboprop engines, 4200 / 4800 hp each
Maximum speed - 725 km/h (at 6000 m altitude)
Service ceiling - 13 100 m
Flight range - 5600 to 5800 km
Crew - 5
Weapon - 8x 23-mm NR-23 cannons
(Source: V. Rigmant, AiK 10-1998)



[Retrofit]

Hi,

I found the drawing below that seems related to Tupolev works in the late 20s, early 30s,
Perhaps a project leading to the TB-3?



[borovik]

Hi Philippe

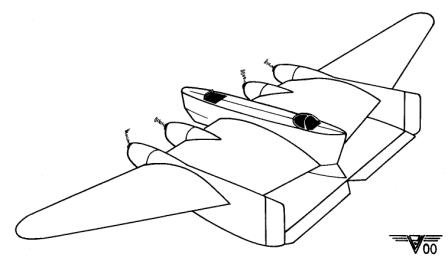

This project P. Grokhovskiy Г-ЛК (Летающее Крыло) G-LK (flying wing) on the basis of TB-3 by A.Tupolev.
The project is inspired by the works of the bomber K. Kalinin, namely K-12 "Firebird" that some time in KB-29 Grokhovskiy and Kalinin with his family at that time lived at the villa Grokhovskiy and actually had some influence in the selection scheme flying wing.
In addition Kalinin K-12 there was a four-engine long-range bomber K-17 performed well under the scheme of a flying wing.
The fate of both designers tragic: both were repression, Kalinin was shot, Grokhovsky died in the camps.



[Retrofit]

Hi Borovik,

Interesting connection, sad endings, but beautiful drawing.
Thanks a lot AGAIN.

Best regards,



[AM]

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
101	Tu-101	-	assault transort	(1952-55)	project	-
102	Tu-102	-	passenger a/c	(1952-55)	project	based on Tu-101
103	103	-	long-range bomber	?	project	improved Tu-16
104	Tu-104	-	medium-range liner	1955	?	-
105	Tu-105 ("Yu")	Tu-22	long-range supersonic bomber	1958	311
106	106	-	long-range supersonic bomber	(1954-63)	project	Tu-22 ("105") version
107	Tu-107	-	military cargo transport	1958	1	Tu-104 version
108	108	-	intercontinental supersonic bomber	(1952-58)	project	-
109	109	-	intercontinental supersonic bomber	?	project	108 with new engines
110	Tu-110	-	medium-range liner	1957	(1)+3	4-engined version of Tu-104



[AM]

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
111	111	-	24-seat passenger a/c	(1954)	project	-
112	112	-	frontline supersonic bomber	(1955)	project	-
113	113	-	cruise missile for a/c	(1955)	project	-
114	Tu-114	-	long-range liner	1957	31	based on Tu-95
115	Tu-115 (Tu-114VTA)	-	military cargo a/c	?	project	version of Tu-114
116	Tu-116	Tu-114D	long-range VIP liner	1957	(2)	rebuilt from Tu-95
117	117	-	military cargo a/c	?	project	version of Tu-110
118	118	-	military cargo a/c	?	project	turboprop version of Tu-117
119	Tu-119	-	experimental a/c with nuclear engines	?	project	based on Tu-95M
120	120	-	long-range supersonic bomber with nuclear engines	?	project



[AM]

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
121	Tu-121 ("S")	-	cruise missele	1959	?	-
122	122	-	supersonic bomber	(1957)	project	deriv. of "98"
123	Tu-123 Yastreb ("D")	-	recon. UAV	1961	52	-
124 (1st)	124	-	low-altitude bomber	(1957)	project	-
124 (2nd)	Tu-124	-	short-range liner	1960	165	-
125	125	-	medium-range supersonic bomber	(1958)	project	-
126	Tu-126	-	AWACS a/c	1961	9	based on Tu-114
127 (1st)	127	-	supersonic bomber	(1958)	project	-
127 (2nd)	127	-	military cargo a/c	?	project	version of Tu-124
128	Tu-128 ("I")	-	long-range interceptor	1961	198	-
129	129	-	supersonic bomber	?	project	-
130	130 ("DP")	-	unmanned gliding a/c	(1959)	project	-



[AM]

No.	Tupolev design.	Official design.	Type	F/F	Qty	Notes
131	131 ("Z")	-	Surface-to-air missile	(1959)	project	-
132	132	-	low-level bomber	(1960)	project	-
133	133 ("ZD")	-	strategic cruise missile	?	project	-
134 (1st)	134	-	SST	?	project	based on "106A"
134 (2nd)	Tu-134	-	short-range airliner	1963	852	-
135 (1st)	135	-	strategic supersonic bomber	(1958)	project	-
135 (2nd)	135	-	supersonic bomber	?	project	-
136 (1st)	136 Zvezda	-	spaceplane	?	project	-
136 (2nd)	136	-	VTOL fighter	(1963)	project	-
136 (3rd)	Tu-136	-	passenger/cargo a/c	?	project	-
137 (1st)	137 Sputnik	-	unmanned spaceplane	?	project	based on "136" (1st)
137 (2nd)	137	-	strategic supersonic bomber	?	project	-
138	138	-	long-range interceptor	?	project	-
139 (1st)	139	-	rocketplane	?	project	-
139 (2nd)	Tu-139	-	recon UAV	1968	?	DBR-2 "Yastreb-2" complex
140	140	-	Air-to-Surface missile	?	project	-
