Tsybin RGSR

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,347
Reaction score
1,537
Ah, what's a SR-71 against this aircraft ???
I especially like the picture of the two RGSR taking off at sunset ... ;)


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,022
Reaction score
792
I think Caspic or Baltic(?) Monster was totally other family of projects and planes


Attachments

  • CaspicMonster_Family.jpg
    197.1 KB · Views: 1,138

elider

ACCESS: Confidential
Joined
Feb 16, 2006
Messages
122
Reaction score
14
I think there's more to come on the Caspian Sea Monster. At least I hope so. Great work Jozeph!


Woody

Passionate about the advancement of technology
Joined
Mar 8, 2007
Messages
292
Reaction score
17
Website
www.freewebs.com
PlanesPictures said:
Another weird and wonderful plane and brilliantly rendered. What is/was it? Can you give us some info or specs on it.
Cheers, Woody


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,347
Reaction score
1,537
The Tsybin/Shavrov RGSR was a reconnaissance version of the RSR with
two Solovyov D-21 engines. Lenght was 27.6m, span 9.75m, estimated
speed was Mach 2. You can find it in the APR 5, number 4.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,546
Reaction score
1,232
PlanesPictures said:
I think Caspic or Baltic(?) Monster was totally other family of projects and planes

"Baltic Monster" was just a fictous name from me, just a quick idea as I first saw the picture. ;) 8) :)
You are right, the Caspian monster is a name for one of the Ekranoplan family.


Woody

Passionate about the advancement of technology
Joined
Mar 8, 2007
Messages
292
Reaction score
17
Website
www.freewebs.com
So it was a sea plane? Did it ever get off the drawing board? There's no other references to the RGSR or RSR on this site but an internet search comes up with Scott's APR site and

http://copperbeard.narod.ru/madeby_e.htm

which contains some interesting downloadable 3D models - Project VP-123 "Cyclone" anyone?
Cheers, Woody


Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
426
Reaction score
40
So Jozef, what exactly is that WIG on your picture? And most importantly, why does it seem to be carrying a Buran shuttle on top? Was this (Buran carrying) a real project?


Firefly 2

ACCESS: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
14
Woody said:
So it was a sea plane? Did it ever get off the drawing board? There's no other references to the RGSR or RSR on this site but an internet search comes up with Scott's APR site and

http://copperbeard.narod.ru/madeby_e.htm

which contains some interesting downloadable 3D models - Project VP-123 "Cyclone" anyone?
Cheers, Woody

The Soviet family of " Ekranoplans" used an aerodynamic phenomenom known as " ground effect" to produce greater lift from a small wing aera. To do so they flew low over the surface.
I was always charmed by the design, as it proved to be a very simple solution to a big problem: increasing lift without increasing drag or engine power.
I especially loved the Sunburn equiped design as depicted below.


Jozef, if ever possible, I would like to see some more art on these beast. Your art rocks!


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,022
Reaction score
792
So fast as it will be possible I will release more. I have some agreement and I want accept it. The biggest plane (project) from this family was long 95 meters and had 15 engines...


Firefly 2

ACCESS: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
14
Agreements must always be respected, I suspected as much.
That's why I included " If ever possible" ;D


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,045
Reaction score
46
Oddly I like the design (Tsybin RSGR). Kind of reminds me of a gigantic F-104 mated with a small corporate jetliner.


Kendra Lesnick


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,099
I am confuse,

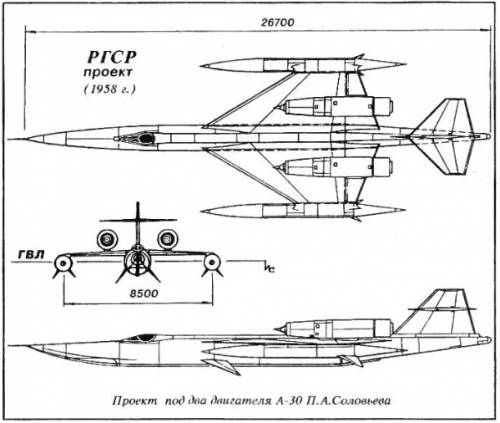

this aircraft had alternative designation,sometimes called S-30,and in anther source called
A-30,what is the right ,or they are different ?.


Attachments

  • 1.png
    121.7 KB · Views: 348

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820
The caption says that it used two Solovyev A-30 jet engines, so the designation had nothing to do with the aircraft itself.
I suppose "S-30" was an alternate (perhaps wrong) designation with "S" indicating Solovyev.


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
685
Reaction score
239

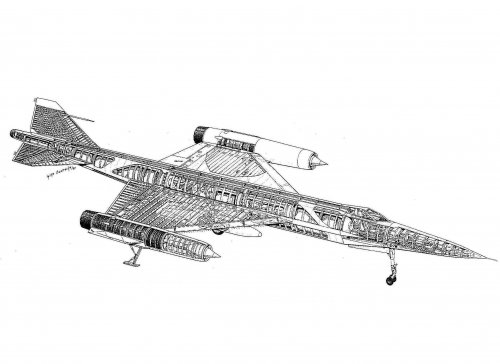

Cutaway Tsybin, aircraft recognition and high performance high altitude landbased, author Mike Badroke


Attachments

  • Cutaway Tsybin.jpeg
    Cutaway Tsybin.jpeg
    407 KB · Views: 241
