15cm Trommsdorff ramjet-shell
http://www.wk2ammo.com/showthread.php?p=9961

D-6000 ramjet missile

Trommsdorff anti aircraft rocket
www.flightglobal.com/pdfarchive/view/1956/1956%20-%200649.html

Maybe someone knows some more projects ?
I have heard Trommsdorff developed things for the V-2/A-4 ?

Many greetings


Grzesio

ACCESS: Secret
Joined
Mar 20, 2008
Messages
252
Reaction score
65
Website
chemnitzer27kb.blogspot.com
Well, Trommsdorff developed a number of designs in a number of classes. These included series E of gun fired experimental shells, A with rocket boosters, B fired from special mortars, C fired from long range guns, D intercontinental missiles and F for flak guns.
Probably the C3 shell for the 28 cm K 5 (E) railway gun is the best known example.
But one thing is strange in the linked article for me... It says...
Dr. Wolf Trommsdorff, home after many years in Soviet hands, recounted the ramjet development which he had undertaken for the Army at Kummersdorff (the mysterious "Trommsdorff shells").
I have read a Russian book quite recently, stating that after the war Trommsdorff was a chief designer of a Soviet design office led by Mr Sudakov, which had to design a 283 mm ramjet shell, but these works were cancelled after Trommsdorff was killed in an air crash in 1946, as well as due to technological difficulties.

Regards

Grzesio

PS The Trommsdorff shell from the first link is apparently the E4, a 28 kg heavy projectile reaching 1460 m/s.


Attachments

  • 28cm_C3_v1_newSEP.jpg
    30 KB · Views: 504

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
20
Hi everybody

To Grzesio
Sorry for my late reply. Thanks for the very good information !
I would like to know more about the D and F series ?
Do you know more about them ?
Any drawings or pictures ?

Thanks a lot and Many greetings


Grzesio

ACCESS: Secret
Joined
Mar 20, 2008
Messages
252
Reaction score
65
Website
chemnitzer27kb.blogspot.com
I have sadly nothing more on the F series, but I've seen cross sectional drawings of the D6000 (plus basic data) some time ago, as well as a missile of the A series. I just have to find it. :)
The D6000 was to be a pilotless aircraft with tubular fuselage, air intake (with Oswatitsch axial diffuser - just like the C3) in the nose, swept wings and a T-shaped fin.

Kind regards

Grzesio


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,460
Reaction score
2,406
Website
www.amazon.com

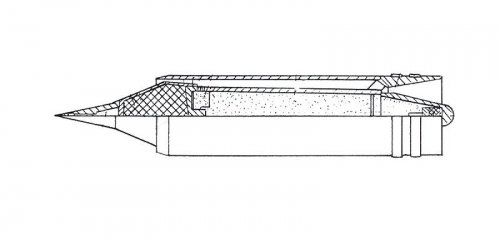

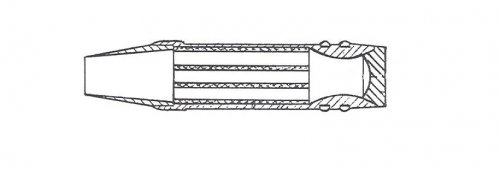

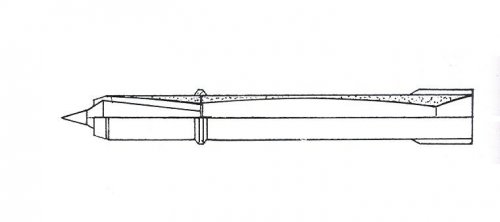

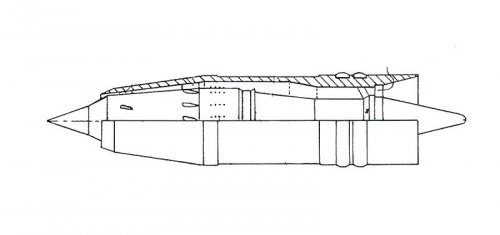

Trommsdorff missiles here...


Attachments

  • E4 150 mm..jpg
    E4 150 mm..jpg
    21.2 KB · Views: 90
  • E1  88 mm..jpg
    E1 88 mm..jpg
    19.5 KB · Views: 93

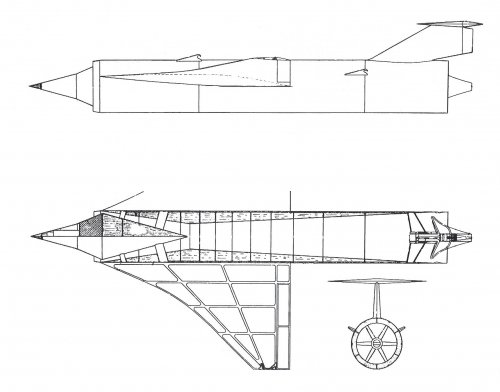

  • D6000.jpg
    149.9 KB · Views: 462
  • C3 280 mm..jpg
    C3 280 mm..jpg
    24.1 KB · Views: 458
  • B2.jpg
    14.4 KB · Views: 459
  • A4.jpg
    15.2 KB · Views: 467

Firefly 2

ACCESS: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
8
These are amazing designs, never heard of anything like it. I suppose that the C3 and other canon fired shells were spin stabilized, but was there a version for the smoothbore, dart projectile firing version of the K5?


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,460
Reaction score
2,406
Website
www.amazon.com
E1
88 mm fired from an 88 mm antiaircraft gun
Gun muzzle speed Mach 2.5
Test with compressed powder propellant in 1939
With liquid propellant (Mach 3) in 1942


E2
105 mm


E3
122 mm


E4
150 mm
Test in 1945
Fuel carbon disulphide
Net thrust 400 kp
Weight 28 kg
Gun muzzle speed 3385 km/h
Max speed Mach 4.5
Length 0.635 m.


C3
280 mm
Thrust 2000kp
Weight 170 kg
Gun muzzle speed 4400km/h
Max Speed Mach 5.5
Range 350 km
Length 1.35 m


D6000
Launched from carrier aircraft at 14.000m. and 720 km/h
Max speed Mach 4.0 at 24.000m
Range 5000 km
No dimensions available.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,053
Reaction score
576
Website
beyondthesprues.com
Is it just me, or does the D6000 look a bit like the ancestor to the Myasishchev Buran intercontinental cruise missile?

Regards,

Greg


Grzesio

ACCESS: Secret
Joined
Mar 20, 2008
Messages
252
Reaction score
65
Website
chemnitzer27kb.blogspot.com
D6000
Launched from carrier aircraft at 14.000m. and 720 km/h
Max speed Mach 4.0 at 24.000m
Range 5000 km
No dimensions available.
I also encountered information about launching from an aircraft at 8000 m, as well as from a rocket catapult. The D6000 had to be just over 10 meters long.

Regards

Grzesio

PS This topic mobilized me to build some long planned Trommsdorff 3D models at last. :)
Below is the illustration of the vast size of the A4 missile, shown by Justo above.


Attachments

  • A4_Tr_v5S_SEP.jpg
    47 KB · Views: 104

Firefly 2

ACCESS: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
8
Justo Miranda said:
C3
280 mm
Thrust 2000kp
Weight 170 kg
Gun muzzle speed 4400km/h
Max Speed Mach 5.5
Range 350 km
Length 1.35 m

That is some serious range, it's hard to imagine any kind of accuracy with the figures though. Remember the Paris Gun. It did have a stupendous range, but had so little accuracy and it wasn't able to put much steel on target, which reduced it military value to pure propaganda.


Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
425
Reaction score
17
Thanks to moin1900 for bringing up the D6000, and Justo and Grzesio for posting pics: I had not heard of this project before. Strangely I haven't seen it mentioned in connection with the US Navaho or Soviet Burya/Buran intercontinental cruise missiles even though it could well be considered as their predecessor, while the winged A-9/A-10 and Sänger's hypersonic bomber are often presented as their "forefathers".


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,397
Reaction score
733
In the latest German Bookazine "Fliegerrevue X"is an article about the Trommsdorff D-6000 ramjet cruise missile.
Link: http://www.fliegerrevuex.aero/mach-35-interkontinentalflugkoerper-der-luftwaffe-1944/


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,768
Trommsdorff Missile Projects

Hi,

http://www.fliegerrevuex.aero/mach-35-interkontinentalflugkoerper-der-luftwaffe-1944/


Attachments

  • 1.jpg
    17.4 KB · Views: 316

athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
309
Reaction score
118
Re: German Air Force 1944 Mach 3.5 intercontinental missile

...ahh, the well known D-6000. Btw: The D series was probably the most interesting of all Trommsdorff projects. Does anybody know more about the other D´s?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,768
Re: German Air Force 1944 Mach 3.5 intercontinental missile

athpilot said:
...ahh, the well known D-6000. Btw: The D series was probably the most interesting of all Trommsdorff projects. Does anybody know more about the other D´s?

Thank you Athpilot,

but also we can ask if there was a manned Projects ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,768
Re: Trommsdorff Missile Projects

Hi,

the first time to know,the D6000 was a competitor to A-10 ?.

https://groups.google.com/forum/#!topic/rec.aviation.military/ARjkTFFNCxc


Dilandu

I'm dissatisfied, which means, I exist.
Joined
May 30, 2013
Messages
954
Reaction score
456
Website
fonzeppelin.livejournal.com
Re: Trommsdorff Missile Projects

I'm very suspicious about the allegations that "Burya" missile was influenced by supposed German project... Works on "Byrua" intercontinental cruise missile started only in mid-1950s, long after all German engineers returned home from USSR.

Frankly, it seems suspiciously like some attempt to "retrospectively invent" a "German origin" for advanced Soviet project by linking it with long-forgotten German missile.
