Time-range chart of BVR missiles

D

datafuser

ACCESS: Secret
Joined
1 December 2006
Messages
275
Reaction score
485

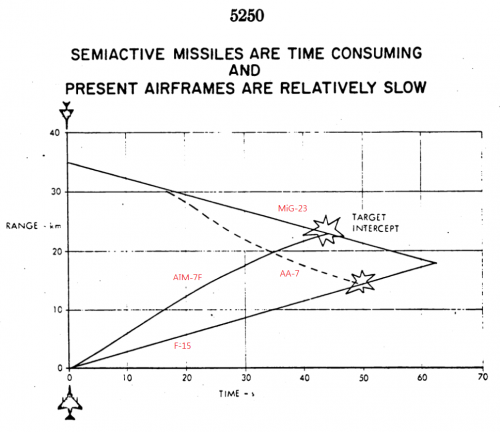

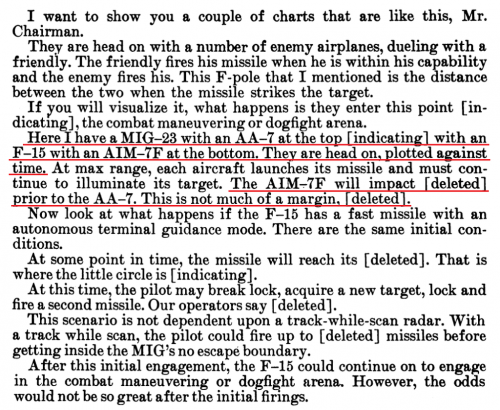

Attached is the range-time chart of AIM-7F/F-15A vs. AA-7/MiG-23 presented in a Senate hearing in 1979.

Does anyone have similar charts for AIM-120 vs. AA-12 and AIM-7M vs. AA-10?


Attachments

  • 79a.png
    150.7 KB · Views: 134
  • 79b.png
    656.8 KB · Views: 129
