From long rolled up, nearly forgotten drawings, comes some new TEMCO material scanned courtesy of my partner Mark N.

1953 Proposal for the Model 38T Fighter
Powered by Pratt & Whitney JT-3Q (J-57)
Wing Span: 30'
Length: 49'
Height: 12'
Load Conditions I: 4 20mm Guns, II: 76 2" Rockets, III: Guns & 2 75 Gallon Drop Tanks, IV: Rockets & 2 75 Gallon Drop Tanks


Attachments

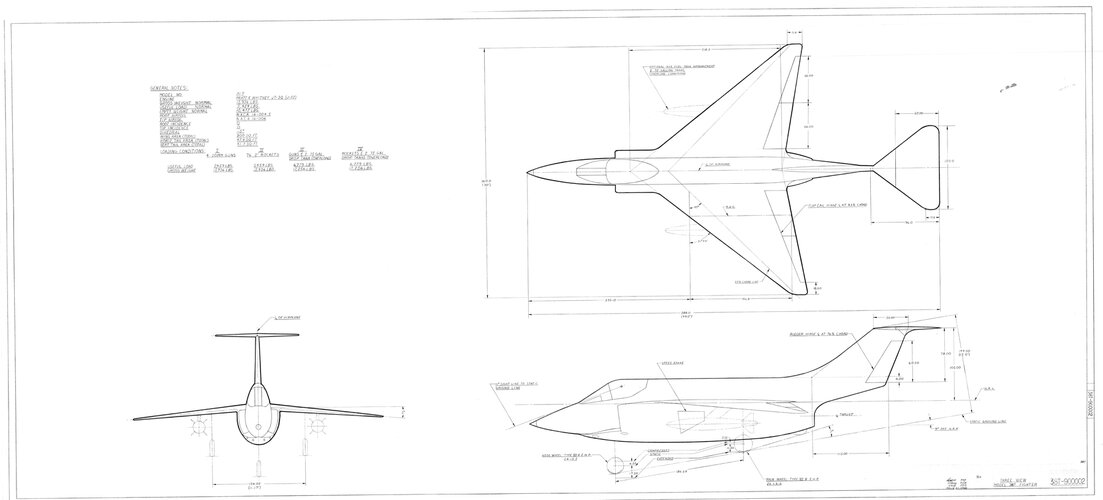

  • x-Temco-Model-38T-Fighter-3V-38T-900002-Feb-27-53.jpg
    224.5 KB · Views: 112

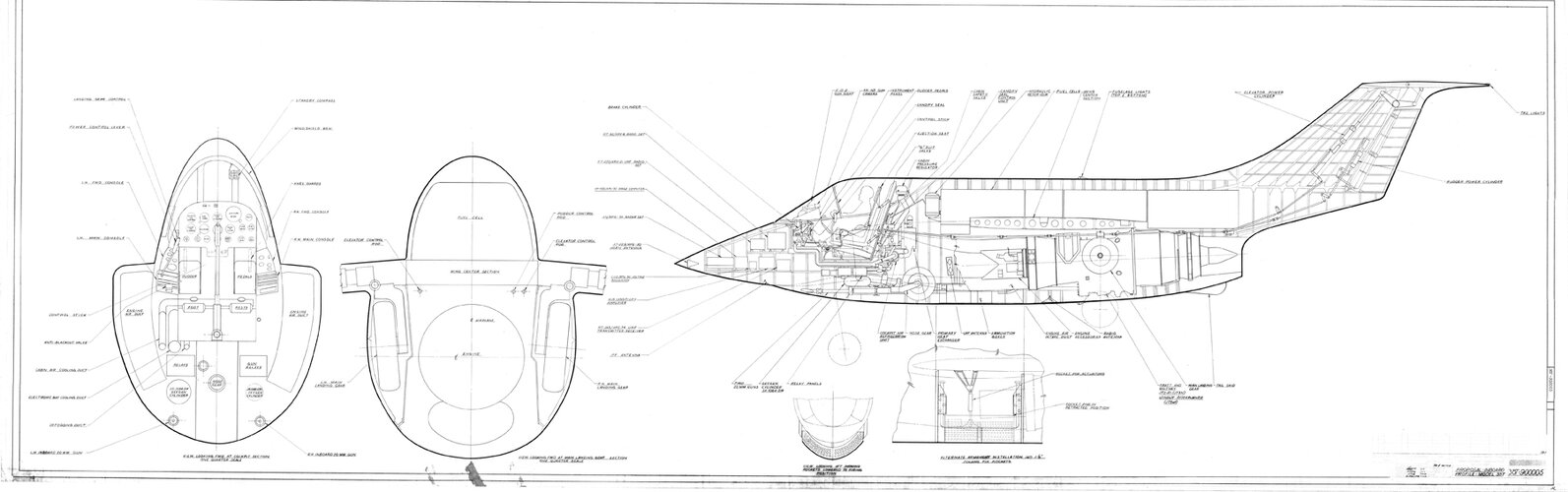

  • x-Temco-Model-38T-Proposal-Inboard-Profile-38T-900005-Feb-23-53resized.jpg
    284.8 KB · Views: 109
Quite a few more to come - thanks to Bill for saving these and for passing them onto me to run thru the scanner!

Enjoy the Day! Mark

Amazing project,thank you my dear Bill S,

and it is very close to Model-31.


Attachments

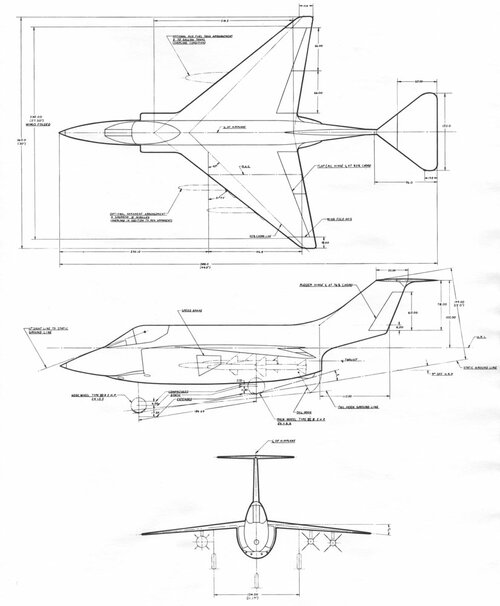

  • Temco-Mode-31-General-Arrangement.jpg
