A patent, that later found its way into some projects by Daimler Benz,
proposing the use of a carrier aircraft for launching a fast aircraft in flight.

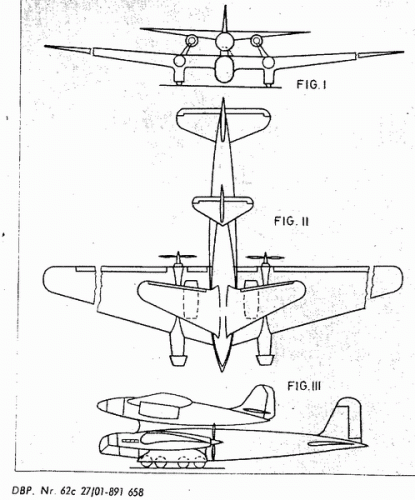

First patent Nr.62c 27/01-891 658, proposing to carry the fast aircraft

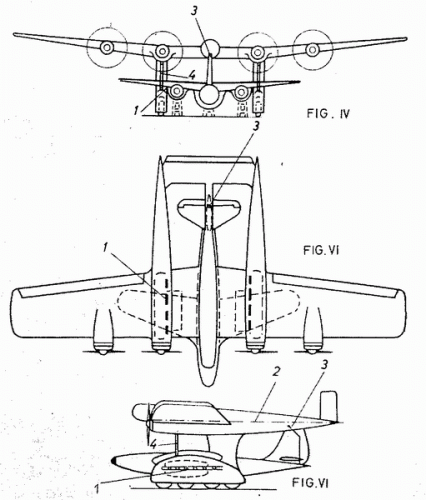

piggy-back, was filed in march 1944. Two months later, an addition was filed,
with the fast aircraft carried underneath the carrier aircraft, so easing the
process of loading and preparing this combination.
Maybe interesting, that the main reason for the carrier aircraft wasn't to add
engine power, but to add wing area. The ratio of MTOW to empty weight for the
carried aircraft was expected to be around 36 tons to 14 tons !
(From Flugwelt 12/1955)


Attachments

Lauge

CLEARANCE: Secret
Joined
Jan 30, 2008
Messages
437
Reaction score
0
Jemiba said:
...an addition was filed, with the fast aircraft carried underneath the carrier aircraft, so easing the
process of loading and preparing this combination.

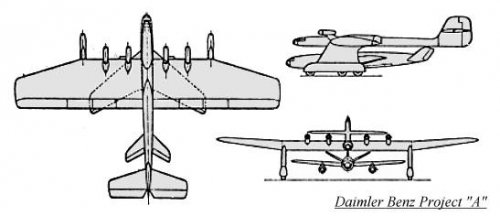

Looks suspiciously like the Daimler Benz A-C projects mentioned (amongst other places) at http://www.luft46.com/db/db.html

Regards & all,

Thomas L. Nielsen
Denmark


Attachments

robunos

You're Mad, You Are.....
Joined
May 1, 2007
Messages
1,725
Reaction score
0
once again, Pemberton Billing was here, ;) see:-

http://www.secretprojects.co.uk/forum/index.php/topic,3383.0/highlight,pemberton%20billing.html

cheers,
Robin.


moin1900

CLEARANCE: Secret
Joined
Jan 28, 2008
Messages
458
Reaction score
0
Re: "take-off method for fast aircraft" Daimler 1944

Here the whole patents.

Patent Nr. DE891658
Title: Startverfahren für Schnellstflugzeuge.
Erich Übelacker / Daimler
March 1944

Patent Nr. DE901262
Title: Anordnung zur durchführung eines Startverfahrens für Schnellstflugzeuge, bei welchem das Schnellstflugzeug von einem als Startflugzeug dienenden Lasten- oder Motorsegler startet.
Erich Übelacker / Daimler
May 1944

https://depatisnet.dpma.de/DepatisNet/depatisnet?action=einsteiger

Maybe interesting: takeoff speed only 105km/H
takeoff field length only 125m
