Supermarine Attacker trainer

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
931

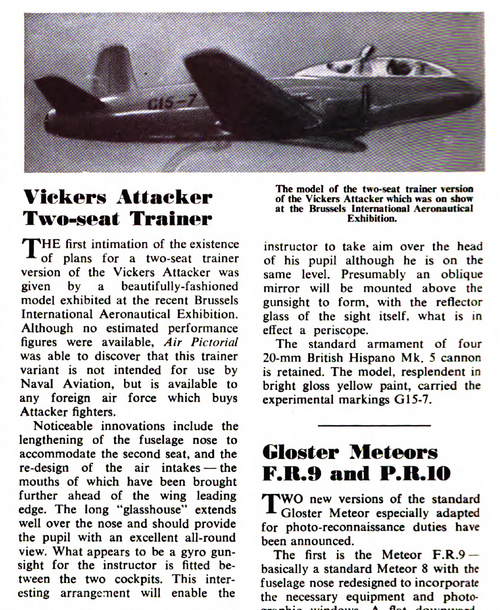

Triggered by the article about the Supermarine Attacker in the last issue of Aeroplane Monthly

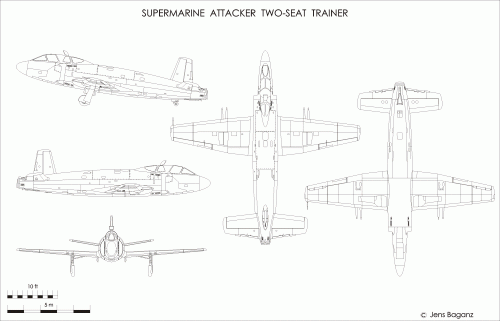

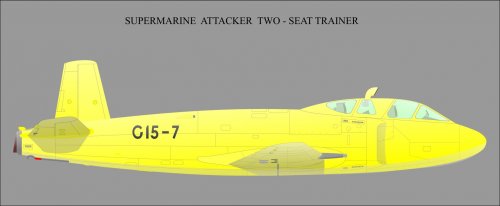

and thankfully supported with additional pictures by lark, I’ve made a drawing of the proposed

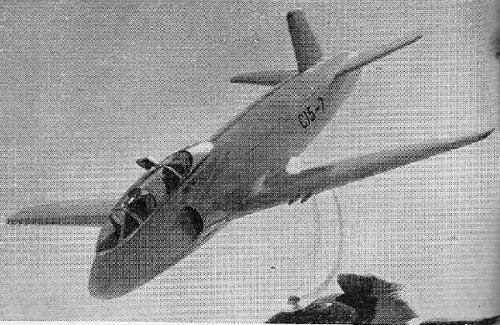

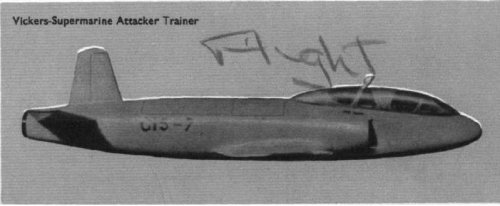

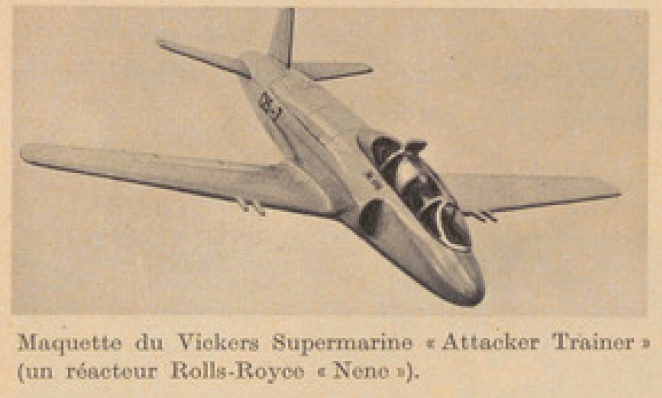

trainer version. It was shown as a model at the Brussels International Aeronautical Exhibition
1950 and never progressed beyond that stage. Besides the tandem seat cockpit in the lengthened
nose, the intakes were moved some inches forward. Interesting feature is the large periscope, which
is said to have doubled as gunsight for the instructor. A detail, that to my opinion would have been
modified, if this type would have ever materialized is the fin, which in this model isn’t elongated
forward, as it was on the later fighter types.


Attachments

  • Attacker_trainer.gif
    99.7 KB · Views: 212
  • Attacker_Trainer.jpg
    58.1 KB · Views: 162
