Sukhoi Su-10 preliminary design

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,445
Reaction score
6,103
Hi,

http://www.geocities.com/unicraftmodels/fut/futussr/futussr.htm


Attachments

  • su10-a-th.jpg
    3.8 KB · Views: 1,373

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
793
Reaction score
167

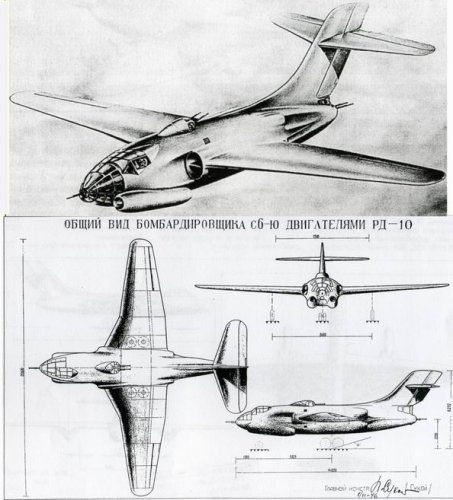

Aircraft "E" 1946 OKB-134 P.O.Sukhoi
Sp.-20,6m
L. -14,8m
H. -6,25m
Engines-6 x Jumo-004/RD-10
max speed :850km/h
range .2000km
ceiling.11700m
armament :1x20mm cannon-forward, 2 x B-20mm-up, 2 x B-20mm-back
weight :norm-19500kg
max-21700kg
bombs :norm-1000kg
max-4000kg
crew :4


Attachments

  • 10cy.jpg
    125 KB · Views: 932

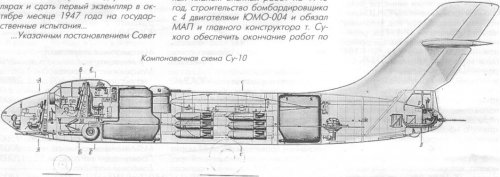

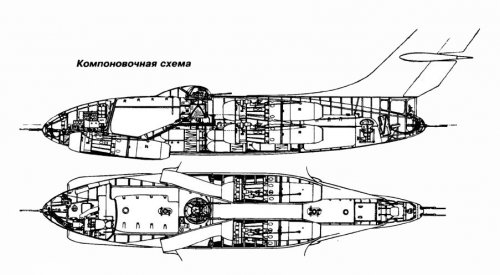

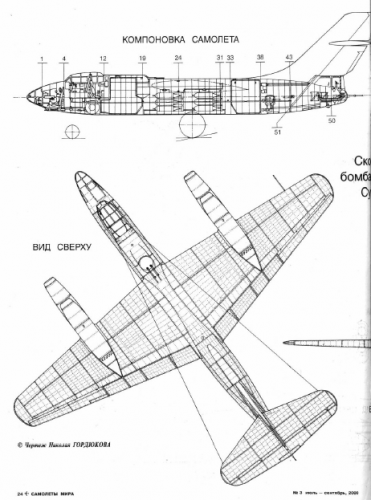

  • Su-10 E inboard.jpg
    Su-10 E inboard.jpg
    137 KB · Views: 850

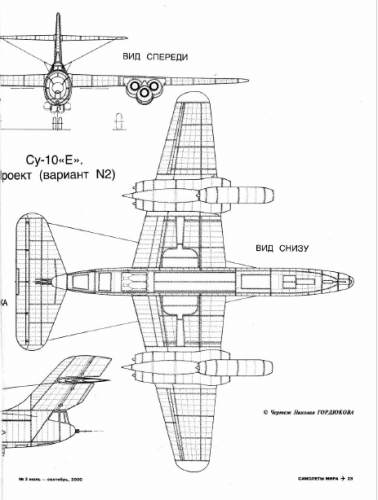

  • Su-10E (bot.).jpg
    Su-10E (bot.).jpg
    150.1 KB · Views: 808

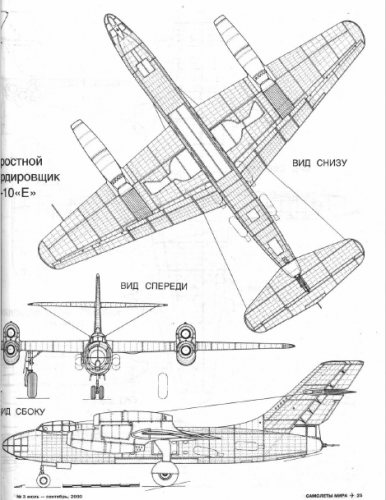

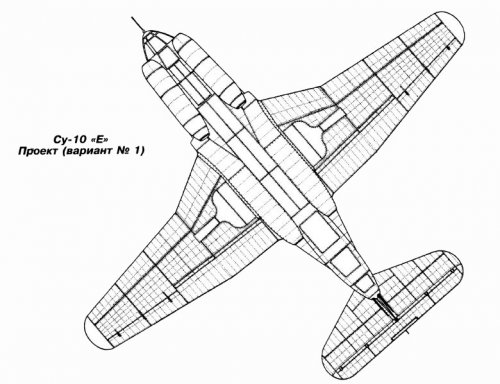

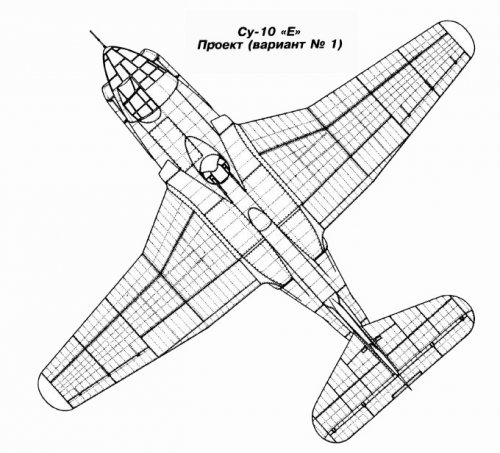

  • Su-10E (up).jpg
    Su-10E (up).jpg
    157.7 KB · Views: 768
  • Su-10E.jpg
    103.8 KB · Views: 769

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
793
Reaction score
167
There is much other infoes and photo on this plane and their rival on this subject.
Sources:"Planes of the world" #2/2000
"Aviation & Cosmonautic"


Attachments

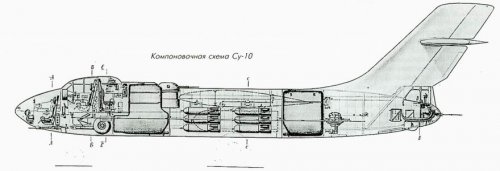

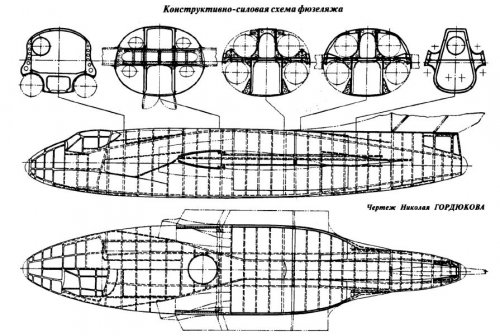

  • Su-10 inb..jpg
    Su-10 inb..jpg
    36.2 KB · Views: 173
  • Cy-10 4TR-1.jpg
    Cy-10 4TR-1.jpg
    69.2 KB · Views: 174

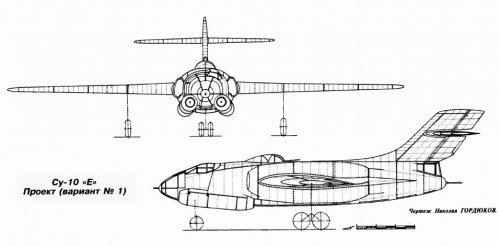

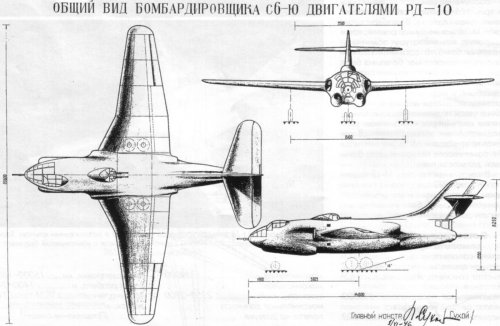

  • Cy-10  E-2  (6 RD-10).jpg
    Cy-10 E-2 (6 RD-10).jpg
    47.7 KB · Views: 207
  • Cy-10  E..jpg
    Cy-10 E..jpg
    68.7 KB · Views: 226

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,445
Reaction score
6,103
Hi,

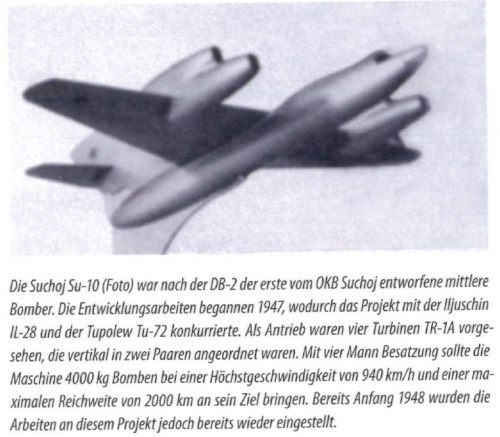

here is a Model for Sukhoi Su-10 bomber,but I don't know if it was early design or
not,I see the cockpit is different a little.


Flieger Revue Extra


Attachments

  • Su-10.png
    608.1 KB · Views: 89

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,445
Reaction score
6,103

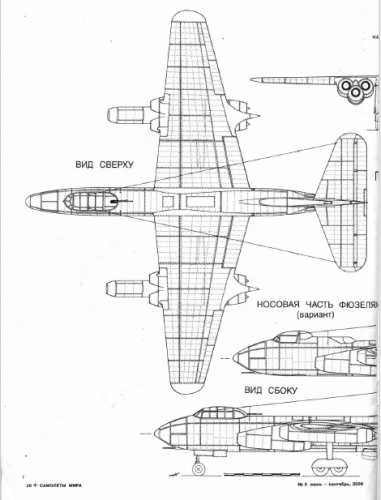

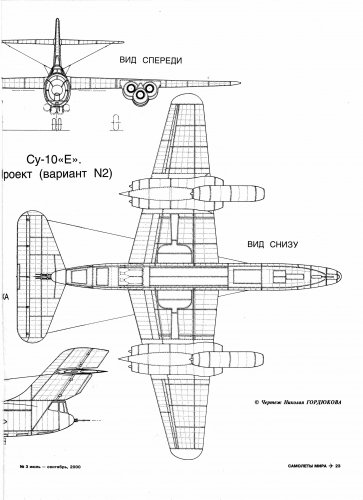

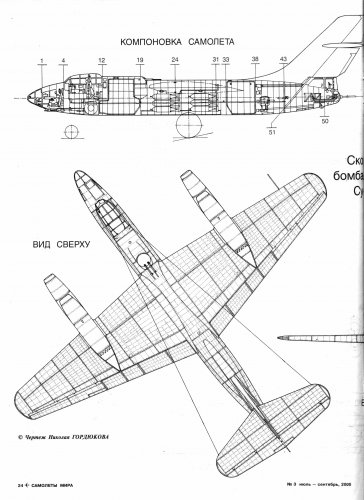

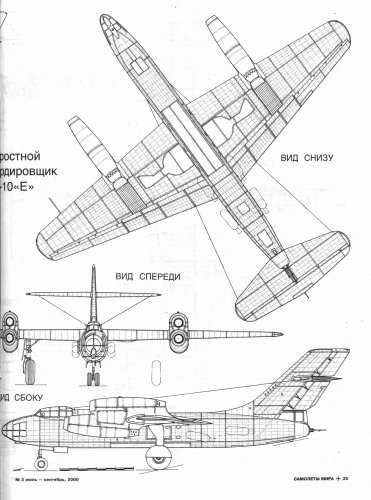

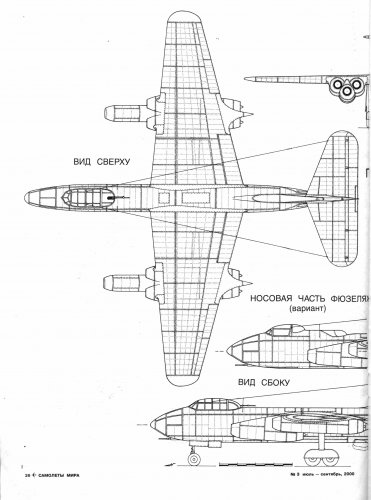

Also from source as Borovik's drawings.


Attachments

  • 4.png
    122.1 KB · Views: 74
  • 3.png
    141.2 KB · Views: 65
  • 2.png
    194.5 KB · Views: 74
  • 1.png
    149.2 KB · Views: 70

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,205
Hi!

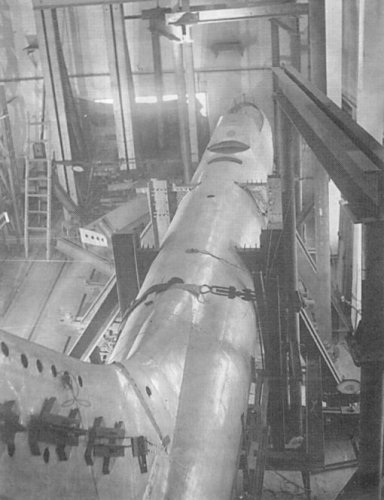

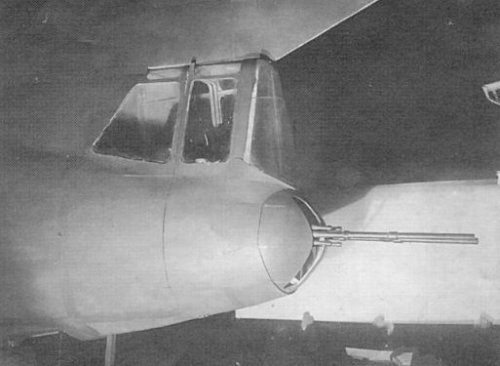

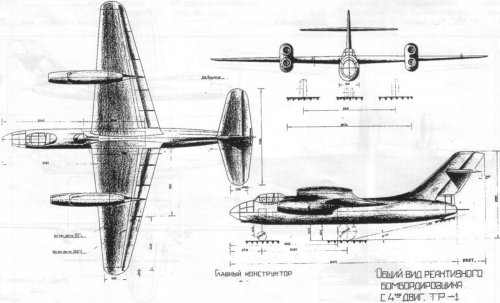

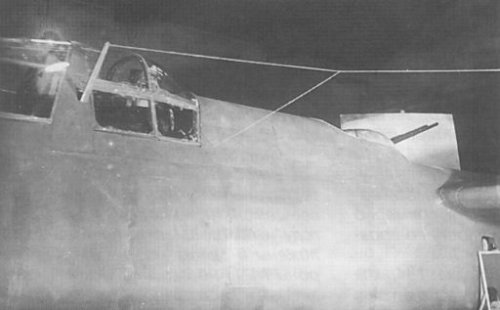

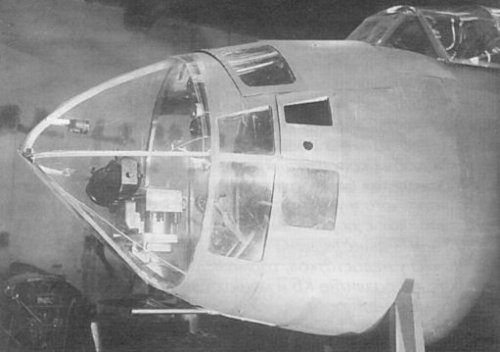

Mockup picture shows four engine TP-1 type.

http://aviadejavu.ru/Site/Crafts/Craft22031.htm


Attachments

  • TP-1.jpg
    67.8 KB · Views: 38
  • 19-5.jpg
    25.7 KB · Views: 29
  • 19-4.jpg
    53 KB · Views: 24
  • 19-2.jpg
    19.3 KB · Views: 23
  • 19-1.jpg
    26.5 KB · Views: 26
  • 18-3.jpg
    191.2 KB · Views: 31
  • 17-2.jpg
    156.2 KB · Views: 38
  • 16-2.jpg
    198.7 KB · Views: 38

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,205
Hi!
http://www.airwar.ru/other/draw2/su10_sm.html


Attachments

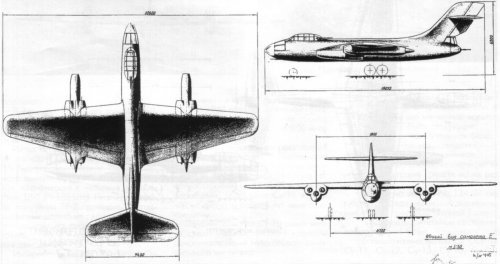

  • 6 engine type plan view.jpg
    6 engine type plan view.jpg
    329.7 KB · Views: 34
  • 6 engine type front view.jpg
    6 engine type front view.jpg
    362.7 KB · Views: 27
  • TP-1 side view.jpg
    TP-1 side view.jpg
    467.2 KB · Views: 28
  • TP-1 plan view.jpg
    TP-1 plan view.jpg
    398.5 KB · Views: 35
