Browsing the net, at unicraft web page I found one project that I know nothing about. Is there any info about "SAAB LX" ?

http://www.geocities.com/unicraftmodels/fut/futother/futother.htm


Attachments

  • SAAB-LX.jpg
    8.4 KB · Views: 1,168

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
Hi Matej,

I have some informations about it,but is not available now,because it is in anther
house.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,062
Reaction score
1,490
Website
www.aerospaceprojectsreview.com
That's the Saab LX design by Sixten Sason, circa 1941. There was an article on it (where the drawing undoubtedly originated) in the August 1998 issue of Aeroplane Monthly. Supersonic, turbojet with liqquid rocket, supersonic and armed with 12 photocell-guided rockets.

A suggestion, however: take references from unicraft with some skepticism. For example, on their "German future releases" page, they show this:

And call it a "German VTOL Project."


ERRRRR. Wrong. It's an *American* VTOL project, patented by L.H. Leonard... filed in 1943, granted in 1949. It preceded the German Triebflugel. See it here:
http://www.google.com/patents?vid=USPAT2479125&id=o59xAAAAEBAJ&dq=2479125&num=100


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
In Aeroplane monthly,

That aircraft was a single seat crankel-delta-wing interceptor project powered by
two turbojets with additional liquid-fuelled rocket engine for take-off boost and a
smaller forward-facing rocket for deceleration on landing,(the last was very strange
idea).


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
168
Website
www.hitechweb.genezis.eu
Thanks guys.

It seems that in Sweden they are applying this philosophy in almost every fighter design. I have also another great suggestion for extremely short landing - pull the nose of the plane 90 degrees down :D ;D


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,412
Reaction score
217
Wasn't there an article, complete with at least a 3-view, in Aeroplane Monthly several (perhaps as much as 20) years ago?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
92
The Aeroplane Monthly article gives notice that Sixten Sason
started work with the SAAB aeroplane division in early 1940
were he drew aeroplane and gyrocopter designs.

Is there sombody who haves ever seen other designs by Sixten Sason?
A WWII issue of Der Deutsche Sportflieger mentions an advanced
fighter design of tail first configuration...


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,699
Reaction score
3,143
Website
www.amazon.com
elmayerle said:
Wasn't there an article, complete with at least a 3-view, in Aeroplane Monthly several (perhaps as much as 20) years ago?

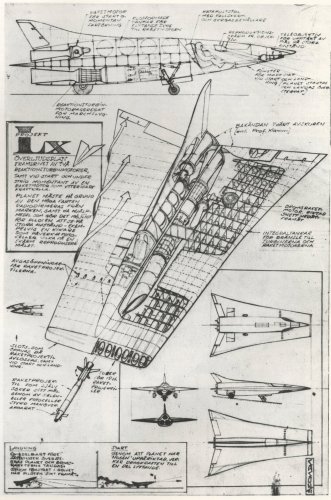

From "Aeroplane Montly" August 1998


Attachments

  • Escanear.jpg
    180.2 KB · Views: 551

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,699
Reaction score
3,143
Website
www.amazon.com
lark said:
The Aeroplane Monthly article gives notice that Sixten Sason
started work with the SAAB aeroplane division in early 1940
were he drew aeroplane and gyrocopter designs.

Is there sombody who haves ever seen other designs by Sixten Sason?
A WWII issue of Der Deutsche Sportflieger mentions an advanced
fighter design of tail first configuration...

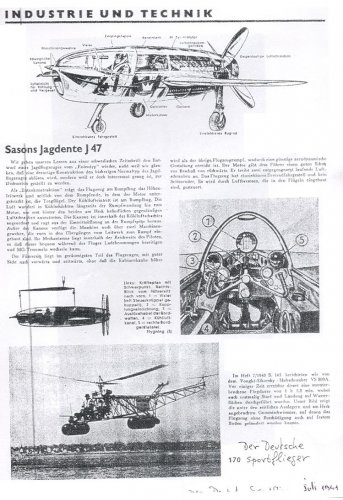

From "Der Deutsche Sportflieger" Juli 1941

Please see also http://www.secretprojects.co.uk/forum/index.php/topic,3477.0.html


Attachments

  • Escanear0001.jpg
    172.2 KB · Views: 457

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,239

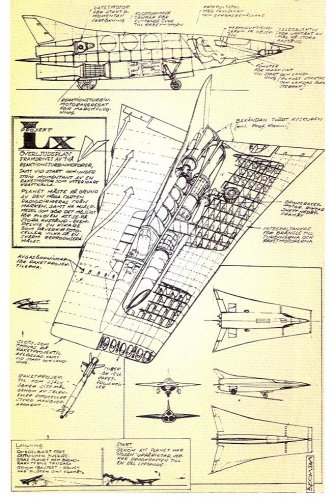

better quality LX sketch


Attachments

  • SAAB Projekt LX.jpg
    SAAB Projekt LX.jpg
    3.2 MB · Views: 197

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,948
Reaction score
344
Very spectacular rocket/missile storage configuration!

Thanks for the enlightenment about this program.


Regards
Pioneer


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,132
Reaction score
3,005
What... the heck... is that project ? is it serious or not ? what an awesome looking machine !


galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,096
Reaction score
1,418
Website
galgot.com
There is even integrated braking rocket motors B) very cool design.
