Sukhoi Shkval Tailsitter Fighter

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,000
Reaction score
6,901
Hi,

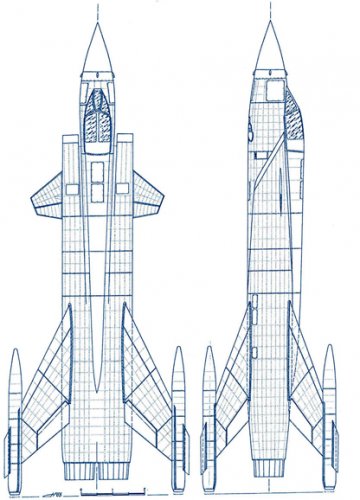

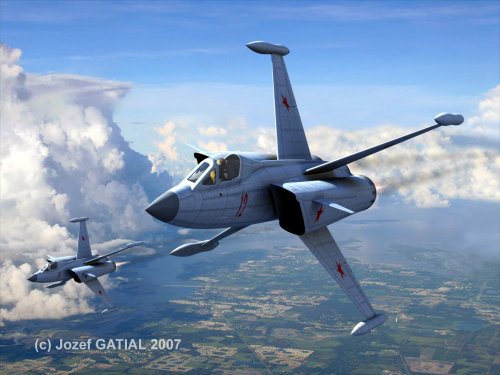

Sukhoi SH kval 1A tailsitter fighter project of 1963.


Attachments

  • shk.jpg
    120.9 KB · Views: 1,961

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,000
Reaction score
6,901
Hi,

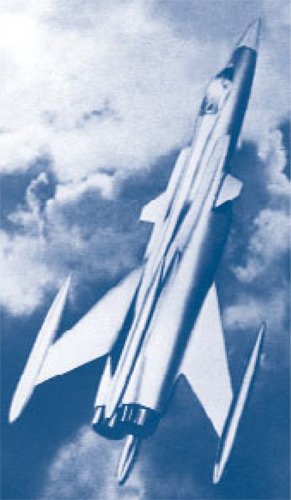

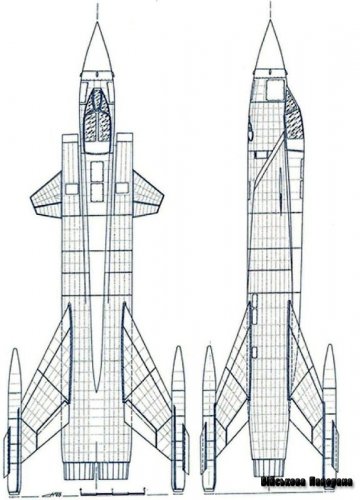

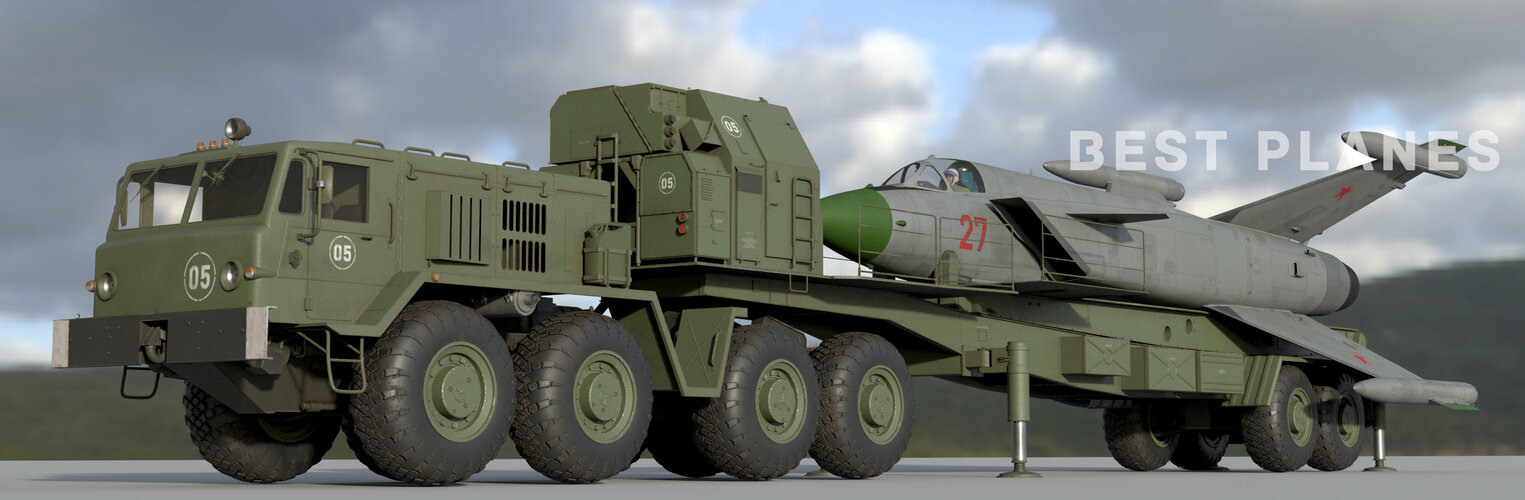

Anther drawing to Sukhoi SH Kval tailsitter fighter.


Attachments

  • Sukhoi tailsitter aircraft.jpg
    Sukhoi tailsitter aircraft.jpg
    198.3 KB · Views: 1,961

Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,139
Reaction score
286
Several questions spring to mind. How did it land? Vertically or horizontally? How was it erected, if it landed horizontally?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,423
Reaction score
2,345
Vertically, both.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,412
Reaction score
1,825
"How was it erected, if it landed horizontally?"

This was a problem, I think, that may have doomed the use of the tailsitter
concept. For this Sukhoi design, or for most other tailsitters like the Convair
XFY-1 Pogo, the Lockheed XFV-1 , or the SNECMA Coleopter, a "conventional"
landing would have meant, that there would have been no need for further thoughts
about erecting the aircraft to take-off attitude again .. :(
To bring home the aircraft with a faulty engine, developing much less thrust than normal,
would have been nearly impossible.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,000
Reaction score
6,901
My dear Overscan;

the translation;
http://www.google.com/translate?u=http%3A%2F%2Fwww.vtol.boom.ru%2Frus%2Fshkval%2Findex.html&hl=ar&ie=UTF-8&sl=ru&tl=en


dreamstar

ACCESS: Restricted
Joined
Oct 24, 2007
Messages
23
Reaction score
1
In doing a re-read of Soviet Secret Projects: Fighters since 1945, I read the segment on the Shkval tail-sitter and its origination came from a 'private organisation' within the Sukhoi OKB led by R G Martirosov to deal with "aircraft of an unorthodox and less conventional layout." I was wondering if there was any information on other creations from this Sukhoi 'Skunk Works?'


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,000
Reaction score
6,901
Hi Dreamstar,


please see;
http://www.secretprojects.co.uk/forum/index.php/topic,5099.msg40496.html#msg40496


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,423
Reaction score
2,345
dreamstar said:
In doing a re-read of Soviet Secret Projects: Fighters since 1945, I read the segment on the Shkval tail-sitter and its origination came from a 'private organisation'
within the Sukhoi OKB led by R G Martirosov to deal with "aircraft of an unorthodox and less conventional layout."
I was wondering if there was any information on other creations from this Sukhoi 'Skunk Works?'
You got it rather wrong. It was an initiative group of designers, that gathered as volunteer group, working at projects at free hours after work or weekends (like it was with Ivashechkin's&Co. SPB - a far predecessor of Su-25 - later).
There was never a special, 'elite' ADP department at Sukhoi.


airrocket

Dreams To Reality
Joined
Mar 3, 2008
Messages
289
Reaction score
22
Website
RetroFlight.com
. I have seen drawings of what appears to be a MIG-25 or 31 without wings having four fins launching vertically. Any additional information of this MIG variant?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,423
Reaction score
2,345
www.p-ln.ru/rus/shkval/index.html


Attachments

  • ako020340.pdf
    99.6 KB · Views: 170

chuck4

ACCESS: Top Secret
Joined
Jan 17, 2011
Messages
804
Reaction score
17
I am kinda curious about the X wings. It seems to me an X-winged aircraft should be able to aerodynamically sustain more or less the same G force in any direction, pitch, yaw, or any combination.


Has anyone ever done any studies to see how pilots can handle 9G yaw?


It seems to me it to be a great advantage in a close dog fight if the fighter can instantly pull high G in any direction, and not have to roll the aircraft first to achieve the correct bank.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
3,001
Reaction score
657
chuck4 said:
I am kinda curious about the X wings. It seems to me an X-winged aircraft should be able to aerodynamically sustain more or less the same G force in any direction, pitch, yaw, or any combination.


Has anyone ever done any studies to see how pilots can handle 9G yaw?


It seems to me it to be a great advantage in a close dog fight if the fighter can instantly pull high G in any direction, and not have to roll the aircraft first to achieve the correct bank.

It would unnecessarily add weight and the only time you want to yaw is for quick nose pointing for a snap shot. If you need a 9G yaw snapshot you've designed a horrendously poor aircraft. 9G yawing is what missiles are for, not aircraft. Also, if you want to be able to maneuver at high loads in any direction, that will be handled in the future by A2A UCAV's.

Trying to design a cockpit and a seat that could handle sustained 9G side loads on a pilot would be very limiting to the pilot. How do you move your arms on the flight controls if you are being pressed sideways by 9G's on one arm or the other? And if the side load was carried by the human body under his arms, I wouldn't be surprised if the pilot ended up with some fractured ribs, as the pilots body load is going to be distributed over much less area than a conventional seating configuration during normal orthogonal loading wrt to the velocity vector. It's simply a non-starter from the get go.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
973
athpilot said:
Hm Shkval-2 ... seems to be a fake. :-\

My feeling exactly. I don't think it's good for the image of Sharkit to mix fake and real designs without a word of warning.


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
22

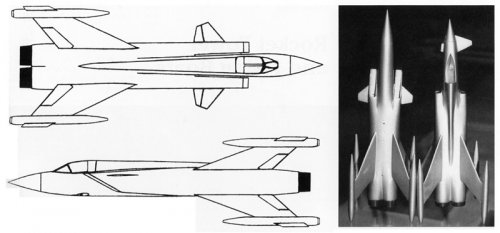

Hi, more drowings
Shkval-2? -dont know but at least two modifications of Shkval was designed!


Attachments

  • 1348309394_12.jpg
    30.5 KB · Views: 640
  • 1348309377_11.jpg
    80.1 KB · Views: 596
  • shkval.jpg
    75.8 KB · Views: 535
  • Screenshot_shkval.jpg
    266.7 KB · Views: 430

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,000
Reaction score
6,901
From Air Pictorial 9/1957,

here is an Info about Russian vertical takeoff aircraft similar to X-13,had been tested and that means it had tailsitter shape,so I excluded Rafaelyants Turbolyot,and for Sikhoi Shkval,it was from 1963,what was it ?.


Attachments

  • 1.png
    98.8 KB · Views: 311
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,000
Reaction score
6,901
From Air Pictorial 9/1957,

here is an Info about Russian vertical takeoff aircraft similar to X-13,had been tested and
that means it had tailsitter shape,so I excluded Rafaelyants Turbolyot,and for Sikhoi Shkval,
it was from 1963,what was it ?.
It was made up, is what it was.

My dear Paul,

after check,I think it was Tysbin Tsi-1 VTOL Fighter ?.


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,512
Reaction score
5,111
Website
www.amazon.com
The Soviets could not duplicate the construction technology of the Vigilante, made of Aluminum-Lithium alloy and Titanium.
The MiG-25 weighed 80,954 lb. (36,720 kg) because it was built in an 80 per cent nickel-steel alloy, with 11 per cent Aluminum and 9 per cent Titanium.
In 1963 it was not considered possible to build a VTOL version of the Foxbat that weighed less than 30 tons and the maximum thrust that could be obtained with the most advanced versions of the R-25 turbojet was 24,700 lbs. (11,189 kg) using afterburner.

It was expected that the Shkval would have to withstand 9G loads during combat and its structure should be reinforced to withstand impacts upon landing, it would have been necessary to further increase its structural weight.


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,512
Reaction score
5,111
Website
www.amazon.com
From Air Pictorial 9/1957,

here is an Info about Russian vertical takeoff aircraft similar to X-13,had been tested and that means it had tailsitter shape,so I excluded Rafaelyants Turbolyot,and for Sikhoi Shkval,it was from 1963,what was it ?.
Fake Soviet fighter.

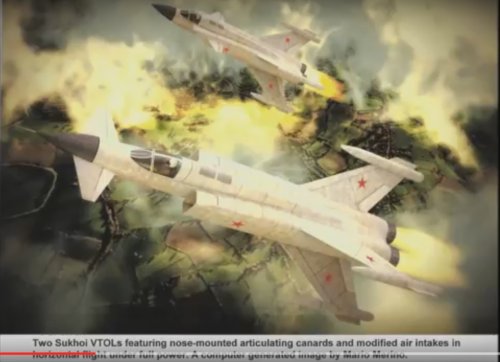

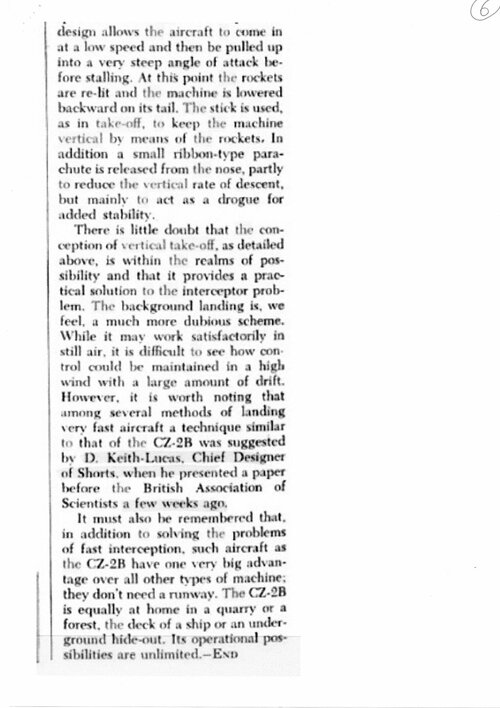

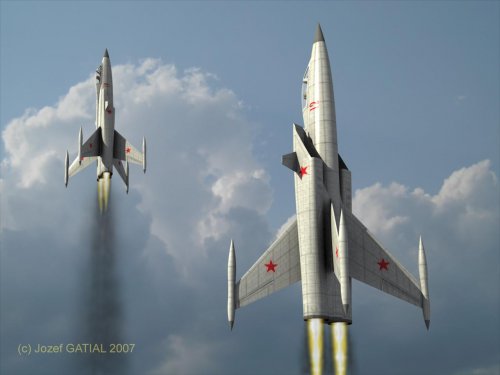

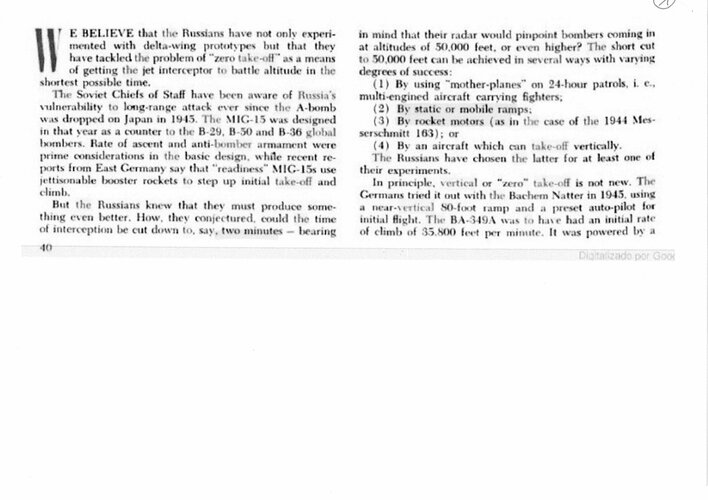

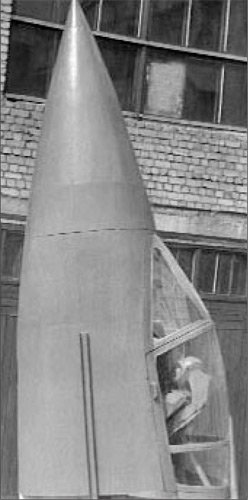

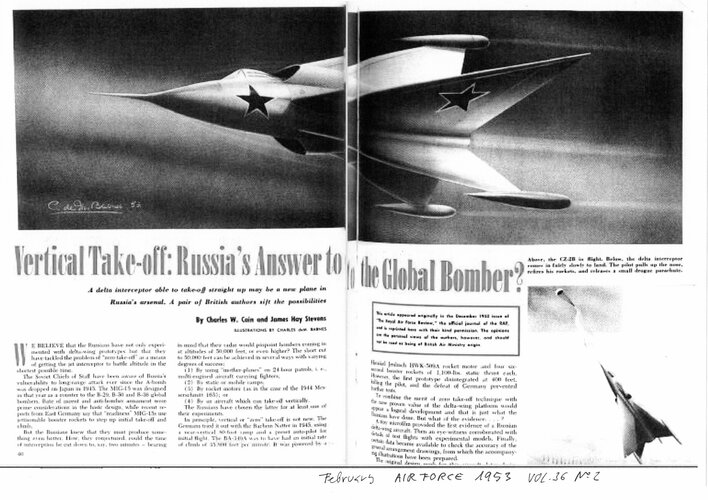

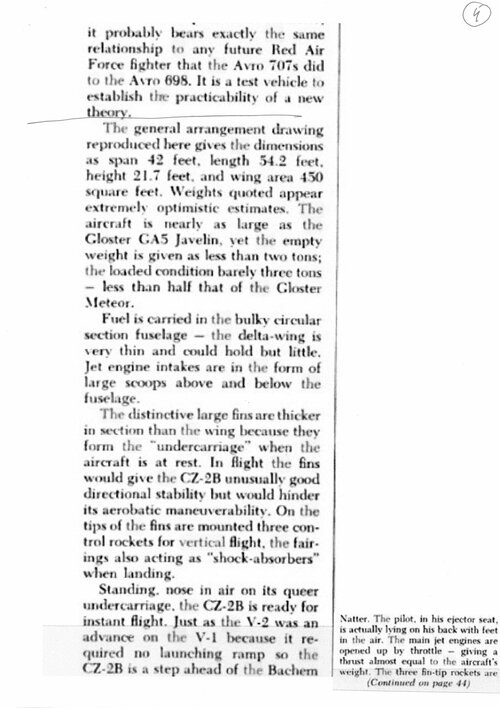

In February 1953, Air Force magazine published the article "Vertical Take-off: Russia's Answer to the Global Bomber?”

According to author Charles W. Cain, the Soviet chief of staff thought that the MiG-15 climb rate was not enough to intercept the B-36 bombers.

But with the use of a VTOL rocket fighter, of the German Bachem Natter class, the interception time could be reduced to just two minutes.

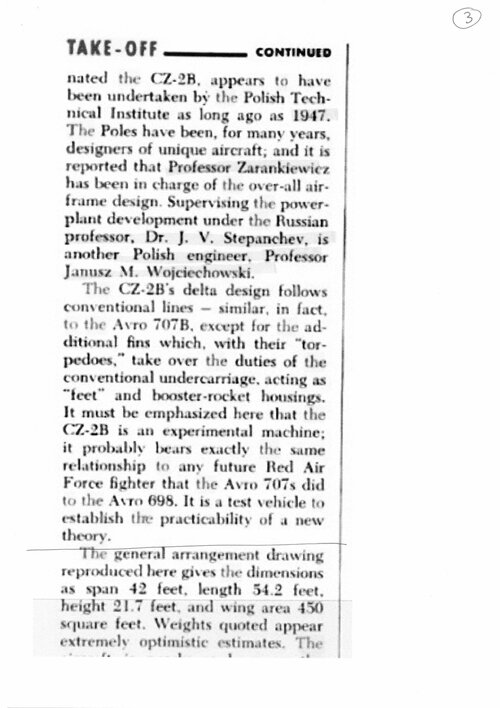

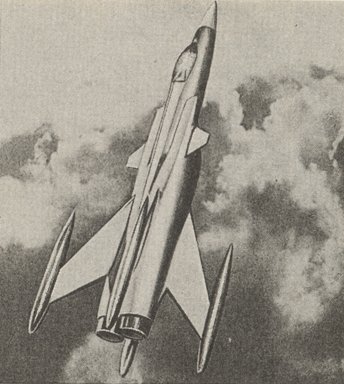

The magazine also published two illustrations of the CZ-2B VTOL jet fighter, designed in 1947 at the Polish Technical Institute by the engineers Zarankiewicz and Wojciechowski, under the leadership of the Russian Dr. J.V. Stepanchev.

The CZ-2B was a tail-sitter with delta wing, dorsal/ventral air-intakes and three tailfins with shock-absorbers bumpers.

In 1947 the only Soviet turbojet powerful enough to power a VTOL fighter was the Lyulka TR-2 with 2,500 kg thrust and the CZ-2B had to be designed with a maximum take-off weight of just 4,415 lb. (2,000 kg), 42 ft. (12.8 m) wingspan, 54.2 ft. (16.5 m) length, 21.7 ft. (6.6 m) height and 450 sq. ft. (40.5 sq. m.) wings surface.

They are not believable figures, by comparison the Western designs that had been built using more advanced technologies weighed much more: The SNECMA C.450 Coléoptere 6,614 lb. (3,000 kg), the Convair XFY Pogo 16,250 lb. (7,371 kg), the Lockheed XFV Salmon 16,221 lb. (7,358 kg) and the Ryan X-13 Vertijet 7,200 lb. (3,272 kg).

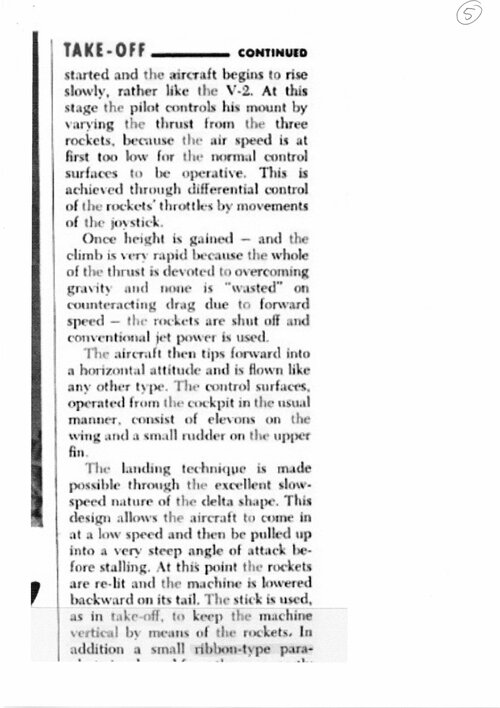

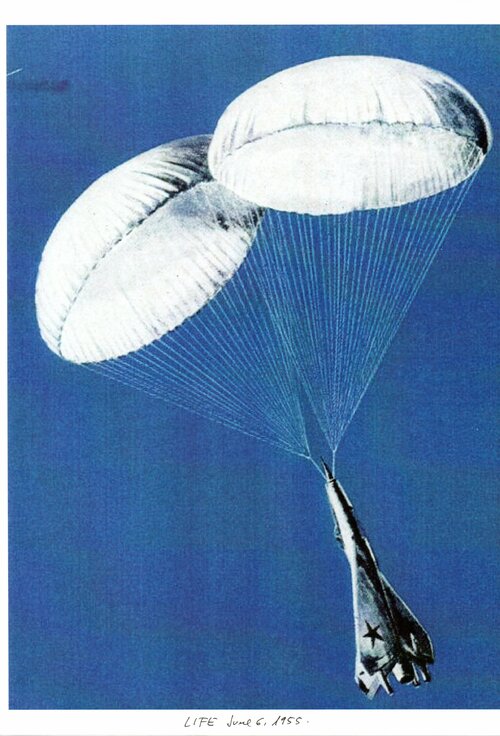

The CZ-2B was expected to use two ribbon parachutes housed in the nose to perform vertical landings. It seems like an idea taken from the 1950 movie "Destination Moon" something that detracts from the credibility of the Air Force article.

The version published in 1955 in the color cover of CIELO magazine had several retro-rockets on the back of the fuselage, possibly to facilitate the landing.

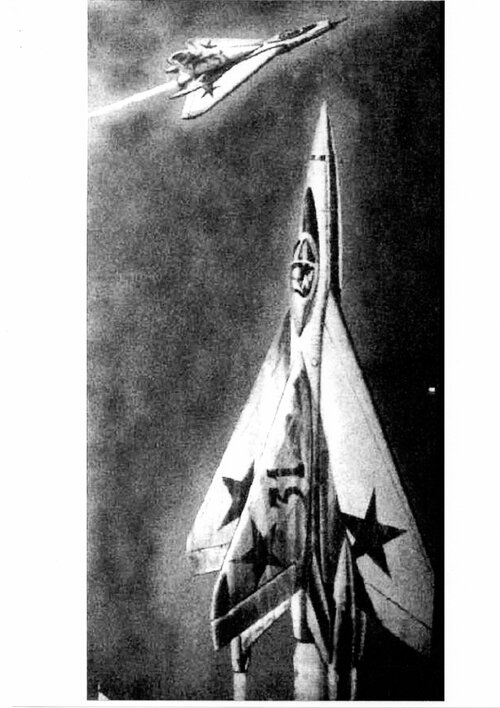

In June 1955 LIFE published three new illustrations in which the plane lacked air intakes, probably the cartoonist McCoy thought it was a rocket spaceship.

According to the magazine the new fighter was already in mass production and it had been sighted in Korea by F-86 pilots.

In September 1957 Air Pictorial published: “A vertical take-off and landing turbojet-powered aircraft similar to the Ryan X-13 has been tested, and reports state that it has excellent low speed handling characteristics and a very high rate of climb.”


Attachments

  • 544.jpg
    1.8 MB · Views: 120
  • 545.jpg
    1.1 MB · Views: 82
  • 546.jpg
    1.7 MB · Views: 70
  • 547.jpg
    1.4 MB · Views: 65
  • 548.jpg
    1.4 MB · Views: 56
  • 549.jpg
    1.4 MB · Views: 55
  • 550.jpg
    1.3 MB · Views: 64
  • 551.jpg
    1.8 MB · Views: 76
  • 552.jpg
    1.5 MB · Views: 76
  • 553.jpg
    2.6 MB · Views: 79
  • 554.jpg
    2.2 MB · Views: 77
  • 555.jpg
    2.3 MB · Views: 87

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,000
Reaction score
6,901

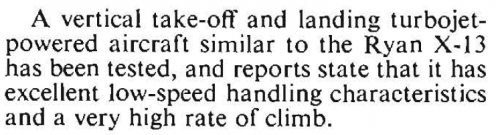

In September 1957 Air Pictorial published: “A vertical take-off and landing turbojet-powered aircraft similar to the Ryan X-13 has been tested, and reports state that it has excellent low speed handling characteristics and a very high rate of climb.”
All of that is right my dear Justo,

except this on as I guess,why not they meant Tysbin Tsi-1 VTOL Fighter ?,
specially it was very closely to the description !.


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,512
Reaction score
5,111
Website
www.amazon.com
In September 1957 Air Pictorial published: “A vertical take-off and landing turbojet-powered aircraft similar to the Ryan X-13 has been tested, and reports state that it has excellent low speed handling characteristics and a very high rate of climb.”
All of that is right my dear Justo,

except this on as I guess,why not they meant Tysbin Tsi-1 VTOL Fighter ?,
specially it was very closely to the description !.
I don't know that Tsybin project... should it have a rhomboid wing?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,000
Reaction score
6,901
Never heard of a Tsybin Tsi-1 VTOL Fighter. There was Ts-1 but that wasn't VTOL.
How come my dear Paul,

you definitely have the book Unflown Wings,page 581.

A small quote from the source,and its drawing is very close to the fake
one which displayed by my dear Justo.


Attachments

  • 5.png
    27.8 KB · Views: 61

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,512
Reaction score
5,111
Website
www.amazon.com
Here's what I know about the Tsybin:)

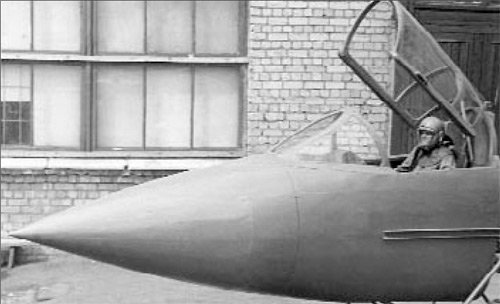

In 1946 several wing planforms were wind tunnel tested at TsAGI as a result of which the OKB-256, under the leadership of Pavel Tsybin, developed three research airplanes with different wings with the same area.

The first prototype LL-1 was built by the Beresnev OKB with straight wings and wood/plywood construction.

It was flown, in glider configuration, by mid-1947 being towed to a launch altitude by a Tu-2.

The LL-1 made 30 high speed diving trials powered by one Kartukov PRD-1500 solid propellant rocket with 3,311 lb (1,500 kg) peak thrust.

The glider wings were attached to the fuselage on a dynamic suspension, which allowed to determine the pressure on the wing and tail at the approach to the critical Mach number.

A typical dive would start between 16,400-23,000 ft. and 45-60 degrees until at full speed it was levelled out and the rocket fired.

The airplane reached 656 mph (1,050 km/h-Mach 0.87) maximum speed.

At the end of the year the prototype was refitted with 30 degrees forward swept wings to become the LL-3.

According to some authors, the prototype made more than a hundred flights reaching 746 mph (1,200 km/h-Mach 0.97).

Effects of aero elastic divergence of the Duralumin wings were not noticed but the TsAGI recommending the use of swept back wings in the future Alekseyev 150 bomber and also that the Junkers EF 131 V1 prototype did not exceed Mach 0.75 during flight tests.

On July 31, 1947, this aircraft experienced several vibrations problems during the second flight and could not be flown in the Tushino air display planned for 18 August.

The project was cancelled on June 21, 1948.

A third Tsybin research plane, named LL-2, was planned to be built with 30 degrees swept back wings but the project was dropped in favour of the German DFS 346 transonic research rocket plane, designed to reach 1,250 mph (Mach 1.9).



Tsybin LL-1 technical data

Wingspan: 23.3 ft. (7.1 m), length: 29.4 ft. (8.98 m), height: 8 ft. (2.45 m), wing surface: 113.3 sq. ft. (10.2 sq. m), launch weight: 4,501 lb (2,039 kg).



Tsybin LL-3 technical data

Wingspan: 23.7 ft. (7.22 m), length: 29.4 ft. (8.98 m), height: 8 ft. (2.45 m), wing surface: 113.3 sq. ft. (10.2 sq. m), launch weight: 4,415 lb (2,000 kg).
