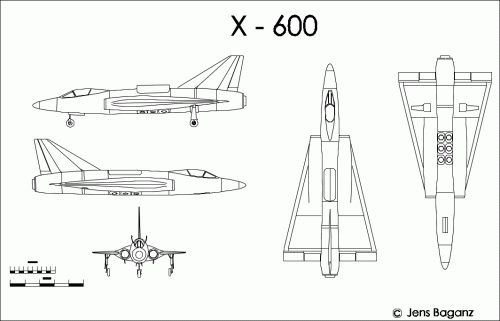

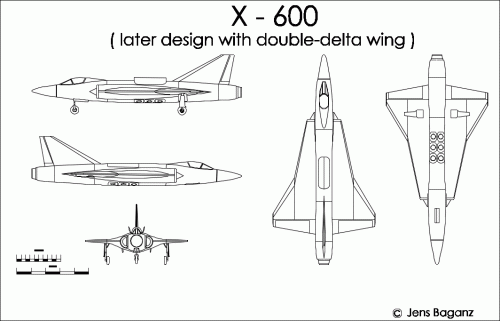

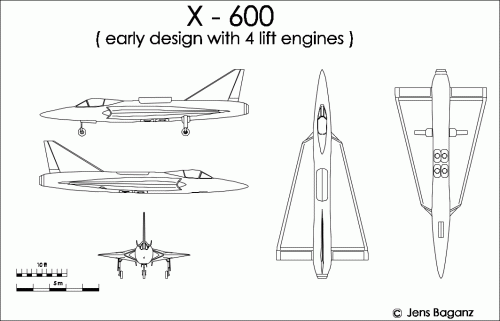

I've just an early design with 4 lift engines, the one as shown by Cuny with its very slender
wing and a later version with a double delta wing. But, AFAIK, there should have been more ...


Attachments

  • X-600_1.GIF
    42 KB · Views: 1,692
  • X-600_2.GIF
    41.8 KB · Views: 1,564
  • X-600_3.GIF
    43.1 KB · Views: 1,799

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,597
Reaction score
1,414

Attachments

  • SA-X-600.jpg
    83.8 KB · Views: 1,513

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
58
Website
cmeunier.chez-alice.fr
The search tool did not find it for X600.

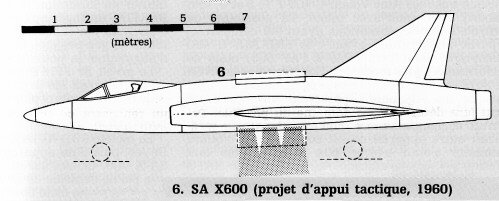

This comes from "L'industrie aéronautique et spatiale française 1907-1982" (GIFAS publishing, 1984). Volume 3 page 103.
The caption reads : "SA X600 (project of tactical support, 1960)". I think SA means Sud-Aviation (future Aérospatiale then EADS)
Length: 14.6m


Attachments

  • sax600-2.JPG
    28.8 KB · Views: 1,268

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
58
Website
cmeunier.chez-alice.fr

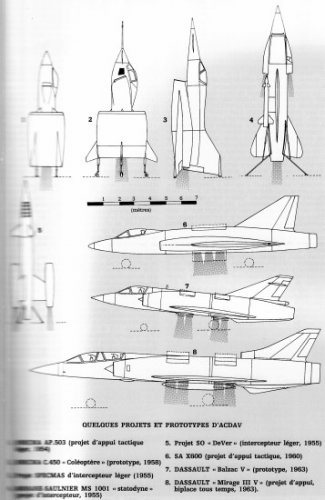

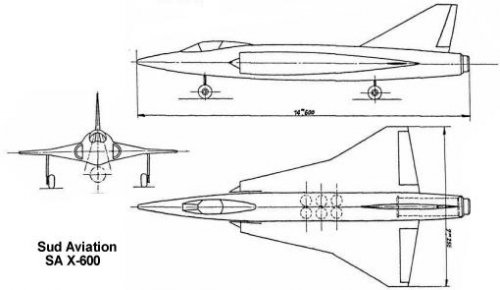

This came from a page of French VTOL, showing the X600 was bigger than the Balzac V of 1963 and smaller than the Mirage IIIV of 1963.


Attachments

  • r_Sax600-1.JPG
    52.5 KB · Views: 371

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,421
Reaction score
1,887
Tophe said:
The search tool did not find it for X600.

That's the crux with too general topics ! It was in the "French VSTOL concepts" thread ... :-\


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,219
Reaction score
1,013
Jemiba said:
Tophe said:
The search tool did not find it for X600.

That's the crux with too general topics ! It was in the "French VSTOL concepts" thread ... :-\

I spent much of the past two months doing away with those general topics, and renaming the topics whenever necessary. Hopefully the searching should become easier now...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
Hi,

I heard about Sud Aviation X-601,as an improvement Project version of X-600,does anyone
know what was X-602 ?.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

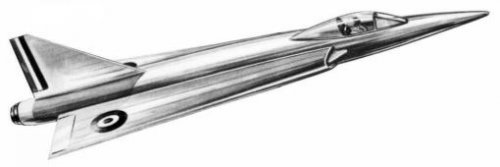

Hi! Little larger image,etc.

https://alanqua.deviantart.com/art/SAX-600-178742946

http://www.hitechweb.genezis.eu/vtol0a.htm


Attachments

  • sax_600_by_alanqua-d2yf2xu.jpg
    46.1 KB · Views: 146
  • image018.jpg
    17.2 KB · Views: 145
  • image017.jpg
    8.6 KB · Views: 116

alanqua

I dunno if she's the wife of my life
Joined
Aug 31, 2007
Messages
104
Reaction score
250
Hello,

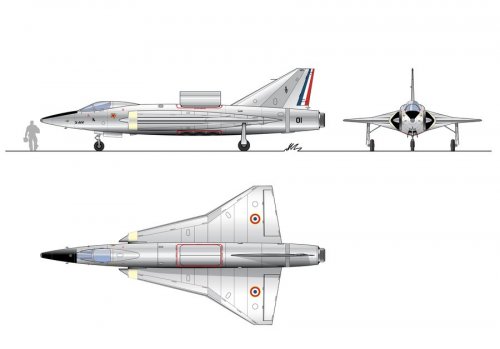

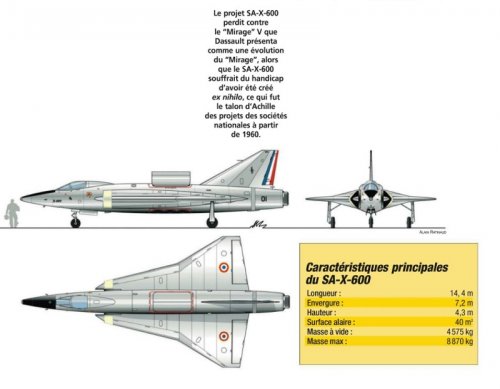

I did this drawing of the SAX-600 for Le Fana de l'Aviation (I think that was back in 2010). I had very few information on it, so I had to imagine most of the details (not easy). I provide in attachment a high resolution drawing.
Enjoy, regards
Alain


Attachments

  • SA X-600_Final Delivery.jpg
    1.1 MB · Views: 100

JC Carbonel

ACCESS: Secret
Joined
Sep 7, 2006
Messages
224
Reaction score
149
X-600 and X-601 are discussed in the Flat Riser Vtol chapter of my FSP-1 book. The main outside distinction is that 600 has souris in the intakes which 601 does not have. An important internal distinction is that 601 has Trompes Bertin (injectors) for the lift engines. I note that Alain (Alanqua) has prominent doors for the intakes of the lift engines but neither drawing (X600 or X601) in my possession have them. However I suspect the X600 and X601 drawings maybe refering to windtunnel model, not to full size aircraft. This would lead to smaller details not being shown on these drawings. So if Alain worked from detailed drawings of real aircraft, he may have more info than I do.

JCC


alanqua

I dunno if she's the wife of my life
Joined
Aug 31, 2007
Messages
104
Reaction score
250
Hello,

No, I don't have more info than you. When I had to draw this 3 views plan, I based my work on very few pictures: a basic illustration and simple plans that you can find on this forum. I remember I built the doors by graphic construction (given the size/shape of the front section and the size of the fuselage). My plan reflects more a projection of what could have been this aircraft, if it would have been built and tested.
I'm pretty sure that some original blueprints may exist, but I never had this, neather Le Fana's team. Sorry, I won't repeat my large blueprint upload like on the other post on Mirage Mach 3 4 projects :(

Regards
Alain


steelpillow

So many projects, so little time...
Top Contributor
Senior Member
Joined
Jun 25, 2014
Messages
1,341
Reaction score
958
Website
www.steelpillow.com
le Fana de l'Aviation, No 492, Novembre 2010 has an article on Sud fighter projects, including some info on the X-600. Does anybody have that info? I don't really want to splash out on a copy just for a couple of paragraphs.
[update] Now sorted.

Last edited:
