Not exactly a project, but certainly a promising design that never went past prototyping stage.

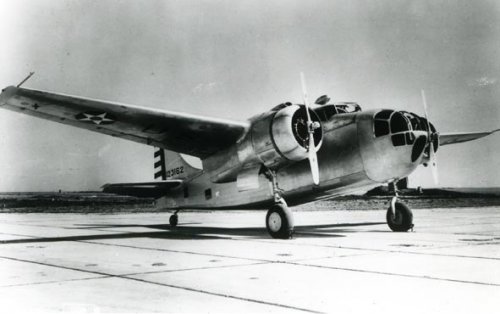

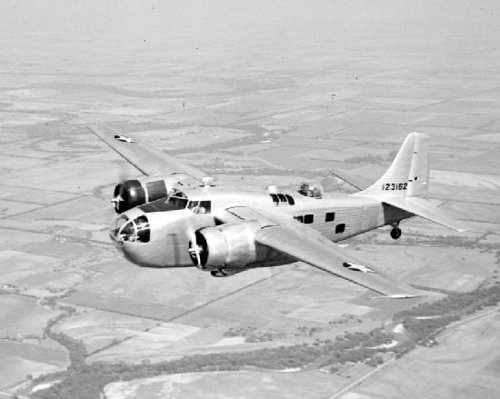

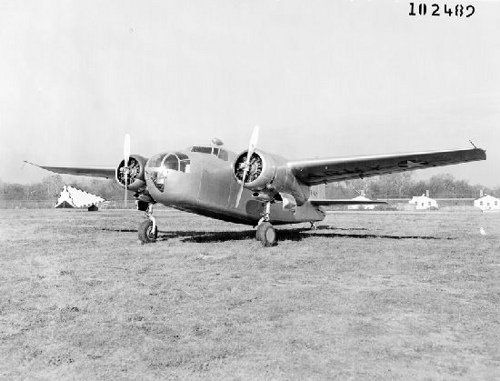

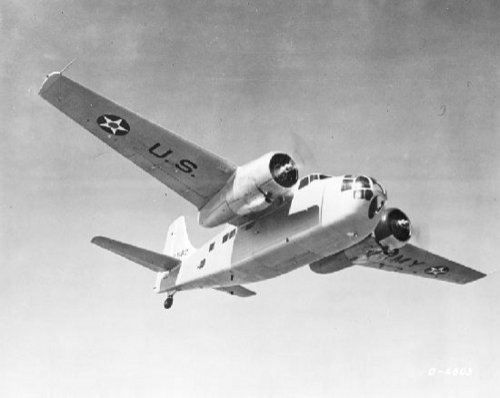

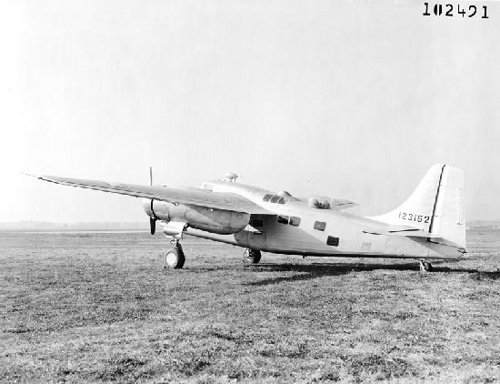

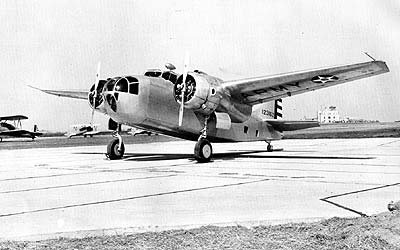

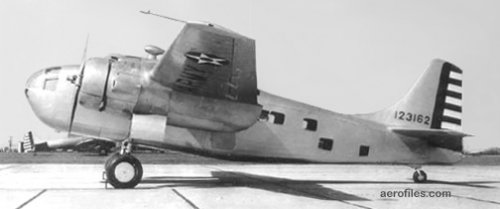

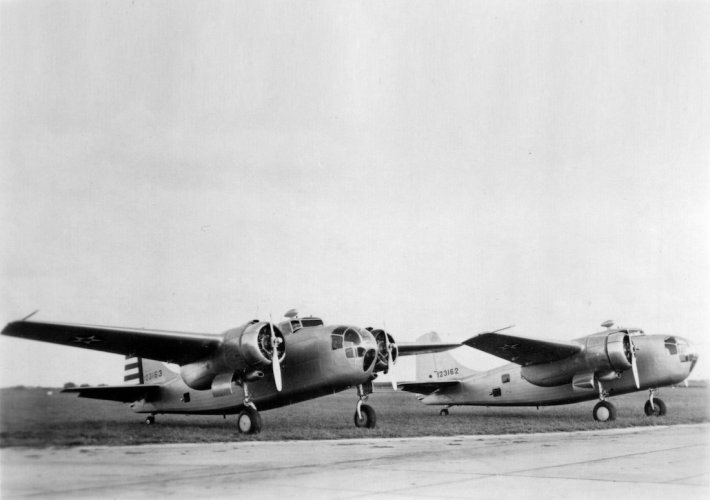

The Boeing Wichita (formerly Stearman) Model X120 was developed to meet an Army requirement for an integrated aircrew trainer at a time of aluminum shortage. The wings and tail were made of wood; the fuselage was made of steel tube with fabric cover. The engines were 550hp Pratt & Whitney R-1340 AN-1 Wasps. Two aircraft were built, the last one was delivered in October, 1942. A production order for the AT-15-MC was placed with the new McDonnell Aircraft company, but was eventually cancelled.


Attachments

  • 4555948695_5d66170d9d.jpg
    50.6 KB · Views: 151
  • 4556577338_2e03ec09d5.jpg
    65 KB · Views: 163
  • 4556577346_3466a2a5ea.jpg
    71.2 KB · Views: 135
  • 4556577376_efdfb1ac35.jpg
    71.4 KB · Views: 130
  • boeing.staerman.xat-15.123162.jpg
    34.8 KB · Views: 122
  • boeing-at15.jpg
    55 KB · Views: 74
  • boeing-xat15.jpg
    19.3 KB · Views: 88

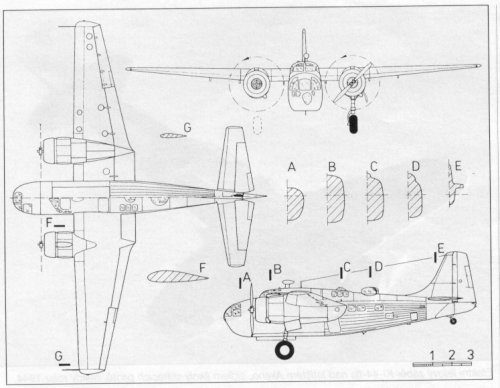

  • XAT-15-3view.jpg
    133.9 KB · Views: 136
Here is also a period advertisement by McDonnell featuring the Crewmaker, which the company was supposed to produce then.


Attachments

  • 3_10McDonnelAir.jpg
    377.2 KB · Views: 86
