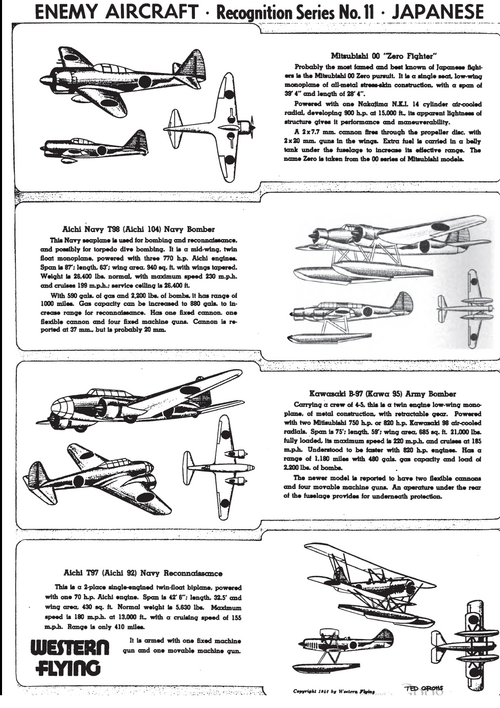

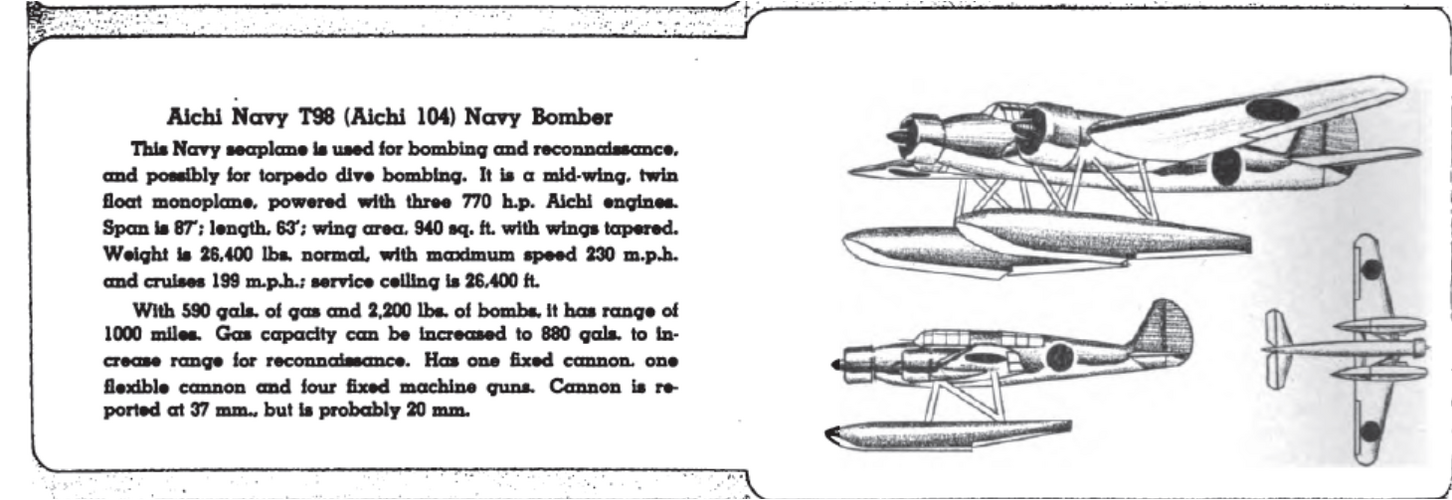

Speculative/theoretical Japanese aircraft from WW2 publications

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
hesham said:
Nakajima AT-27 twin engined single seat fighter.

hesham,

Be careful with so called Japanese secret projects.There is a lot of
"creative phantasy is this field.
For exemple the AT-27 is pure fiction...


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
48
Website
cmeunier.chez-alice.fr
hesham said:
Mitsubishi A8M twin boom fighter.
are you have a more informations ?
A Mitsubishi A8M1 is mentioned at http://www.geocities.co.jp/Colosseum/2610/twinzero.html
This is a what-if fantasy, joking, about a Twin-Zero. The illustration is no more on the Web it seems, but a drawing is still in my book "Supplement Nr.1 to Forked Ghosts".

Another Mitsubishi A8M1 is illustrated at http://forums.acecombatskies.com/lofiversion/index.php?t26-400.html
This is another what-if fantasy, joking, about a Japanese P-38 Lightning with external fins. I did not know this one, thanks to you (and Google) for having made me discover it... ;D


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,852
Reaction score
1,488
Heshem shows a Flight sideview of "a normal torpedo bomber" with tandem engines (with the cockpit between the two V-12s) driving contra-rotating propellers.
http://www.secretprojects.co.uk/forum/index.php/topic,4840.0.html

The Flight writer also mentions the Japanese "A.T.27" design with a similar layout (the source was an unnamed German writer). That "design" is described in the 25 Dec 1941 edition (p469):

http://www.flightglobal.com/pdfarchive/view/1941/1941%20-%203105.html

No manufacturer is given but other sources list a fictional "Nakajima AT-27 Gus". The design may be purely notional but this A.T.27 does bear a strong resemblance to the Kawasaki Ki-64. Takeo Doi's 1939 design has an identical layout to the "A.T.27" and the Ki-64's details are close:

Type Speed Wt(empty) Wt(loaded) Wing Area Range

A.T.27 410 mph 8000 lbs 11600 lbs 237 sq ft 1250 mi

Ki-64 429 mph 8929 lbs 11245 lbs 301 sq ft 620 mi

So, the Ki-64 is somewhat larger and the range much less (Ki-64 range was 1000 km, perhaps a transcription accident from the original German report?).

The A.T.27. was said to be powered by "two steam-cooled V-12 engines of 1,250 h.p. each." Obviously the Ki-64's Ha-201 (twin Ha-40s, 1175 hp each) wasn't steam-cooled.

With the Ha-40 being a licence-built DB 601Aa, the German writer would know that service versions of this engine were glycol-cooled. But Doi planned the Ki-64 to have steam evaporation cooling (using wing condensers à la the He-100 as tested on a Ki.61 Hein).

So, the question is: was the design described by this German writer (and ascribed to Nakajima as the AT-27) actually a basically accurate verbal description of the Kawasaki Ki-64 at an early stage of development?

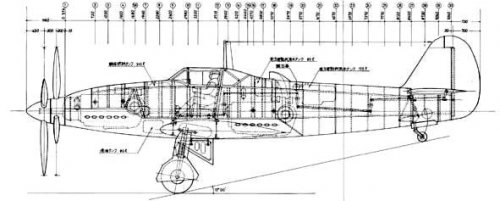

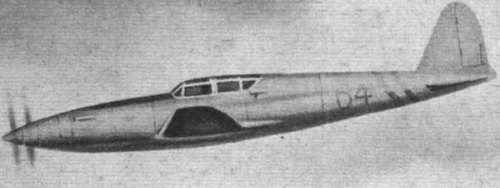

Attachments

  • japanese-at27.jpg
    28.7 KB · Views: 169
  • japanese-ki64.jpg
    36 KB · Views: 167

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,852
Reaction score
1,488
Barrington Bond said:
Umm, Flight(Global) hasn't suggested anything.
These are submissions by its readers who we do not even know have anything to do with the aircraft industry.

Sometimes their musings do lead to questions about real projects/aircraft though. Eg: related to Hesham's tandem-engined torpedo bomber -- AT 27 'Gus' - Nakajima or Kawasaki?

http://www.secretprojects.co.uk/forum/index.php/topic,4848.msg38328/topicseen.html#msg38328


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
I'm afraid that the AT-27 is a pure fictional aircraft.
It was the result of a would be-designer competition in a
pre-World War II Japanese magazine.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,852
Reaction score
1,488
Thanks for the AT-27 clarification, Lark.

That was one prescient "would be-designer"! He/she anticipated both the Ki-64 and the more technically successful Arsenal VB 10.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,852
Reaction score
1,488
Lark answered the question in another section:

http://www.secretprojects.co.uk/forum/index.php/topic,4840.msg38336.html#new

"I'm afraid that the AT-27 is a pure fictional aircraft. It was the result of a would be-designer competition in a pre-World War II Japanese magazine."


Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
448
Reaction score
38
The Mitsubishi Type 0 was a fictional fighter. It was described in the O.N.I. 249 publication as a Japanese version of the Fokker D.XXIII but no illustration was provided. As such, it was code named "Harry". There was another Type 0, the Mitsubishi T.K.4 Type 0 which appeared in a Japanese magazine as a more conventional twin-engine design looking much like a Bf 110. It was code named "Frank" until this Type 0 was dropped from the name list and the name reassigned to the Ki-84.

I've never heard of the Nakajima Toka. The Showa Toka was to be the Navy version of the Nakajima Ki-115 but the Toka used a radial engine.


hesham said:
Thanks Chuck,

but I found nothing,there are a more interesting propjects:

Mitsubishi type O push-pull twin engined single seat fighter.
Nakajima AT-27 twin engined single seat fighter.
Nippon Ta-go experimental suicide attack aircraft.
Nakajima Toka suicide attack jet aircraft.


Lauge

ACCESS: Secret
Joined
Jan 30, 2008
Messages
434
Reaction score
20
Justo Miranda said:
Good fake :D
From "Zany Afternoons" by Bruce McCall´s
Alfred A. Knopf ed. 1982

Why do I get the feeling it says "ACME" somewhere on this thing ;D

Regards & all,

Thomas L. Nielsen
Denmark


freightdog862

ACCESS: Restricted
Joined
May 28, 2007
Messages
1
Reaction score
0
Hi guys,

I have a question on the Mitsubishi T.K.4 Type O which gets a brief mention in the Midland Counties Japanese Secret Projects. The side view in the book shows it as a radial powered Fokker D.XXIII, I wondered if anyone has more information on this? Only only online source I found suggested it was a mistake due to confusion with a fictional project from a Japanese aviation publication from 1941?

Any help appreciated, apologies if trhis has been asked before elsewhere.

Colin


Skyraider3D

Aviation Artist
Joined
Sep 2, 2008
Messages
393
Reaction score
69
Website
www.aviationart.aero
freightdog862 said:
I have a question on the Mitsubishi T.K.4 Type O which gets a brief mention in the Midland Counties Japanese Secret Projects. The side view in the book shows it as a radial powered Fokker D.XXIII, I wondered if anyone has more information on this? Only only online source I found suggested it was a mistake due to confusion with a fictional project from a Japanese aviation publication from 1941?
Hopefully this answers your questions:
http://www.j-aircraft.org/xplanes/hikoki_files/type0.htm
It's fictional in any case...


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
381
Reaction score
154
Also check out this link:

http://www.daveswarbirds.com/Nippon/aircraft/Harry.htm

and from this very website (fifth comment down):

http://www.secretprojects.co.uk/forum/index.php?topic=6205.0


I call these "fictitious" aircraft, that is, aircraft from that period that were never built and never had an official designation from the military, let alone an active project. Aircraft that did get a designation but were never built (like the Ki-62) I call paper projects. A real project to me is anything from a mockup on up. Some websites have aircraft depicted that were not dreamed up till after the war period ("what ifs"). I call these imaginary aircraft. That's just how I classify them. YMMV.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,069
Reaction score
4,155

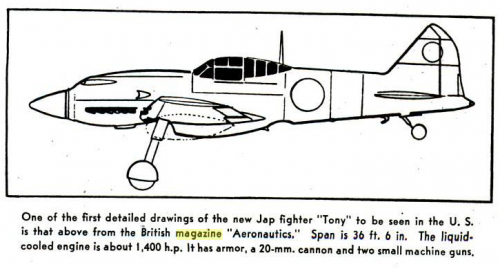

Hi! Japanese text says that tear drop canopy Raiden's drawing is from Jane's all the world's aircraft 1945 and 1946.
Obviously Jane's mistake. Jane got the information of only canopy modification of Raiden(雷電), and based on this information, they made this drawing.
Beautiful modification, but mistake. ;)


Attachments

  • Jane 1945.jpg
    Jane 1945.jpg
    211.4 KB · Views: 331

Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
578
Reaction score
227
Gerhard, what is the aircraft in the middle of the right hand page on the second PDF? I don't read kanji but the adjacent writing seems to mention the Ki 60, Ki 61 the Bf109E and the He 100D but I don't recognise the aircraft in the drawing as being any of those.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Nick Sumner said:
Gerhard, what is the aircraft in the middle of the right hand page on the second PDF? I don't read kanji but the adjacent writing seems to mention the Ki 60, Ki 61 the Bf109E and the He 100D but I don't recognise the aircraft in the drawing as being any of those.

Looks like a Heinkel-based design, but I could be wrong.

At any rate, if you zoom in, you'll find it has a caption in English, which probably proves it to be a period Western interpolation of a Japanese fighter, probably fictitious.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,069
Reaction score
4,155
Hi! It's a liquid cooling engine Zero fighter based on U.S. military pilot's information.
Of course it's a illusion or ghost fighter. ;D
U.S. thought it's engine was 1400hp class, feared it very much.
