Some Request for Early Airplane

rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
13
The first request is for Bolshoi Bal'tisky

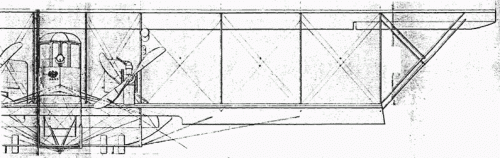

This is the only available image I got by google searching. Also, I got a side view linedrawing from book, but still lacking 3 views.

Second request is for Zeppelin Staaken.
Not lacking anything connecting this airplane just want to know is this the airplane with numbered wheel at most for either WWI or any era?

Third request for mates here is below:


These two have something in common, not something else but something looks external fuel tank alike under wing.
Only these two have been found by moi with such external fuel tanks being WWI era, anymore was being?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,319
"..Second request is for Zeppelin Staaken.
Not lacking anything connecting this airplane just want to know is this the airplane with numbered wheel at most for either WWI or any era?"

You are referring to the R.IV, I think, which had 8 wheels on each main gear axle and to on the nose gear, so 18 wheels
altogether? Don't know for the WW I era, but for any era, the C-5 Galaxy should excel this number with ease.

About external tanks during WWI, I think, you've already posted another example by yourself: The cylindrical objects above
the engines of the Sikorsky "Bolshoi Bal'tisky", or "Russki Witjas", as it seemed to have been called, probably were fuel
tanks, too.


Attachments

  • R-IV.gif
    119.7 KB · Views: 120

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
711

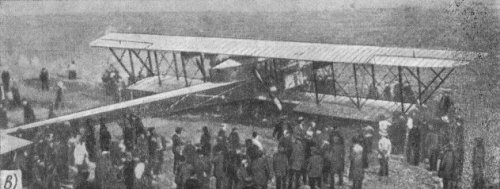

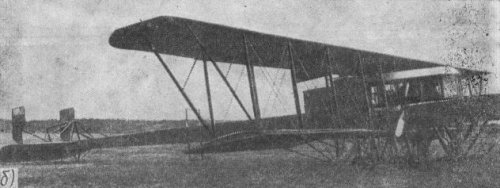

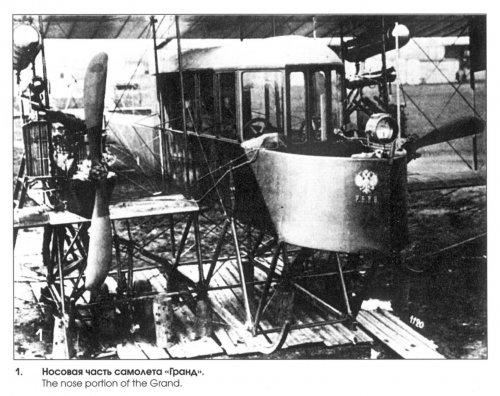

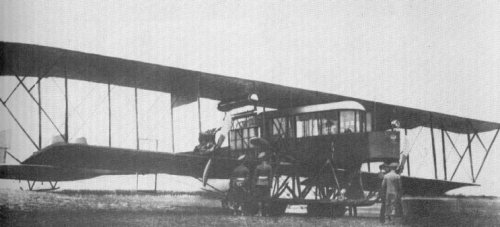

More on the Grand Baltiysky (supposed to be Sikorsky's "S-21"):


Attachments

  • grand3.jpg
    60.8 KB · Views: 7
  • grand2.jpg
    52.6 KB · Views: 9
  • grand1.jpg
    40.3 KB · Views: 10
  • Grand Baltiysky.jpg
    Grand Baltiysky.jpg
    249.9 KB · Views: 9
  • SikorskyLeGrand_NASM.jpg
    40.8 KB · Views: 11
  • 2.jpg
    981.1 KB · Views: 9
  • 1.jpg
    339.6 KB · Views: 101

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
711

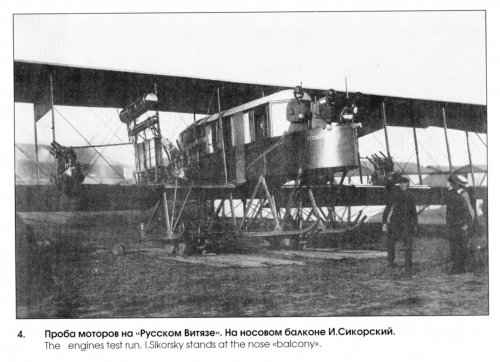

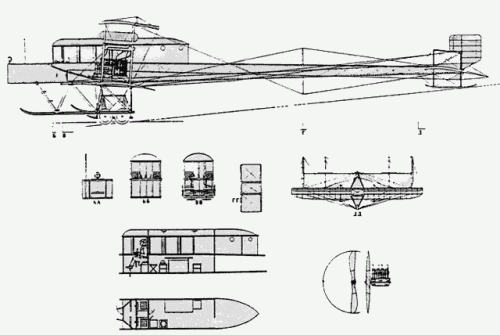

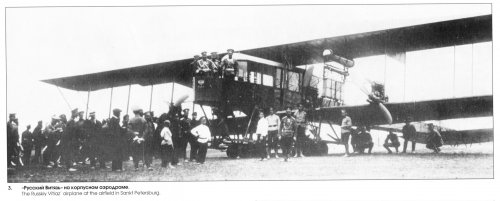

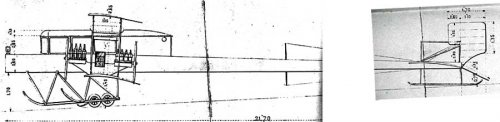

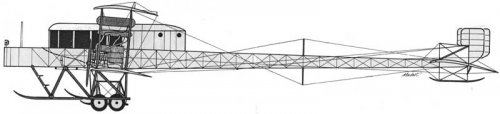

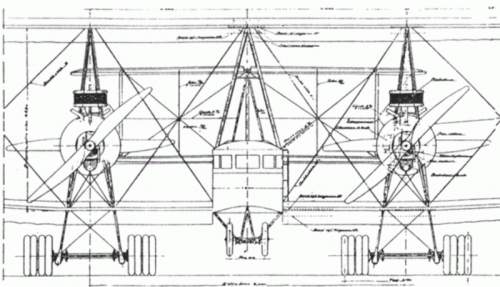

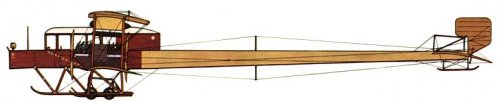

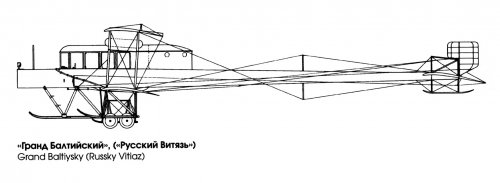

More on the "Grand", and also the similar Russkii Vityaz, also said to have carried the designation "S-21":


Attachments

  • planinterieurb.gif
    17.7 KB · Views: 13
  • plan02v.gif
    1.9 KB · Views: 125
  • plan1v.JPG
    7.6 KB · Views: 7
  • plan01c.gif
    25.5 KB · Views: 10
  • cote3b.jpg
    14.9 KB · Views: 11
  • cote2c.jpg
    17.7 KB · Views: 13
  • 416-1.jpg
    23.2 KB · Views: 12
  • 1063-1.jpg
    60.3 KB · Views: 12

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
711

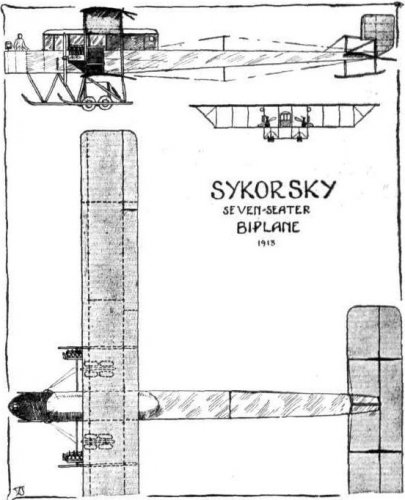

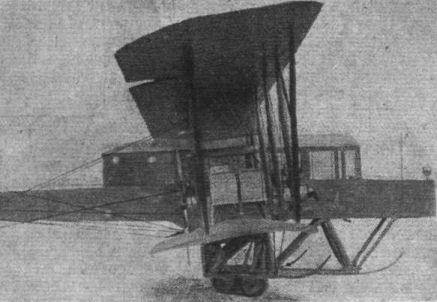

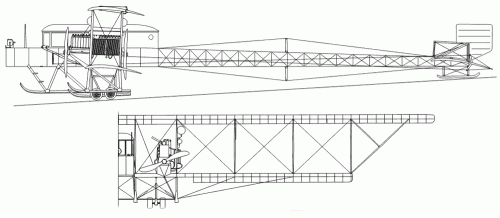

And more:


Attachments

  • x1c.jpg
    26.9 KB · Views: 13
  • x2b.gif
    24.6 KB · Views: 12
  • 3.jpg
    868.9 KB · Views: 8
  • 4.jpg
    1 MB · Views: 10
  • 54-1.jpg
    9.9 KB · Views: 10

rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
13
amazing posts
Jemiba brake my question first and Stargazer released sth unpresented online.
Is it possible that 3v linedrawing to be clear more?
