Jet Aircobra
If has flown this variant jet P-39, we can be and have not learnted of P-59. ;)

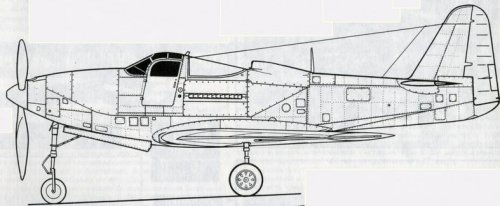

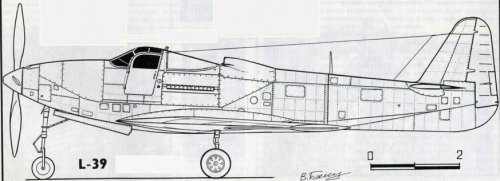

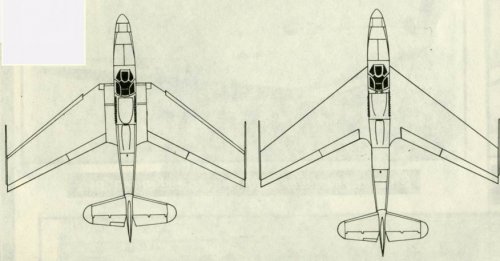

L-39 (Swept wing Kingcobra)
Experimental "Kingkobra's" marked by L-39-1 and L-39-2 became to be first in USA piston plane with sweptback wing.
That first flight L-39 took place the April 23 1946, I think appropriate was place in section of the early aviation.


Attachments

  • Aircobra jet..jpg
    Aircobra jet..jpg
    44.5 KB · Views: 883
  • L-39 sw.w..jpg
    L-39 sw.w..jpg
    44.8 KB · Views: 816
  • L-39  long.jpg
    L-39 long.jpg
    52 KB · Views: 774
  • L-39   I & II.jpg
    L-39 I & II.jpg
    48 KB · Views: 778

Kim Margosein

ACCESS: Confidential
Joined
Feb 10, 2007
Messages
101
Reaction score
8
I've seen that jet Aircobra in Bell advertising of the period. I think that is all there is to it.

Kim Margosein


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
703
Reaction score
375
I believe the 3420 proposal came from Allison but maybe someone recognizes the artist name.

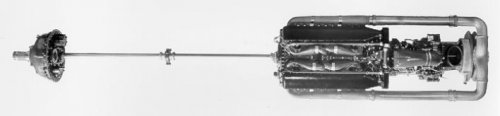

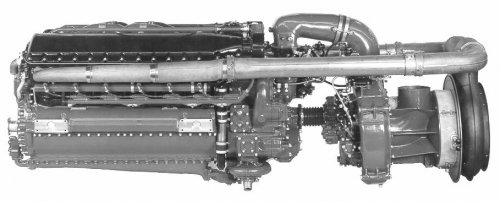

The V-1710 turbocompound installation is what was proposed to be fitted to a late model of the king cobra.


Attachments

  • p393420.jpg
    214.8 KB · Views: 532
  • turbocompound1710-1.jpg
    13.2 KB · Views: 119
  • turbocompound1710-2.jpg
    55.6 KB · Views: 79

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
703
Reaction score
375
Joe Baughers site describes the P-63E-5 as "It would have had a revised instrument panel, and a bubble canopy similar to that of the P-63D-1. The cowling would have been redesigned, larger wing fillets would have been installed, a new vertical fin would have been fitted, and a revised ventral fin. However, the project was cancelled before anything could be built. "

The tail is like the one on the 63F, but does anyone have any idea what the fillets and instrument panel would have looked like?
