Interesting on Nord VTOL project :

http://www.google.com/patents?id=Jz91AAAAEBAJ&dq=Societe+Nationale+de+Constructions+Aeronautiques&num=100

(Search for French projects, I foun many interesting ideas !)


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,347
Reaction score
1,537
Nice find (and the Rotojet patent, too ) !

Remarkable that Nord itself spoke of an "aerodyne", as with this
name, I always anticipated a vehicle like that, built and flown
by Dornier in 1972

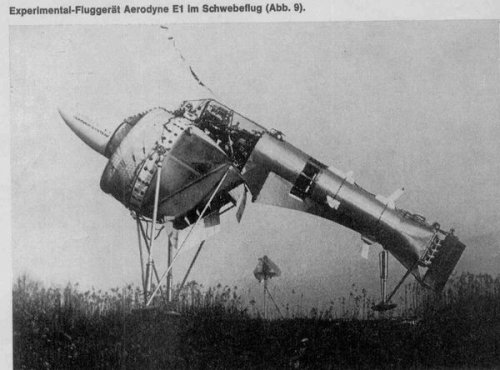

(from FlugRevue .3.1972)


Attachments

  • Dornier_Aerodyne_E1.JPG
    45.1 KB · Views: 170

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
And Alexander Lippisch also...


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,347
Reaction score
1,537
Ah, sorry, I really should have mentioned this great name, the man,
who invented this kind of flying machine. Dornier just translated this
idea into flying hardware, although only unmanned. Of course, not looking
as spectacular, as those fancy artworks and models, which can be found
on http://www.geocities.com/unicraftmodels/on/adyne/adart.htm

:D


MIRAGE 4000

ACCESS: Confidential
Joined
Mar 17, 2007
Messages
154
Reaction score
17
Great Nord aviation project :eek: :eek: :eek: :eek: :eek::

http://www.google.com/patents?id=w-JRAAAAEBAJ&dq=soulez&num=100


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,347
Reaction score
1,537
Many thanks for this, Mirage !
Had a similar drawing, source unknown, but worse, type unknown !
Some additional data :
MTOW : 35.000 kg
payload : 20.000
max. speed (with load) 350 km/h
engines : 4 T64 with 2000/2400 kW


Attachments

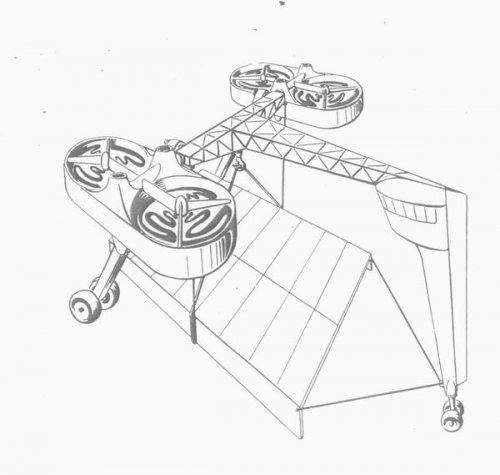

  • Nord_ducted-fan.JPG
    31.9 KB · Views: 181

Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,362
Reaction score
2,440
in patent is called Lifting Device Employing Aerodynamic Lift
let us called it for short L-DEAL

the Idea its brilliant
but i not understand is:
how they control the Point of Gravity in L-DEAL?
the point shifts with different Cargo weigth or empty Flight.

how they stabilise it ?


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Hello, Jemiba
Naming a project "Aerodyne" is not so remarkable ,as the word means in french " heavier than air " . Must be said,this word is no longer used...


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,347
Reaction score
1,537
"how they stabilise it ?"

he only idea I have, is to change independently the thrustlines of the
four ducted fans ... ???


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,362
Reaction score
2,440
this time not Hesham
but me ;D

COUPLING DEVICE FOR V.T.O.IS. AIRCRAFT
(supose to be VTOL Aircaft)
http://www.google.com/patents?id=EWJNAAAAEBAJ&dq=Nord+Aviation

THRUST-REVERSING DEVICE FOR COMBINED TURBOJET-RAMJET UNITS
http://www.google.com/patents?id=gAFuAAAAEBAJ&dq=Nord+Aviation

COMBINED TURBOJET-RAMJET ENGINE
http://www.google.com/patents?id=vbhVAAAAEBAJ&dq=Nord+Aviation

SELF-EFFACINO NOZZLE FOR RAMJET
http://www.google.com/patents?id=hVBLAAAAEBAJ&dq=Nord+Aviation

FAIRED PROPELLER WITH DIPFUSER
http://www.google.com/patents?id=hi5tAAAAEBAJ&dq=Nord+Aviation

STABILIZED CAPTIVE FLYING PLATFORM UNIT
http://www.google.com/patents?id=ICxMAAAAEBAJ&dq=Nord+Aviation

SELF-PROPELLED HANDLING TRUCK Sep 1971
(to day standart on airports)
http://www.google.com/patents?id=Pot0AAAAEBAJ&dq=Nord+Aviation

AERODYNE WITH VERTICAL TAKE-OFF OR LANDING MEANS
http://www.google.com/patents?id=Jz91AAAAEBAJ&dq=Nord+Aviation

VTOL AIRCRAFT HAVING FREELY PIVOTED PROPULSION MEANS
http://www.google.com/patents?id=JZNbAAAAEBAJ&dq=Nord+Aviation

CAPTIVE FLYING PLATFORM UNIT
http://www.google.com/patents?id=HPxkAAAAEBAJ&dq=Nord+Aviation

UNMANNED PLYING MACHINE
UAV from 1964
http://www.google.com/patents?id=bJFpAAAAEBAJ&dq=Nord+Aviation
