Small, simple, inexpensive drones for tactical reconnaissance and surveillance

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
Some very interesting programs (some built, some not) found in an appendix of a 1972 report done by Battelle for ARPA and entitled: A SURVEY AND TECHNICAL SYSTEMS ASSESSMENT OF DRONE AIRCRAFT FOR TACTICAL RECONNAISSANCE AND SURVEILLANCE (the whole report is extremely interesting).

Here is a list of the designs mentioned or depicted therein:

  • Republic Bikini
  • Gyrodyne Junior Dash (plus one unnamed design)
  • DelMar Woods/Sanctuary
  • Ryan Flexbee (found in other documents as Flex-Bee)

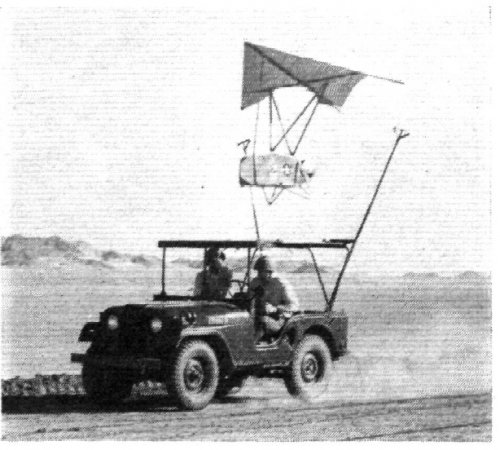

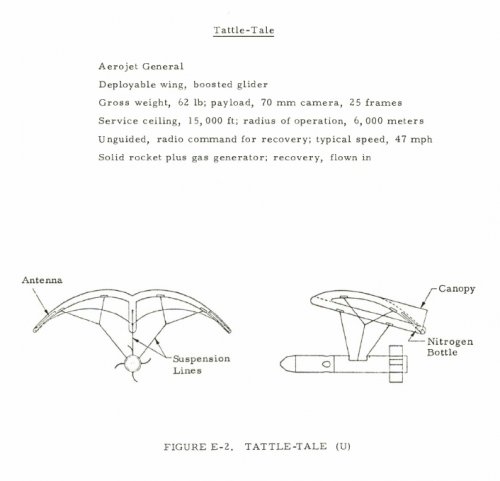

  • Aerojet General Tattle-Tale

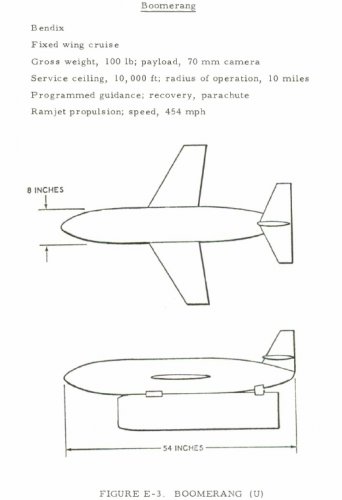

  • Bendix Boomerang

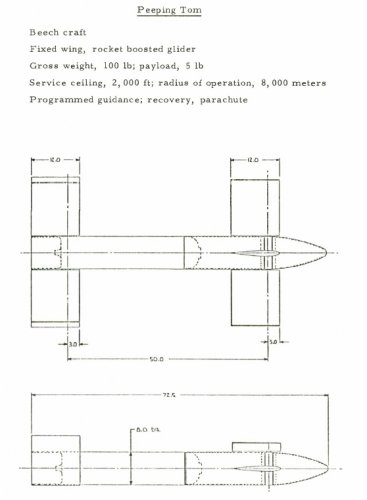

  • Beechcraft Peeping Tom

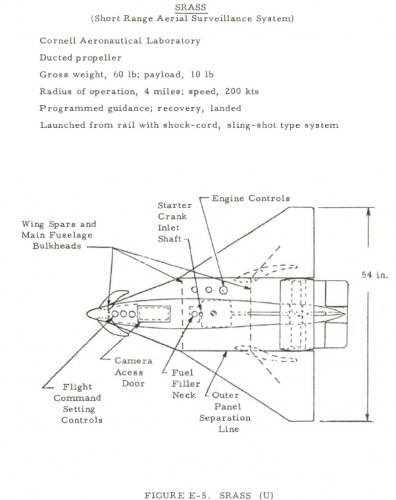

  • Cornell Aeronautical Laboratory SRASS

SMALL, SIMPLE, INEXPENSIVE DRONE SYSTEMS

There are a number of very small, simple, and inexpensive drone systems either in existence or proposed. In general these do not appear to be appropriate for R&tS missions. However, there may be certain limited missions that these vehicles could undertake and for this reason they are covered here.

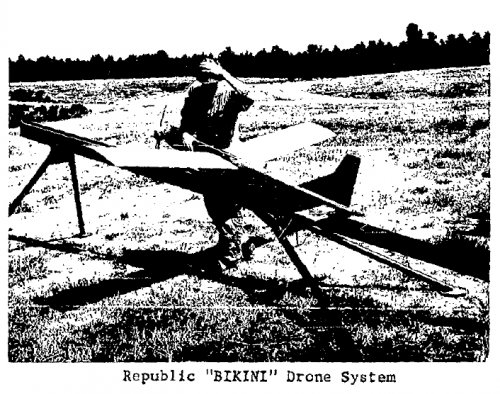

The Bikini drone is probably the most rudimentary vehicle presented in the Handbook. In appearance and performance it resembles a large model airplane. Preprototype versions of the vehicle were based on construction techniques and componetry found in the radio-control model, hobby industry. The operational vehicle, however, was all metal construction, ruggedized and considerably engineered. It was operational with the USMC, but is now out of use and has been judged to be obsolete relative to the modern requirement for high-endurance (USMC may require as much as 4 hours) vehicles. The Bikini and similar low-payload vehicles also cannot accommodate the equipment and instrumentation associated with such requirements as night time observation, MTI's, realtime surveillance, and high position accuracy. Experience suggests that these requirements demand a vehicle sophistication, and undoubtedly a system cost, considerably beyond the Bikini-type of approach. (Bikini, for example, could carry only a camera and film for a few frames. ) The typical time required for recovery and development of the film was approximately one-half hour, and the Binini system cost approximately $4,000. (...)

Gyrodyne, USA, has proposed the development of a drone helicopter along the lines of the Junior Dash. Del Mar Engineering has proposed a system (apparently a junior Whirlymite) known unofficially as the Woods/Sanctuary. This system is not included in the Handbook. This is not meant to imply that these systems will be unjustifiable or unsuitable for certain unique missions. However, they will be vehicles of limited sophistication and relatively low payload, and therefore will have capabilities that are too limited for the extensive spectrum of modern combat surveillance requirements. (...)

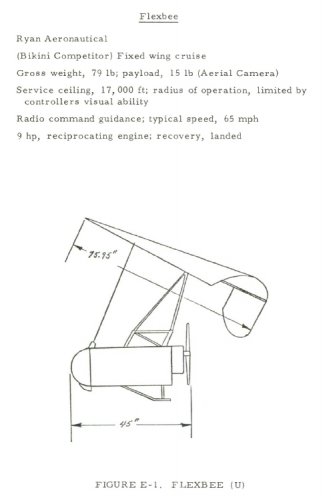

Figures E- 1 through E-5 show a few of the "typical" rudimentary vehicle concepts that have been proposed for the short-range surveillance mission. None of these is now considered to be a viable concept. All of the systems shown here were reported in the 1967 ECOM survey of drones, although most of these concepts were part of circa 1964 proposals, some under an ECOM small drone study. It is believed that most of the combat surveillance vehicles being proposed or developed today represent a much better appreciation of the requirements of this mission class on the part of potential users and developers. However, going to the other extreme, ambitious requirements have been postulated in the past few years that are beyond the capability of any identifiable condidate vehicle in the picture today.

Source: A SURVEY AND TECHNICAL SYSTEMS ASSESSMENT OF DRONE AIRCRAFT FOR TACTICAL RECONNAISSANCE AND SURVEILLANCE

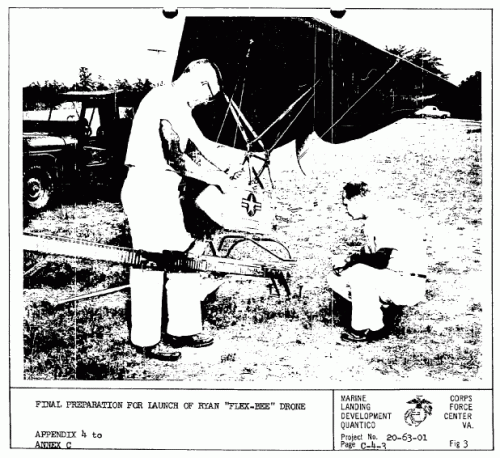

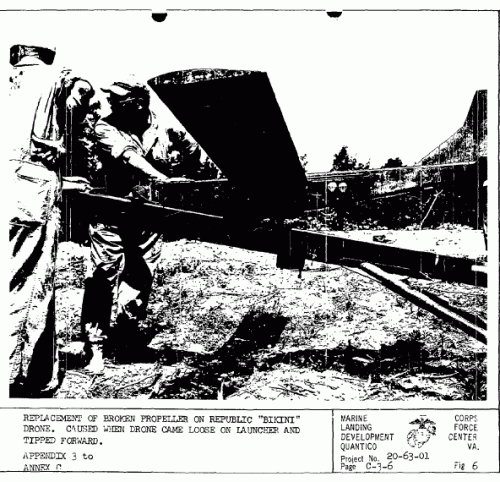

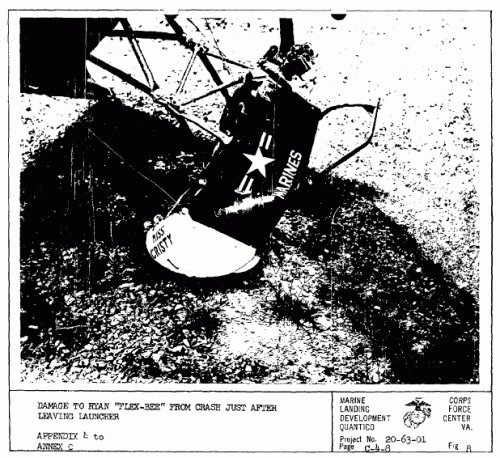

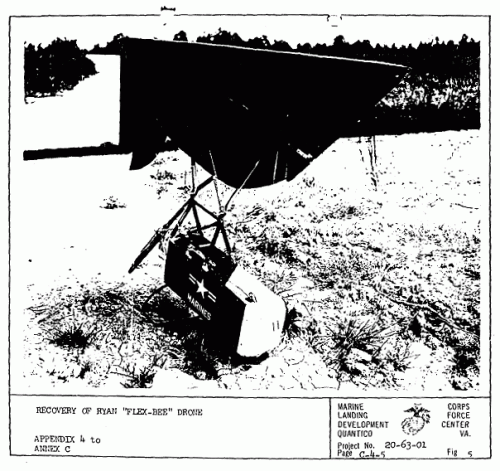

A second document emanating from the USMC's Landing Force Development Center in Quantico and dated 1963 describes in detail the evaluation of the Bikini and Flex-Bee systems.

Lightweight Battlefield Surveillance Drones

A comparative evaluation of the Republic "BIKINI" and Ryan "FLEX-BEE" drone systems was conductcd to determine whether the Marinee Cuops should pursue further development in this field and, if so, to determine which of the two drone configurations will provide the better sensor platform.

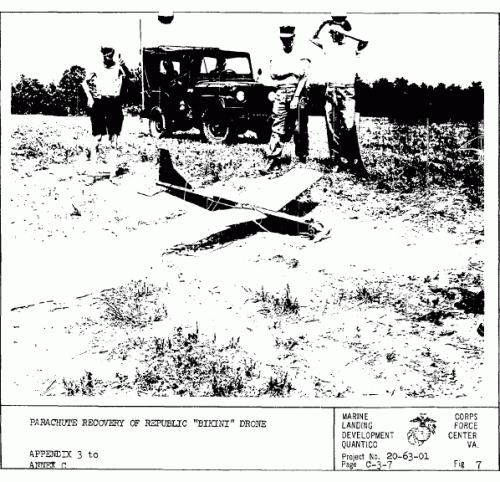

The Republic "BIKINI" drone system is not acceptable for Marine Corps use in its present configuration, and is limited to visual control to a maximum range of 1800 meters and maximum payload of 8-10 pounds. Known major deficiencies include a lack of in-flight stability, poor obstacle clearance capability, poor rate of climb, high sensitivity to radio
commands, and an unacceptable rate of decent during parachute recovery. While unknown, maintenance and training requirements may be excessive.

The Ryan "FLEX-BEE" drone system is not acceptable for Marine Corps use in its present configuration, and is limited to visual control to a maximum range of 1400 meters. Known major deficiencies include an unsatisfactory launcher and an unsatisfactory recovery system. While unknown, maintenance requirements may be excessive.

In view of the fact that "BIKINI" is in a much more advanced state of development than "FLEX-BEE", and it is felt that the major deficiencies of "BIKINI" are easier to correct than are those of "FLEX-BEE", it is recommended that further dev~elopment be undertaken with Republic Aircraft Corporation for the correction of deficiencies on existing "BIKINI" drone systems and subsequent Service Test. No further development action is recommended with Ryan Aeronautical Company's "FLEX-BEE" drone system.

Source: COMPARATIVE EVALUATION OF REPUBLIC 'BIKINI' DRONE SYSTEM - RYAN 'FLEX BEE' DRONE SYSTEM


Attachments

  • flexbee.jpg
    67 KB · Views: 66
  • Bikini7.gif
    55.6 KB · Views: 11
  • Bikini6.gif
    59.4 KB · Views: 13
  • bikini.jpg
    247.6 KB · Views: 18
  • srass.jpg
    114.6 KB · Views: 61
  • peeping-tom.jpg
    84.6 KB · Views: 64
  • boomerang.jpg
    69 KB · Views: 66
  • tattle-tale.jpg
    75.5 KB · Views: 68

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599

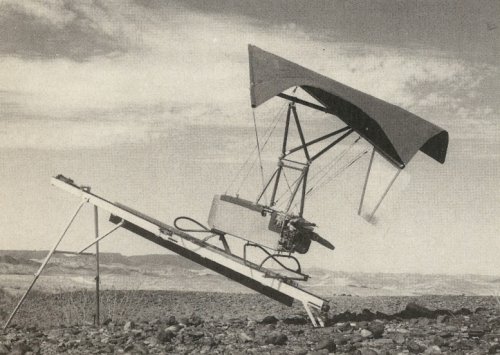

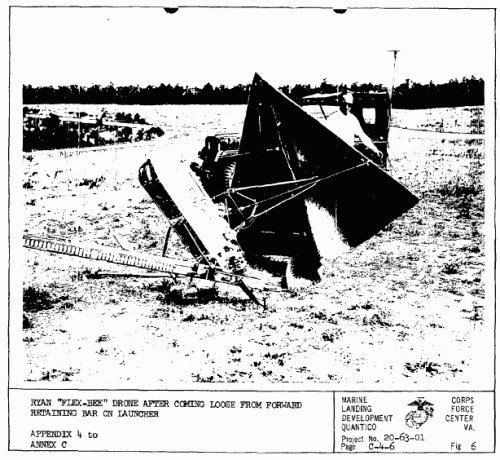

More pics of the Ryan Flex-Bee, which lost against the Republic Bikini.
