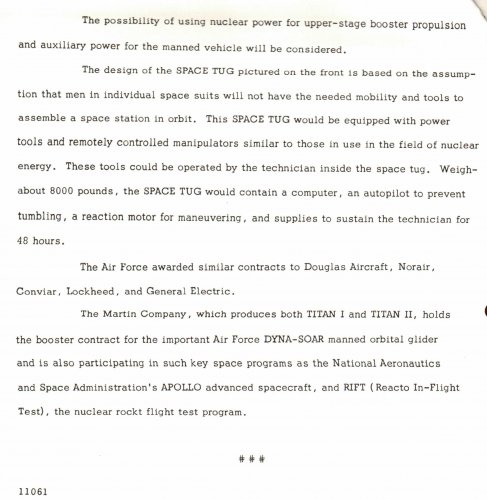

Which I think stands for Space Logistics Maintenance And Rescue - anyone know any more?


Attachments

  • scan0027 (2).jpg
    scan0027 (2).jpg
    139.2 KB · Views: 792
  • scan0027 (3).jpg
    scan0027 (3).jpg
    148.9 KB · Views: 710
  • scan0026 (3).jpg
    scan0026 (3).jpg
    108.1 KB · Views: 631

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80
Some snippet mentions of SLOMAR.

http://www.thespacereview.com/article/882/1

http://www.dtic.mil/cgi-bin/GetTRDoc?AD=AD682208&Location=U2&doc=GetTRDoc.pdf

http://www.thespaceshow.com/detail.asp?q=1043


Attachments

  • Convbit.jpg
    76.7 KB · Views: 536

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,642
Reaction score
650
here SLOMAR concept from General Dynamic

http://up-ship.com/blog/?p=2921
SLOMAR = Space Logistics, Maintenance and Repair,
a study program begun by the USAF in 1959. Funds were not actually made available until June of 1960, with the bulk of the work carried out over the following year. The basic objectives of the SLOMAR study were to estimate future military space needs in terms of support for manned space stations and produce preliminary designs of vehicles to fulfill that mission.

Strange the Spacereview text don't mention LUNEX
Northrop made also Study for a Lunar Base with Observatory
around beginn 1960's so thats part of SR-183 the Lunar Observatory Study ?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Under program #7069, Bell also studied a SLOMAR vehicle.
Under program #7052, Bell studied a "Manned Space Capsule study" called Remora.
Under program #7123 (January 1961), Bell studied a "Self-Maneuvering Unit for Orbital Maintenance Workers."
Under program #7142 (July 1961), Bell made a "Proposal for the Study of Space Maintenance Techniques."
Under program #7163, Bell redefined the Remora as a "One man Orbiter Worker Capsule".

About the Remora:

The Remora System proposed by the Bell Aerosystems Company is representative of this vehicle class, and in addition includes more available system data as a consequence, this vehicle was the basic system incorporated into the contract. The capsule is approximately six feet long, four feet in diameter and has an empty weight of 507 pounds. It has a four-hour mission capability with 100 percent reserve in life support and propellant supplies. A double-wall structural concept employing an inner magnesium shell, insulation core, and an aluminum alloy laminate outer wall is present. A meteorite bumper shield is suggested as a protective device for the worker and critical items of equipment. In order to accomplish the tasks allocated to this shuttle, provisions are incorporated for remote manipulators, pressurized gauntlets and grappler arms. The capsule life support system provides 100 percent oxygen at 5 psia with supplies sufficient for the four hour mission plus 100 percent backup. Safety features include provision for acceptance of a worker in a full pressure suit with its own life support system which would be activated upon failure of the capsule system. A thermal control system is also provided which maintains capsule temperature at 70 0F. Other significant features include a reaction control and propulsion system, a control and stabilization system, a fuel cellpower supply, two-way communications, and status information display panel.

This text and several "Space Maintenance Capsules" from various companies (attached image) are taken from the following document dated May 1963:

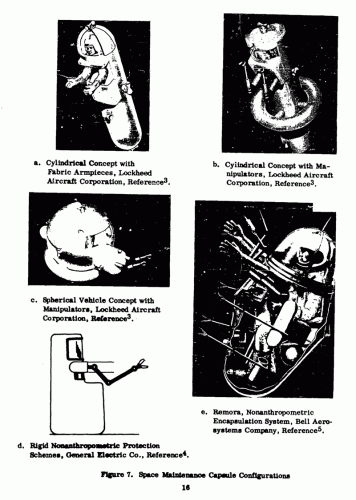

TECHNICAL DOCUMENTARY REPORT NO. ASD-TDR-63-931:
STUDY OF SPACE MAINTENANCE TECHNIQUES


Attachments

  • Space Maintenance Units.gif
    Space Maintenance Units.gif
    101.9 KB · Views: 546

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
252

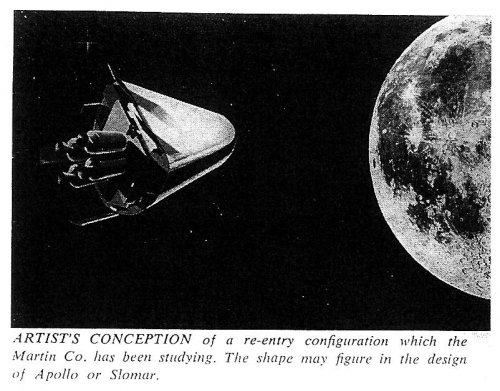

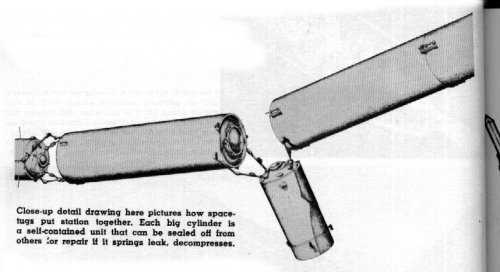

With the exception of the Northrop concept (Which is from Aviation Week), these are from the book America's Mightiest Missile by LLoyd Mallan. While this book does not use the SLOMAR designation, a few of the illustrations are the same.

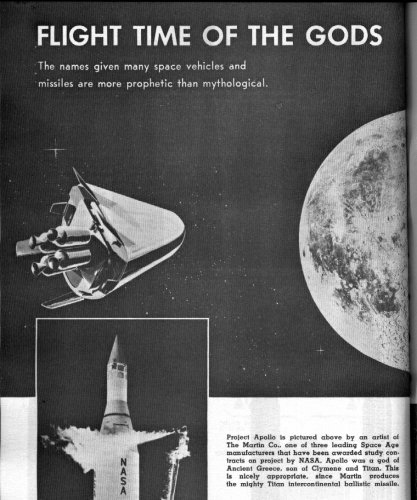

According to this book - but it seems to have been geared toward middle-school age kids so take from this what you will - the capsule in the third picture posted above by Barrington Bond was a Martin concept for the Apollo capsule.


Attachments

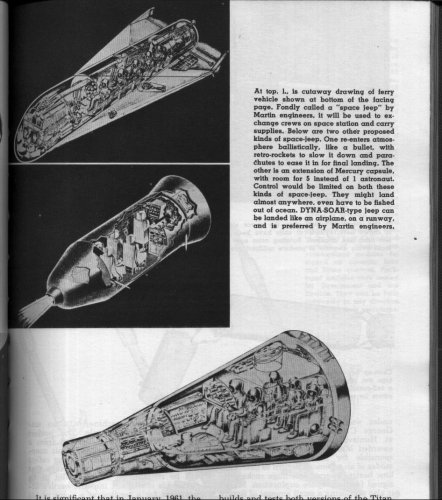

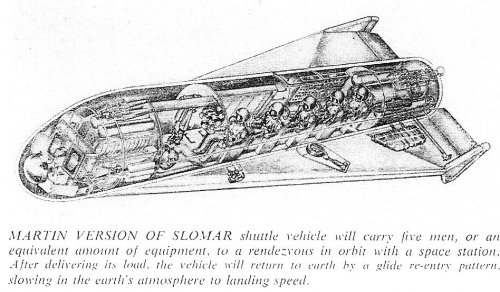

  • Martin Apollo Concept cutaway.jpg
    Martin Apollo Concept cutaway.jpg
    280.3 KB · Views: 118
  • Martin Apollo Concept.jpg
    Martin Apollo Concept.jpg
    586.1 KB · Views: 93

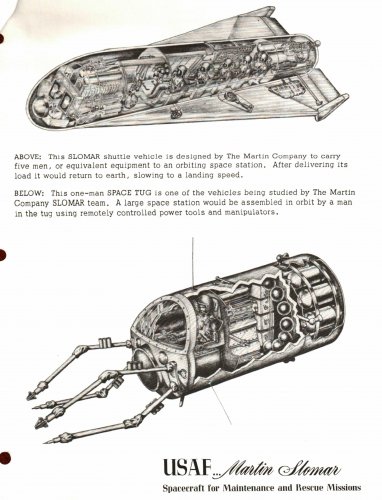

  • SLOMAR - tugs and jeep.jpg
    SLOMAR - tugs and jeep.jpg
    707.2 KB · Views: 100

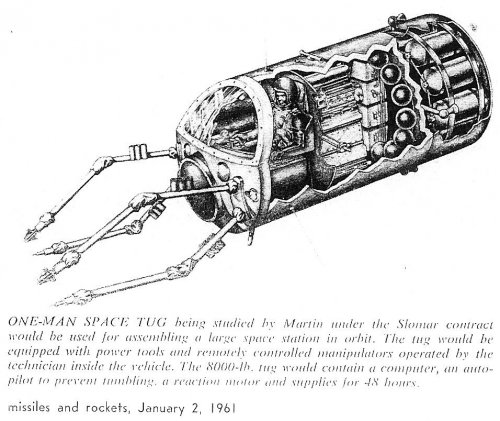

  • SLOMAR - tug at work.jpg
    SLOMAR - tug at work.jpg
    177.1 KB · Views: 99

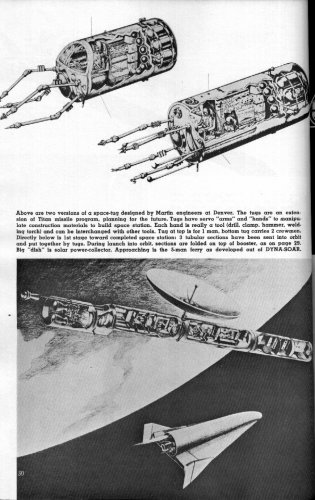

  • SLOMAR - Space Jeeps.jpg
    SLOMAR - Space Jeeps.jpg
    489.3 KB · Views: 138
  • SLOMAR - Jeep docked at station.jpg
    SLOMAR - Jeep docked at station.jpg
    224.3 KB · Views: 111
  • SLOMAR - Northrop concept.jpg
    SLOMAR - Northrop concept.jpg
    414.6 KB · Views: 139
  • SLOMAR - jeep and reactor Nova stacks.jpg
    SLOMAR - jeep and reactor Nova stacks.jpg
    210.6 KB · Views: 82

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,642
Reaction score
650
THX for the pictures guys ;D

the Bell "Space Maintenance Capsules"
i saw years ago in German space literature this
but is label as possibly SOVJET SPACECRAFT !

Source
Raumfahrt Lexikon
by Bruno Stanek, 1983, page 172

Das Neue Universum nr°84
from 1967, page 31


Attachments

  • Bell-REMONA.jpg
    41.4 KB · Views: 83

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Cool! This is definitely a picture of the Bell REMORA (not Remova as the legend implies, not Remona as YOUR filename says!).


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,642
Reaction score
650
Stargazer2006 said:
Cool! This is definitely a picture of the Bell REMORA (not Remova as the legend implies, not Remona as YOUR filename says!).

upps typing error again ::)
that Remova name could explane why it was labeled erroneous as Soviet hardware...


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com
...Ah, the days when cockpit internal designs still reflected 50's sensibilities instead of Apollo canvas-on-wireframe seating. Captain Video would have felt right at home.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
The book was right: that is one of the proposed Martin configuration for Apollo re-entry vehicle.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126

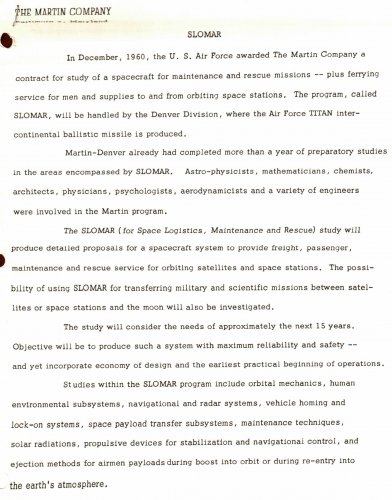

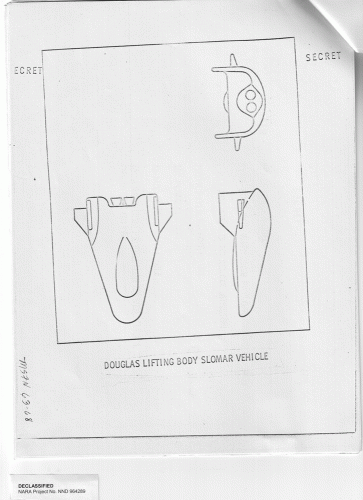

Sorry for misreading the documents I have, here is the corrected post:

BTW, SLOMAR was SR-17527 79814 and was originally part of the USAF "Space Development Planning Study that comprised 10 studies covering: satellite interception, global surveillance, SLOMAR, strategic orbital systems (bombardment satellites), lunar operations , recoverable orbital launch systems, MTSS, and more.

SLOMAR RFP was issued in early 1960. Ten contractors responded but only Lockheed, Martin, GD/Astro, Douglas, Norair apparently received funding. From the drawings I have, the Martin SLOMAR submission for a crew orbital logistics vehicle wasn't the one depicted above. Here they are.


Attachments

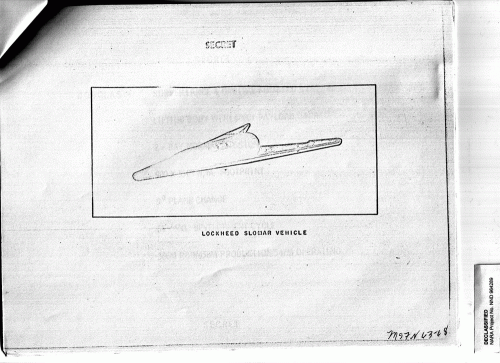

  • Lockheed SLOMAR.gif
    Lockheed SLOMAR.gif
    581.9 KB · Views: 66

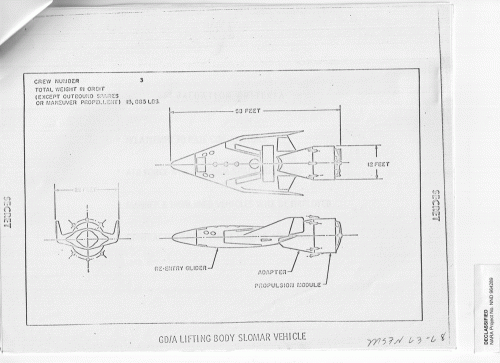

  • GD-Astro SLOMAR.gif
    GD-Astro SLOMAR.gif
    428.1 KB · Views: 68
  • Douglas SLOMAR.gif
    Douglas SLOMAR.gif
    398.9 KB · Views: 55

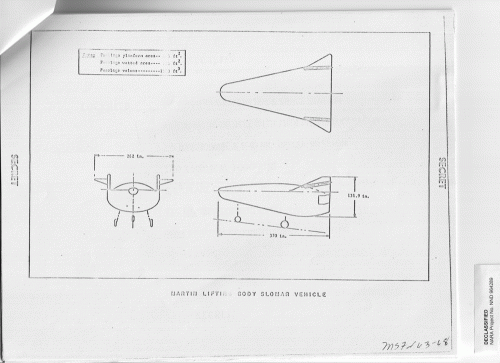

  • Martin SLOMAR.gif
    Martin SLOMAR.gif
    394.5 KB · Views: 52

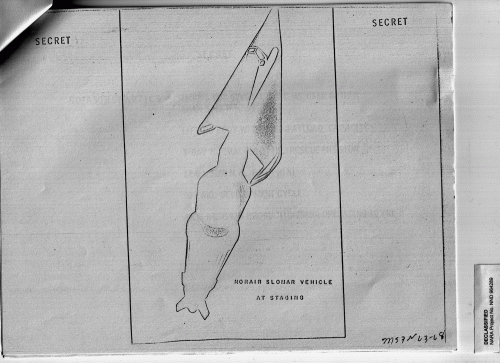

  • Norair SLOMAR.gif
    Norair SLOMAR.gif
    598.2 KB · Views: 506

nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
11
Hi All!

SLOMAR competition:

1) Douglas Model 2???
2) GD/Convair Astronautics Model ?
3) General Electric Model ?
4) Lockheed Model CL-4?? or 5?? or LS-?
5) Martin Model 38? or 39? or 4??
6) McDonnell Model 15?
7) North American Model ESO-? or ?
8) Northrop Model 2??
9) ? ?
10) ? ?
11) ? ?
12) ? ?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126

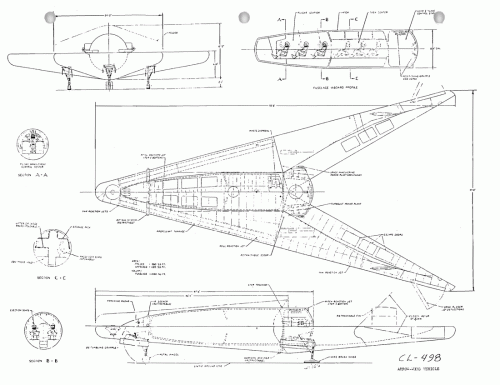

Much better drawing of the Lockheed SLOMAR submission.
Forgot to mention: SLOMAR studies were structured on two phases, like all the other USAF Space Studies. Phase I prescribed full operations before and up-to 1978. Phase II was for post-1978 operations. Lockheed CL-498 was a Phase I SLOMAR vehicle an like other submission launched by an expendable or only partially reusable booster. At least Lockheed Phase II was an aerospaceplane-type vehicle.


Attachments

  • Lockheed Cl-498 SLOMAR.gif
    Lockheed Cl-498 SLOMAR.gif
    171.2 KB · Views: 1,392

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Lockheed SLOMAR Phase II vehicles were very probably TDN CL-510.


The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
252
Did Goodyear play any part in this with their inflatable concepts?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Apparently, no. The synthesis report on the final evaluation of the SLOMAR vehicles only cites as FUNDED contractors the five I mentioned in a previous reply. It is known that Goodyear did a report for NASA on an inflatable space station concept. I have the report somewhere. Tha booster was to be a Titan.
BTW, SLOMAR was linked to another USAF Space Development study, MTSS, that asked for a military space station. It is the father of MOL.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Finished reading the summary evaluation report of SLOMAR. First a word of caution: not all things known under the sobriquet "SLOMAR" were actually studied in the strict SLOMAR studies. In particular, space stations and orbital repair vehicles were not part of SLOMAR. Space Stations were part of MTSS (SR-17527). The contractors which were awarded SLOMAR studies did sometimes conceptualize the space systems they intended to support, but only in very sketchy ways (as far as the report I have says).
Amounts provided were rather low, even accounting for the inflation: total was 600.000 dollars, covering five contractors' studies spanning a year, from June 1960 to June 1961. The RFP actually is from November 1959.
Basic objectives of SLOMAR were: estimate the requirements of future space military systems for logistical support; prepare preliminary designs of system to provide that support; examine the problems involved. General reference included: use of existing hardware and technologies whenever possible; reduction of development times and costs. Specs were: operational period 1965-75; 30.000 lbs payload capability (means both the weight of the vehicle and its actual payload); types of systems to be supported were: recon and surveillance; orbital bombing; command and control; satellite defense; communication; space station; types of support to be examined: replacement; Earth-based; space-based. After a few months, it was apparent that the provided funding was insufficient for all the contractors to study all the areas. So contractors chose to emphasize some aspect, and this was sanctioned with approval during the mid-term briefings occurring in February 1961.
At the end of the studies, the evaluation committee concluded that all contractors agreed of the following:
1) it was possible to have an operational system in use by 1968 for support to orbits up to 500 nm. 2) more than one satellite at a time had to be supported during a mission to make the system cost-effective (except for the space station); 3) guidance of the vehicle was to be self contained (i.e. no remote control by Earth stations); 4) total capacity of the vehicles, crew plus passenger, was to be six.
Next post: summary table of results in seven key areas.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,642
Reaction score
650

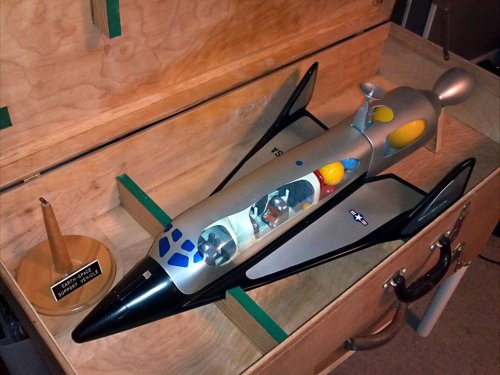

is this a model of the Lockheed SLOMAR submission?


found here
http://www.secretprojects.co.uk/forum/index.php?topic=722.msg95249#msg95249


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,213
Reaction score
1,860
Michel Van said:
is this a model of the Lockheed SLOMAR submission?


found here
http://www.secretprojects.co.uk/forum/index.php?topic=722.msg95249#msg95249

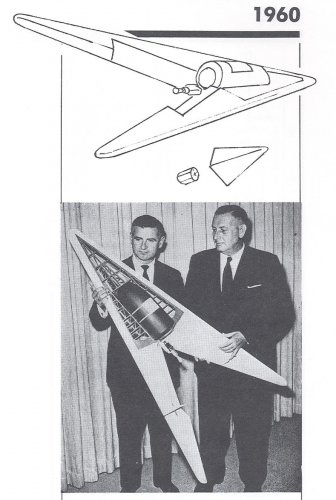

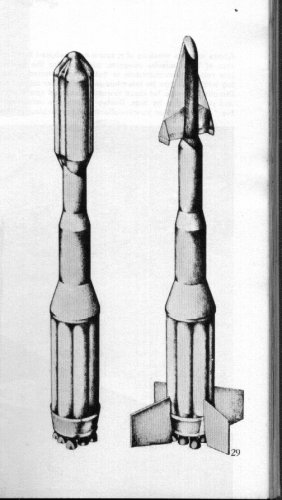

From "The Dream Machines" by Ron Miller


Attachments

  • Escanear0001.jpg
    205 KB · Views: 324
  • Escanear0002.jpg
    86.6 KB · Views: 290

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80
Would Barnes Wallis have reason to complain - it looks very Swallow like ;)


Attachments

  • IMG_0017a.jpg
    162.1 KB · Views: 262
  • IMG_0017b.jpg
    95.3 KB · Views: 245
  • IMG_0017c.jpg
    80.7 KB · Views: 523
  • IMG_0017d.jpg
    76.4 KB · Views: 524
  • IMG_0017e.jpg
    72.8 KB · Views: 522

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80

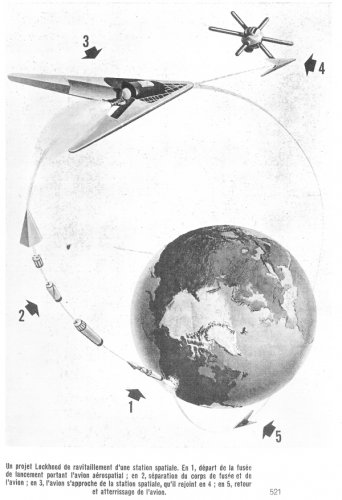

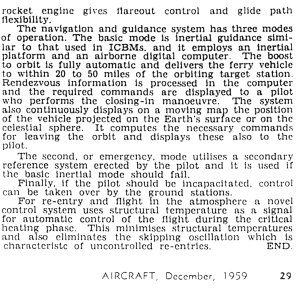

A better version from a French book I can't recall...


Attachments

  • IMG_0006.jpg
    189.2 KB · Views: 1,012

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80

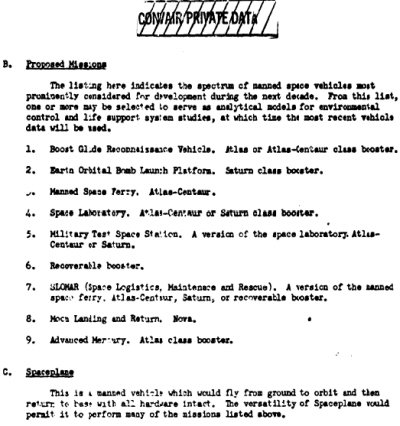

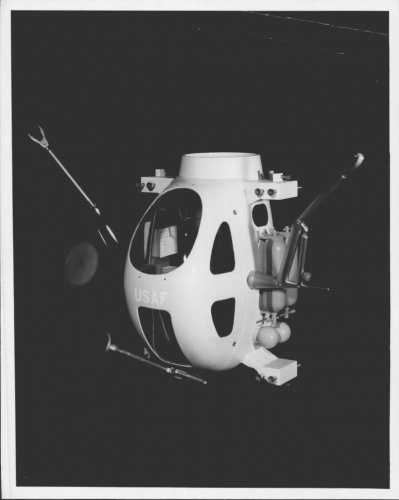

No idea if this is part of SLOMAR studies but a good a place as any to put it...possibly from 1964.


Attachments

  • img0079B.jpg
    33.8 KB · Views: 56
  • img0079A.jpg
    34 KB · Views: 53

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
130

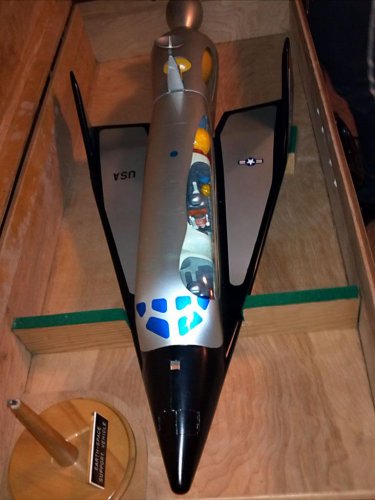

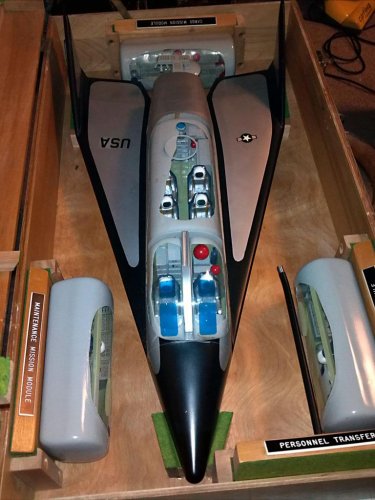

Northrop-Norair factory display model of the N-256 SLOMAR proposal, as it survives today.


Attachments

  • Northrop-Norair N-256 01.jpg
    Northrop-Norair N-256 01.jpg
    106.3 KB · Views: 95
  • Northrop-Norair N-256 02.jpg
    Northrop-Norair N-256 02.jpg
    76.4 KB · Views: 97

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,642
Reaction score
650
circle-5 said:
Northrop-Norair factory display model of the N-256 SLOMAR proposal, as it survives today.


Thank you for those Picture, because all i have about Northrop proposal is this:




circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
130

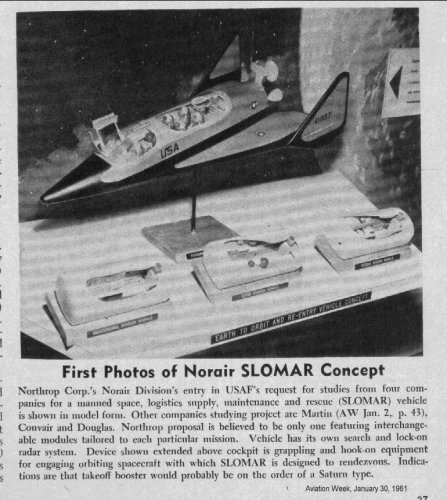

This is the Northrop/Norair SLOMAR factory model shown in the AW&ST clipping (Reply #4, above). Note various, mission-specific modules.


Attachments

  • Northrop-Norair SLOMAR 01.jpg
    Northrop-Norair SLOMAR 01.jpg
    106.3 KB · Views: 899
  • Northrop-Norair SLOMAR 02.jpg
    Northrop-Norair SLOMAR 02.jpg
    105.2 KB · Views: 856

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,642
Reaction score
650
interesting
that two different variants on concept
but in booth a bifid cockpit, is seal off from cargo bay.
the pilots have to make a EVA if they have to leave the cockpit in orbit ?
or is that just way the model is build ?


carmelo

ACCESS: Secret
Joined
Mar 11, 2009
Messages
220
Reaction score
8
circle-5 said:
This is the Northrop/Norair SLOMAR factory model shown in the AW&ST clipping (Reply #4, above). Note various, mission-specific modules.
But this is a Dyna Soar phase 2?


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com
...Egads! Can you imagine waking up on Christnukkah Morning to find that beauty giftwrapped under the tree? ;D :eek: B)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
929

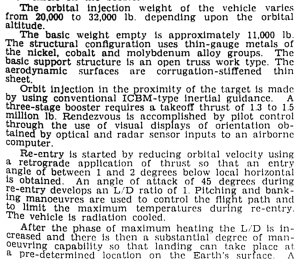

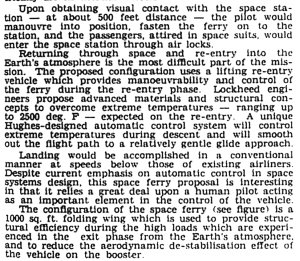

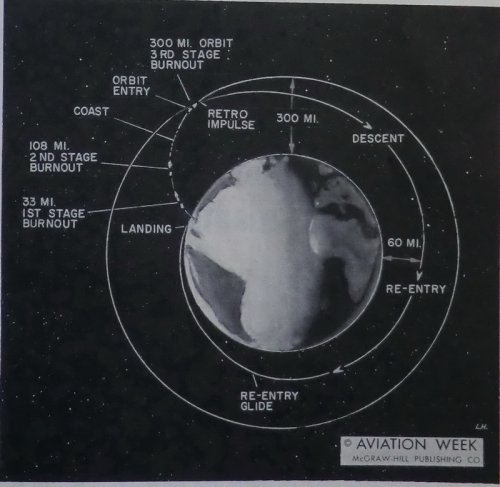

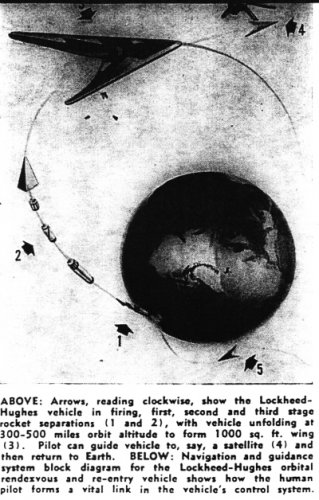

Hughes Lockheed Satellite Rendezvous Vehicle

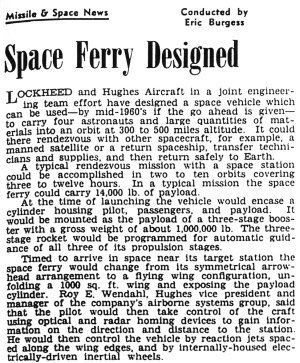

Found in Aviation Week October 1960, an article about a joint development of Hughes and Lockheed
for a manned space vehicle, able to transport a pilot and payload of 1000 lb to a height of 1000 miles
above earth after launched by a three stage ICBM booster, and returning to earth in winged configuration.
Special raison d'être was the ability to rendezvous with satellites, either friendly or "unfriendly" ones, the
title suggests, that it was intended especially as an anti-satellite system.


Attachments

  • mission.jpg
    140.7 KB · Views: 646
  • Hughes-Lockhee_wsv.JPG
    110.7 KB · Views: 675

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,462
Re: Hughes Lockheed Satellite Rendezvous Vehicle

Great find my dear Jemiba.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
929
Re: Hughes Lockheed Satellite Rendezvous Vehicle

Ah, ok, sorry ! Was described under the heading "Anti Satellite Techniques Investigated"
and I got no hits by this search.
The CL-498 seems to be a larger/later iteration
(topics merged)


carmelo

ACCESS: Secret
Joined
Mar 11, 2009
Messages
220
Reaction score
8
circle-5 said:
This is the Northrop/Norair SLOMAR factory model shown in the AW&ST clipping (Reply #4, above). Note various, mission-specific modules.

Pilots can transfer in the mission module means an hatch between the seats in Gemini-B way?


RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
686
Reaction score
389
Some Martin info on SLOMAR.


Attachments

  • Slomar 1.jpg
    Slomar 1.jpg
    446.1 KB · Views: 455
  • Slomar2.jpg
    306 KB · Views: 44
  • Slomar 3.jpg
    Slomar 3.jpg
    619.2 KB · Views: 94

Similar threads

Top
