Sikorsky S-65 projects

yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,139
Reaction score
248
If I remember Bell and Boeing both jointly and independently spent considerable time trying to come up with commercially viable tilt rotor aircraft. The greatest challenge was no doubt making a rotorcraft competitive on the cost per seat mile metric. NASA continues to explore means to use tilt rotor technology to overcome the ever increasing congestion at the main air hubs. There are two challenges, first is the complexity = expensive paradigm and the second is customer acceptance “It has propellers?”
[font=]The AW-609 has seen some renewed interest (at least as of the last HAI show) as the deep water oil industry will continue to need longer range rotorcraft. [/font]The current collapse of the oil market has slowed that in the short term, but as the desire for petrochemicals continues to increase, that market will come around. I don’t think it is going to change the world, but do think it will be viable.
[font=]The point about time lost not being what it was is well made. Until the total travel cost for shuttle flight becomes less than it is today (i.e. train/taxi-airplane-taxi/train) I suspect the VTOL inter-city idea is not viable. Unless of course you use the Vancover Heliocopter model which adds diversity (work-ski slope-work).[/font]


RavenOne

CLEARANCE: Secret
Joined
Jun 18, 2008
Messages
216
Reaction score
127
Skyblazer said:

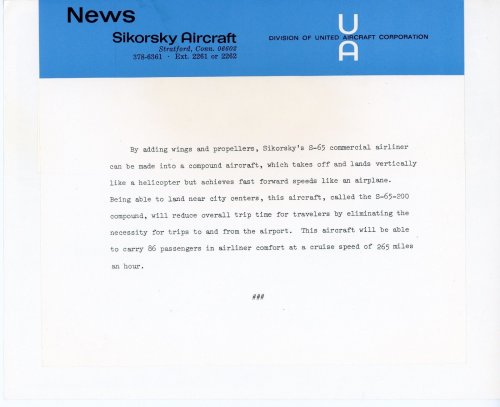

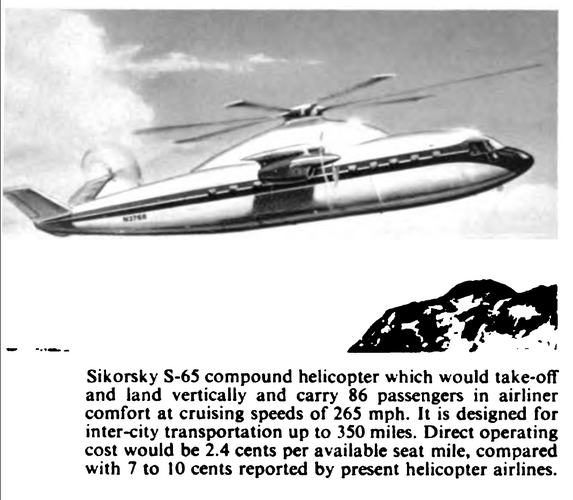

Sikorsky Aircraft's proposed S-65 compound helicopter could carry 86 passengers at cruising speeds of 265 miles an hour on short haul inter-city routes. Direct operating costs would "be 2.5 cents per available seat mile.
Source: Sikorsky promotional photo, released January 8, 1969
This reminds me of the Fairey Rotodyne,

cheers


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,281
Reaction score
2,149

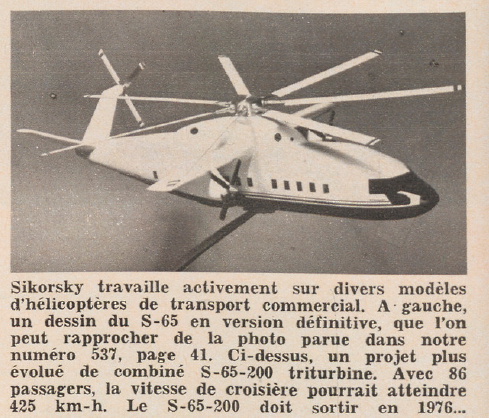

Also from;

Flugzeuge. 1000 Maschinen aus aller Welt mit sämtlichen technischen Daten. Vom ersten Fluggerät bis zum Überschalljet


Attachments

yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,139
Reaction score
248
We may have answered this elsewhere, if so point me in to the right spot, but I have to wonder why if you have two thrust producing sources in line with the CG, why would you still need a tail rotor? Surely you ought be able to produce enough differential thrust to overcome the yaw.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,281
Reaction score
2,149
Sharp notice my dear Yasotay.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,517
Reaction score
257
yasotay said:
why would you still need a tail rotor?
During vertical flight (landing, take off) the underwing engines wouldn't be providing any thrust - so no differential thrust either. Unless you change pitch on one propellor to have it push while the other one pulls? Are those turboprops on the wings, or jets?


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,139
Reaction score
248
Arjen said:
yasotay said:
why would you still need a tail rotor?
During vertical flight (landing, take off) the underwing engines wouldn't be providing any thrust - so no differential thrust either. Unless you change pitch on one propeller to have it push while the other one pulls? Are those turboprops on the wings, or jets?
They are turbo-props. The picture shows plenty of ground clearance so I believe they could be turning. Seems that the Airbus X3 demonstrated satisfactorily the use of center line thrust to overcome torque. Yes I know that was forty years plus after the S-65 concept, but surely the reduced complexity and weight to put the tail rotor back there was not lost on the design team during development?

You could be correct that it was necessary because the props had to be stopped for some regulatory reasons prior to touchdown. Alternately it could be that the military version dictated that the props be off on landing due to not wanting troops running around whirling propellers.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
312
Website
deeptowild.blogspot.com

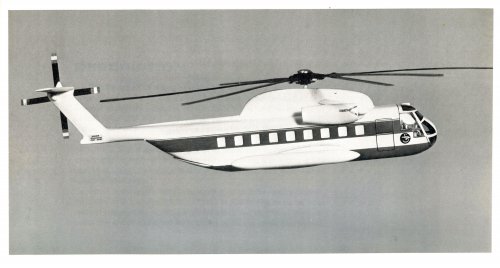

Artist's impression of Sikorsky S-65-200 found on eBay.

Source:
http://www.ebay.com/itm/Vintage-set-of-Sikorsky-Futuristic-Helicopter-prints-Extremely-rare-/122662889179?hash=item1c8f4726db:g:FMAAAOSwGNdZnEUN


Attachments

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
312
Website
deeptowild.blogspot.com

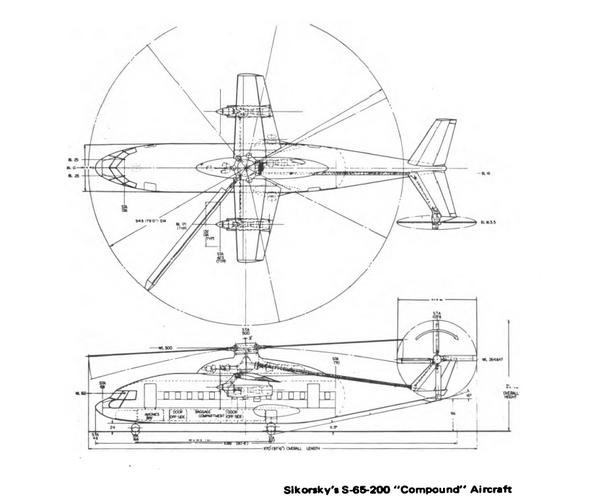

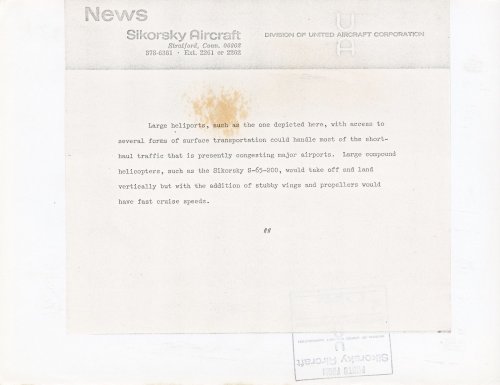

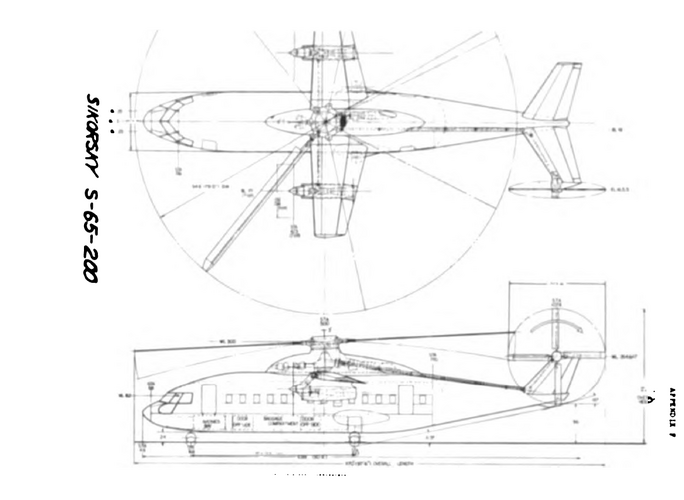

Source:
https://www.ebay.com/itm/VINTAGE-SIKORSKY-S-65-HELICOPTER-CONCEPT-DRAWING-PHOTO/263503431494?hash=item3d5a074746:g:FCIAAOSwX7BaiK68
https://www.ebay.com/itm/VINTAGE-SIKORSKY-S-65-200-HELICOPTER-CONCEPT-DRAWING-PHOTO/263501651453?hash=item3d59ec1dfd:g:qLUAAOSw-YFah16r
https://www.ebay.com/itm/VINTAGE-SIKORSKY-CONCEPT-HELICOPTER-PHOTO-OF-DRAWING/263501594683?hash=item3d59eb403b:g:9oMAAOSwbWZah1Qz


Attachments

RAP

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
654
Reaction score
260
Did some editing to picture and caption which included Skycrane and S61.


Attachments

Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,697
Reaction score
143
Thanks for posting that, I've always liked that design.


riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
544
Reaction score
160
The Vancouver helicopter model still remains viable in 2020. Helijet’s S76 Helicopters pick up passengers from various airports and deliver passengers to the inner harbours of Vancouver, Victoria, Nanaimo, Seattle, etc. With Harbour Air providing competing service with (Cessna and DHC) float planes.
Heloservice is also popular in crowded Brazilian cities with high rates of street crime and kidnappings.
Also consider that politicians, CEOs, pro athletes and music stars prefer to reduce risk by flying over crowds off adoring fans.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
10,201
Reaction score
807
taildragger, the last image is upside down.


alanqua

I dunno if she's the wife of my life
Joined
Aug 31, 2007
Messages
88
Reaction score
106

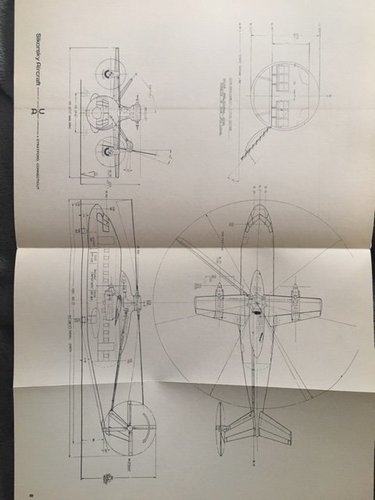

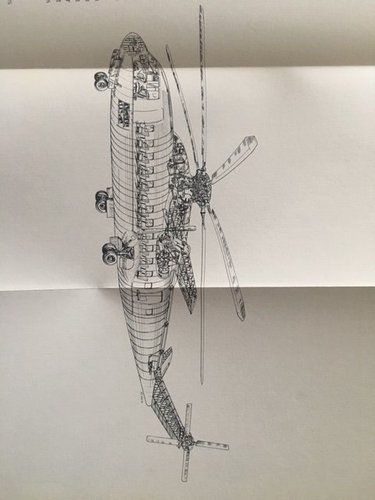

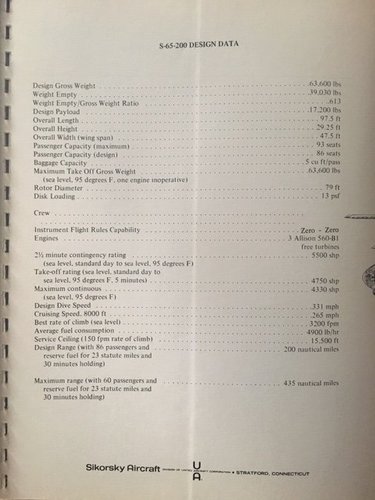

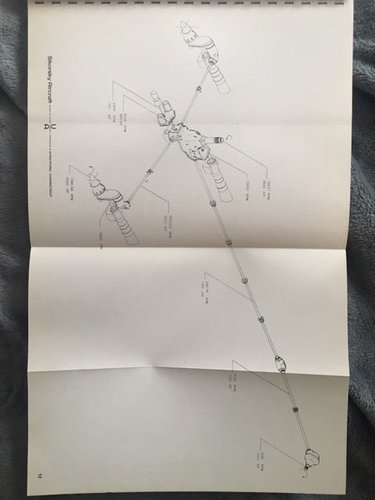

New S-65 material from a program summary booklet
Great material! Thanks. Could you scan it in higher resolution please (if it does not bother you)? That would be greatly appreciated.
