Sikorsky S-45 "Future Trans-Oceanic" Clipper

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457
Hi,

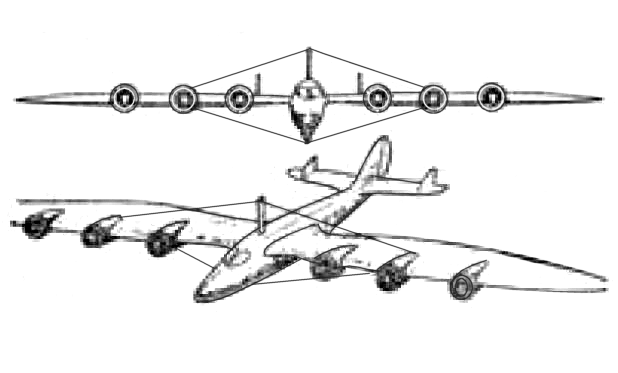

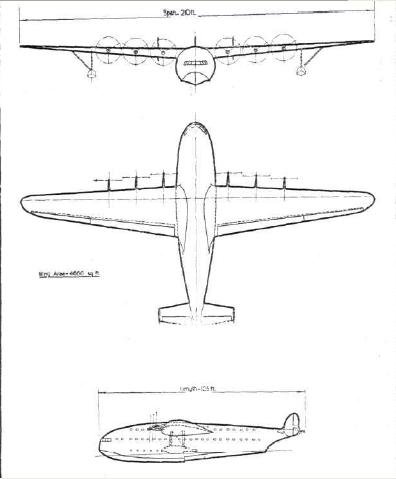

in 1939,Sikorsky designed a six engined large flying boat project for
Pan-American demond,it was called super flying boat.
http://www.flightglobal.com/FlightPDFArchive/1939/1939%20-%201006.pdf
http://www.flightglobal.com/FlightPDFArchive/1939/1939%20-%201006.pdf


Attachments

  • S-45.JPG
    19.9 KB · Views: 805
  • S-45 artist picture.JPG
    S-45 artist picture.JPG
    27.7 KB · Views: 639

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
This is interesting...

The wing shape of the flying boat in the 3-view is different
compared with the one in the artists impresssion.
In : Lindbergh's Dream Plane -plane facts Air International July 1986
no Sikorsky designation is mentioned for his 6 engined contender.


The artist drawing is also published in:
The worlds Civil Marine Aircraft- John Stroud-Putnam World Aeronautical Lib.1975
with the S-45 label.
From the text: A drawing was released on 22 June 1938 showed the Sikorsky S-45
North Atlantic project as a very large aerodynamically-clean high-wing cantilever
monoplane with six engines.


I wonder if the flying boat in the Flight 3 view was the S-45.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Mmm, I'd bet the artist impression was a very superficial impression. Air International in its article on the PanAm competition (or it was in the Letters setion of the subsequent issue ?) expressed its doubts on the same picture, expressely relating to the feasibility of the wing... All they ha to do was consulting the archive (of a competitor... )


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Mmm, two different beasts, evidently.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,221
Reaction score
926
Or a typical reconstruction from a single photo, I could have made
the same mistakes and I did in other cases !
But the drawing from Flight International just says "Large transocean
flying boat of the same type as proposed by Igor Sikorsy", it doesn't say
that it is the S-45. ???


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
'Winged S' - I.Sikorsky and 'Giants in the Sky' - B.Gunston
are both showing the same artist impression but no
type number is given...


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Thus so far , only J.Stroud is mentioning the S-45 typenumber
in his book...


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
A seemingly off-topic question: where has the Sikorsky aircraft archive ended up ? In the today Sikorsky company ? Is it accessible ?


fredgell

ACCESS: Confidential
Joined
Jun 10, 2007
Messages
75
Reaction score
1
I have been researching this period and the issue of the large pre-war flying boat designs.

The artists picture is quite interesting because there are some very vague hints that designers were considering retractable hulls (ie the reverse of the Blackburn ideas).

There is very little real evidence to site as yet but the combination of the artists picture and the hint of this design approach is a possibility, in a very general sense.

I have no idea if it applied to this design in practice.

Regards

Fred


Gannet

ACCESS: Restricted
Joined
Mar 18, 2008
Messages
41
Reaction score
4

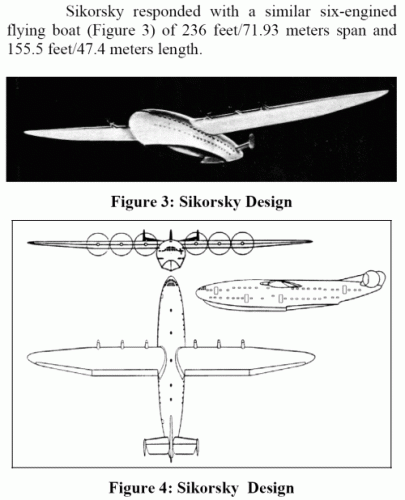

Some additional published information on the Sikorsky S-45:

The actual design of this aircraft actually started before the design of the S-44 (XPBS-1) was initiated. The S-45 design was iterated many times between 1938 and 1940.

A drawing dated March 15, 1938, depicts the S-45 as having a wing span of 236 feet, a one step hull, a length of 155.5 feet, a height of 25.75, and a three fin tail with a horizontal surface 43 feet wide. The aircraft was designed to carry 100 passengers or a payload of 25,000 pounds, with a range of 5,000 miles and a speed of 200 mph. Perhaps in a "wishful thinking" the drawing of the S-45 showed the aircraft with Pan American markings.

Source: Pember, Harry E.; Sikorsky VS-44 Flying Boat; Flying Machine Press; Stratford, CN, 06497; 1998; p55


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
This must be the true S-45 flying boat Gannet..

Any hope for a view of the illustration ?

Thanks.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,221
Reaction score
926

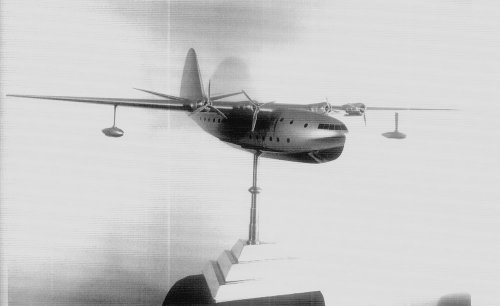

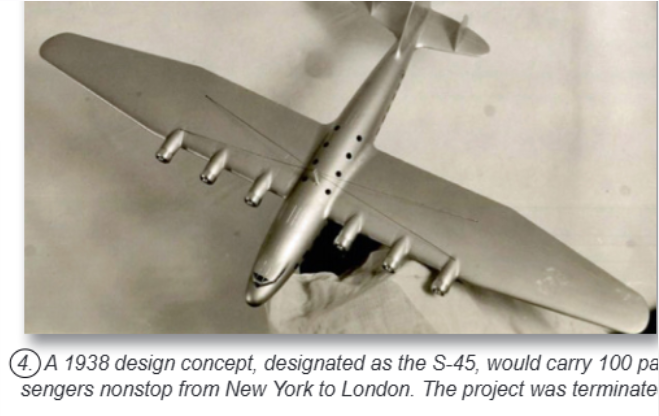

This model of a Sikorsky 4-engined flying boat was shown in Classic Aircraft Vol.1, published by
Flying Machine Press (got it from lark, thank you !), but without any further info.
Anybody who can identify it and give some more information ?


Attachments

  • Sikorsky_flying-boat-design.jpg
    86.9 KB · Views: 705

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450
That's the final design for the S-45 "Future Trans-Oceanic Flying Boat". I had never seen such a clear picture of it before. Thanks!


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
13
But at the S-45 reference that Hesham gave us it shows a six engined and triple tailed flying boat. On what basis do we assume the design shown in this post is a final design of the S-45? (Don't get me wrong, I believe Stargazer is on the right track, but perhaps there is more supporting evidence)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,221
Reaction score
926
Judging from details like size of cockpit and windows always is very doubtful. And that this one is
4-engined, the other 6-engined may be just based on the fact, that more powerful engines
were available then. But if the origin of those two designs were the same, then I think there were
some essential changes with the requirements, as this one seems to be considerably smaller, than
the 6-engined type.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450
Jos Heyman said:
But at the S-45 reference that Hesham gave us it shows a six engined and triple tailed flying boat. On what basis do we assume the design shown in this post is a final design of the S-45? (Don't get me wrong, I believe Stargazer is on the right track, but perhaps there is more supporting evidence)

Jos, on a former computer that crashed, I used to have a picture scanned from a magazine (probably some old Airpower) which clearly identified the same model as the S-45, that's why...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457

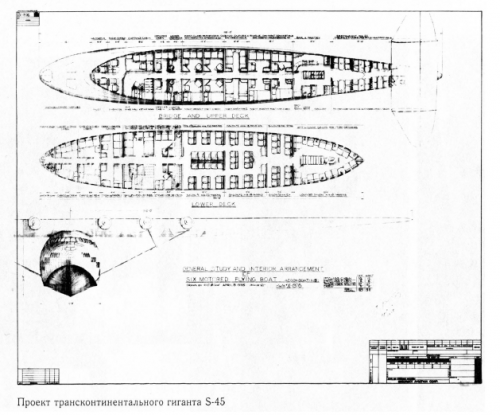

From the book; Сикорский_Политехника 2003


Attachments

  • S-45.png
    250.7 KB · Views: 257

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450
hesham said:
From the book; Сикорский_Политехника 2003

That's the book I got the S-30 from I think. So you see, you had that reference already.


Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
106
Reaction score
87

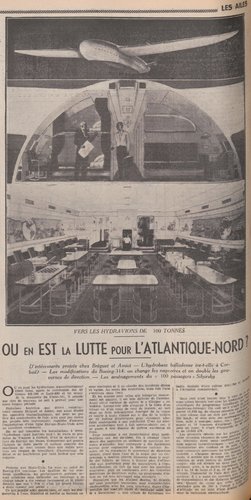

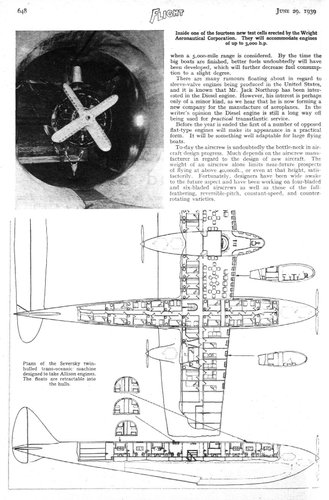

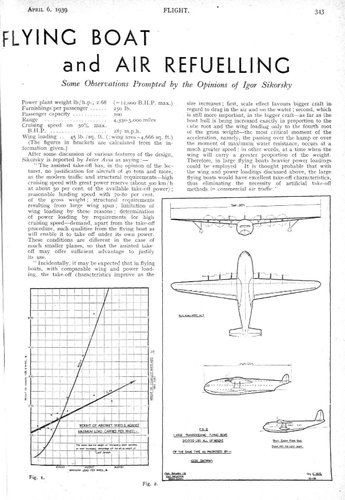

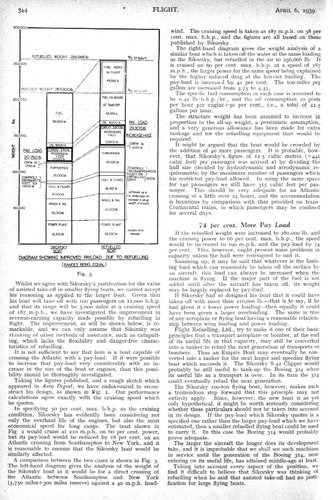

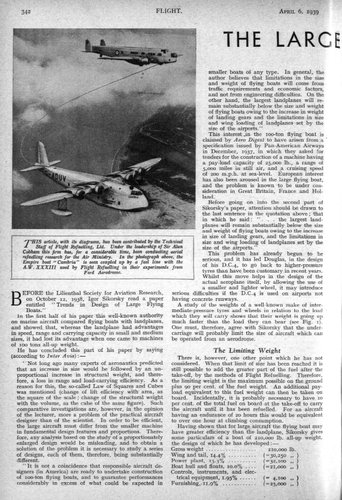

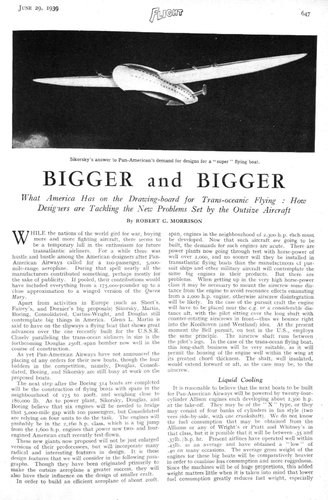

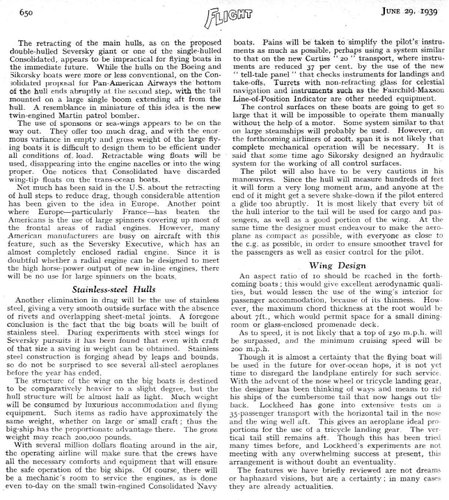

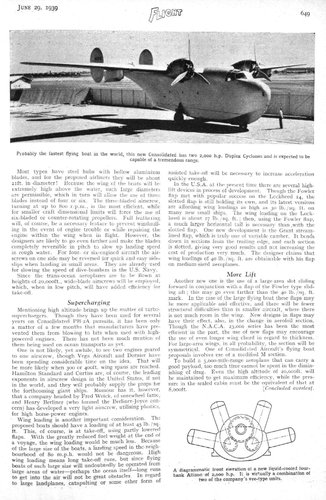

1939 Flight International
