Hi,

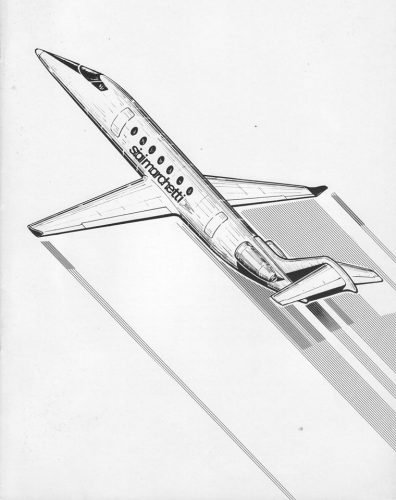

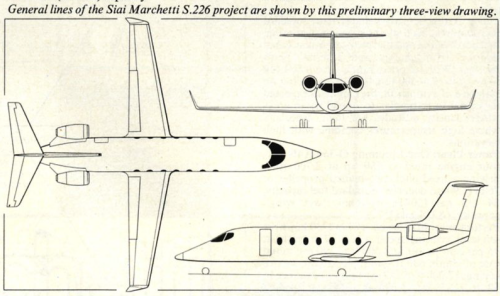

the SIAI-Marchetti S.226 was low-wing 19-seat light transport aircraft project,fitted with
T-tail and powered by two turbofan engines,it looks like a large business jet design.

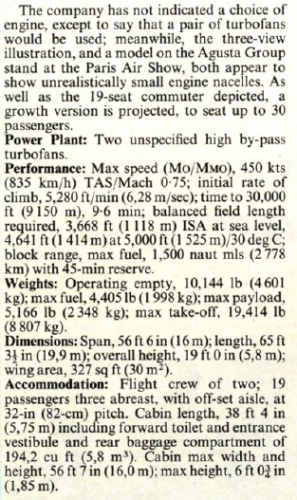

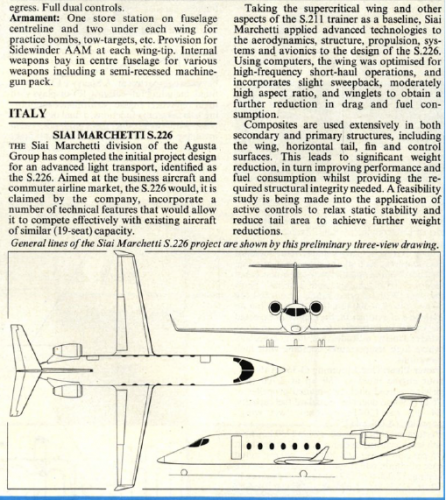

Air International 9/1983


Attachments

  • S.226.png
    852.9 KB · Views: 344
  • 1.png
    563 KB · Views: 273
  • 2.png
    342.2 KB · Views: 221

Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
636
Reaction score
139
SIAI project S.226
(via Google Translator)
"The rather S.226 , twin-engine business plane from 19 seats , was developed by taking advantage of technologies designed for the S.211 trainer.
The latter takes on its wing by supercritical profile , energy efficiency and manufacturing techniques .
It was also meant a bigger version , the S.229 , the particular wing solutions and swept wings canard."

Source http://www.ilovesestocalende.it/notizie/100-anni-di-siai/lepilogo/#more-16156


Attachments

  • Un-impressione-dellS.226-396x500.jpg
    26.7 KB · Views: 129
