Sensorcraft projects and McDonnell Douglas project Diamond

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,060
Reaction score
1,482
Website
www.aerospaceprojectsreview.com
Matej said:
Does anybody have this AIAA papers ...

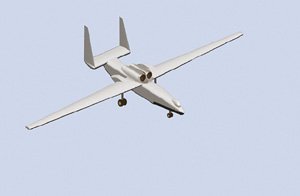

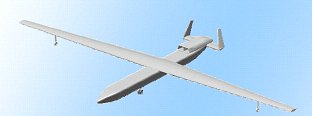

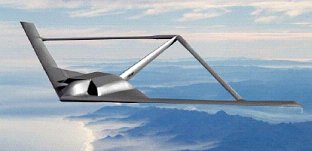

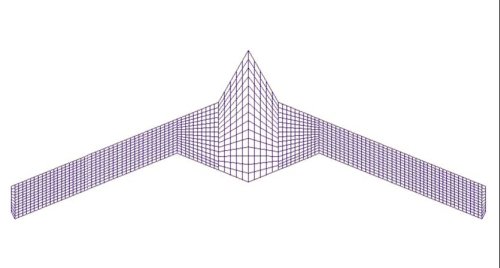

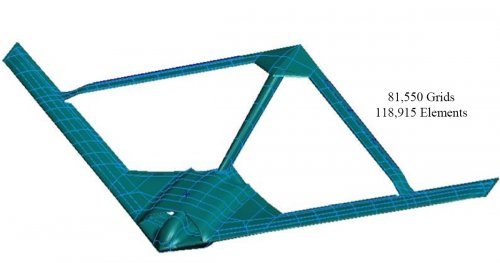

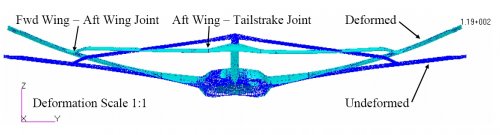

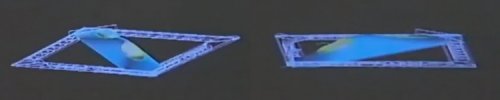

The SensorCraft Configurations: A Non-Linear AeroServoElastic Challenge for Aviation AIAA-2005-1943

Yes.


Attachments

  • Boeing sensorcraft.png
    Boeing sensorcraft.png
    106.8 KB · Views: 1,495
  • LockMart sensorcraft.png
    LockMart sensorcraft.png
    6.2 KB · Views: 1,137
  • Northrop sensorcraft.png
    Northrop sensorcraft.png
    61.6 KB · Views: 1,328
  • LockMart_sensorcraft_SC005.png
    1.9 KB · Views: 1,021

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,635
Reaction score
4,594
Hi,

A Sensor Craft UAV would be an arm of the manned and
unmanned ISR fleet.
http://www.flightglobal.com/PDFArchive/View/2002/2002%20-%202730.html?search=boeing%201957


Attachments

  • untitled.JPG
    16 KB · Views: 925

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,230

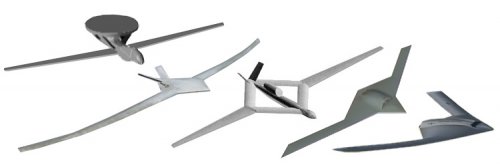

Tiny, low-quality pic, but it shows most of the in-house SensorCraft concepts, studied by Lockheed, Boeing and Northrop


Attachments

  • sensorcrafts.jpg
    45.2 KB · Views: 602

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,230
Cross-posted from the Lockheed Tier3 thread, originally posted by Matej
Ashes to ashes...


Attachments

  • ngscraft3.jpg
    16.9 KB · Views: 194
  • ngscraft2.jpg
    16 KB · Views: 144
  • ngscraft1.jpg
    74 KB · Views: 160
  • lmscraft3.jpg
    16.6 KB · Views: 143
  • lmscraft2.jpg
    36.4 KB · Views: 118
  • lmscraft1.jpg
    5.6 KB · Views: 145
  • boescraft2.jpg
    93.2 KB · Views: 216
  • boescraft1.jpg
    56.8 KB · Views: 179

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,230

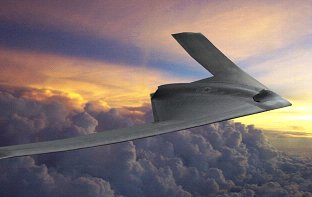

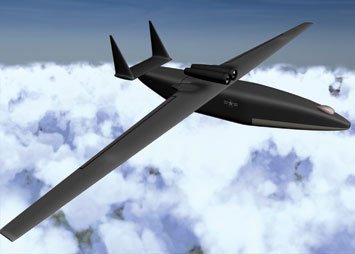

One more identified as Northrop Grumman's

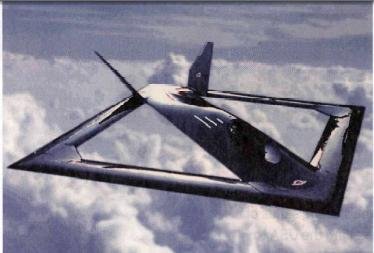

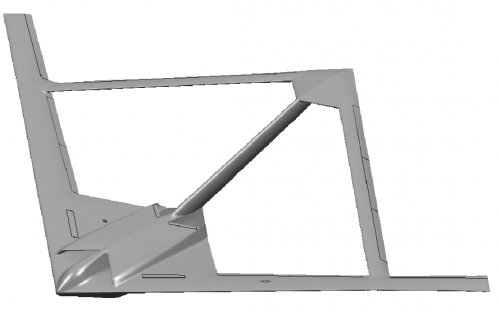

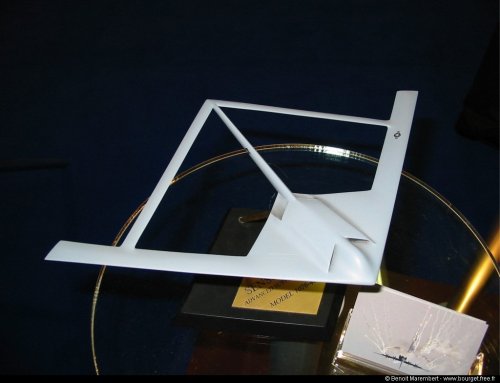

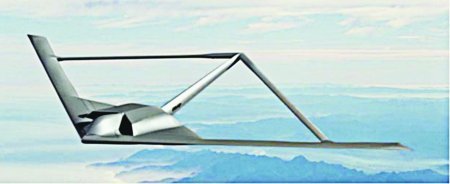

Better quality Boeing joined wing SC image


Attachments

  • ngscraft4.JPG
    75.7 KB · Views: 192
  • boescraft1a.jpg
    14.7 KB · Views: 160

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,230
LM playing with the latest SensorCraft iterations (SC006 is shown) under Ultralight Multifunction Airframe
Concepts (UMAC) program under contract to the Air Force Research Laboratory (AFRL). The UMAC contractor
team consists of Lockheed Martin Aeronautics Company (LM Aero), Bell Helicopter, Raytheon, and Southwest
Research Institute (SwRI).

Seems, Finally, all UAVs and UCAVs are closing to several, limited number, universal shapes...


Attachments

  • 2007-LM-SC0006(UMAC)-2sm.jpg
    34.8 KB · Views: 115
  • 2007-LM-SC0006(UMAC)-1sm.jpg
    25.4 KB · Views: 133

Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
12
flateric said:
Seems, Finally, all UAVs and UCAVs are closing to several, limited number, universal shapes...

It makes a lot of sense. UAVs can do fantastic aerial maneuvers (at least theoretically) which is the type of flight regime that does lend to a variety of aerodynamic shapes, but to start off with the AI just isn't here yet and frankly it's much easier to achieve air-to-air kills "on the ground," so to speak - which is why I think future offensive air doctrine is going to shift more towards small, stealthy, subsonic strike aircraft (possibly with only one engine being the norm) with very simple flying wing shapes designed around munitions like the small diameter bomb - and stealth aircraft lend themselves extremely well to these parameters.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,230

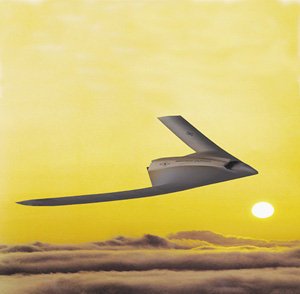

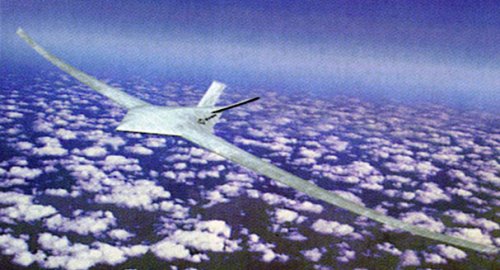

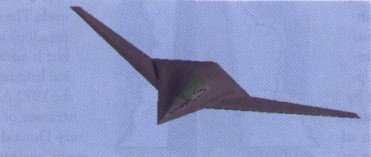

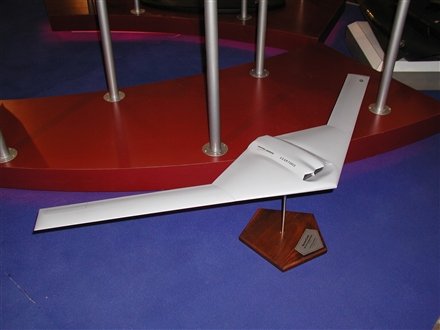

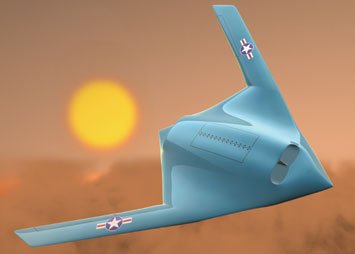

Early Northrop SensorCraft artist's impression.


Attachments

  • 39.jpg
    10.9 KB · Views: 106

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,311
Reaction score
226
Just call me Ray said:
UAVs can do fantastic aerial maneuvers (at least theoretically) which is the type of flight regime that does lend to a variety of aerodynamic shapes, but to start off with the AI just isn't here yet and frankly it's much easier to achieve air-to-air kills "on the ground,"

Ray, there are more reasons why we may never see ultra-maneuverable (as opposed to super-maneuverable) UAVs - it may not make sense. The structural weight penalty required to pull the g's ends up penalising other aspects (payload/range). I am not very good with structures, but if you look at conceptual design weight methods, the weight of structural components is proportional to the load factor elevated to a power between .25 and .6. So I think it adds up pretty quickly.
Also, you can probably get more maneuvering energy in a short range missile than in any UAV airframe.
Just my two cents ;)


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
12
AeroFranz said:
Just call me Ray said:
UAVs can do fantastic aerial maneuvers (at least theoretically) which is the type of flight regime that does lend to a variety of aerodynamic shapes, but to start off with the AI just isn't here yet and frankly it's much easier to achieve air-to-air kills "on the ground,"

Ray, there are more reasons why we may never see ultra-maneuverable (as opposed to super-maneuverable) UAVs - it may not make sense. The structural weight penalty required to pull the g's ends up penalising other aspects (payload/range). I am not very good with structures, but if you look at conceptual design weight methods, the weight of structural components is proportional to the load factor elevated to a power between .25 and .6. So I think it adds up pretty quickly.
Also, you can probably get more maneuvering energy in a short range missile than in any UAV airframe.
Just my two cents ;)

I know, I was just speaking from a doctrinal standpoint why we're unlikely to see a true UAV "dogfighter" as opposed to a proliferation of UAV strike aircraft.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,311
Reaction score
226
Ray, I guess between the two of us we've ruled out super-maneuverable UAVs ever seeing the light of day!

Mind you, I'd be curious to know what dogfights between super-maneuverable UCAVs would look like. With crews comfortably watching hundreds (or thousands) of miles away, leaving it up to vehicle capabilty, weapons, and whatever playbook of maneuvers the UCAV has stored in its memory to decide the outcome. Some sort of "Robot wars" on steroids.
And best of all, no human gets hurt.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,230

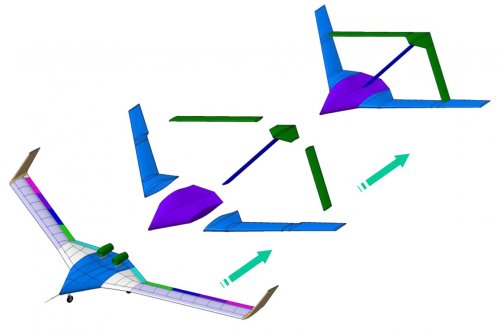

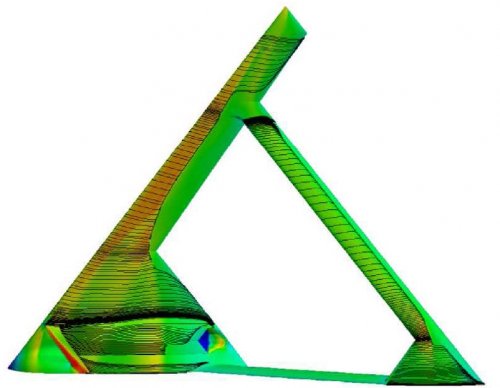

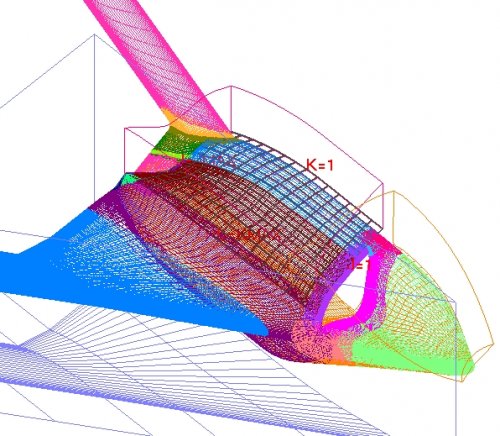

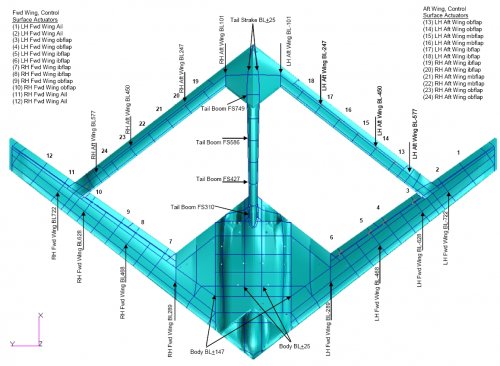

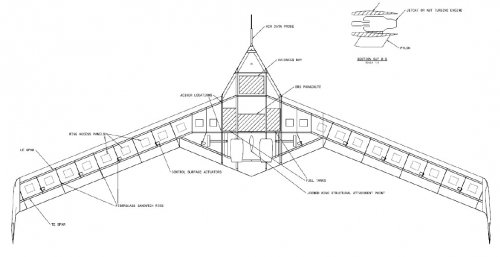

Some fresh SensorCraft images - this is Boeing's Model 1076-410E


Attachments

  • BOE_senso_Model_1076-410E-01.jpg
    98.6 KB · Views: 106
  • BOE_senso_Model_1076-410E-02.jpg
    155.5 KB · Views: 72
  • BOE_senso_Model_1076-410E-03.jpg
    210 KB · Views: 68
  • BOE_senso_Model_1076-410E-04.jpg
    58.7 KB · Views: 112
  • BOE_senso_Model_1076-410E-05.jpg
    189.4 KB · Views: 106

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,230
...more. Lockheed/Boeing NGB similarities are obvious.


Attachments

  • BOE_senso_Model_1076-410E-08.jpg
    124.8 KB · Views: 123
  • BOE_senso_Model_1076-410E-07.jpg
    86.4 KB · Views: 134
  • BOE_senso_Model_1076-410E-06.jpg
    368.7 KB · Views: 170

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,230

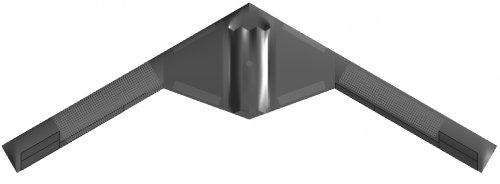

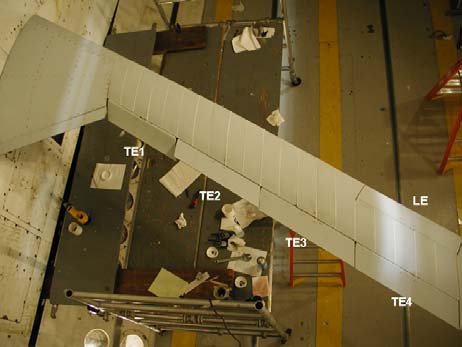

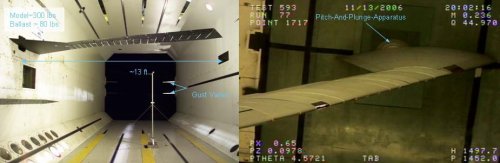

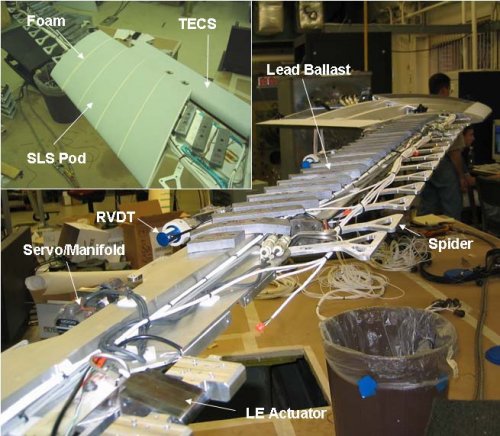

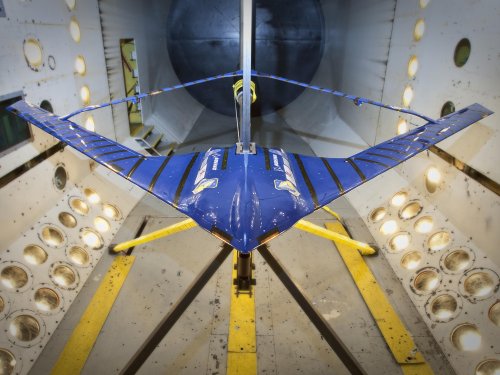

This is Northrop's one. Some photos of the wind tunnel model test.


Attachments

  • NG_senso_07wtmodel.jpg
    169.4 KB · Views: 135
  • NG_senso_06wtmodel.jpg
    56.3 KB · Views: 116
  • NG_senso_05wtmodel.jpg
    95.7 KB · Views: 132
  • NG_senso_04wtmodel.jpg
    87.9 KB · Views: 165
  • NG_senso_03.jpg
    48.7 KB · Views: 137
  • NG_senso_02.jpg
    103.5 KB · Views: 136
  • NG_senso_01.jpg
    75.8 KB · Views: 134

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,459
Reaction score
938

Attachments

  • NG_sensorcraft.Large.jpg
    99.9 KB · Views: 138

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,230

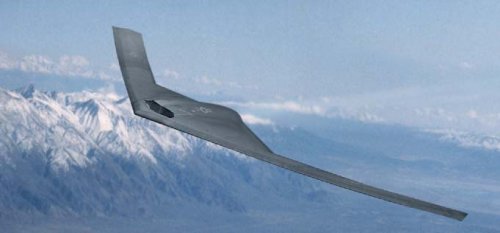

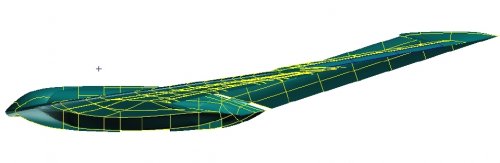

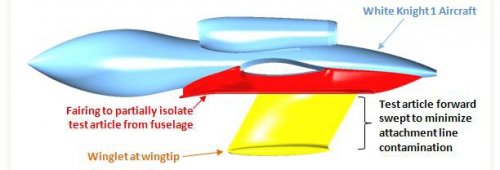

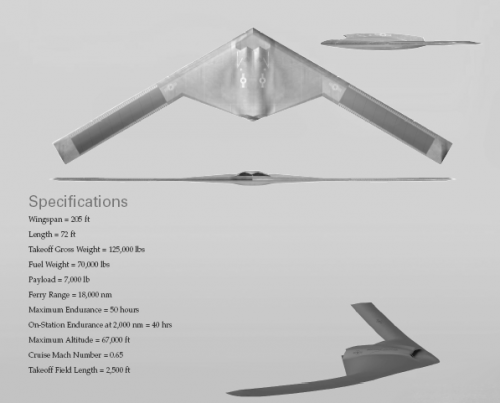

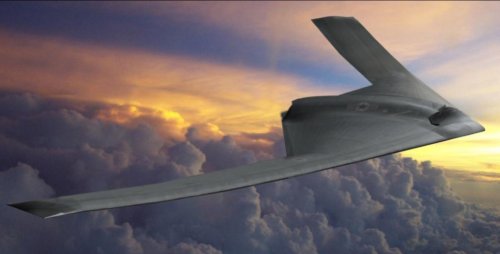

Better quality NG Sensorcraft render and Sensorcraft's Swept Wing Laminar Flow Control (SWLFC) concept test article, being tested using WhiteKnightOne


Attachments

  • northrop-sensorcraft.jpg
    291.1 KB · Views: 387
  • SWLFC_sensorcraft.jpg
    178.9 KB · Views: 356
  • SWLFC_sensorcraft_.jpg
    52.5 KB · Views: 380
  • SWLFC_sensorcraft__.jpg
    38.6 KB · Views: 327

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
167
Website
www.hitechweb.genezis.eu

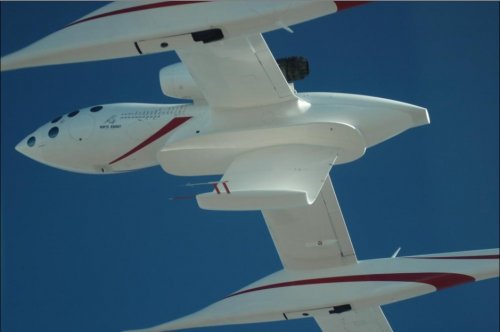

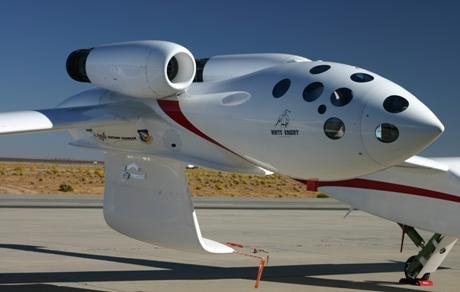

This is probably going to be the most stupid question I have ever asked but what do you see inside the (what is supposed to be) inlet? After enough zooming I see some person with the old style Gatling gun. Rorschach inkblot effect or the artist made a lot of fun?


Attachments

  • sensorcraft_detail.jpg
    163.7 KB · Views: 150
  • sensorcraft.jpg
    44.5 KB · Views: 120
  • Sensorcraft_logo.jpg
    33.4 KB · Views: 299

Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
7
Looks more like a water-cooled vickers, ca. 1916. :D

BTW, I hope everyone knows that this particular image was generated by the AF Research Laboratory, and is entirely notional, i.e., that it does not represent any real, proposed or anticipated aircraft...


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,192
Reaction score
242
Clioman said:
Looks more like a water-cooled vickers, ca. 1916. :D

BTW, I hope everyone knows that this particular image was generated by the AF Research Laboratory, and is entirely notional, i.e., that it does not represent any real, proposed or anticipated aircraft...

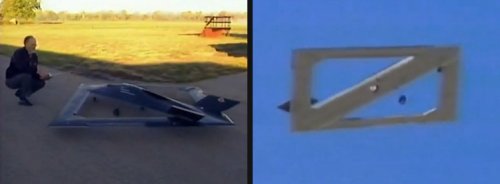

Well, that is an actual aircraft. And you can see the "notagatlinggun", it's part of the engine installation.

http://www.youtube.com/watch?v=aP6t0gEYZwQ


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
167
Website
www.hitechweb.genezis.eu
Wow, thanks for that video! I knew that it was build in some subscale form but never saw any visualization of it! For more reference about MDD (Boeing) take on the sensorcraft see the patent no. 5 899 410. Just to note that the Boeing take on the "sensorcraft" was much bigger with the two engines and originally the two fuselages inside the open diamond. The wingtips of the forward wing were enlarged behind the point of joining. It later evolved into model 1076-410E, already shown here.


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
11

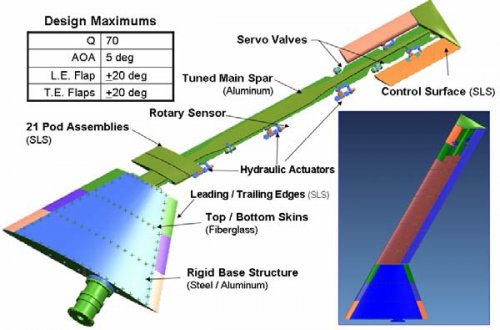

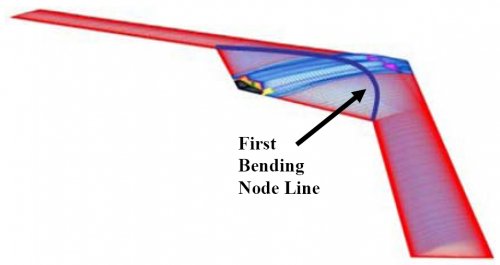

The NG "tuned spar" on the previous page is interesting. Was it meant to twist and the aileron meant to work like DC-9:s elevator tab, to rotate the wingtip in the opposite direction?


Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
7
Whoah! I'm happy to stand corrected. When I was at the Lab (1998-2000), I was led to believe that this design was purely notional. It's both wonderful and amazing to see the model fly so well.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
167
Website
www.hitechweb.genezis.eu
-

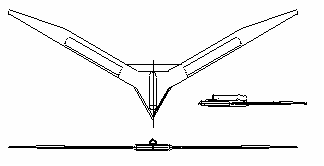

Attachments

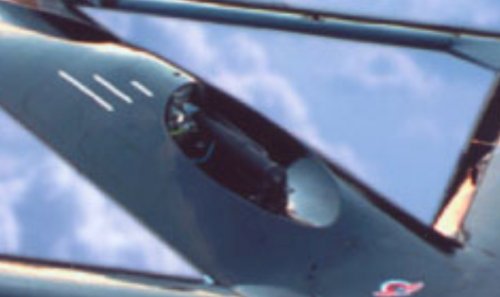

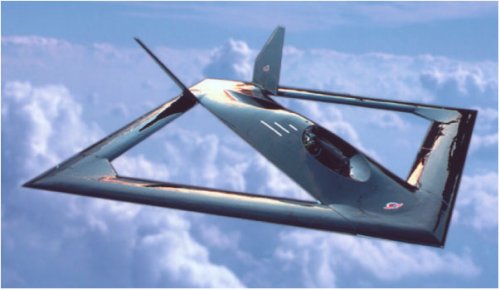

  • MDD_project_diamond_1.jpg
    25.4 KB · Views: 75
  • MDD_project_diamond_2.jpg
    70.2 KB · Views: 96
  • MDD_project_diamond_3.jpg
    52.3 KB · Views: 153

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
598
This McDonnell Douglas project seems to be exactly the same as the Boeing one. Is this the consequence of McDD being taken over by Boeing? An MDD project completed at Boeing? Same thing happened to the Bird of Prey, which was not a Boeing in the first place as many people assume.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
167
Website
www.hitechweb.genezis.eu
It was flight tested in 1994 when McDonnell Douglas was still McDonnell Douglas. After merging with the Boeing the idea was developed further, with the peak interest in 2001 -2002 timeframe.


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,192
Reaction score
242
Matej said:
It was flight tested in 1994 when McDonnell Douglas was still McDonnell Douglas. After merging with the Boeing the idea was developed further, with the peak interest in 2001 -2002 timeframe.

The Boeing EX, which has a similar configuration, was completely unrelated. Two similar ideas from two separate groups before the merger. The Diamond demonstrator was one of the few public Phantom Works projects, and was internally funded.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
167
Website
www.hitechweb.genezis.eu
That's an interesting point! I never realized that because I have mostly the top views, where the exact shape of the wing is not so clear. It means that the Boeing's take on the sensorcrafts comes from the EX, while MDD work on the Project Diamond has better connection to the morphing aircraft structures.


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,192
Reaction score
242
Matej said:
That's an interesting point! I never realized that because I have mostly the top views, where the exact shape of the wing is not so clear. It means that the Boeing's take on the sensorcrafts comes from the EX, while MDD work on the Project Diamond has better connection to the morphing aircraft structures.

Correct - the patent makes this pretty clear. There are some interesting details:

http://www.google.com/patents/about?id=GTwZAAAAEBAJ


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,192
Reaction score
242
DTIC has a lot of papers online now that deal with the joined wing SensorCraft configurations, which include a lot of historical information on joined wings in general.


This set of briefing slides is a good overview of the challenges involved in the SensorCraft mission (and, in turn, AARS/Tier 3)
Tilmann, Carl P. "Emerging Aerodynamic Technologies for High- Altitude Long-Endurance SensorCraft UAVs"
http://handle.dtic.mil/100.2/ADA428754

Bird Of Prey and FATE control surfaces are depicted, interestingly enough.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,230

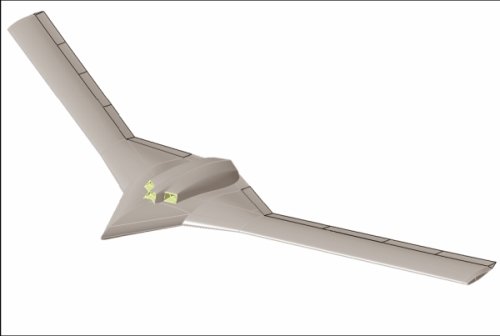

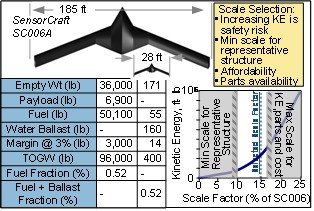

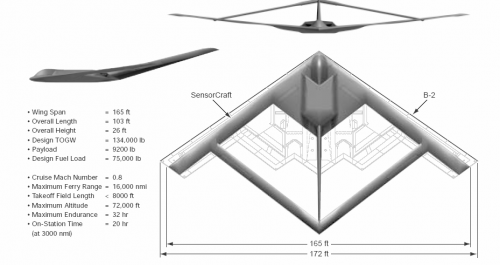

LM SC006 Sensorcraft configuration render&data

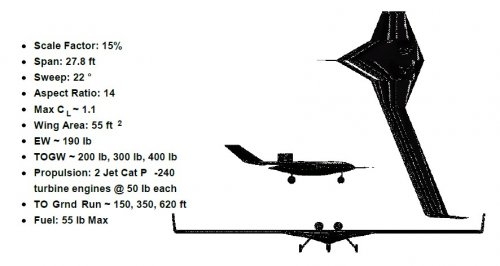

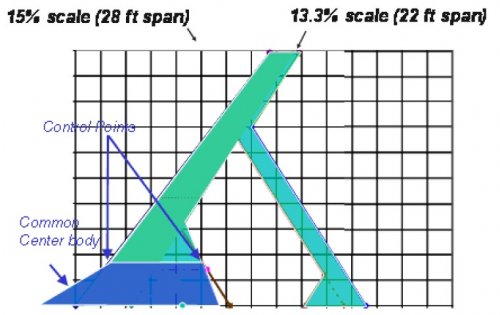

LM SensorCraft MUTT (Multi Utility Technology Testbed)


Attachments

  • lm_sc_sc006_mutt_comparison.jpg
    34 KB · Views: 667
  • lmsc_mutt_alternatives.jpg
    60.6 KB · Views: 674
  • lmsc_mutt_ga2.jpg
    57.6 KB · Views: 698
  • lmsc_mutt_ga.jpg
    74.9 KB · Views: 740
  • lmsc006.jpg
    53.2 KB · Views: 724

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,230
LM's SC006A compared to Boeing's Model 410F4 Sensorcraft


Attachments

  • LM_SC006A_vs_Boeing 410F4.jpg
    LM_SC006A_vs_Boeing 410F4.jpg
    60.6 KB · Views: 76

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,868
Reaction score
760
Matej said:
Look what was found in the Langley tunnel

But it looks like having a pilot/cockpit ! ???


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,134
Reaction score
1,230
Matej, which tunnel it came from? I see guys regularly updating stuff there - that's great!


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
167
Website
www.hitechweb.genezis.eu
flateric said:
Matej, which tunnel it came from? I see guys regularly updating stuff there - that's great!

Not a usual place - check their gallery on the main page: http://www.nasa.gov/centers/langley/multimedia/images.html Its mainly about the Orion capsule, but there is also some aviation stuff too. And to answer you directly: NASA Langley Transonic Dynamics Tunnel

Deino said:
But it looks like having a pilot/cockpit ! ???

Its supposed to loiter for days or at least for dozens of hours in a very lightweight airframe in a high altitude. This is three times no-no-no for the crew on board. Besides - this test is clearly related to the wing, thus we don't see any air intakes and the whole center section of the forward fuselage is simply optimised and simplified for that test.


Similar threads

Top
