Seaplane Jetfighters

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
751
Website
deeptowild.blogspot.com
From Code One magazine:

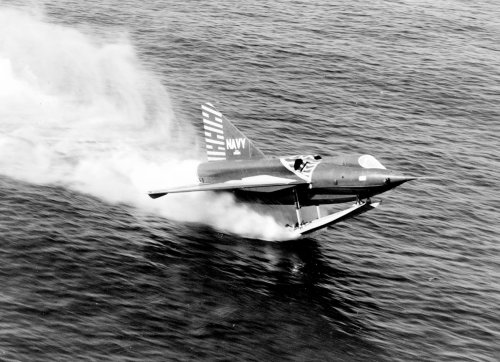

The Convair XF2Y-1 Sea Dart rode on hydro-skis for takeoff. It flew as a prototype and never entered production. It remains the only supersonic seaplane. A total of five aircraft, dubbed were built. Only three flew. The first XF2Y-1 was later refitted with two J46 engines (in place of two J34 engines) and a single-ski configuration to address takeoff and landing problems. The modified XF2Y-1 first flew in late December 1954. After some initial problems, the single-ski design proved successful and made for safe takeoffs and landings even in fairly rough seas.

Source:
http://www.codeonemagazine.com/gallery_slideshow.html?item_id=19


Attachments

  • Seadart_XF2Y_1_single_1267828237_8976.jpg
    403.5 KB · Views: 89

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574

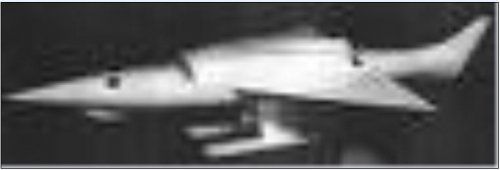

Sorry for that bad quality,

I can't ID this aircraft,may be Convair design !.


Attachments

  • convair.JPG
    15.6 KB · Views: 84

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,058
Reaction score
1,475
Website
www.aerospaceprojectsreview.com
hesham said:
Sorry for that bad quality,

I can't ID this aircraft,may be Convair design !.

Hmm. Now *where* have I seen that before...

http://www.up-ship.com/eAPR/ev2n5.htm



Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
593
If it's the same Convair Skate as the one above, how come the tail fin has been moved so far back, and why is its shape so un-Convair? I don't recall seeing this in any of the other Skate/Betta designs I've seen.


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
14
Website
www.io.com
...On the subject of the Sea Dart, anyone ever come across a general explanation as to why one ski provided significantly more stability during takeoff than two skis clearly did not?


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
699
Reaction score
111
Website
www.tommythomason.com
OM said:
...On the subject of the Sea Dart, anyone ever come across a general explanation as to why one ski provided significantly more stability during takeoff than two skis clearly did not?

The problem with the two-ski configuration that was to be addressed by the single-ski was the "pounding" and resonance problems that resulted from two long, thin skis compared to one wide one. After some development, the single-ski configuration was eventually landed and taken off (once) from the open sea in six to ten foot waves, somewhat in excess of the original requirement.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
593

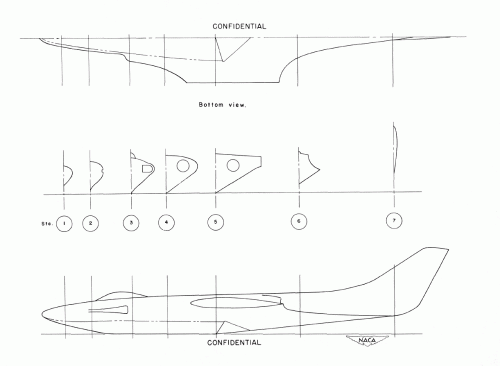

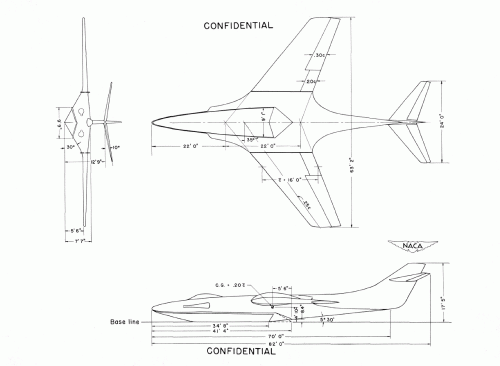

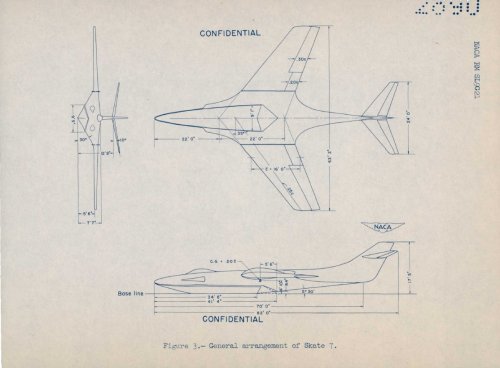

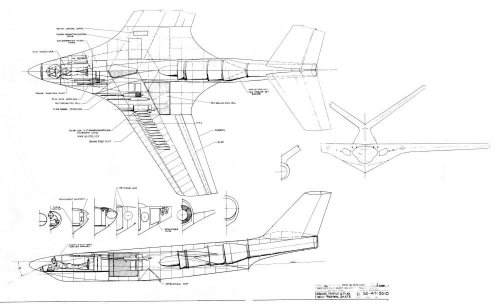

From NACA Research Memorandum DE 338 dated Aug 9, 1949

A model of a Consolidated Vultee Aircraft Corporation Skate 7 seaplane was tested in Langley tank no. 2. Resistance data, spray photographs, and underwater photographs are given in this report without discussion.

The Consolidated Vultee Aircraft Corporation has proposed a jet-propelled type of seaplane (called the "Skate") in which the hull bottom
is merged into the wing resulting in an over-all depth of airplane much less than used in conventional flying boats. Models of several different configurations of the Skate type seaplane have been tested by Consolidated Vultee using their open-water hydrodynamic test facilities.

At the request of the Bureau of Aeronautics, Department of the Navy, a general evaluation of the hydrodynamic characteristics of the Skate 7 is being conducted in Langley tank no. 2. A 1/13-scale powered model used in these tests was designed and constructed by the Consolidated Vultee Aircraft Corporation and designated Langley tank model 261.


Many more pics of the model being tested can be seen in the original document:
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20050030062_2005019380.pdf


Attachments

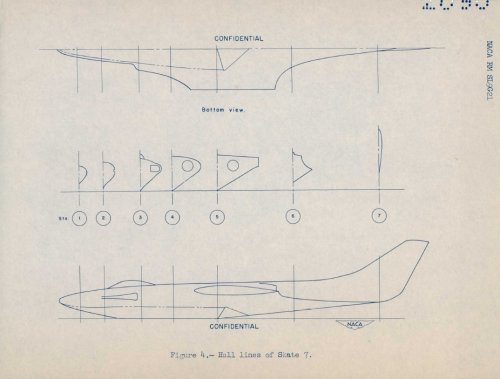

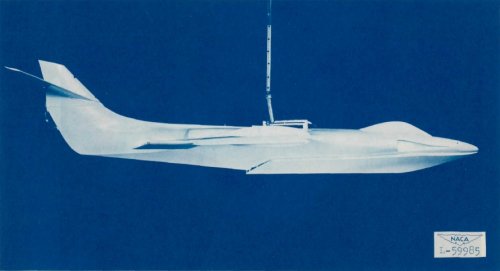

  • Langley Tank Model 261.jpg
    Langley Tank Model 261.jpg
    185.7 KB · Views: 134
  • Skate 7 a.gif
    Skate 7 a.gif
    60.1 KB · Views: 148
  • Skate 7 a.jpg
    Skate 7 a.jpg
    396.4 KB · Views: 168
  • Skate 7.gif
    Skate 7.gif
    80.3 KB · Views: 235
  • Skate 7.jpg
    Skate 7.jpg
    431.7 KB · Views: 212

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574
Hi,

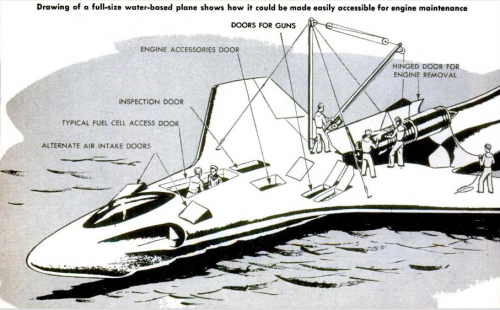

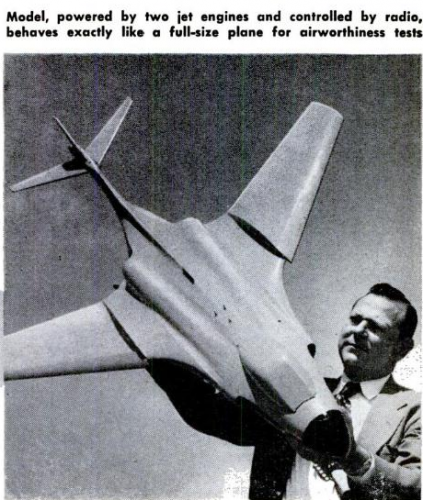

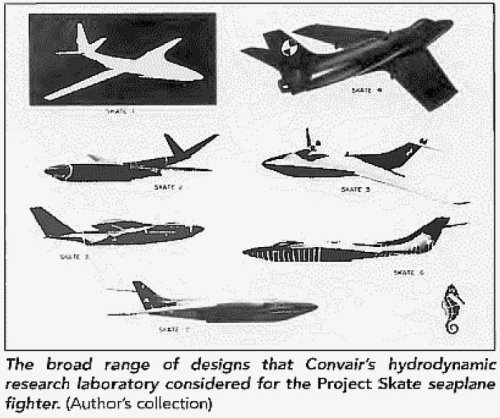

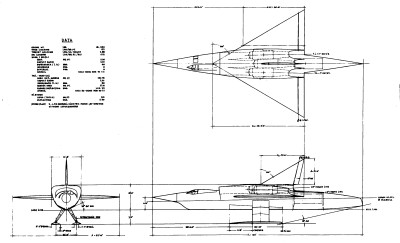

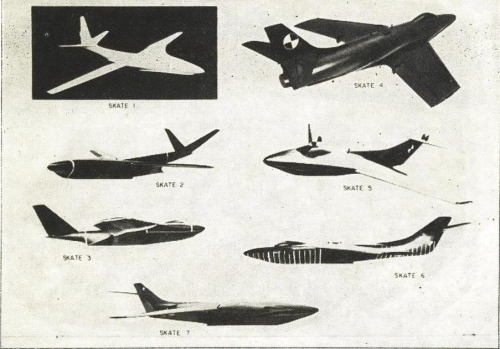

from the book; Convair Deltas,the Convair Skate developments.


Attachments

  • Skate.JPG
    79.5 KB · Views: 124

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
684
Reaction score
339

Attachments

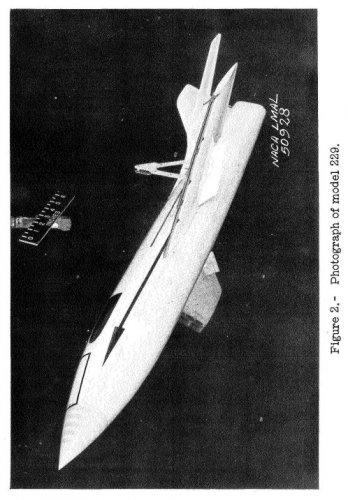

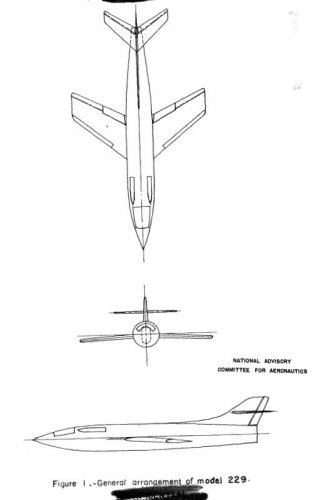

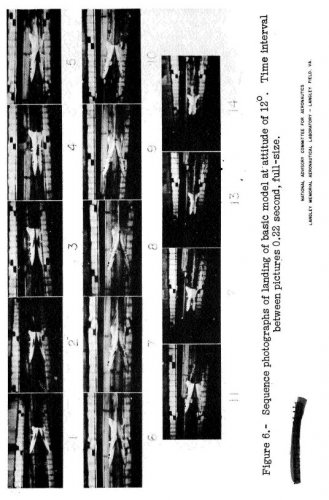

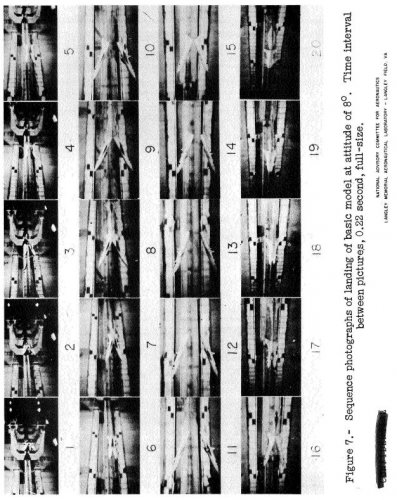

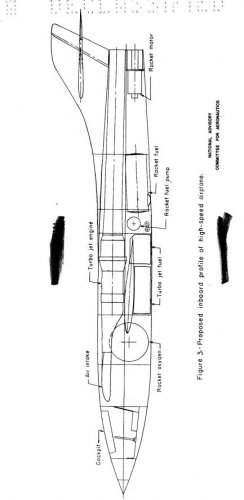

  • naca 229.JPG
    naca 229.JPG
    34.9 KB · Views: 108

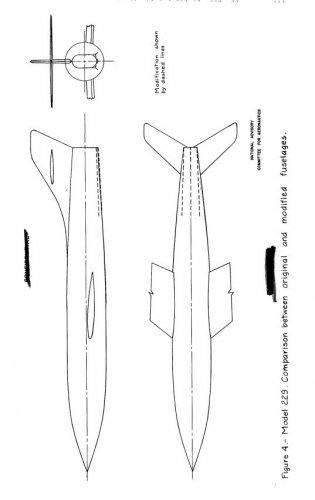

  • naca229side.JPG
    48.5 KB · Views: 84

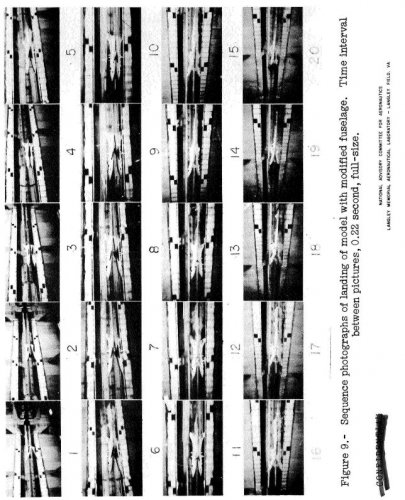

  • naca229sequence3.JPG
    148.9 KB · Views: 1,273
  • naca229sequence2.JPG
    160.3 KB · Views: 1,324
  • naca229sequence.JPG
    107 KB · Views: 1,373
  • naca229modified.JPG
    44.2 KB · Views: 1,402
  • naca229model.JPG
    105.4 KB · Views: 1,430

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
13,849
Reaction score
3,720
mattrix said:
Jemiba said:
This Lockheed project looks a lot more recent, then the other projects. Somebody
who knows the mission concept behind it ? Judging the layout of this fighter, I would
think of the mid 70's, a time when all other combat seaplane projects were long
abandoned.

Your guess was quite correct. See the following excerpt from "Convair XF2Y-1 And YF2Y-1 SeaDart" by Bill Jack Long (Steve Ginter "Naval Fighter" series)

"Over twenty years after the SeaDart program ended, Lockheed Aircraft Company in Burbank, California, made design studies for a Mach Two water based fighter with the exact large single ski configuration tested on the XF2Y-1 SeaDart. Their aircraft design had a modified deltawing with twin afterburning engines mounted above the wings. Lockheed's ski designer, Frank Thornberg, had also designed the large single-ski for the Convair SeaDart. Lockheed made proposals for their aircraft to NATO nations for basing in Europe's many lakes, rivers and sheltered water areas."

A large model was made by Lockheed to promote the concept to the industry and prospective buyers.

As I understand, the artwork from Matej's post on August 28, 2006, shows the Lockheed Mach 2 seaplane over the Dutch polders. :)

Has anyone come across any more info on this project? Images below from earlier in this topic, courtesy of Jemiba, Matej & Dronte (other images found by Overscan & pometablava seem to have gone AWOL, unfortunately). I don't suppose we're any nearer to nailing down it's CL number?

index.php


index.php


index.php


XB-70

ACCESS: Restricted
Joined
Aug 9, 2012
Messages
13
Reaction score
0
Tony Butler mentions in his book "American Secret Projects Fighters & Interceptors" a Lockheed design from 1982 called Hydro Star. He describes it as a blended wing/body design with leading edge root extensions, cranked delta wing and engines mounted above the rear fuselage either side of the fin. Unfortunately theres no picture, but I'm quite sure it's the concept we have here. The idea was to have a fighter to operate form water airbases, as land bases were still considered vulnerable to attack.


Firebee

ACCESS: Confidential
Joined
Apr 1, 2011
Messages
100
Reaction score
2
In "Future Fighters and Combat Aircraft" by Bill Gunston, there is a brief entry about it in the Lockheed-California Projects section, including a cropped version of the above color painting of a Dutch basing concept. The text reads:

"Resurrecting an idea dating from World War II, and last seen in the Convair XF2Y family of 1953, this hydroski fighter would operate from water and thus, at a stroke, could be dispersed away from obvious fixed sites, and could not be bothered by bombing of its airstrip! Lockheed has studied various wing shapes ad ski configurations, this example having a large single ski."

Picture is the book in question, ISBN 0-668-06065-4


Attachments

  • FFtrs.jpg
    50.1 KB · Views: 231

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574

Attachments

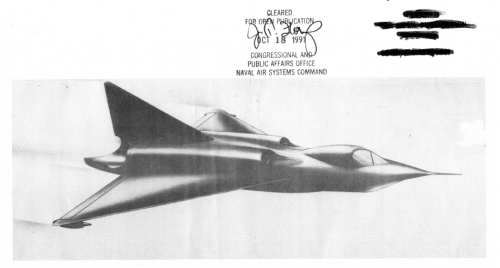

  • 2.png
    66.7 KB · Views: 303

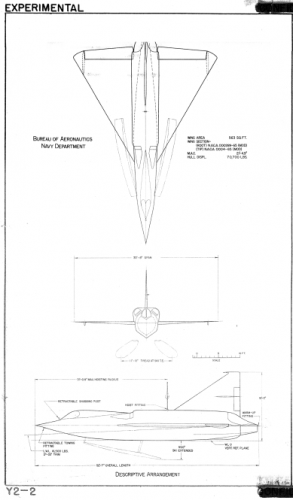

  • 1.png
    310.7 KB · Views: 264

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,211
Reaction score
172
The model photos of the Lockheed design looks as if they were taken at a trade show or conference exhibit - maybe an SAE or AIAA gig - and note in the background of one pic is a poster showing the very-early-80s ATF concept:


http://yf-23.net/Lockheed.html


At the time there was a good deal of concern about counter-runway weapons, particularly dibbers that could "heave" concrete. That was the root of the initial requirement for ATF to use 1500-foot runways and the F-15 SMTD, based on a calculation of how fast the Sovs could make holes in runways, how fast we could dodge mines and fill them in, and (consequently) the longest stretch of undamaged runway we could hope to maintain.


At which point, presumably, someone at CALAC asked the question "Have you ever tried to blow a hole in a lake?"


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574
Jemiba said:
Two other french companies involved in this field, were SNCASE, with the SE X-101 and Nord Aviation with a design, which I know just from one photo, a model for hydrodynamic tests. From this photo and Cunys descriptions; I’ve tried to make a drawing. Any additional information is most welcome !
(Picture 1 and 2 from Cuny „Les Avions De Combat Francais, Tome I“)
The only other seaplane jetfighter I’ve found, is a Lockheed design, similar to the Convair Seadart
(From http://www.strange-mecha.com/aircraft/J-Sea/J-Sea.htm)
Now it’s up to you, I hope for a lot of other types, there must be more !


Hi,


here is a SNCASE X.101 with a few data.



Brochure réalisée pour la conférence de Vitrolles (juin 2013)
Les hydravions à Vitrolles
(de CAMS à la SNCASE)


Attachments

  • X.101.png
    149.8 KB · Views: 176

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
649
Reaction score
135

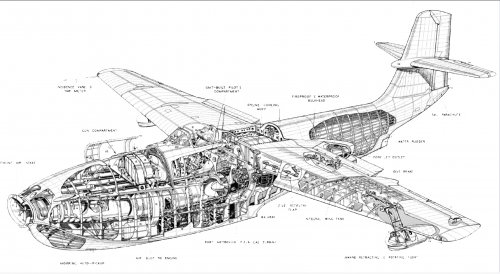

Cutaway Saunders Roe SR


Attachments

  • Cutaway Saunders Roe SR..jpg
    Cutaway Saunders Roe SR..jpg
    547.4 KB · Views: 206

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574
Hi,


I can't ID this jet USA seaplane,a fighter or not,real or just a hypothetical design ?.


http://progress-is-fine.blogspot.com.eg/2014/10/the-new-air-age-1962.html?q=NEW+AIR+AGE&view=magazine


Attachments

  • New-Air-Age-pic-1.png
    345.9 KB · Views: 132

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,425
Read the article from the link and you will find its written by the illustrator Gordon C. Davies for the Eagle comic, and is almost certainly purely speculative.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574
PaulMM (Overscan) said:
Read the article from the link and you will find its written by the illustrator Gordon C. Davies for the Eagle comic, and is almost certainly purely speculative.


Where is that article my dear Paul ?,I can't find it.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,594
Reaction score
1,728
There is a link to Google Docs on the page Hesham linked to.

Assuming that this is the submersible aircraft described on page 148, the article claims it's a Northrop design for a submersible aircraft carrying a Polaris missile.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574
TomS said:
There is a link to Google Docs on the page Hesham linked to.

Assuming that this is the submersible aircraft described on page 148, the article claims it's a Northrop design for a submersible aircraft carrying a Polaris missile.


Hi Tom,


can you give me a direct link ?,thanks.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,594
Reaction score
1,728
It's https://docs.google.com/file/d/0By95K3Kiwg5XWWd1eUMyN1FFbkk/edit


It's the link at the bottom of the page you posted that says "click here." ::)


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
26
Hi
1955 MARTIN
WATER-BASED AIRCRAFT: AN ANALYSIS OF THEIR POTENTIAL.
ATTACK MISSIONS
http://www.dtic.mil/docs/citations/AD0063941


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574
Hi,

the French company SCAN,which built Type-20 & Type-30 flying boats,designed the
SCAN-80,it was twin turbojet seaplane fighter with retractable floats,project of 1949.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574
hesham said:
from the book; Convair Deltas,the Convair Skate developments.

A clearer view.

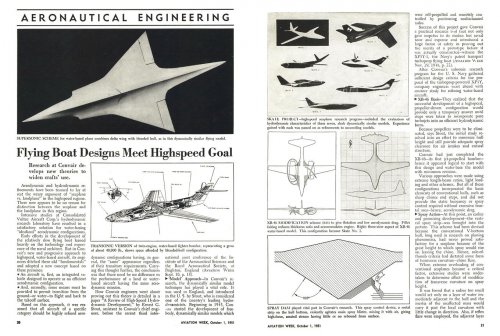

http://archive.aviationweek.com/image/spread/19511001/11/2


Attachments

  • 3.png
    833.7 KB · Views: 787

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574
I correct it.


Attachments

  • 2.jpg
    251.3 KB · Views: 604

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574
Jemiba said:

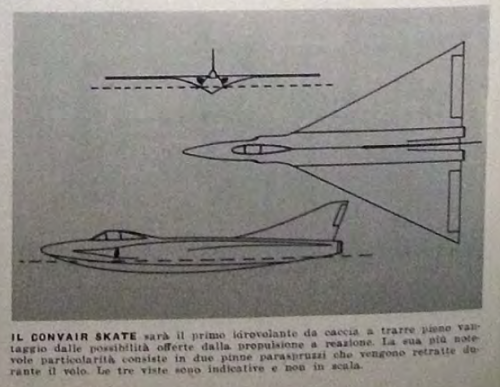

Found in "Der Flieger" .11.1954, a variant of the Convair Skate, already with a
delta wing, but still without the elongated tail :

And from A'Lata;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Alata/Alata%201951%2002.pdf


Attachments

  • 5.png
    484.9 KB · Views: 394

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,490
Reaction score
591
Its the official SR brochure so I guess the illustrations are theirs and Flight simply used them
